B&G Zeus S 3012 Sailing Chartplotter

Overview B&G Zeus S 3012 Sailing Chartplotter

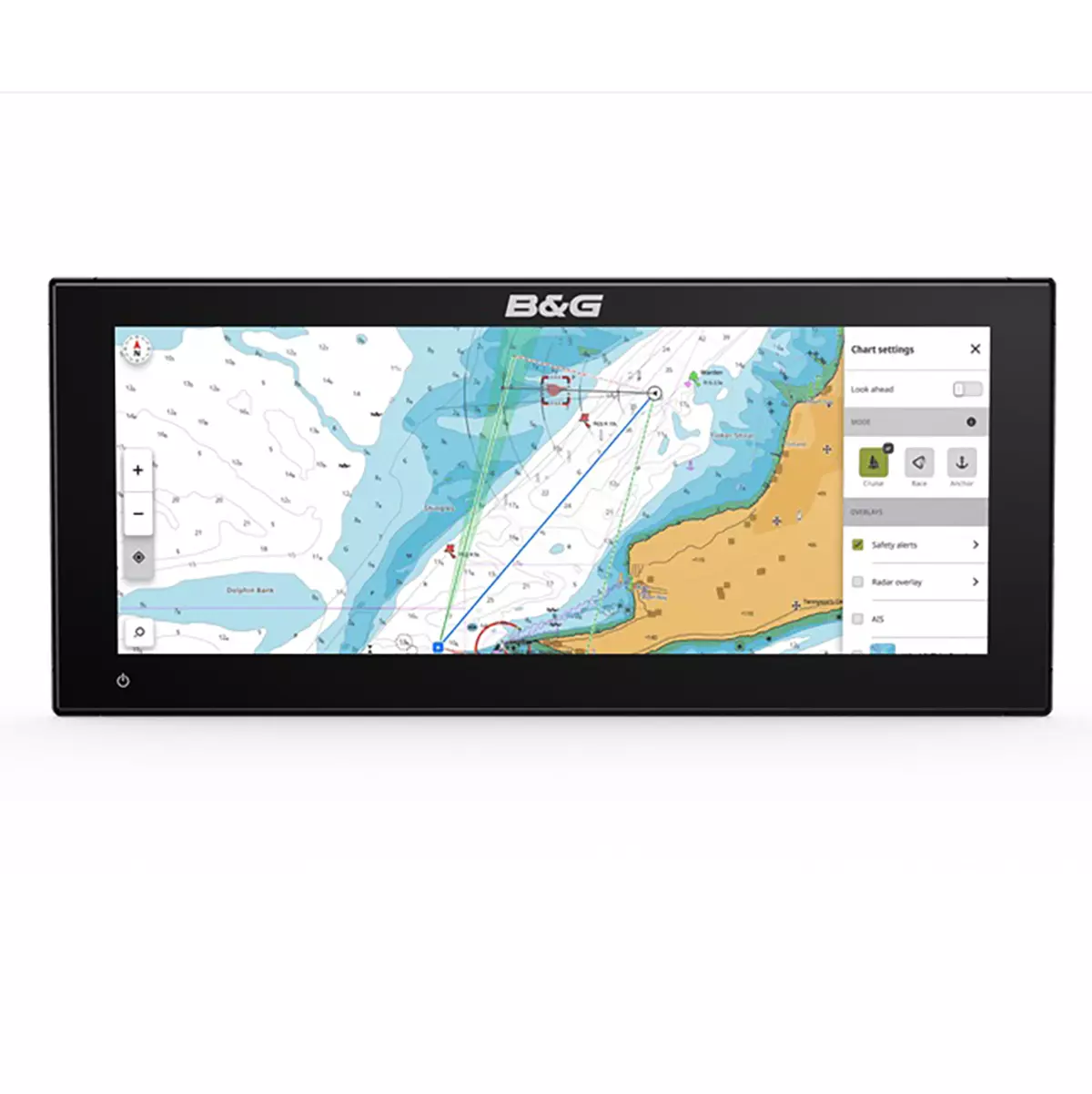

B&G Zeus S 3012 Sailing Chartplotter is a 12-inch ultrawide multifunction display designed for sailors who want a wider helm layout without adding a larger screen. Its 1920 x 720 SolarMAX IPS display, over-1000-nit brightness, and 10 Hz GNSS receiver support clear chart viewing and responsive position updates in bright cockpit conditions.

This model combines sailing modes for cruising, racing, and anchoring with tools such as SailSteer, Laylines, and StartLine. Preloaded C-MAP DISCOVER X charts, X-Chart Manager, a 1 kW Xsonic sonar port, and NMEA 2000, Ethernet, Wi-Fi, and Bluetooth connectivity make it suitable as a central display for modern sailing electronics.

Key Features

• 12-Inch Ultrawide SolarMAX IPS HD Display: The IPS technology provides 85-degree viewing angles and extreme clarity, ensuring the screen is perfectly viewable even while wearing polarized sunglasses in the brightest conditions.
• Optimized Sailing Modes (Cruise, Race, Anchor): Switch instantly between simplified datasets for casual cruising, tactical StartLine tools for racing, or a dedicated Anchor Mode for peace of mind at rest.
• Advanced X-Gen Cartography & Safety Alerts: These charts are optimized for the ultrawide format, featuring high pixel density for sharp resolution and integrated Safety Alerts to warn you of shallow waters or navigational hazards.
• Ground-breaking X-Chart Manager: Simplify your maintenance with direct updates. The B&G Zeus S 3012 allows you to update and manage your charts directly on the device via Wi-Fi, eliminating the need for a PC or external card transfers.
• Elite Sailing Integration: This unit offers full compatibility with HALO Radars, Triton 2 Autopilots, Nemesis Instruments, and a wide array of sensors and sonar modules via NMEA 2000 and Ethernet.

Applications

B&G Zeus S 3012 Sailing Chartplotter is a practical choice for performance yachts, blue-water cruisers, and modern helms that benefit from a wide-format screen. The ultrawide layout works especially well for split views that keep charting, radar, and sailing dashboards visible at the same time.

It also suits skippers who switch between cruising, race preparation, and anchoring without wanting to relearn the interface. Cruise, Race, and Anchor modes help surface the right data for each situation, while chart safety alerts and sonar compatibility add useful support for coastal passages and destination planning.

Specifications

What’s Included

• 1x B&G Zeus S 3012 Ultrawide Multifunction Display
• 1x C-MAP DISCOVER X Chart (North America)
• 1x Zeus S Ultrawide-12 Suncover
• 1x Rear Mount Kit and Hardware
• 1x Fuse and Fuse Holder
• 1x Comprehensive Installation and Operation Documentation
