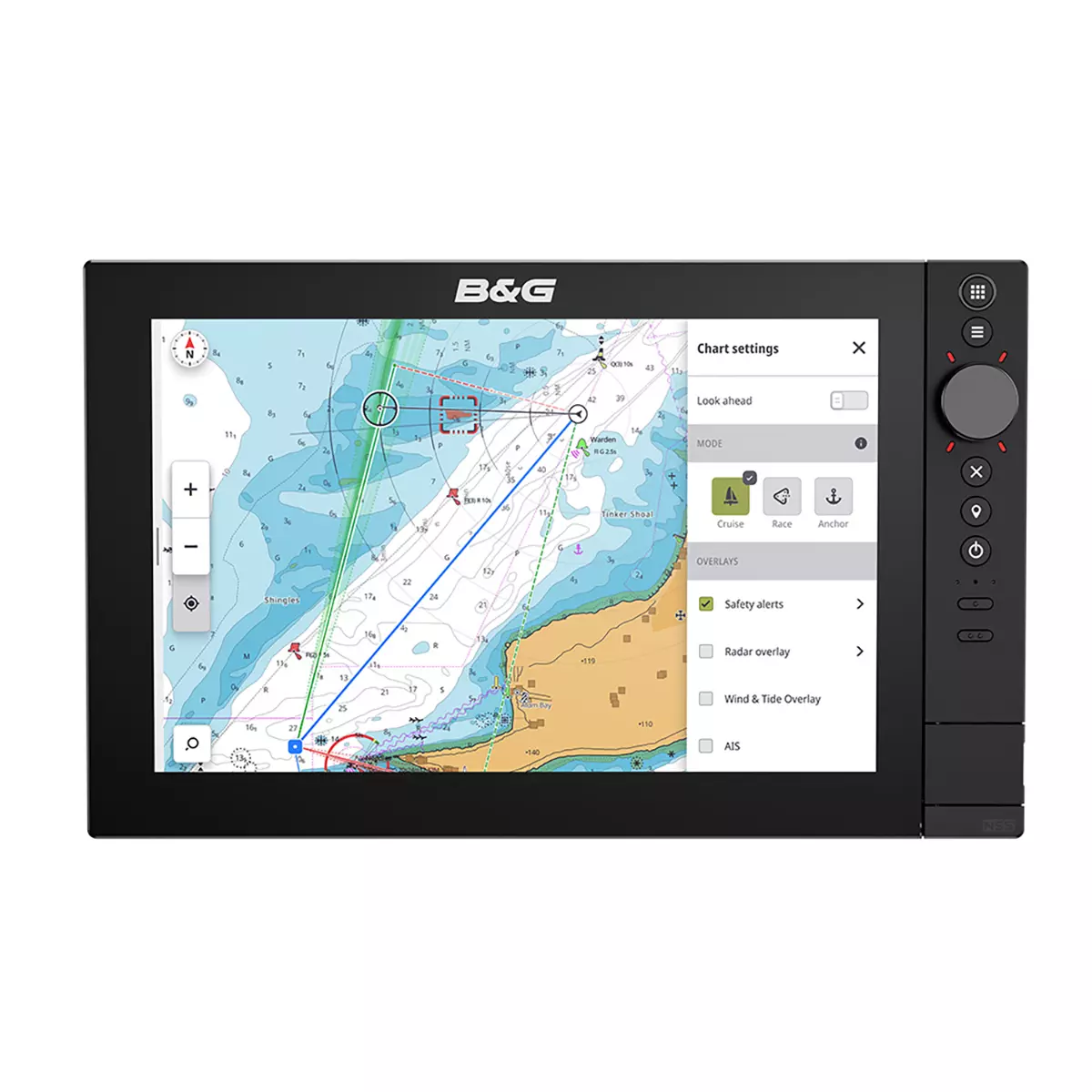

B&G Zeus SR 12 Sailing Multifunction Display
$2,729.00
B&G Zeus SR 12 Sailing Multifunction Display is a 12-inch sailing MFD with an 8-core processor, SolarMAX IPS touchscreen, and preloaded C-MAP DISCOVER X cartography. It brings SailSteer, LayLines, and fast helm integration together in one display.
Overview B&G Zeus SR 12 Sailing Multifunction Display
B&G Zeus SR 12 Sailing Multifunction Display is built for sailing helms that need fast chart handling, clear visibility, and dedicated sailing tools in one screen. The 12-inch SolarMAX IPS touchscreen is designed for easy viewing in direct sunlight and through polarized glasses, while the 8-core processor helps keep chart movement, routing, and data changes responsive.
This model is aimed at sailors who want navigation data and tactical sailing functions on the same display. It includes preloaded C-MAP DISCOVER X cartography for the US and Canada and supports features such as SailSteer, LayLines, and StartLine, along with NMEA 2000, Gigabit Ethernet, Wi-Fi 5, and support for up to four ONVIF IP cameras.
Key Features
- 8-core sailing processor: Supports fast chart redraws, route changes, and multitasking across connected sensors without slowing the display.
- 12-inch SolarMAX IPS touchscreen: Keeps navigation and sailing data readable from wide viewing angles, in direct sunlight, and with polarized eyewear.
- Dedicated sailing tools: SailSteer, LayLines, and StartLine help present wind, course, and race-related data in a format that is easier to act on.
- C-MAP DISCOVER X mapping: Provides ready-to-use cartography with Safety Alerts and supports chart updates through the X-Chart Manager workflow.
- Connected helm support: NMEA 2000, Gigabit Ethernet, Wi-Fi 5, and ONVIF camera support make it easier to build an integrated sailing navigation station.
Applications
A strong fit for performance sailing, coastal passagemaking, and racing setups where wind data, route awareness, and quick helm response matter.
Useful as the main display on a modern sailing helm that needs charting, instrument data, camera viewing, and networked integration in one unit.
Specifications
| Display size | 12.0 inches |
| Display type | SolarMAX IPS |
| Processor | High-performance 8-core sailing CPU |
| Mapping | Preloaded C-MAP DISCOVER X |
| Sailing features | SailSteer, LayLines, StartLine |
| Networking | NMEA 2000, Gigabit Ethernet, Wi-Fi 5 |
| Video support | Up to 4x IP video cameras (ONVIF) |
| Waterproof rating | IPX6 and IPX7 |
| Weight | 2.8 kg (6.17 lbs) |
| Warranty | 2-year limited manufacturer warranty |
What’s Included
- B&G Zeus SR 12 Multifunction Display
- C-MAP® DISCOVER® X Chart Card (US/Canada)
- Protective Suncover for 12-inch Display
- Mounting Bracket Kit and Hardware
- Power Cable (4-pin) and NMEA 2000 Drop Cable
- Comprehensive Installation and Operation Documentation
