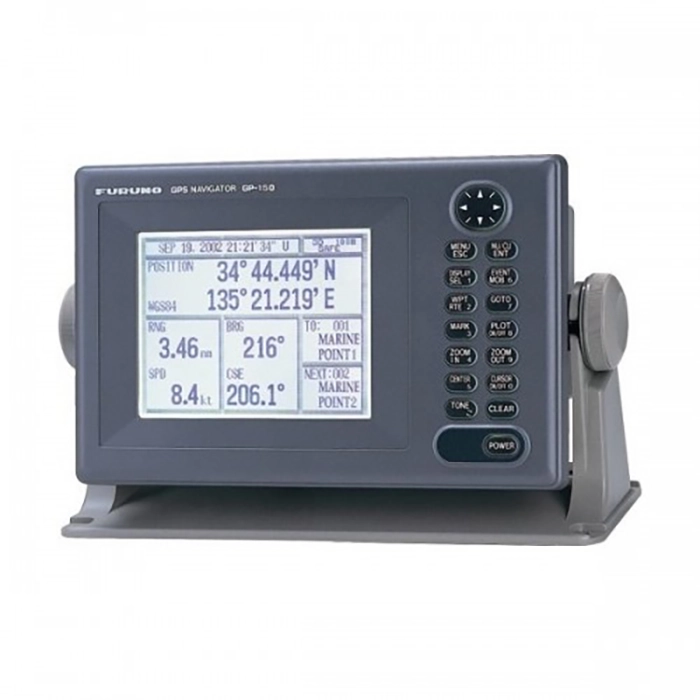

Furuno GP150 IMO GPS Navigator

Overview Furuno GP150 IMO GPS Navigator

Furuno GP150 IMO GPS Navigator is a dedicated marine GPS navigator for vessels that need clear position, route, and steering information from a standalone unit. It combines 6-inch Silver Bright LCD (Sunlight Viewable) with 12-Channel Parallel Tracking (WAAS standard) for straightforward bridge operation.

This model works well as a primary navigator on smaller vessels or as a separate backup/navigation source on larger bridges. Source data highlights IMO Resolution MSC.112(73) & IEC 61108-1 Ed.2; GPS: 10m / WAAS: 3m / DGPS: 2m (Optional); RAIM (Receiver Autonomous Integrity Monitoring).

Key Features

• Compliance-ready navigation: IMO Resolution MSC.112(73) & IEC 61108-1 Ed.2 supports installations that must meet formal carriage or equipment standards.
• Dedicated GPS receiver: 12-Channel Parallel Tracking (WAAS standard) provides a focused navigation source for position, route, and steering data.
• Position accuracy: GPS: 10m / WAAS: 3m / DGPS: 2m (Optional) helps maintain dependable fixes for day-to-day navigation.
• Integrity monitoring: RAIM (Receiver Autonomous Integrity Monitoring) helps the operator confirm signal reliability.
• Readable navigation display: 6-inch Silver Bright LCD (Sunlight Viewable) presents position and route data in a compact dedicated screen.
• Multiple navigation views: VideoPlotter, Highway, Text, Steering allows the operator to switch between plotter, steering, highway, or data pages as needed.

Applications

• Commercial vessels and bridge refits that need a dedicated GPS navigator for IMO or SOLAS-aligned installations.
• Backup navigation positions alongside radar, ECDIS, or autopilot systems where a separate GPS source is preferred.
• Operators who want a dedicated route and steering display instead of relying only on a multifunction unit.

Specifications

What’s Included

• Furuno GP150 GPS Navigator Display Unit
• GPA017 GPS Antenna Unit (12-channel)
• Antenna Cable (Standard Length)
• Power Cable Assembly
• Standard Installation Hardware and Flush Mount Kit
• Comprehensive Installation and Operation Documentation
