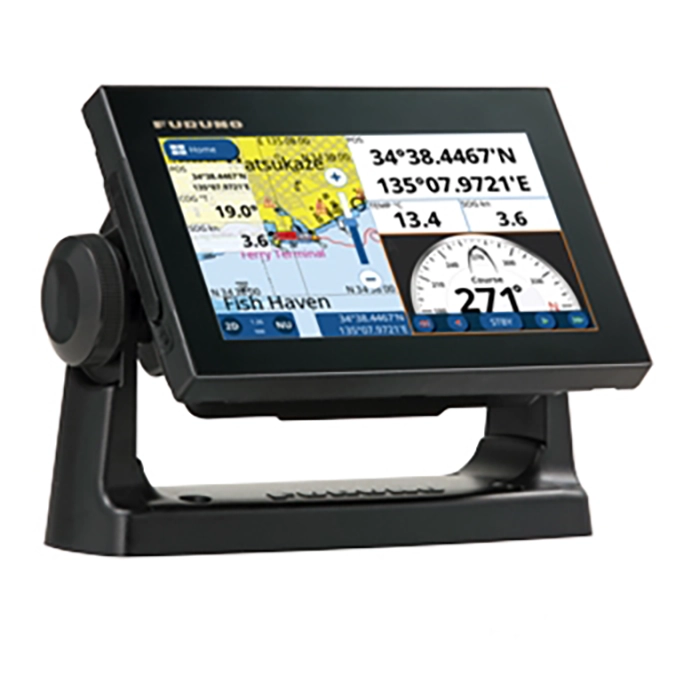

Furuno GP1871F Chartplotter Fishfinder
$450.00
Furuno GP1871F Chartplotter Fishfinder combines a 7-inch Multi-Touch WVGA LCD with Internal TruEcho CHIRP™ Sonar and marine charting support in one compact helm unit. It is built for skippers who want clear charting, fishfinding, and practical integration features such as Bottom Discrimination and Accu-Fish support; CHIRP-based target separation.
Overview Furuno GP1871F Chartplotter Fishfinder
Furuno GP1871F Chartplotter Fishfinder is an integrated chartplotter fishfinder designed for skippers who want navigation and sonar in one helm-ready display. It pairs a 7-inch Multi-Touch WVGA LCD with Internal TruEcho CHIRP™ Sonar and an internal GPS receiver for everyday coastal navigation and fishing use.
This model is suited to compact fishing boats, center consoles, and coastal cruisers that need clear chart detail and dependable bottom reading. Source data includes NMEA2000 (CAN bus), NMEA0183, WiFi; DRS4W Wireless Radar Compatible.
Key Features
- Display designed for daylight use: 7-inch Multi-Touch WVGA LCD keeps charts and sonar easy to read at the helm, with 800 x 480 Pixels (High-Brightness).
- Integrated fishfinding engine: Internal TruEcho CHIRP™ Sonar supports bottom reading and fish target separation without adding a separate sounder module.
- Bottom and target interpretation: Bottom Discrimination and Accu-Fish functions help separate fish from structure and give more context below the boat.
- Networking options: NMEA2000 (CAN bus), NMEA0183, WiFi makes it easier to connect the unit with other onboard electronics.
- Radar expansion: DRS4W Wireless Radar Compatible adds flexibility for skippers building a wider navigation system.
- Internal GPS receiver: Internal 72-Channel GPS/WAAS Receiver keeps positioning available without a separate external receiver in the base configuration.
Applications
- Center consoles, small sportfishing boats, and coastal cruisers that need navigation and fishfinding in one display.
- Helms that need clearer target separation around bait, structure, or changing bottom contours.
- Installations that may expand to radar, AIS, or networked sensors without replacing the primary display.
Specifications
| Display Size | 7-inch Multi-Touch WVGA LCD |
| Resolution | 800 x 480 Pixels (High-Brightness) |
| Sonar Type | Internal TruEcho CHIRP™ Sonar |
| Frequency | CHIRP: 40 to 225 kHz / CW: 50/200 kHz |
| Radar Support | DRS4W Wireless Radar Compatible |
| Networking | NMEA2000 (CAN bus), NMEA0183, WiFi |
| GPS Antenna | Internal 72-Channel GPS/WAAS Receiver |
| Waterproof Rating | IP56 Professional Marine Standards |
| Power Requirements | 12 – 24 VDC |
What’s Included
- Furuno GP1871F 7-inch Multi-Touch Multifunction Display
- Protective White Suncover
- Power/Data Cable Assembly
- Mounting Bracket and Knobs
- Standard Installation Hardware and Flush Mount Template
- Comprehensive Installation and Operation Documentation
