Furuno TZT19F Multifunction Display

Overview Furuno TZT19F Multifunction Display

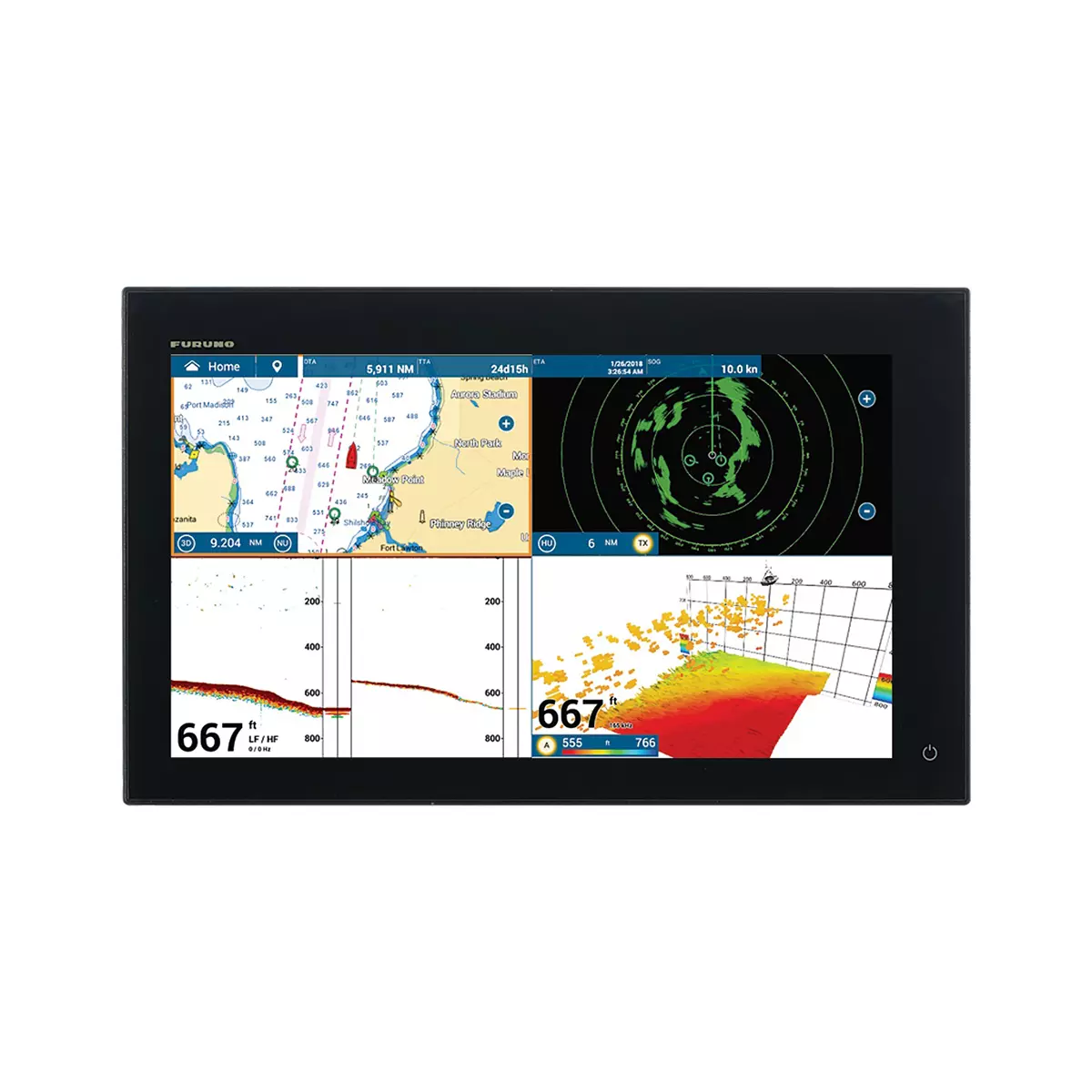

Furuno TZT19F Multifunction Display is a large-format 18.5-inch Full HD NavNet TZtouch3 screen designed for bridge installations that need generous viewing area and integrated marine electronics support. It combines a 1920 x 1080 IPS display, a quad-core processor, built-in 1 kW TruEcho CHIRP sonar, and 10 Hz GPS for responsive chart handling and sonar presentation.

The unit also includes dual LAN ports, Wi-Fi, Bluetooth, HDMI input and output, composite inputs, and PIN-code security. That combination makes it a practical central display for larger consoles where multiple sources, network expansion, and day-to-day access control all matter.

Key Features

• Massive 19-Inch Full HD IPS Display: The IPS technology provides exceptional color accuracy and 80-degree viewing angles, ensuring the operator and crew can monitor data from anywhere on the bridge without distortion.
• Lightning-Fast Quad-Core Processor: The quad-core CPU ensures smooth panning, seamless 3D chart rotation, and rapid multitasking across high-bandwidth sensors like NXT Doppler Radar and internal sonar.
• Built-in 1kW TruEcho CHIRP Sonar: The integrated 1 kW TruEcho CHIRP and CW sonar supports detailed fish and bottom presentation, and the system can be expanded with the Deep Impact amplifier when higher output is required.
• Advanced TZ Cloud & Mobile Sync: Create routes at home using the TZ iBoat iOS app or a web browser and sync them automatically to your Furuno TZT19F via the cloud, ensuring all marks, routes, and catch data are backed up securely.
• Enhanced PIN-Code Security: Protect your livelihood and proprietary fishing spots. The new PIN-lock feature requires a four-digit password upon startup, keeping your navigation data safe from unauthorized access or theft.

Applications

Furuno TZT19F Multifunction Display is well suited for larger helms, enclosed bridges, and sportfishing or cruising vessels that benefit from a wide screen for chart, radar, sonar, and instrument views. The 18.5-inch format gives more space for split-screen operation without forcing operators to rely on a second display immediately.

It is also a strong option for owners who want integrated sonar and network growth in the same platform. Dual LAN, HDMI I/O, and fast position updates make it useful for boats that run several sensors and displays across a connected Furuno system.

Specifications

What’s Included

• 1x Furuno TZT19F 19-inch NavNet TZtouch3 MFD
• 1x Grey Silicone Protective Cover
• 1x Power Cable Assembly (2 meters)
• 1x 12-to-10 Pin Transducer Adapter Cable
• 1x Flush Mount Fixture and Mounting Hardware
• 1x EMI Core and Connector Caps
• 1x Comprehensive Installation and Operation Documentation
