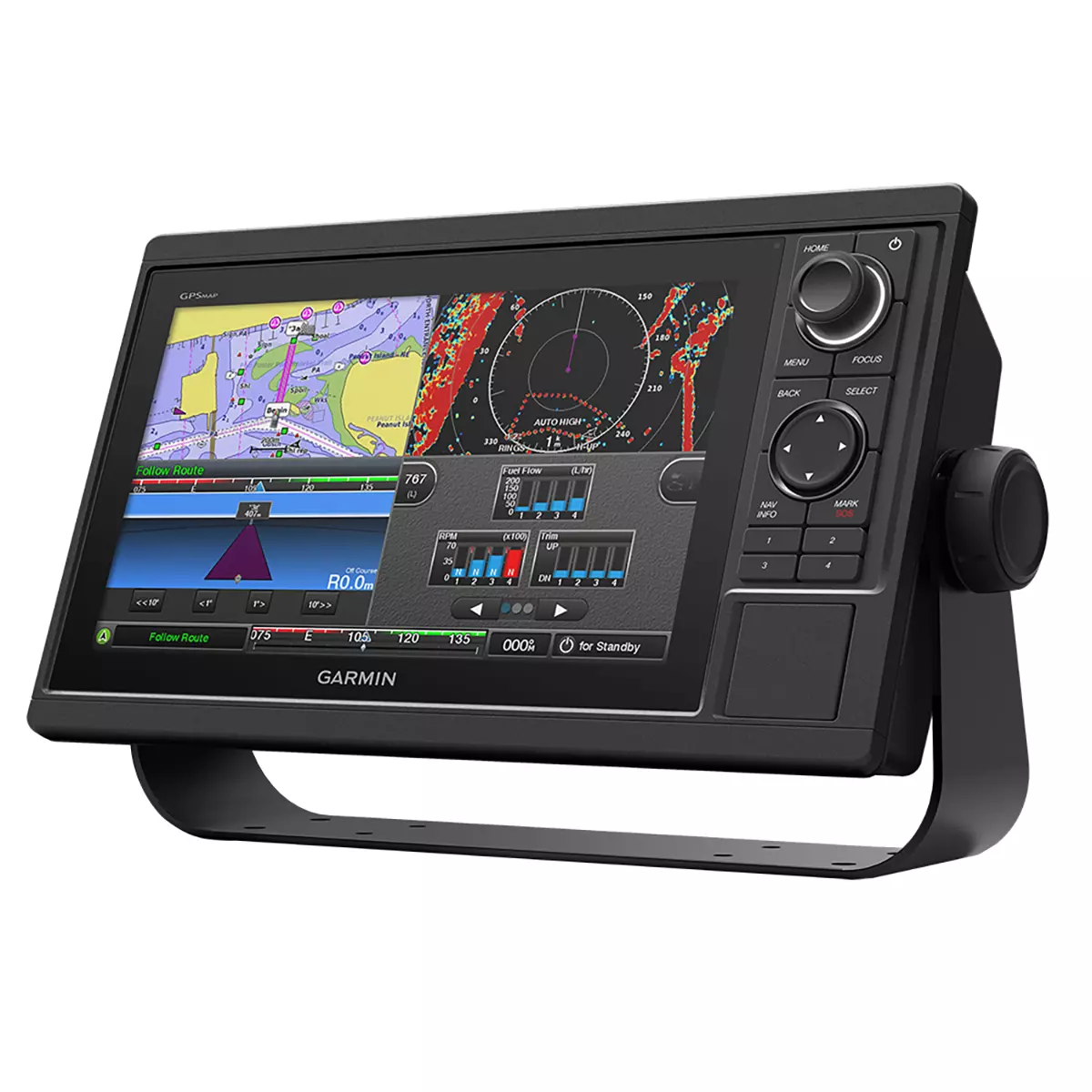

Garmin GPSMAP 1022 Chartplotter
$909.00
Garmin GPSMAP 1022 Chartplotter is a chartplotter built for integrated helm use, combining 10.0 inches Diagonal, 1024 x 600 pixels (WSVGA), and Garmin Marine Network, NMEA 2000, NMEA 0183 for navigation, chart control, and connected onboard systems.
Overview Garmin GPSMAP 1022 Chartplotter
Garmin GPSMAP 1022 Chartplotter is a chartplotter built for navigation, chart management, and integration with compatible onboard electronics. Key specifications include 10.0 inches Diagonal, 1024 x 600 pixels (WSVGA), and Garmin Marine Network, NMEA 2000, NMEA 0183.
It is well suited to sailing and cruising, coastal operation, and offshore navigation where captains need a responsive display for route planning, split-screen viewing, and connected sensors. Features such as Intuitive Keypad and Control Knob Interface and High-Speed 10 Hz GPS/GLONASS Receiver help support visibility, system control, and everyday helm operation.
Key Features
- Intuitive Keypad and Control Knob Interface: Designed for "no-miss" operation, the unit features a dedicated keypad with user-programmable keys and a large multifunction control knob. This setup is a reliable keyed chartplotter for sailing races, allowing for rapid adjustments to zoom levels and data fields even when wearing gloves or operating in heavy swells.
- High-Speed 10 Hz GPS/GLONASS Receiver: Position and heading are refreshed 10 times every second. This high-frequency update rate ensures that your vessel's movement on the screen is exceptionally fluid, making it significantly easier to drop and return to up to 5,000 accurate waypoints with precision.
- SailAssist Technology: The unit provides a pre-race guidance page showing your virtual starting line, laylines, time to burn, and a synchronized race timer.
- Full System Networking: The Garmin GPSMAP 1022 supports sharing sonar, radar, maps, and IP camera data across multiple Garmin units.
- Expandable Mapping and Memory: Two SD card slots provide ample space for premium chart upgrades like BlueChart® g2 Vision® HD. These upgrades unlock Garmin’s patented Auto Guidance technology, which calculates the safest path through narrow channels based on your vessel’s dimensions.
Applications
Garmin GPSMAP 1022 Chartplotter is suitable for use on sailing and cruising, coastal operation, and offshore navigation where a central display is needed for charts, route planning, and connected onboard data. Its 10.0 inches Diagonal screen and Garmin Marine Network, NMEA 2000, NMEA 0183 support day-to-day navigation together with radar, sonar, video, or NMEA network integration where applicable.
It also fits refit and upgrade projects where captains want a cleaner helm layout without giving up system visibility. Features such as Intuitive Keypad and Control Knob Interface and High-Speed 10 Hz GPS/GLONASS Receiver help keep chart data and connected functions accessible during coastal passages, offshore runs, and routine maneuvering.
Specifications
| Display Size | 10.0 inches Diagonal |
| Resolution | 1024 x 600 pixels (WSVGA) |
| Interface Type | Keypad with Multifunction Knob |
| GPS Receiver | 10 Hz High-Sensitivity GPS/GLONASS |
| Sonar Support | None (Display only – shares over network) |
| Networking | Garmin Marine Network, NMEA 2000, NMEA 0183 |
| Wireless | Wi-Fi (ActiveCaptain App) |
| Memory Slots | 2x SD Card Slots |
| Waterproof Rating | IPX7 Standards |
| Product Warranty | Limited Manufacturer Warranty Included |
What’s Included
- 1x Garmin GPSMAP 1022 Keyed Chartplotter
- 1x Power/Data Cable
- 1x NMEA 2000 Drop Cable (2m) and T-connector
- 1x Bail Mount Kit with Adjustment Knobs
- 1x Flush Mount Kit with Gasket
- 1x Protective Suncover and Trim Piece Snap Covers
- 1x Comprehensive Documentation and Installation Guide
