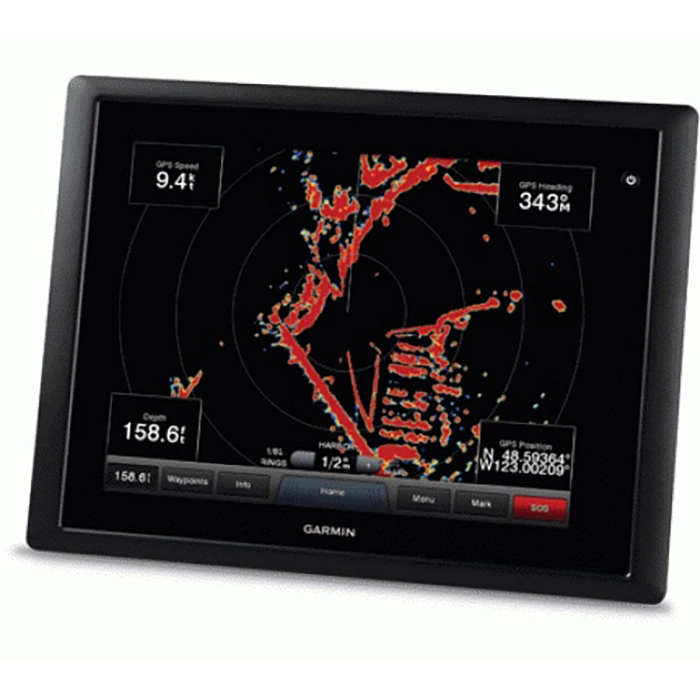

Garmin GPSMAP 8012 Multifunction Display

Overview Garmin GPSMAP 8012 Multifunction Display

Garmin GPSMAP 8012 Multifunction Display is a 12.1-inch network-ready marine display built for charting, monitoring, and multi-window helm use. It supports 10Hz High Sensitivity (External) for smooth integration with radar, sonar, and onboard instruments. Key onboard capabilities include 1024 x 768 pixels (XGA), 10Hz High Sensitivity (External).

In an offshore fishing scenario, the 12.1-inch screen allows the captain to view high-definition radar overlay alongside a dedicated sonar window. This integration is critical when tracking fast-moving weather fronts or identifying subtle bottom structures where game fish tend to congregate.

Key Features

• 12.1-Inch High-Resolution XGA Display: The large 1024×768 pixel screen provides ample room for split-screen viewing, allowing you to monitor charts, radar, and engine vitals simultaneously without sacrificing detail or clarity.
• 10Hz High-Sensitivity GPS: Included with the system is the GPS 19x NMEA 2000 receiver. This external antenna updates your position and heading ten times per second, offering significantly smoother movement on the map than standard internal units.
• This multi-touch multi-function display offers three distinct mounting options: the traditional bail mount, a low-profile flush mount, or the exclusive flat-mount option for a seamless, all-glass dashboard look.
• Seamless NMEA 2000 Integration: Built for total connectivity, the 8012 allows you to share data across your entire vessel, including autopilot control, digital switching, and advanced weather sensors, all accessible from a single touch interface.
• Industrial Waterproof Marine Display: Rated to IPX7 standards, the unit is fully protected against heavy rain, salt spray, and temporary immersion, ensuring your navigation hardware stays functional in the roughest sea states.
• Dual Ethernet Networking: Features robust networking ports that allow for the high-speed transfer of radar and sonar data between multiple displays, creating a redundant and powerful electronics architecture.

Applications

In an offshore fishing scenario, the 12.1-inch screen allows the captain to view high-definition radar overlay alongside a dedicated sonar window. This integration is critical when tracking fast-moving weather fronts or identifying subtle bottom structures where game fish tend to congregate.

Because the unit is fully networkable, the same high-resolution data can be mirrored to other stations on the flybridge or in the cockpit. For long-range cruisers, the Garmin GPSMAP 8012 serves as the mission control.

Specifications

What’s Included

• 1x Garmin GPSMAP 8012 Multi-Function Display
• 1x Bail mount and knobs for adjustable installation
• 1x GPS 19x NMEA 2000 external antenna (with multiple adapters)
• 1x Dedicated Garmin marine card reader
• 1x Protective sun cover for screen protection
• 1x Flush mount gasket and mounting hardware
• 1x Comprehensive NMEA 2000 and power cable kit
• 1x Detailed documentation and manual case
