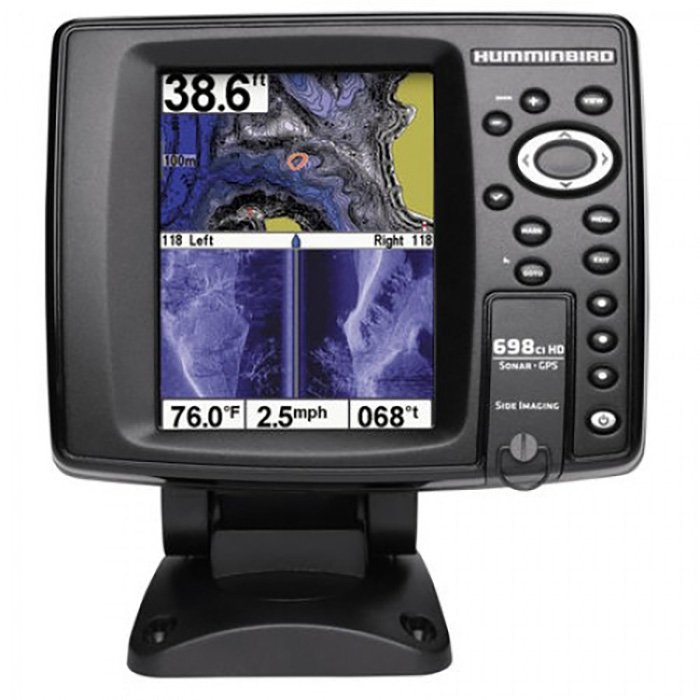

Humminbird 698ci HD SI Chartplotter Fishfinder Combo
$198.00
Humminbird 698ci HD SI Chartplotter Fishfinder Combo combines Side Imaging, Down Imaging, DualBeam PLUS with a 5-inch display and integrated GPS mapping. It is built to show sonar returns, structure, and chart data together for more confident navigation and fishing decisions.
Overview Humminbird 698ci HD SI Chartplotter Fishfinder Combo
Humminbird 698ci HD SI Chartplotter Fishfinder Combo combines chartplotter and fishfinder functions in one marine unit, making it easier to read sonar returns and navigation data from the same screen. Built around a 5-inch display, the 640V x 480H (HD Color TFT) display is matched with Side Imaging, Down Imaging, DualBeam PLUS so the unit can support both route decisions and fishing setup.
Humminbird 698ci HD SI Chartplotter Fishfinder Combo is especially useful for operators who want one display to manage navigation, waypoint work, and sonar interpretation without moving between separate devices. Internal 10kHz High-Speed Precision; 1500 ft (Sonar) / 100 ft (SI/DI).
Key Features
- Display clarity: Uses a 5-inch display with 640V x 480H (HD Color TFT) so sonar, charts, and system data remain easier to read from the helm.
- Sonar capability: Side Imaging, Down Imaging, DualBeam PLUS. Scans structure to both sides of the boat for better coverage when searching flats, ledges, and channels.
- Positioning: Internal 10kHz High-Speed Precision keeps chart position and waypoint updates responsive for navigation and return-to-spot accuracy.
- Depth performance: 1500 ft (Sonar) / 100 ft (SI/DI) shows the sonar range and conditions the model is intended to handle.
- Side coverage: 240 ft Either Side (480 ft Total) helps cover more water in one pass when scanning for structure or fish-holding areas.
- Marine-ready construction: IPX7 Standards supports use in exposed marine environments.
Applications
This model fits anglers who want Side Imaging detail without moving to a large-screen unit. It is useful for scanning weedlines, ledges, creek channels, and bait-holding structure, then switching quickly to charting and waypoint work as the boat moves between locations.
The combination of Side Imaging, Down Imaging, and GPS mapping makes it a practical choice for inland reservoirs, bays, and coastal fishing grounds where both search coverage and route awareness matter.
Specifications
| Display Size | 5.0 inches Diagonal |
| Display Resolution | 640V x 480H (HD Color TFT) |
| GPS Receiver | Internal 10kHz High-Speed Precision |
| Sonar Technology | Side Imaging, Down Imaging, DualBeam PLUS |
| Power Output | 500 Watts (RMS) / 4000 Watts (PTP) |
| Depth Capability | 1500 ft (Sonar) / 100 ft (SI/DI) |
| Side Imaging Range | 240 ft Either Side (480 ft Total) |
| Target Separation | 2.5 inches |
| Waterproof Rating | IPX7 Standards |
| Product Warranty | 1-Year Limited Manufacturer Warranty |
What’s Included
- Humminbird 698ci HD SI Chartplotter/Fishfinder Unit
- XNT-9-SI-180-T Transom-Mount Transducer
- Tilt and Swivel Quick Disconnect Mounting System
- Power Cable (6 ft)
- Installation Hardware and Mounting Gasket
- User Manual and Documentation Pack
