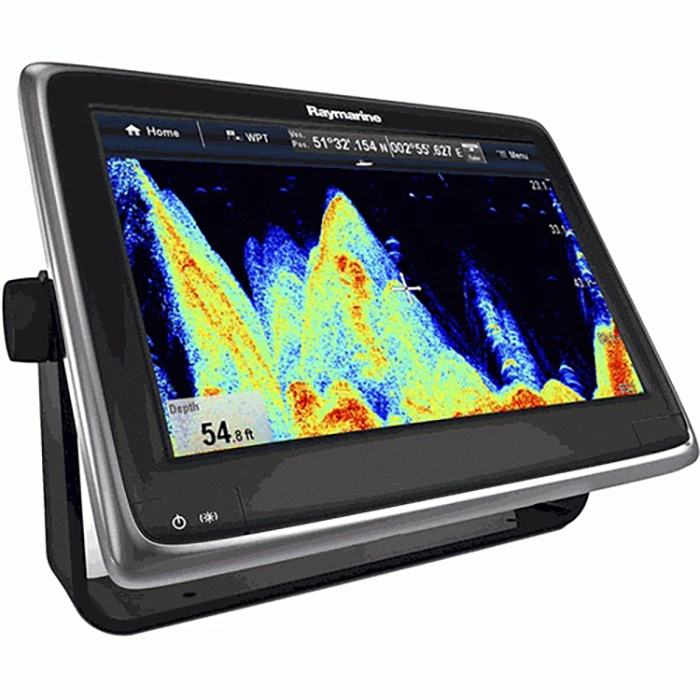

Raymarine a127 Multifunction Display Combo

Overview Raymarine a127 Multifunction Display Combo

Raymarine a127 Multifunction Display Combo is a large-format touchscreen display that combines chartplotter capability with built-in dual-frequency digital sonar. The source data positions it as an all-in-one choice for cruising boats and coastal anglers, using 50/200 kHz 600-watt sonar that can target fish to depths of 3,000 feet when paired with a compatible transducer sold separately.

The display runs Raymarine’s LightHouse II interface on a bright 12.1-inch sunlight-viewable screen with pinch-to-zoom control. It also supports broader system expansion through dual RayNet ports plus SeaTalkng and NMEA2000 networking, allowing connection to radar, additional sonar, thermal cameras, SiriusXM Marine Weather receivers, instruments, and other Raymarine displays.

Key Features

• 12.1-inch sunlight-viewable touchscreen gives a larger working area for chart and sonar information.
• Built-in 50/200 kHz 600-watt digital sonar combines navigation and fishfinding in one display platform.
• Fish targeting to 3,000 feet supports deeper-water use when installed with a compatible transducer.
• LightHouse II interface adds familiar touchscreen control with pinch-to-zoom chart handling.
• Dual RayNet plus SeaTalkng and NMEA2000 support broad expansion across other marine electronics.
• Compatible with Navionics and LightHouse Raster/Vector charts of the USA keeps chart selection flexible.

Applications

• Well suited to cruising boats that want a large central display for route planning, navigation, and onboard system integration.
• Useful to coastal anglers who want chartplotter and sonar functions together without adding a separate fishfinder display.
• A practical helm choice when radar, weather, AIS, cameras, or multiple Raymarine displays are planned as part of the wider system.

Specifications

What’s Included

• Power/data/video cable (1.5 meters)
• Flexible suncover
• Front trim bezel kit
• Trunnion bracket kit
• Flush mount kit
• SeaTalkng to DeviceNet adapter
• SeaTalkng spur cable (1 meter)
• RayNet to RayNet interface cable (2 meters)
