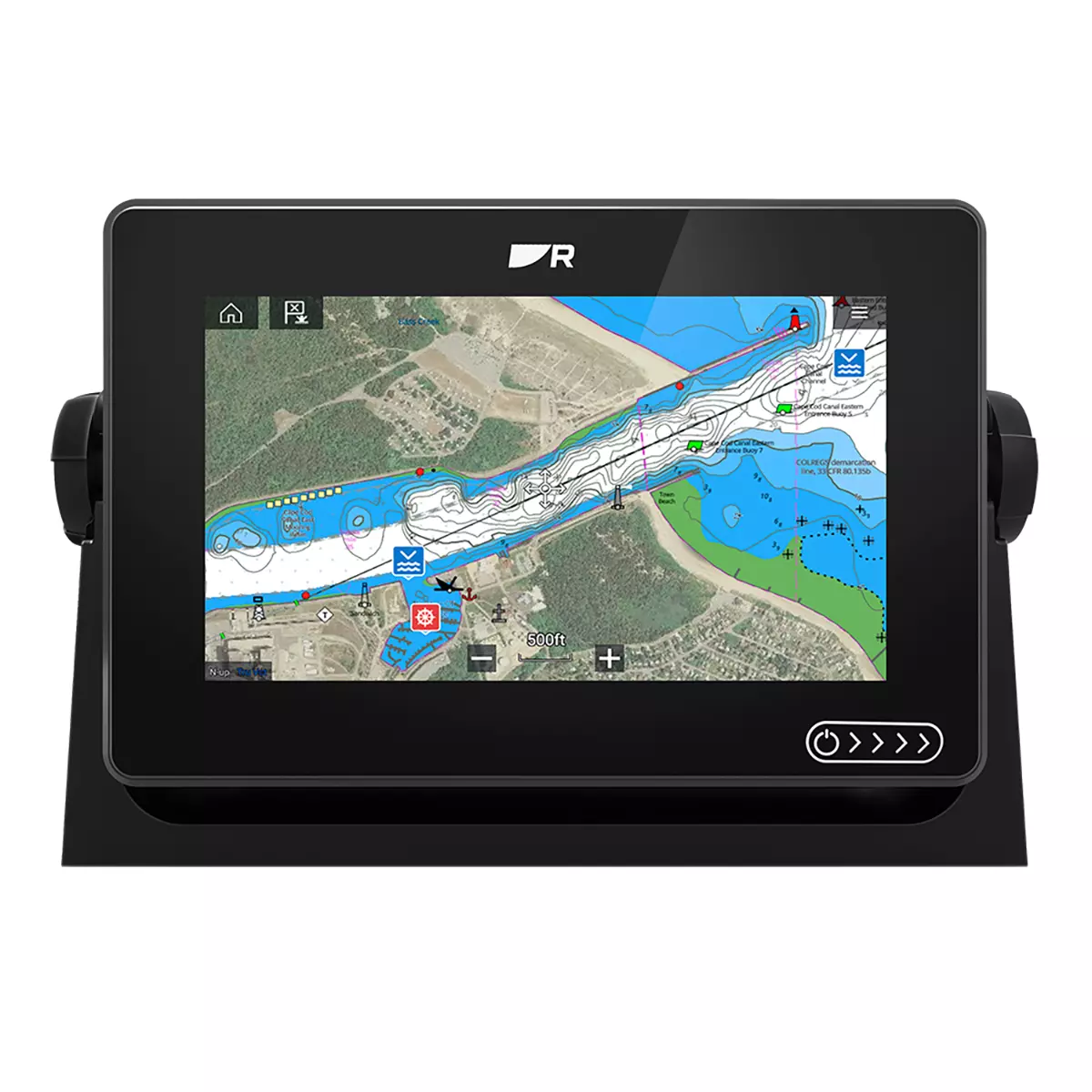

Raymarine Axiom+ 7 Chartplotter

Overview Raymarine Axiom+ 7 Chartplotter

Raymarine Axiom+ 7 Chartplotter is a chartplotter built for navigation, chart management, and integration with compatible onboard electronics. Key specifications include 7.0 inches Diagonal IPS, 1024 x 600 (WSVGA), High-Performance Quad-Core, and Raynet Ethernet, NMEA 2000, Wi-Fi, Bluetooth.

It is well suited to center consoles, coastal cruising, and coastal operation where captains need a responsive display for route planning, split-screen viewing, and connected sensors. Features such as Quad-Core Processor and 1,800-Nit Ultra-Bright IPS Display help support visibility, system control, and everyday helm operation.

Key Features

• Quad-Core Processor: Experience lightning-fast chart redraws and fluid menu transitions. The integrated quad-core engine provides the muscle needed to run multiple high-bandwidth applications, such as radar and augmented reality, simultaneously without any system lag.
• 1,800-Nit Ultra-Bright IPS Display: The 7-inch all-weather display utilizes In-Plane Switching (IPS) technology to offer wider viewing angles and sharp contrast at twice the resolution of traditional screens. The extreme brightness ensures that sonar targets and chart details remain vibrant and clear even under the harshest midday glare.
• HydroTough Nano-Coated Glass: This impact-resistant screen is treated with a specialized nano-coating that repels water, oil, and smudges. This ensures that the touchscreen remains fully responsive to your commands even when the glass is wet from rain or sea spray.
• ClearCruise Augmented Reality (AR): Make smarter and safer navigation decisions. When interfaced with a compatible marine camera, the unit overlays AIS targets, waypoints, and navigation aids directly onto the live video feed, providing an intuitive "heads-up" view of your surroundings.
• High-Sensitivity 10 Hz GPS/GNSS Receiver: The next-generation internal receiver offers 4 times the sensitivity of previous models. This ensures ultra-accurate positioning and fluid vessel movement on the screen, which is essential for precise tracking in narrow waterways.

Applications

Raymarine Axiom+ 7 Chartplotter is suitable for use on center consoles, coastal cruising, and coastal operation where a central display is needed for charts, route planning, and connected onboard data. Its 7.0 inches Diagonal IPS screen and Raynet Ethernet, NMEA 2000, Wi-Fi, Bluetooth support day-to-day navigation together with radar, sonar, video, or NMEA network integration where applicable.

It also fits refit and upgrade projects where captains want a cleaner helm layout without giving up system visibility. Features such as Quad-Core Processor and 1,800-Nit Ultra-Bright IPS Display help keep chart data and connected functions accessible during coastal passages, offshore runs, and routine maneuvering.

Specifications

What’s Included

• 1x Raymarine Axiom+ 7 Multifunction Display
• 1x Trunnion Mount Kit and Surface Mount Kit
• 1x Protective Suncover for 7-inch Display
• 1x Power/NMEA 2000 Cable (1.5m)
• 1x Mounting Hardware and Gasket Kit
• 1x Comprehensive Installation and Operation Documentation
