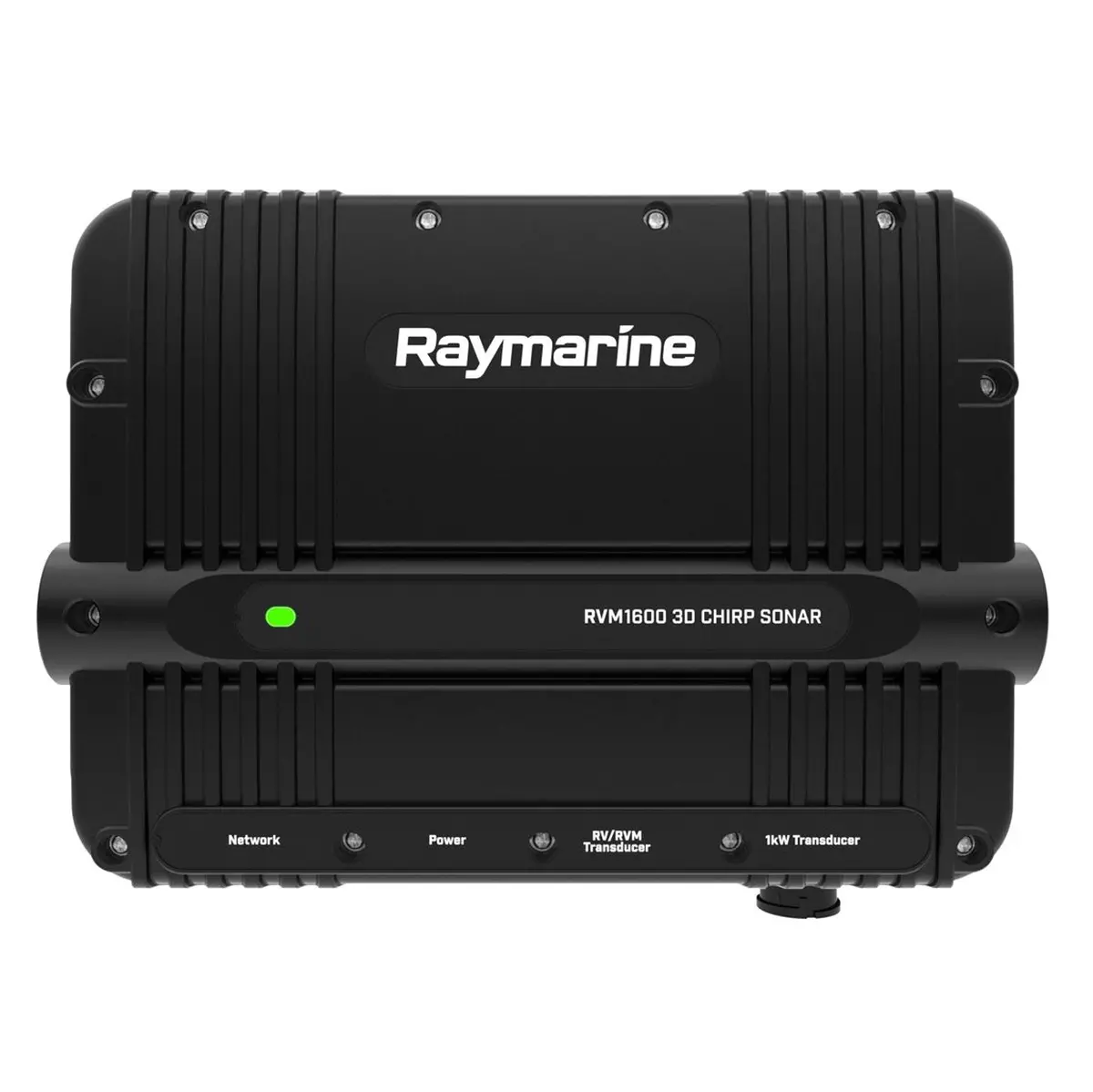

Raymarine RVM1600 CHIRP Sonar Module
$1,077.00
Raymarine RVM1600 CHIRP Sonar Module is a sonar module designed for compatible Axiom displays that need advanced 3D and CHIRP sonar. Key features include 1kW Traditional / 600W RealVision MAX, 3D, Down, Side, High CHIRP, 1kW CHIRP, and > 1,200 ft (366 meters).
Overview Raymarine RVM1600 CHIRP Sonar Module
The Raymarine RVM1600 CHIRP Sonar Module represents a significant advancement in multi-channel sonar technology, designed specifically to transform Raymarine Axiom displays into the advanced underwater observation centers. This professional 1kW CHIRP sonar module utilizes RealVision MAX technology to provide incredibly detailed, life-like imagery that helps anglers fish at the top of their game.
By upgrading to larger transducer elements and increasing power output, the Raymarine RVM1600 CHIRP Sonar Module extends your scanning range and improves target identification in both shallow and deep-water environments. The system is housed in a rugged, IPX7-rated waterproof enclosure, ensuring it can withstand the humid and vibration-heavy conditions found in modern boat electronics bays.
Key Features
- RealVision MAX 3D Sonar: This flagship feature allows anglers to see beneath, behind, and to the sides of the boat simultaneously.
- High-Performance 1kW Traditional CHIRP: The dedicated 1kW port supports dual-channel CHIRP frequencies ranging from 42 to 250kHz.
- CHIRP DownVision and SideVision: Provides photo-like views of the world beneath your boat.
- Enhanced Signal Processing: RealVision MAX technology utilizes faster ping rates and refined signal processing to improve image resolution.
- High-Contrast Color Palettes: These refined sonar palettes are specifically designed to accentuate targets and make fish stand out clearly from the water column, even in cluttered or turbid water conditions.
Applications
The Raymarine RVM1600 CHIRP Sonar Module is the practical choice for offshore tournament anglers and commercial fishing vessels that require high-resolution data to stay competitive. In a realistic offshore scenario, a captain can utilize the RealVision MAX 3D view to visualize how a school of tuna is relating to a deep-water wreck.
By splitting the screen with CHIRP SideVision, the crew can scan 300 feet to either side of the vessel to locate floating debris or bait balls that are not directly under the hull. Choosing to invest in the Raymarine RVM1600 CHIRP Sonar Module is a strategic move for any boat owner who values technical precision and the latest advancements in sonar engineering.
Specifications
| Sonar Output Power | 1kW Traditional / 600W RealVision MAX |
| Sonar Channels | 3D, Down, Side, High CHIRP, 1kW CHIRP |
| Max Depth (1kW) | > 1,200 ft (366 meters) |
| Max Range (RV MAX) | > 400 ft (123 meters) |
| Networking | RayNet (10-pin) |
| Waterproof Rating | IPX6 and IPX7 Standards |
| Operating Voltage | 10.8 V to 31.2 V dc (12V/24V) |
| Power Consumption | 10.4 W (Maximum) |
| Weight | 3.49 lbs (1.585 kg) |
| Product Warranty | 3-Year Limited Manufacturer Warranty (with registration) |
What’s Included
- 1x Raymarine RVM1600 3D CHIRP Sonar Module
- 1x Power Cable (1.5 meters)
- 1x RayNet Network Cable (2 meters)
- 1x Mounting Hardware Kit (M4.5 x 20 screws)
- 1x Documentation and User Installation Guide
