SI-TEX CVS-126 Echo Sounder
$405.00

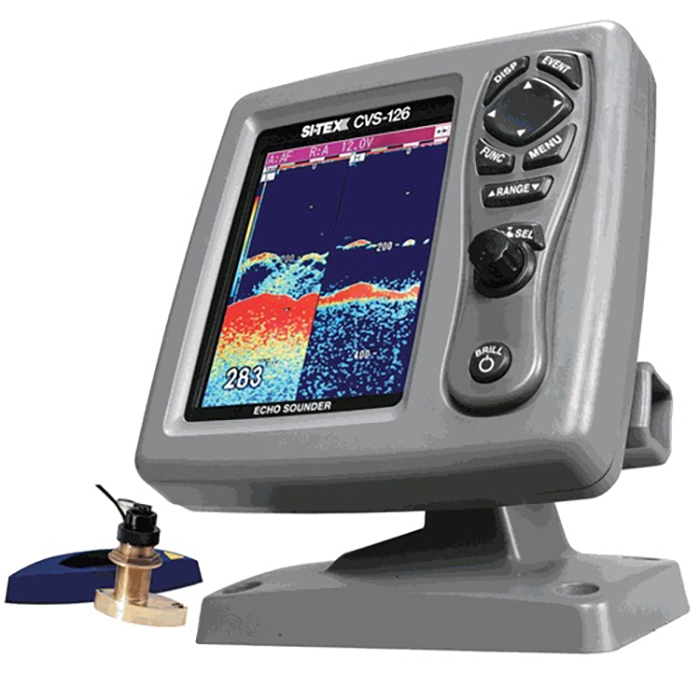

SI-TEX CVS-126 Echo Sounder is a dual-frequency color echo sounder bundled with the B744V thru-hull triducer for depth, speed, and temperature. It combines DSP filtering, Sona-Tone audio cues, and auto adjustment for practical onboard depth monitoring.
Overview SI-TEX CVS-126 Echo Sounder
SI-TEX CVS-126 Echo Sounder is a dual-frequency 50/200 kHz color sounder package built for operators who need clear depth information and integrated sensor data. The included B744V thru-hull triducer adds depth, speed, and temperature input in one housing for a more complete installation.
DSP filtering, Sona-Tone audio identification, and Auto Function mode help keep the display useful in both shallow and deeper water while reducing manual adjustment. The 5.7-inch sunlight-viewable LCD, image storage, and one-touch recall support routine bottom reading and fishing use.
Key Features
- Dual-frequency 50/200 kHz operation supports dependable depth reading across varied conditions.
- DSP digital filtering helps reduce clutter and improve target and bottom definition.
- Sona-Tone provides audible cues for fish and schools of fish when attention is away from the screen.
- Auto Function mode continuously selects Gain, Range, and Shift settings for more consistent operation.
- 5.7-inch color LCD with anti-reflective coating improves readability in sunlight.
- Included B744V thru-hull triducer adds depth, speed, and temperature sensing through one housing.
Applications
- Continuous bottom reading and depth awareness on fishing and work boats.
- Installations that want depth, speed, and temperature from the included thru-hull sensor.
- Operators who value audible target indication and automatic sonar setup.
Specifications
| Display | 5.7-inch dual-frequency color LCD, sunlight viewable |
| Frequency | 50/200 kHz dual frequency |
| Processing | DSP digital filtering |
| Audio feature | Sona-Tone |
| Auto mode | Automatic Gain, Range, and Shift selection |
| Memory | Stores up to 10 screen images |
| Sensor bundle | B744V thru-hull triducer |
| Sensor data | Depth, speed, and temperature |
| Display colors | 8, 16, or 64 color levels |
What’s Included
- B744V thru-hull triducer
The source description confirms the bundled B744V sensor, but it does not list the full package contents.
