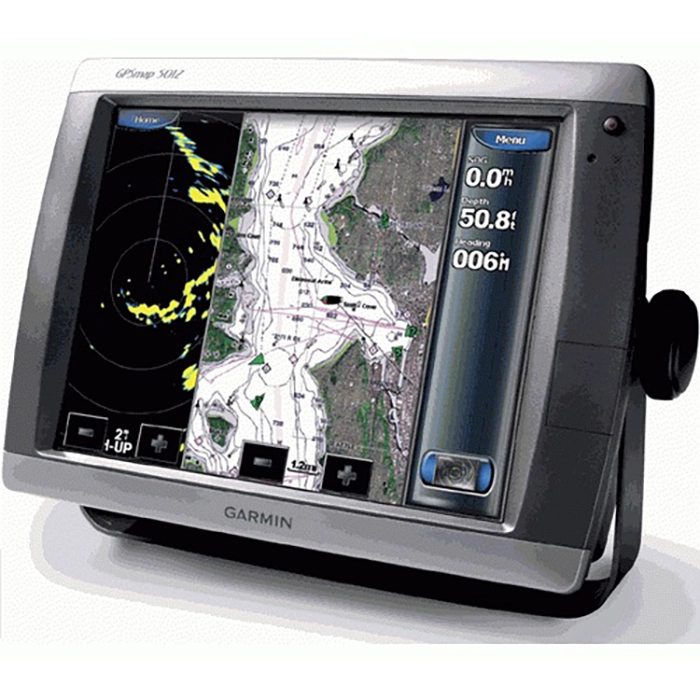

Garmin GPSMAP 5012 Touchscreen Chartplotter

Overview Garmin GPSMAP 5012 Touchscreen Chartplotter

Garmin GPSMAP 5012 Touchscreen Chartplotter is a large-format network chartplotter built for helm stations that need more screen area and full Garmin system expansion. The 12.1-inch XVGA display is paired with WAAS GPS and a streamlined touch interface for charting, weather, and connected marine electronics.

It can be used as a standalone chartplotter with chart data or as part of a broader Garmin Marine Network. Optional BlueChart g2 Vision cards add 3D mapping, aerial reference photos, and Auto Guidance for more advanced route planning and harbor awareness.

Key Features

• 12.1-inch XVGA display: Large screen size makes it easier to work with charts and network data from the helm.
• WAAS-enabled GPS sensor: Supports reliable chart position and route tracking.
• Garmin Marine Network expansion: Connect radar, GSD 22 sounder, weather receiver, or additional multifunction displays.
• Video input support: Two video inputs allow compatible onboard camera feeds to be shown on screen.
• BlueChart g2 Vision ready: Optional cards add aerial photos, satellite imagery, 3D views, and Auto Guidance.

Applications

A strong choice for larger cruising and fishing boats that benefit from a big-screen chartplotter at the helm. The display size is useful when route monitoring, sensor integration, and weather overlays need to be viewed together.

It also suits Garmin network installations that need one primary charting display with room for radar, sonar, and video expansion.

Specifications

What’s Included

• GPSMAP 5012 unit
• Bail mount and knobs
• GPS 17 antenna
• Protective front cover
• Power cable
• Video cable
• NMEA 0183 cable
• NMEA 2000 cable
• Flush mount hardware
• In-line fuse kit for GPS 17
• Marine grommet kit
• Crimp connectors
• Owner’s manual
• Installation instructions
• Quick reference guide
