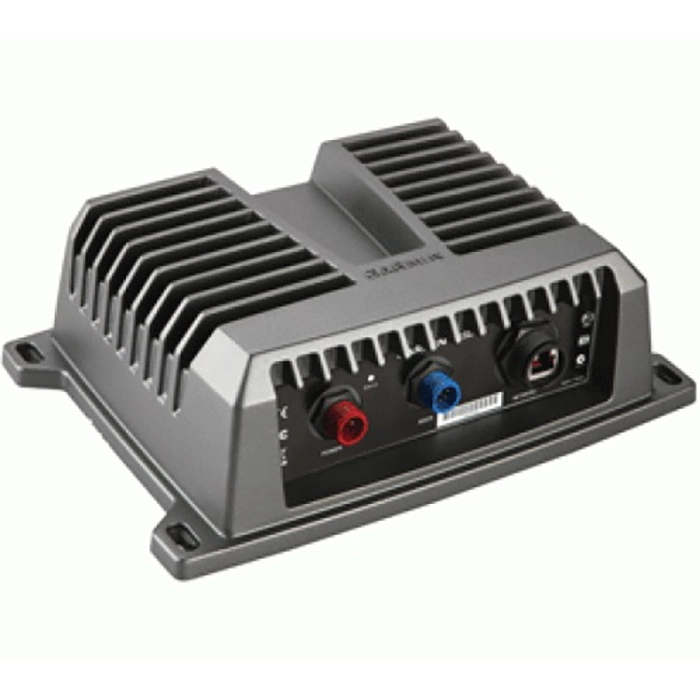

Garmin GSD 24 Sonar Module

Overview Garmin GSD 24 Sonar Module

Garmin GSD 24 Sonar Module is a black box sonar module for Garmin Marine Network installations, built to improve target separation, bottom tracking, and deep-water performance. It supports Dual-Frequency 50/200 kHz and depth capability up to up to 1,500 meters (approx. 5,000 ft).

In realistic scenarios, such as canyon fishing or deep-sea trolling, the ability to maintain bottom lock while traveling at cruising speeds is essential. This sonar module allows captains to map the terrain accurately, identifying thermoclines and underwater mounts where pelagic species like Tuna and Marlin are likely to congregate.

Key Features

• High-Definition Digital Signal: This sonar module utilizes all-digital technology to eliminate noise and interference, resulting in a significantly sharper sonar picture compared to previous generations of remote sounders.
• Variable Transmit Power: Depending on your needs and the connected transducer, you can select between 600W, 1kW, and 2kW output. This flexibility ensures you have the power for deep-water penetration without sacrificing detail in shallower coastal areas.
• Dual-Frequency Operation: Operating at discrete 50kHz and 200kHz frequencies, the system allows you to choose the best pulse for your current environment—higher frequencies for detail in the shallows and lower frequencies for reaching the deepest ocean floors.
• Target Separation: The redesigned circuitry improves the ability of the unit to identify individual fish targets, making it much easier to spot trophy game fish hiding within schools of bait or near complex reef structures.
• Deep Water Tracking: With the capability to scan depths of up to 1,500 meters (nearly 5,000 feet), this module ensures that offshore anglers never lose sight of the bottom, even in the most extreme oceanic conditions.
• Plug-and-Play Integration: Fully compatible with the Garmin Marine Network, the unit communicates seamlessly with the GPSMAP 4000 through 7000 series, allowing for easy installation and immediate data sharing across all helm stations.

Applications

In realistic scenarios, such as canyon fishing or deep-sea trolling, the ability to maintain bottom lock while traveling at cruising speeds is essential. This sonar module allows captains to map the terrain accurately, identifying thermoclines and underwater mounts where pelagic species like Tuna and Marlin are likely to congregate.

In the commercial sector, such as survey work or professional diving, the GSD 24 provides the high-fidelity data required to assess submerged hazards. The IPX7 waterproof standards ensure that the unit remains operational even in the humid, salt-heavy environments found in the bilge or electronics lockers of working vessels.

Specifications

What’s Included

• 1x Garmin GSD 24 Sonar Digital Black Box Unit
• 1x Power Cable (6 ft)
• 1x Marine Network Cable (6 ft)
• 1x 8-pin Female to Block Adapter
• 1x Mounting Hardware Kit
• 1x Installation Instructions and Documentation
