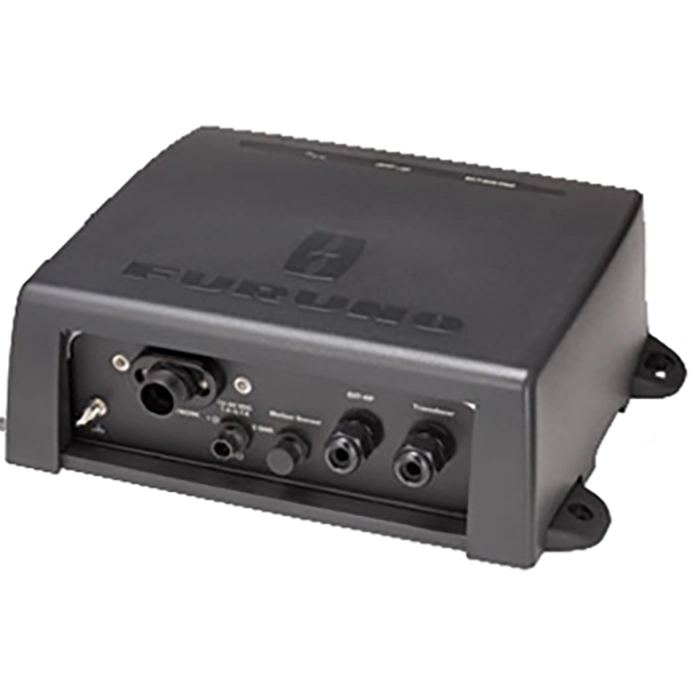

Furuno DFF3D Multi-Beam Sonar Module
$1,077.00
Furuno DFF3D Multi-Beam Sonar Module adds real-time 3D underwater imaging to compatible NavNet TZtouch systems with a 165 kHz multi-beam sonar and wide port-to-starboard coverage.
Overview Furuno DFF3D Multi-Beam Sonar Module
Furuno DFF3D Multi-Beam Sonar Module is a black-box sonar system that adds real-time 3D underwater imaging to compatible NavNet TZtouch installations. It uses a 165 kHz multi-beam approach to show structure and fish targets beneath and to the sides of the boat rather than only directly below the hull.
With wide side coverage, dedicated 3D display modes, and an integrated motion sensor in the transducer, the system is designed for anglers and operators who want a broader view of fish movement and bottom structure around the vessel.
Key Features
- 3D underwater view: Shows the seabed and fish targets in three dimensions rather than only as a conventional sounder column.
- Wide side-to-side coverage: The source data lists a 120-degree beam and side range up to 650 feet for searching beyond the keel line.
- 165 kHz multi-beam sonar: Uses a dedicated high-frequency sonar approach for detailed 3D presentation.
- Integrated motion sensing: Motion stabilization helps keep the display easier to interpret in moving sea conditions.
- Multiple display modes: Supports 3D sounder history, side-scan style views, and other presentation options.
Applications
Useful for offshore anglers and survey-minded operators who want to locate fish schools, follow bottom contour, and understand how structure and targets sit to port and starboard of the vessel.
Specifications
| Sonar Type | Multi-beam 3D sonar black box |
| Frequency | 165 kHz |
| Output Power | 800 W |
| Max Depth (Down) | 1,000 feet |
| Max Range (Side) | 650 feet |
| Display Modes | 3D sounder history, side scan, triple beam, and more |
| Compatibility | NavNet TZtouch / TZtouch2 / TZtouch3 |
| Power Requirements | 12 – 24 VDC |
What’s Included
- Furuno DFF3D Multi-Beam Sonar Black Box
- Network Cable (5 Meters)
- Power Cable Assembly (12V)
- Mounting Hardware Kit
- Operators Manual
- Comprehensive Installation and Operation Documentation
Frequently Asked Questions About Furuno DFF3D Multi-Beam Sonar Module
What is the main purpose of Furuno DFF3D Multi-Beam Sonar Module?
Furuno DFF3D Multi-Beam Sonar Module adds real-time 3D underwater imaging to compatible NavNet TZtouch systems with a 165 kHz multi-beam sonar and wide port-to-starboard coverage. That setup is intended to widen underwater awareness through a compatible display network rather than a simple straight-down sounder view.
What makes this multi-beam sonar module distinctive?
The listed product details include a 165 kHz multi-beam sonar and wide port-to-starboard coverage. That emphasis points to wider underwater awareness rather than only a narrow straight-down sonar view, which can be valuable when reading structure around the vessel.
How does this sonar unit work with a compatible Furuno setup?
The supplied information mentions NavNet TZtouch systems, showing that this unit is meant to send sonar functions into a compatible display network instead of relying on a separate standalone screen at the helm.
Who is this sonar module most relevant to?
This makes the product relevant to users who want a cleaner helm layout and a more purpose-built electronics setup based on the functions described in the supplied product data, especially in integrated Furuno systems.
