Garmin GPSMAP 3006C Network Chartplotter

Overview Garmin GPSMAP 3006C Network Chartplotter

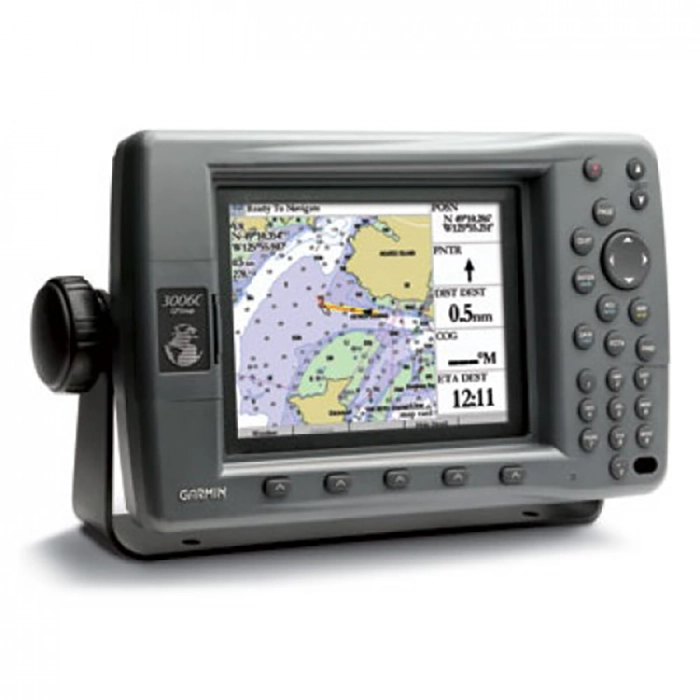

The Garmin GPSMAP 3006C Network Chartplotter is built for boaters who want a dedicated marine display that can operate alone or integrate into a broader Garmin helm system. Its 6.4-inch color TFT VGA screen is designed for sunlight readability, while the WAAS-enabled GPS sensor and high-speed RISC processor help keep navigation responsive.

Because it supports Garmin Marine Network expansion, the unit can serve as the core of an older integrated bridge setup with optional radar, sonar, weather, and camera feeds. That makes it especially relevant for vessels that still value dedicated chartplotter architecture and broad wired integration rather than a touch-only display.

Key Features

• 6.4-inch sunlight-readable VGA color display gives the operator a clearer full-screen chart view than smaller legacy units.
• WAAS-enabled 12-parallel-channel GPS sensor supports accurate marine navigation and route handling.
• High-speed RISC processor and dedicated graphics controller improve redraw speed for smoother chart interaction.
• Built-in high-speed network allows the plotter to work with multiple displays and add-ons such as radar, sonar, and XM weather receivers.
• Dual card slots and support for Garmin BlueChart and selected MapSource products make it practical for chart and data management.
• Video inputs, VGA output, NMEA 0183 connectivity, and IPX7 water resistance support more complete helm integration.

Applications

• Older Garmin marine network installations that still rely on dedicated chartplotter architecture.
• Helms where radar, sonar, weather overlay, or camera input is part of the navigation workflow.
• Boats that need a reliable non-touch chart screen with GPS, chart cards, and wired connectivity.

Specifications

What’s Included

• GPSMAP 3006C
• GPS 17 WAAS-enabled sensor
• A/V cable
• Power/data cable
• Bail mount
• Unit cover
