Raymarine Axiom XL 24 Multifunction Display Kit

Overview Raymarine Axiom XL 24 Multifunction Display Kit

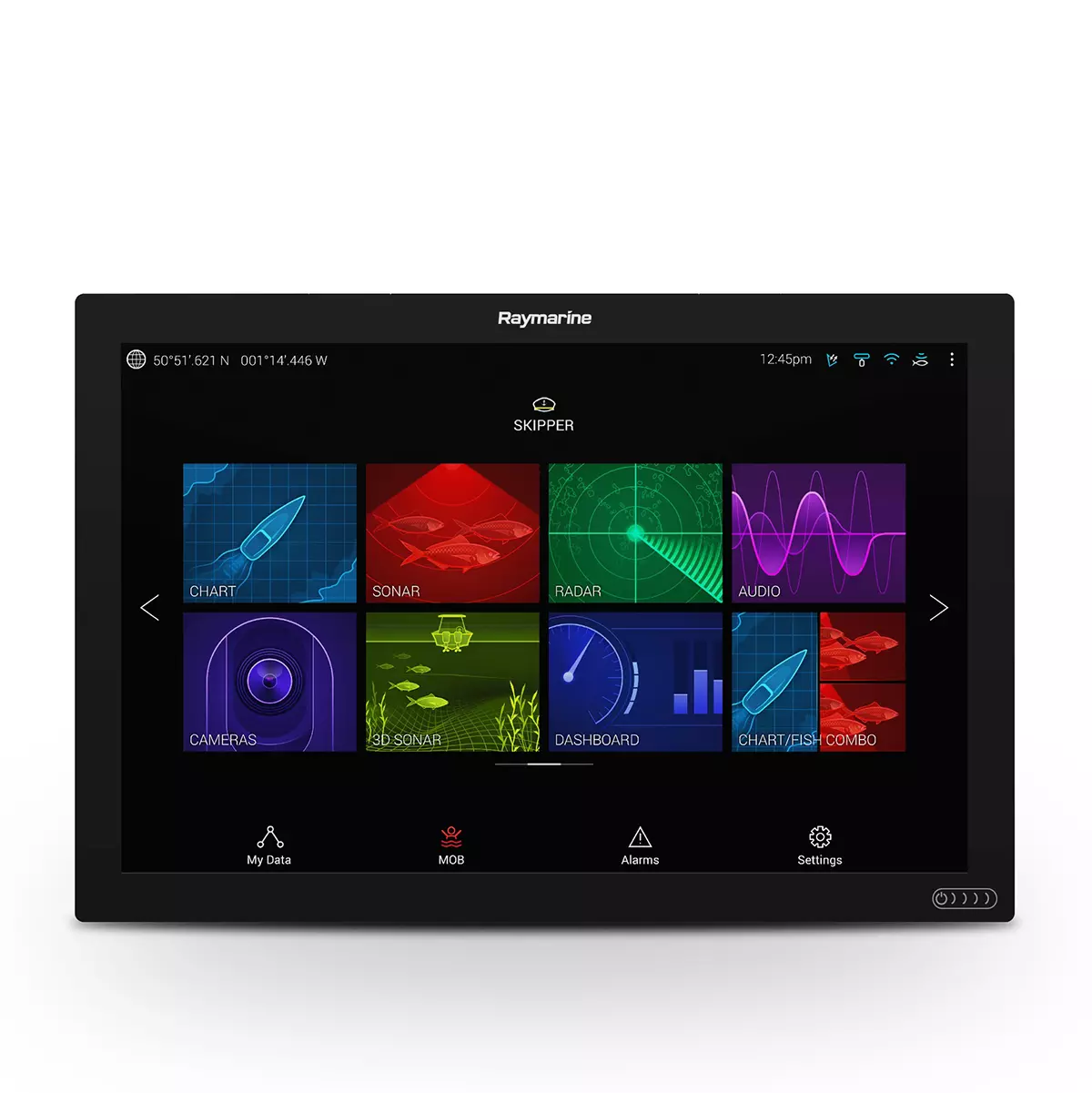

Raymarine Axiom XL 24 Multifunction Display Kit is a marine multifunction display with 24.0-inch IPS High-Brightness display, resolution 1920 x 1200 WUXGA (Full HD), and Stunning Full HD IPS Display.

Raymarine Axiom XL 24 Multifunction Display Kit combines display size 24.0-inch IPS High-Brightness, resolution 1920 x 1200 WUXGA (Full HD), processor Quad-Core High-Performance, and operating system LightHouse 3 OS. It is a practical helm display for captains who want charting, radar, sonar, autopilot, or onboard system data in a single screen.

Key Features

• Stunning Full HD IPS Display: The 1920 x 1200 WUXGA resolution combined with IPS technology offers superior brightness and 24-bit color depth. This ensures the screen remains perfectly legible in direct sunlight and visible from 89-degree angles in all directions.
• fast Quad-Core Processor: The high-performance internal hardware delivers a responsive and powerful all-in-one big screen navigation experience, eliminating lag when switching between 3D sonar, radar, and live video feeds.
• Advanced LightHouse 3 OS: This fast, fluid, and easy-to-learn operating system allows users to personalize their interface. The swipe-to-power touch control and buttonless design contribute to a modern, uncluttered helm aesthetic.
• Video Integration: Support for both analog and IP cameras allows you to view up to four video streams simultaneously. The built-in recording capability transforms your display into an onboard DVR for safety and security.
• Remote PC and Entertainment Hub: Axiom XL allows captains to view and control a remote personal computer via HDMI output and USB touch control. Additionally, you can stream Netflix and Spotify directly through integrated LightHouse Apps.
• Three Raynet Ethernet Ports: These dedicated high-speed ports allow for the seamless connection of Quantum radar, CHIRP sonar modules, and additional Axiom family displays to create a robust vessel-wide network.

Applications

Raymarine Axiom XL 24 Multifunction Display Kit is well suited to helms that need a central display for charting, radar, sonar, cameras, or vessel data. It works best on boats where one screen needs to coordinate multiple onboard systems while remaining readable in bright daylight and practical to operate underway.

Features such as Stunning Full HD IPS Display, fast Quad-Core Processor, Advanced LightHouse 3 OS, and Video Integration help this model serve as a hub for everyday navigation and system monitoring. It is a sensible choice for owners upgrading a helm that needs cleaner integration, faster access to key data, and room to expand over time.

Specifications

What’s Included

• 1x Raymarine Axiom XL 24" MFD Kit (T70430)
• 1x Mounting Kit for Surface or Flush Installation
• 1x Right Angle Power Cable (2 meters)
• 1x RayNet to RayNet Network Cable (2 meters)
• 1x SeaTalkng to DeviceNet Adapter Cable
• 1x Silicon Sun Cover and Gasket Material
• 1x Video/Alarm Cable and External Alarm
• 1x Remote Card Reader and Documentation Pack
