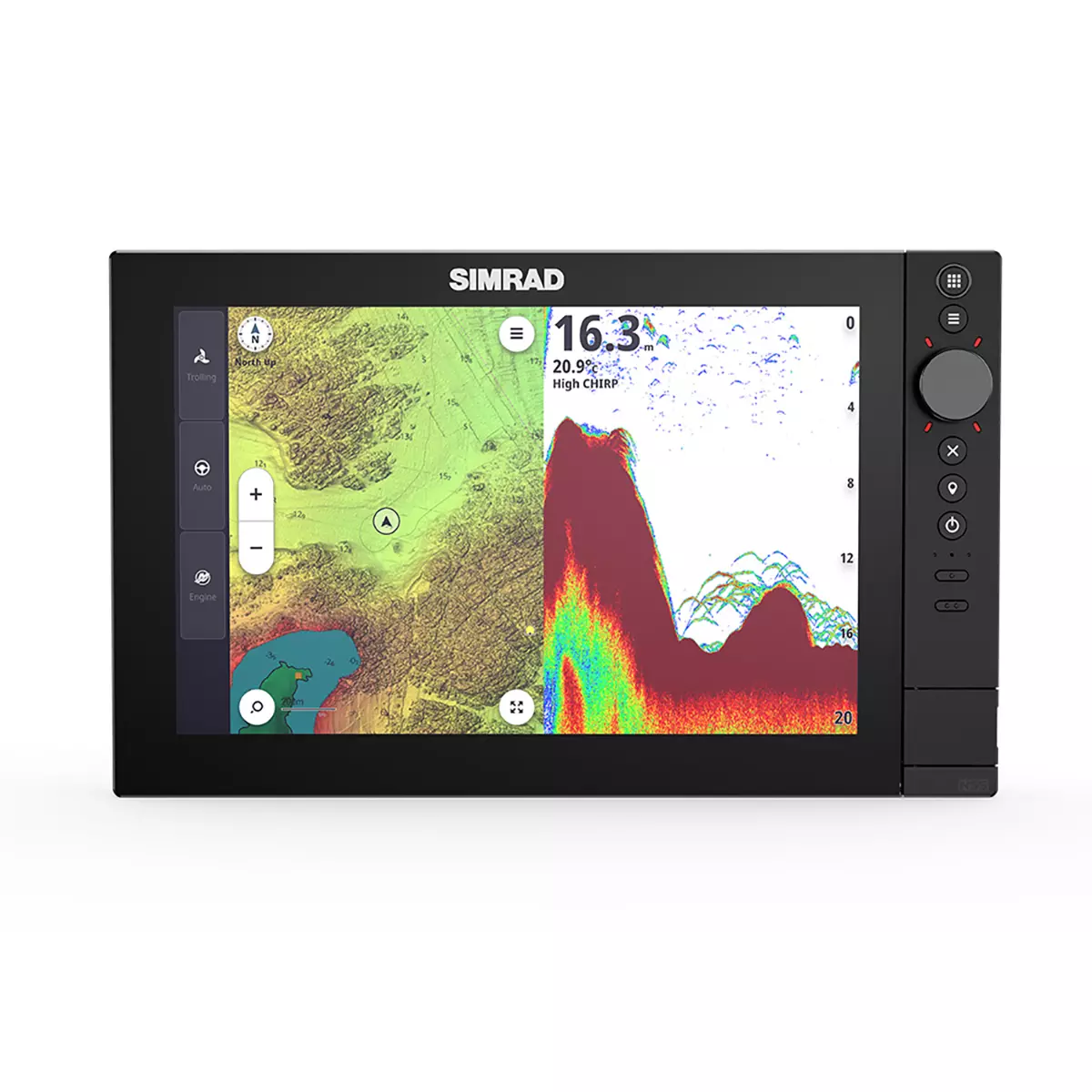

Simrad NSS4-12 Multifunction Display
$2,469.00
Simrad NSS4-12 Multifunction Display is a 12-inch multifunction display designed for integrated helm control, combining 12-inch display with 1280 x 800 pixels, an 8-core processor, NMEA 2000, 1x GbE Ethernet, Wi-Fi 5, plus Hybrid (Touch, Rotary, Keypad).
Overview Simrad NSS4-12 Multifunction Display
Simrad NSS4-12 Multifunction Display is a multifunction display designed to act as a central helm screen for navigation, radar, cameras, and connected vessel systems. It combines 12-inch, 1280 x 800 pixels, Qualcomm® 8-Core (fast), plus Hybrid (Touch, Rotary, Keypad).
When outfitting a vessel with the Simrad NSS4-12 , mariners benefit from a versatile hub that excels in high-speed center consoles and nimble offshore sportfishing boats. With rain pounding the glass, a standard touchscreen might become unresponsive; however, with the hybrid control system, the captain can instantly use the rotary dial to adjust radar gain or the keypad to mark a safe-haven waypoint.
Key Features
- Display and visibility: 12-inch, 1280 x 800 pixels, >1200 nits (Sunlight Readable). This supports clear chart viewing and better readability at the helm.
- Processing platform: Qualcomm® 8-Core (fast). It helps keep menu response, chart redraws, and split-screen operation smooth.
- User interface: Hybrid (Touch, Rotary, Keypad). This gives the operator direct access to navigation functions and connected system control from the main screen.
- Networking and integration: NMEA 2000, 1x GbE Ethernet, Wi-Fi 5. Compatible networking helps the unit share charts, radar, sensors, cameras, and other onboard data where supported.
- Position data: 10 Hz High-Speed (GPS, GLONASS, Galileo). This supports accurate vessel positioning and update speed for navigation tasks.
Applications
When outfitting a vessel with the Simrad NSS4-12 , mariners benefit from a versatile hub that excels in high-speed center consoles and nimble offshore sportfishing boats. With rain pounding the glass, a standard touchscreen might become unresponsive; however, with the hybrid control system, the captain can instantly use the rotary dial to adjust radar gain or the keypad to mark a safe-haven waypoint.
The 12-inch size is the “goldilocks” format—providing enough visual real estate for a 3-way split screen of charts, radar, and engine metrics, while remaining compact enough to fit into a variety of dash configurations.
Specifications
| Display Size | 12.0 inches SolarMax™ IPS |
| Display Resolution | 1280 x 800 pixels |
| Processor | Qualcomm® 8-Core (Lightning-Fast) |
| Brightness | >1200 nits (Sunlight Readable) |
| Control Type | Hybrid (Touch, Rotary, Keypad) |
| Networking | NMEA 2000, 1x GbE Ethernet, Wi-Fi 5 |
| GPS Update Rate | 10 Hz High-Speed (GPS, GLONASS, Galileo) |
| Waterproof Rating | IPX6 and IPX7 Standards |
| Supply Voltage | 12/24 V DC (10 – 31.2 V DC) |
| Weight | 2.8 kg (6.17 lbs) |
What’s Included
- 1x Simrad NSS4-12 Multifunction Display
- 1x Suncover for 12″ Display
- 1x Rear Mount Brackets and Mounting Hardware Kit
- 1x Power Cable (4-pin)
- 1x Edge Trim Piece Snap Covers
- 1x Comprehensive Installation and Operation Documentation Pack
Frequently Asked Questions About Simrad NSS4-12 Multifunction Display
What does Simrad NSS4-12 Multifunction Display do in a marine electronics setup?
Simrad NSS4-12 Multifunction Display is designed to bring key navigation and onboard data together on a single helm screen. With its 12-inch screen and fast chart and page handling, it suits offshore or blue-water passages.
How does this marine display handle real helm viewing conditions?
This marine display uses a 12-inch screen and SolarMAX display technology to keep charts and data readable in bright cockpit conditions. It also offers touchscreen control, a rotary dial, and keypad operation, so the operator can choose the control method that best fits the conditions.
What connectivity and integration options does this marine display offer?
This marine display supports NMEA 2000, Ethernet, and Wi-Fi. That gives crews a cleaner way to manage charts and connected data from the helm. It is intended to work as part of a broader onboard electronics setup rather than in isolation.
Who is this marine display intended for in real-world marine use?
This marine display is aimed at owners who want a capable helm display matched to real onboard navigation and monitoring needs. It suits installations where visibility, integration, and quick access to data matter more than unnecessary complexity.
