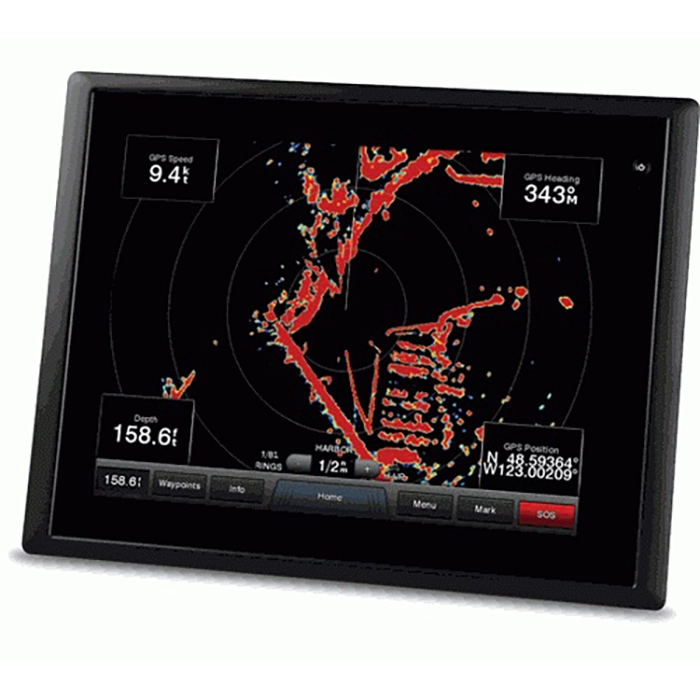

Garmin GPSMAP 8015 Multifunction Display

Overview Garmin GPSMAP 8015 Multifunction Display

Garmin GPSMAP 8015 Multifunction Display is a 15-inch network-ready marine display built for charting, monitoring, and multi-window helm use. It supports Garmin Marine Network & NMEA 2000 for smooth integration with radar, sonar, and onboard instruments. Key onboard capabilities include 1024 x 768 pixels (XGA), Garmin Marine Network & NMEA 2000.

In an offshore fishing tournament, the 15-inch screen allows the captain to dedicate large windows to side-scanning sonar and radar overlay while still maintaining a clear view of the primary navigation chart. This level of multi-touch multifunction display capability ensures that no target is missed and no hazard is overlooked.

Key Features

• 15-Inch Multi-Touch Screen: The large 1024×768 pixel XGA display offers a massive canvas for viewing multiple data windows simultaneously. The responsive touch interface supports pinch-to-zoom and fluid menu navigation for effortless fingertip operation.
• SmartMode Control: This feature allows you to change all monitors at a helm in sync to a preset mode. Instead of adjusting each screen manually, SmartMode lets you switch from “Docking” to “Fishing” or “Cruising” modes instantly, ensuring your most important data is always visible.
• 10Hz High-Sensitivity Position Tracking: By utilizing an external 10Hz GPS receiver, the system updates your position and heading ten times per second. This results in incredibly smooth movement of the boat icon on your charts, which is essential for accurate high-speed tracking.
• GRID Compatibility: For captains who prefer tactile control, the unit supports the Garmin Remote Input Device (GRID). This optional rotary knob and joystick controller can be integrated into a captain’s chair, providing full command over the display without leaning forward.
• Premium Glass Helm Aesthetics: The 8015 is designed for the most demanding visual standards, offering exclusive flat-mount and low-profile flush-mount options. This creates a continuous, uninterrupted glass surface across your dashboard for a truly professional yacht navigator appearance.
• Full Marine System Integration: The MFD serves as a gateway for NMEA 2000 and the Garmin Marine Network, enabling you to view integrated autopilot, engine data, thermal cameras, and digital switching all from a single high-definition interface.

Applications

In an offshore fishing tournament, the 15-inch screen allows the captain to dedicate large windows to side-scanning sonar and radar overlay while still maintaining a clear view of the primary navigation chart. This level of multi-touch multifunction display capability ensures that no target is missed and no hazard is overlooked.

The ability to customize layouts means that a captain can place a dedicated fuel flow gauge exactly where it is most readable during long-range transit. For professional captains operating in crowded international shipping lanes, the Garmin GPSMAP 8015 Display acts as a critical safety hub.

Specifications

What’s Included

• 1x Garmin GPSMAP 8015 Display Unit
• 1x Protective sun cover for screen longevity
• 1x Flush mount gasket and industrial mounting hardware
• 1x Power cable and NMEA 0183/2000 cable set
• 1x NMEA 2000 2-meter and 10-meter backbone/drop cables
• 1x NMEA 2000 T-connector and terminator kit
• 1x Manual case with full product documentation
