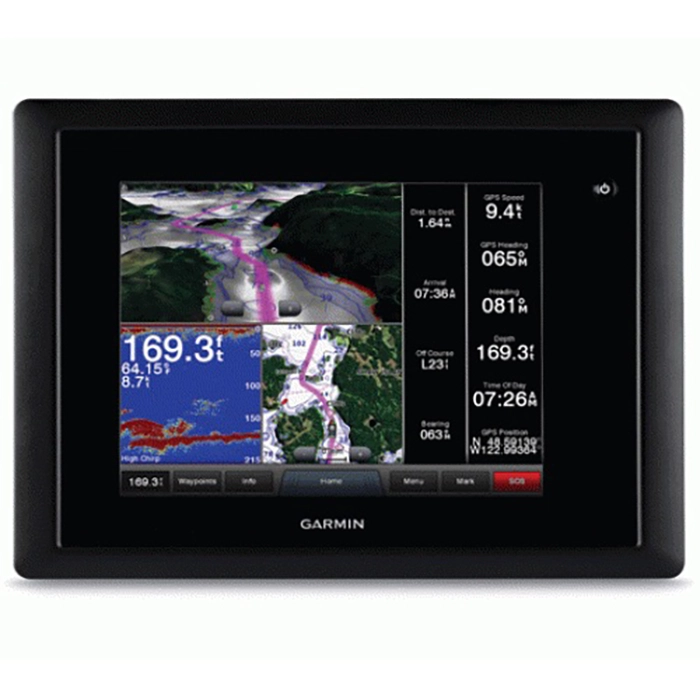

Garmin GPSMAP 8208 Multifunction Display
$2,025.00
Garmin GPSMAP 8208 Multifunction Display is a helm display built around an 8.4-inch display for charting, radar, sonar, and onboard data management. It is designed for clean multi-function navigation with network-ready integration at the console.
Overview Garmin GPSMAP 8208 Multifunction Display
Garmin GPSMAP 8208 Multifunction Display is a marine multifunction display built around an 8.4-inch display that centralizes charting, radar, sonar, and vessel information at the helm. The 800 x 600 Pixels (SVGA) screen gives a clear working view for route planning, monitoring onboard data, and switching between key navigation pages.
Garmin GPSMAP 8208 Multifunction Display fits modern helm layouts that depend on networked electronics and fast access to onboard information. Multi-touch Touchscreen; BlueChart g2 (Coastal Charts) Card Reader External Garmin Reader (Dual SD Slots); External GPS 19x (10 Hz); NMEA 2000, NMEA 0183, Garmin Marine Network.
Key Features
- Display clarity: Uses an 8.4-inch display with 800 x 600 Pixels (SVGA) so sonar, charts, and system data remain easier to read from the helm.
- Positioning: External GPS 19x (10 Hz) keeps chart position and waypoint updates responsive for navigation and return-to-spot accuracy.
- Chart support: BlueChart g2 (Coastal Charts) Card Reader External Garmin Reader (Dual SD Slots) supports route planning and local detail without forcing a generic navigation setup.
- System integration: NMEA 2000, NMEA 0183, Garmin Marine Network allows the unit to share data with compatible marine electronics and sensors.
- User interface: Multi-touch Touchscreen helps with faster screen changes and chart control at the helm.
- Mounting options: Options such as Bail, Flush, or Flat-Mount make it easier to match the installation to the console layout.
Applications
This display is a good fit for helms that need multi-function charting and network control in a more compact footprint. It suits center consoles, cruisers, and pilot-house boats where touchscreen access to navigation, sonar, radar, and vessel data helps streamline day-to-day operation.
It is especially useful where a modern helm layout and easy integration with GPS, radar, and other onboard systems are priorities.
Specifications
| Display Size | 8.4 Inches (Diagonal) |
| Display Resolution | 800 x 600 Pixels (SVGA) |
| Interface | Multi-touch Touchscreen |
| GPS Antenna | External GPS 19x (10 Hz) |
| Networking | NMEA 2000, NMEA 0183, Garmin Marine Network |
| Preloaded Maps | BlueChart g2 (Coastal Charts) Card Reader External Garmin Reader (Dual SD Slots) |
| Mounting Options | Bail, Flush, or Flat-Mount |
| Video Connectivity | 2 BNC Composite Inputs / 1 DVI-I Output |
| Waypoints / Routes | 5,000 Waypoints / 100 Routes |
| Product Warranty | Standard Garmin Marine Warranty |
What’s Included
- Garmin GPSMAP 8208 multifunction display
- GPS 19x NMEA 2000 antenna with multiple mount adapters
- Garmin external card reader
- Protective front cover
- Flush mount gasket and hardware kit
- Power and NMEA 0183/2000 cable set
- Installation documentation
Frequently Asked Questions About Garmin GPSMAP 8208 Multifunction Display
What kind of helm setup is Garmin GPSMAP 8208 Multifunction Display built for?
Garmin GPSMAP 8208 Multifunction Display is designed to bring key navigation and onboard data together on a single helm screen. With its 8.4-inch screen and navigation, radar, and sonar viewing, it suits coastal cruising.
How does this marine display support fast access to navigation data?
This marine display uses a 8.4-inch screen to keep charts and data readable through normal helm use. It also offers touchscreen control, so the operator can choose the control method that best fits the conditions.
How network-ready is this marine display for a modern helm?
This marine display supports NMEA 2000 and NMEA 0183, plus onboard charting. That helps the unit exchange navigation, instrument, and sensor data across the boat. It is intended to work as part of a broader onboard electronics setup rather than in isolation.
Which helm layouts are a good fit for this marine display?
This marine display is aimed at owners who want a capable helm display matched to real onboard navigation and monitoring needs. It suits installations where visibility, integration, and quick access to data matter more than unnecessary complexity.
