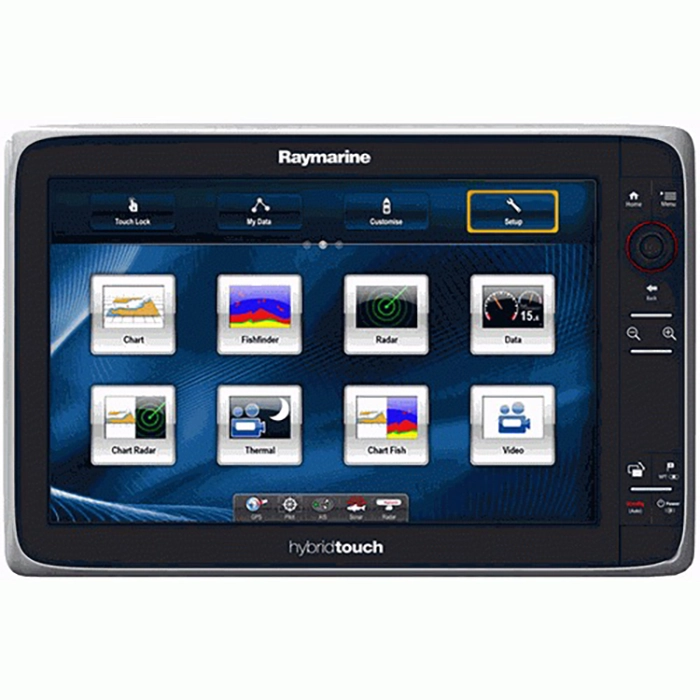

Raymarine e165 Multifunction Display
$2,115.00
Raymarine e165 Multifunction Display is a 15.4-inch HybridTouch MFD with Wi-Fi, Bluetooth, dual chart readers, and broad network expansion for larger helm installations.
Overview Raymarine e165 Multifunction Display
Raymarine e165 Multifunction Display is a large-format 15.4-inch helm display built for boaters who need a bigger screen, strong networking, and flexible control on larger sail and power boats.
The unit supports Navionics Gold, Platinum Plus, and HotMaps charts, offers built-in Wi-Fi and Bluetooth, and is designed for larger onboard systems where multiple displays, sensors, and video sources may be integrated.
Key Features
- 15.4-inch ultra-bright display: gives larger helm stations more usable screen area for charts, video, and system pages.
- HybridTouch control: supports both touchscreen and button-based operation depending on sea conditions and operator preference.
- Dual chart reader slots: allow two chart cards to stay installed or let one slot be used for screen captures.
- Built-in Wi-Fi and Bluetooth: support mobile viewing, waypoint synchronization, and compatible wireless control.
- Designed for larger network systems: works with radar scanners, sounder modules, thermal cameras, AIS, weather receivers, and more.
- External GPS design: allows the display to be matched with a Raystar 130 GPS for network-based installations.
Applications
- Larger helm layouts that need a wide primary display for navigation and system monitoring.
- Networked sail and power boats using multiple Raymarine displays and accessories.
- Installations where external GPS is preferred as part of a broader navigation backbone.
Specifications
| Display | 15.4-inch ultra-bright sunlight-viewable LCD with LED backlighting |
| User Interface | HybridTouch |
| Chart Compatibility | Navionics Gold, Platinum Plus, and HotMaps |
| Chart Slots | Dual chart reader slots |
| GPS | No internal GPS; Raystar 130 GPS recommended |
| Wireless | Wi-Fi and Bluetooth |
| Networking | SeaTalkhs, SeaTalkng, NMEA2000, NMEA 0183 |
| System Expansion | Supports networking up to 8 displays |
| Warranty | 2-year warranty |
What’s Included
- A80067 power/data/video cable 1 m angled
- R70126 e-Series front bezel for 15.4-inch display
- R70127 e-Series suncover for 15.4-inch display
- R70125 e-Series 15.4-inch flush mount kit
- R70061 document pack
Frequently Asked Questions About Raymarine e165 Multifunction Display
Who is Raymarine e165 Multifunction Display aimed at on the water?
Raymarine e165 Multifunction Display is designed to bring key navigation and onboard data together on a single helm screen. With its 15.4-inch screen and navigation, radar, and sonar viewing, it suits helm navigation and system monitoring.
What kind of screen experience does this marine display provide?
This marine display uses a 15.4-inch screen and sunlight-readable viewing to keep charts and data readable in bright cockpit conditions. It also offers touchscreen control, so the operator can choose the control method that best fits the conditions.
How does this marine display fit into a connected marine electronics system?
This marine display supports NMEA 2000, NMEA 0183, Wi-Fi, and Bluetooth. That helps the unit exchange navigation, instrument, and sensor data across the boat. It is intended to work as part of a broader onboard electronics setup rather than in isolation.
Is this marine display more suitable as a primary or networked helm display?
This marine display is aimed at owners who want a capable helm display matched to real onboard navigation and monitoring needs. It suits installations where visibility, integration, and quick access to data matter more than unnecessary complexity.
