Garmin GMM 170 Overhead Marine Monitor

Overview Garmin GMM 170 Overhead Marine Monitor

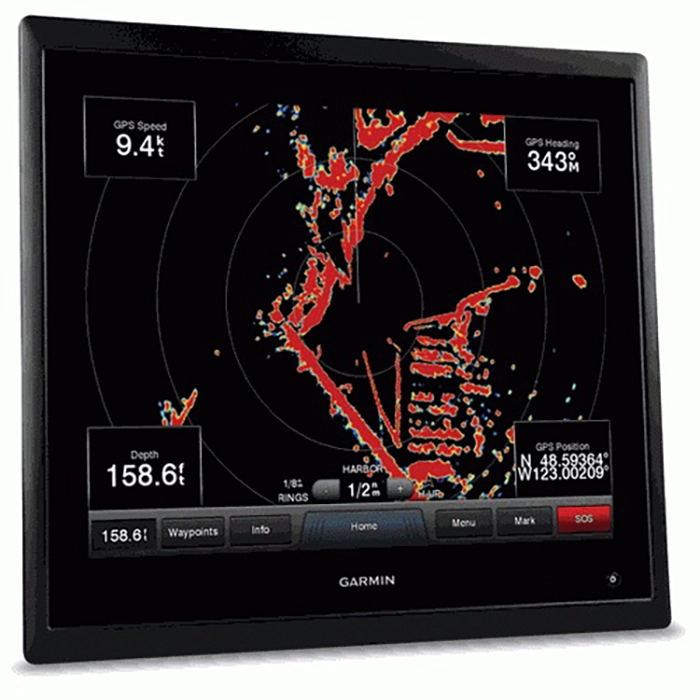

Garmin GMM 170 Overhead Marine Monitor is a 17-inch multi-touch marine display designed to complement a GPSMAP 8500 black box system. Its ultra-thin profile keeps the installation clean while the six o'clock viewing angle makes this version particularly suitable for overhead or upper-helm mounting positions.

The anti-glare touchscreen supports familiar touch gestures and full 1080p video input, while LED backlighting and auto-dimming help maintain visibility in changing light. SmartMode support and broad system integration allow the monitor to work as part of a coordinated glass helm layout for navigation, sonar, gauges, media and onboard monitoring.

Key Features

• Overhead-friendly viewing angle: The six o'clock angle version is suited to installations where the display is viewed upward from below.
• 17-inch multi-touch screen: The SXGA touchscreen offers a large viewing area for charting, video, gauges and other helm functions.
• Slim glass helm format: Its compact depth helps the monitor fit where larger integrated displays can be difficult to install.
• Touch workflow and video support: Pinch-to-zoom controls and full 1080p video input support practical helm interaction and monitoring.
• SmartMode layout control: Custom preset display modes help synchronize multiple screens at the helm for faster layout changes.
• Broad system integration: The monitor is designed to work with sonar, autopilot, engine data, apps and media within a Garmin glass helm setup.

Applications

• Overhead or upper-console display positions in Garmin glass helm installations.
• Black box helm systems that separate the processor from the visible display surface.
• Large navigation and monitoring layouts that combine charting, sonar, cameras and engine data.

Specifications

What’s Included

• GMM 170 – 6 o’clock angle version
• Protective cover
• Flush mount gasket and hardware
• Power cable
• DVI-D cable 15 ft
• 20 ft network cable
• Documentation
