Garmin GSD 26 Sonar Module

Overview Garmin GSD 26 Sonar Module

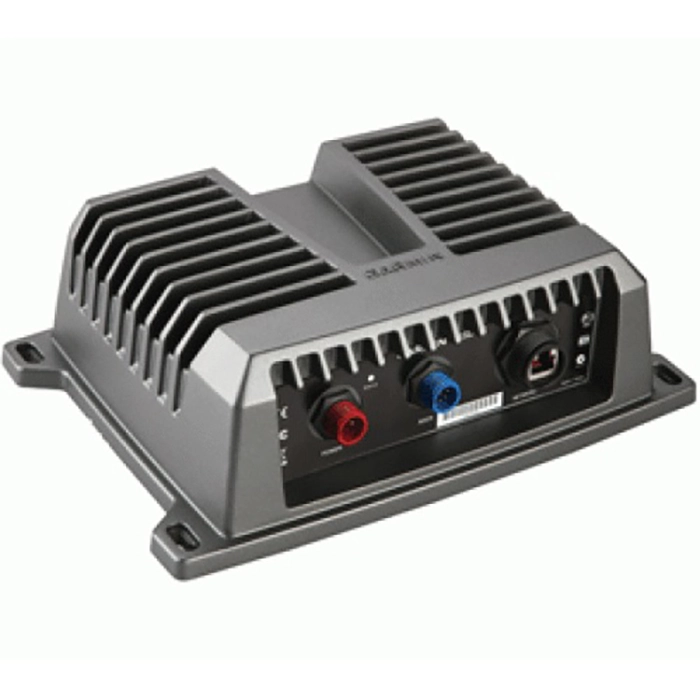

Garmin GSD 26 Sonar Module is a black box sonar module for Garmin Marine Network installations, built to improve target separation, bottom tracking, and deep-water performance. It supports 25 kHz to 210 kHz (Manually Adjustable) and depth capability up to approx. 3,000 meters (nearly 10,000 ft).

In a real-world scenario, such as fishing the edge of the continental shelf, the ability to see the thermocline and bait balls with extreme precision allows the captain to position the vessel exactly where the predators are most active. The dual-transceiver system is particularly useful here, as you can monitor the deep seafloor for structure while simultaneously watching the mid-water columns for roaming game fish.

Key Features

• Spread Spectrum Technology: By pulsing through a range of frequencies rather than a single fixed point, the system puts more energy on the target. This results in much better target separation and the ability to distinguish individual fish even when they are tightly packed or hovering near the bottom.
• Adjustable Frequency Range: Users have the flexibility to manually adjust frequencies from 25 kHz to 210 kHz. This allows you to fine-tune your search based on the specific species you are targeting or the unique environmental conditions of your fishing grounds.
• Dual-Transceiver Capability: This unit essentially acts as two sonar units in one. Its dual-transceivers allow for simultaneous and independent transducer operation, meaning you can scan the deep and the shallow water at the same time with zero interference between channels.
• High-Output Transmit Power: With selectable transmit power ranging from 300 watts up to a 3,000 watts, you have the raw power needed for extreme deep-sea fishing equipment setups. This power allows the unit to maintain a solid bottom lock at depths approaching 3,
• Broadband Transducer Compatibility: The unit is optimized to work with the latest line of Airmar broadband transducers, ensuring that the hardware can keep up with the integrated digital signal processing of the sounder itself.
• Robust Marine Integration: Designed for the Garmin Marine Network, it interfaces flawlessly with GPSMAP 4000 through 7000 series MFDs, providing a centralized control system for all your underwater data needs.

Applications

In a real-world scenario, such as fishing the edge of the continental shelf, the ability to see the thermocline and bait balls with extreme precision allows the captain to position the vessel exactly where the predators are most active. The dual-transceiver system is particularly useful here, as you can monitor the deep seafloor for structure while simultaneously watching the mid-water columns for roaming game fish.

Beyond sport fishing, this module is an invaluable asset for commercial survey vessels and long-range explorers. When navigating through poorly mapped waters or scanning for submerged wrecks, the bottom contour clarity provided by the spread spectrum pulses ensures a safer and more efficient voyage.

Specifications

What’s Included

• 1x Garmin GSD 26 Sonar Digital Black Box Unit
• 1x Power Cable (6 ft)
• 1x Marine Network Cable (6 ft)
• 1x Mounting Hardware and Brackets
• 1x SD Card for Software Updates
• 1x Detailed Installation and Operation Manual
