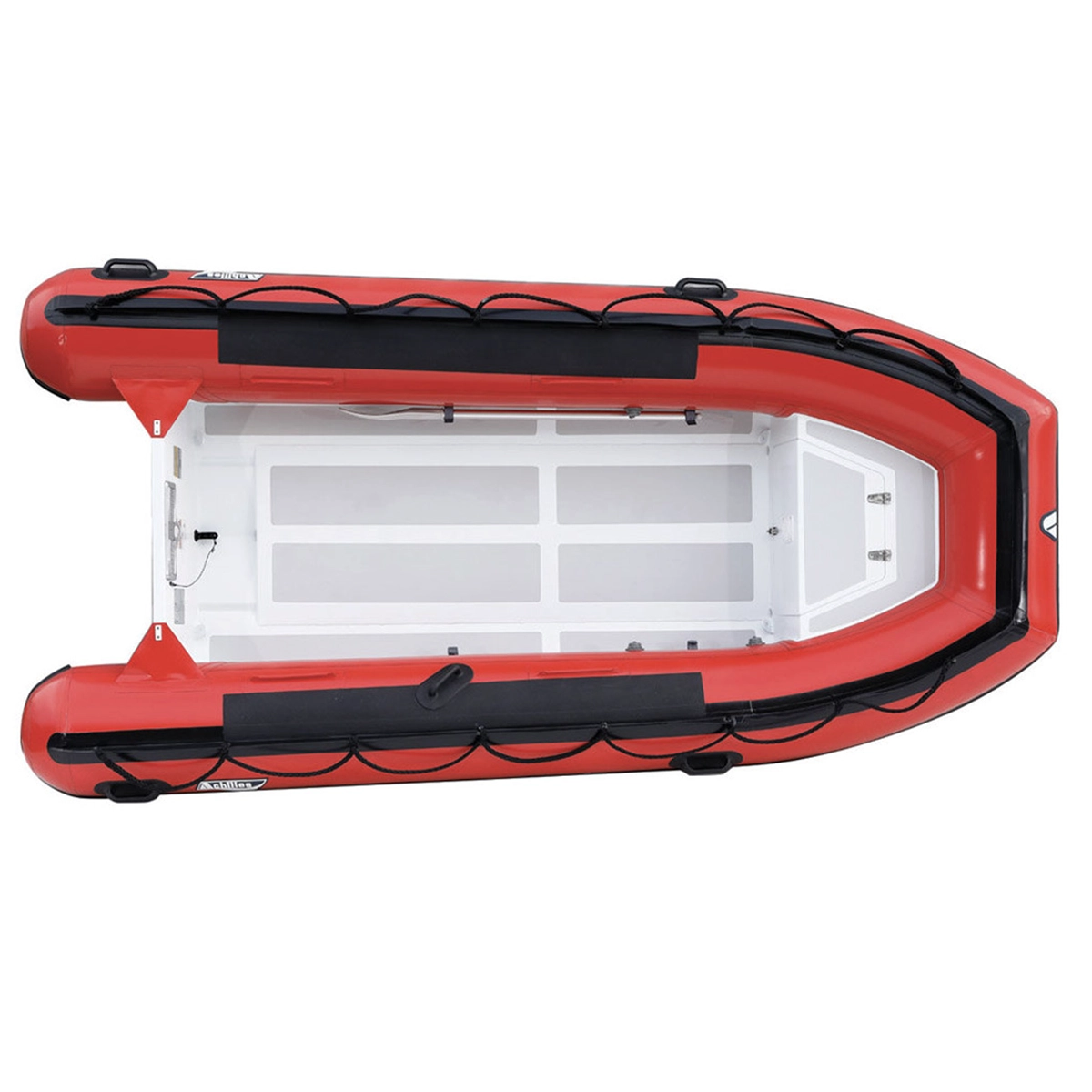

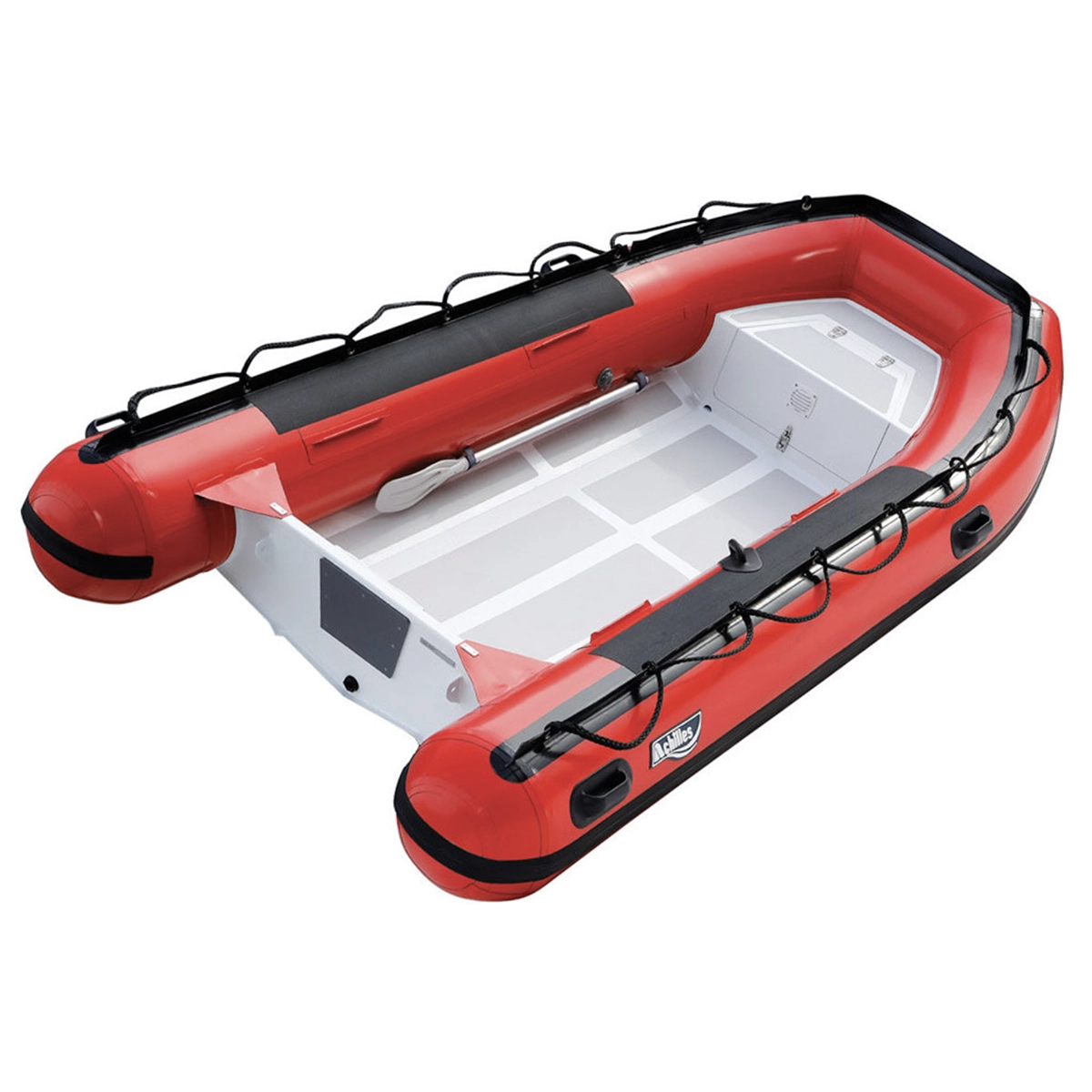

Achilles HB-335AX Inflatable Boat
$4,562.00
The Achilles HB-335AX Inflatable Boat is a heavy-duty aluminum-hull RIB designed for commercial, rescue, and rugged coastal use. With a flat deck liner, bow locker, and reinforced protection, it delivers durability, stability, and confident performance.
Add $500.00 to cart and get free shipping!
Overview Achilles HB-335AX Inflatable Boat
The Achilles HB-335AX Inflatable Boat is the largest model in the HB-AX aluminum RIB series, engineered for demanding commercial, rescue, and heavy-duty recreational use. Built with a powder-coated marine-grade aluminum hull and CSM-reinforced Hypalon tubes, it offers exceptional resistance to abrasion, impacts, and frequent beach landings while maintaining efficient performance with moderate horsepower.
Features and Performance
- Powder-Coated Marine-Grade Aluminum Hull Designed to withstand rocks, coral, docks, and repeated beaching with minimal maintenance.
- CSM-Reinforced Hypalon Tubes Highly resistant to UV exposure, saltwater, fuel, and abrasion for long service life.
- Full-Length Deck Liner with Non-Skid Patches Creates a flat, comfortable working deck with improved traction and water flow underneath.
- Vented Bow Locker with Under-Deck Fuel Routing Frees deck space, improves weight distribution, and enhances safety.
- Double Heavy-Duty Teardrop Rubbing Strake Adds extra tube protection against pilings, rocks, and docks.
- Full-Length Splashguard with Lifelines Improves passenger safety and helps keep water out during active operations.
- Four-Layer Seam Construction Reinforces critical joints for long-term durability and reliability.
Why You Should Buy it
- Heavy-duty aluminum RIB built for commercial and rescue-style use
- Excellent durability for beach landings and rough shorelines
- Flat deck layout ideal for gear, passengers, or utility tasks
- Efficient planing performance with outboards up to 25hp
- Backed by Achilles 5-Year Warranty for long-term confidence
| Specification | Details |
|---|---|
| Overall Length | 11' |
| Overall Beam | 5'7" |
| Inside Length | 8' |
| Inside Beam | 2'9" |
| Weight | 175 lbs |
| Capacity | 5 persons or 1,210 lbs |
| Maximum Motor | 25hp Short Shaft |
| Recommended Motor | 20hp Short Shaft |
| Maximum Motor Weight | 154 lbs |
| Tube Diameter | 17" |
| Air Chambers | 3 |
| Fabric Type | Hypalon (CSM) |
| Warranty | Achilles 5-Year Warranty |
| Hull Dimensions | 10'2" x 3'7" x 1'10" |
- Paddle with interior paddle strap
- Foot pump
- Maintenance kit
- Owner’s manual
Frequently Asked Questions About Achilles HB-335AX Inflatable Boat
What kind of boating is the Achilles HB-335AX Inflatable Boat built for?
Achilles HB-335AX Inflatable Boat is designed as a rigid inflatable tender for general recreational boating. The published details list Hypalon (CSM), 5 persons or 1,210 lbs, and a 25hp Short Shaft limit.
What does the published hull and tube construction tell you?
This inflatable boat combines Hypalon (CSM) in its published construction details. Those details, including 17" tubes and 3 air chambers, help explain its balance of stability, durability, and ride control.
What do the published carrying and motor figures show?
This rib is published with 5 persons or 1,210 lbs, a recommended motor of 20hp Short Shaft, a maximum motor of 25hp Short Shaft, and a maximum engine weight of 154 lbs. Those figures are useful for matching the boat to the way you plan to load, power, and use it aboard.
What is included with this boat?
The package is described as including Foot pump, Maintenance kit, Paddle with interior paddle strap, and Owner’s manual. This is useful when checking whether the listing already covers the everyday tender accessories you expect to receive.
