Garmin GPSMAP 9013 Multifunction Display
$2,924.00
Garmin GPSMAP 9013 Multifunction Display is a 13.2-inch 4K IPS helm display with Mini LED local dimming, a 7x faster processor, and Garmin BlueNet networking. It is designed for larger glass helm installations that need higher detail and fast data sharing.
Overview Garmin GPSMAP 9013 Multifunction Display

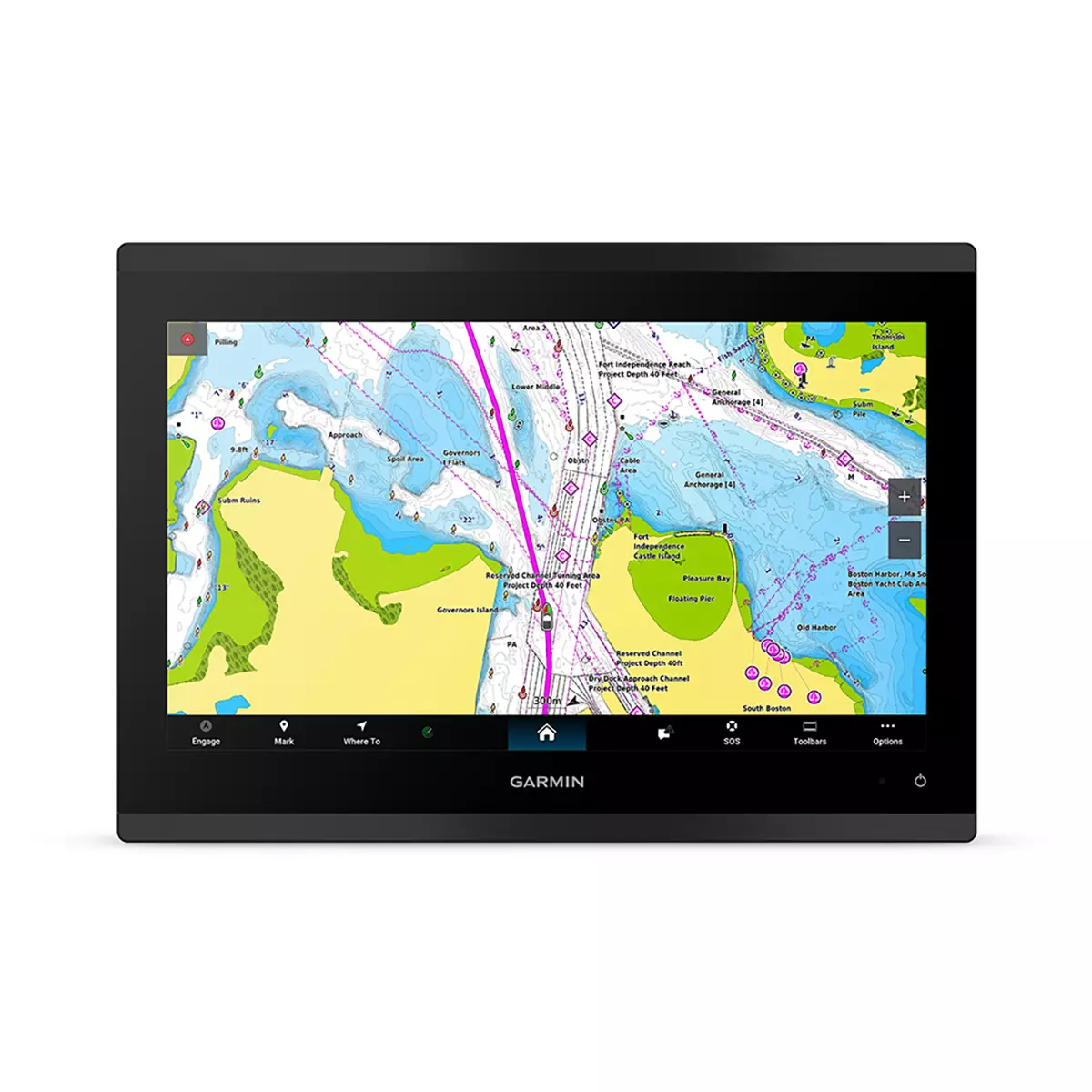

Garmin GPSMAP 9013 Multifunction Display is a 13.2-inch helm display intended for larger navigation stations that benefit from extra screen detail. The display uses a 4K 3840 x 2160 IPS panel with Mini LED local dimming, giving more room for chart data, sonar or radar views, and split-screen layouts.
The source data describes the internal processing platform as 7 times faster than previous generations, helping keep the interface responsive during route changes and chart handling. Garmin BlueNet supports high-speed networking, and the built-in 10 Hz multi-band GNSS receiver is paired with NMEA 2000, J1939, USB-C, Wi-Fi, ANT, and video connectivity.
Key Features
- 13.2-inch 4K IPS display: Provides 3840 x 2160 resolution for detailed chart presentation and easier multi-window viewing.
- Mini LED local dimming: Improves contrast and helps maintain visibility across changing lighting conditions.
- 7x faster processing platform: Supports quicker redraws and more responsive helm operation when multiple functions are active.
- Garmin BlueNet networking: Moves compatible data quickly between displays, radar, cameras, and other connected devices.
- Expanded integration options: Built-in GNSS, NMEA 2000, J1939, USB-C, Wi-Fi, ANT, and video ports support wider helm integration.
Applications
Well suited to larger cruising, offshore, and sportfishing helms where operators want more screen area and high detail.
A strong option for glass bridge layouts that need to combine navigation, video, and other networked data on a larger single display.
Specifications
| Display size | 13.2 inches diagonal |
| Display resolution | 4K 3840 x 2160 pixels |
| Processor speed | 7x faster than previous generations |
| Display type | IPS with Mini LED (local dimming) |
| Networking | Garmin BlueNet (gigabit speeds) |
| Internal GPS | 10 Hz multi-band / multi-constellation |
| Connectivity | NMEA 2000, J1939, USB-C, Wi-Fi, ANT |

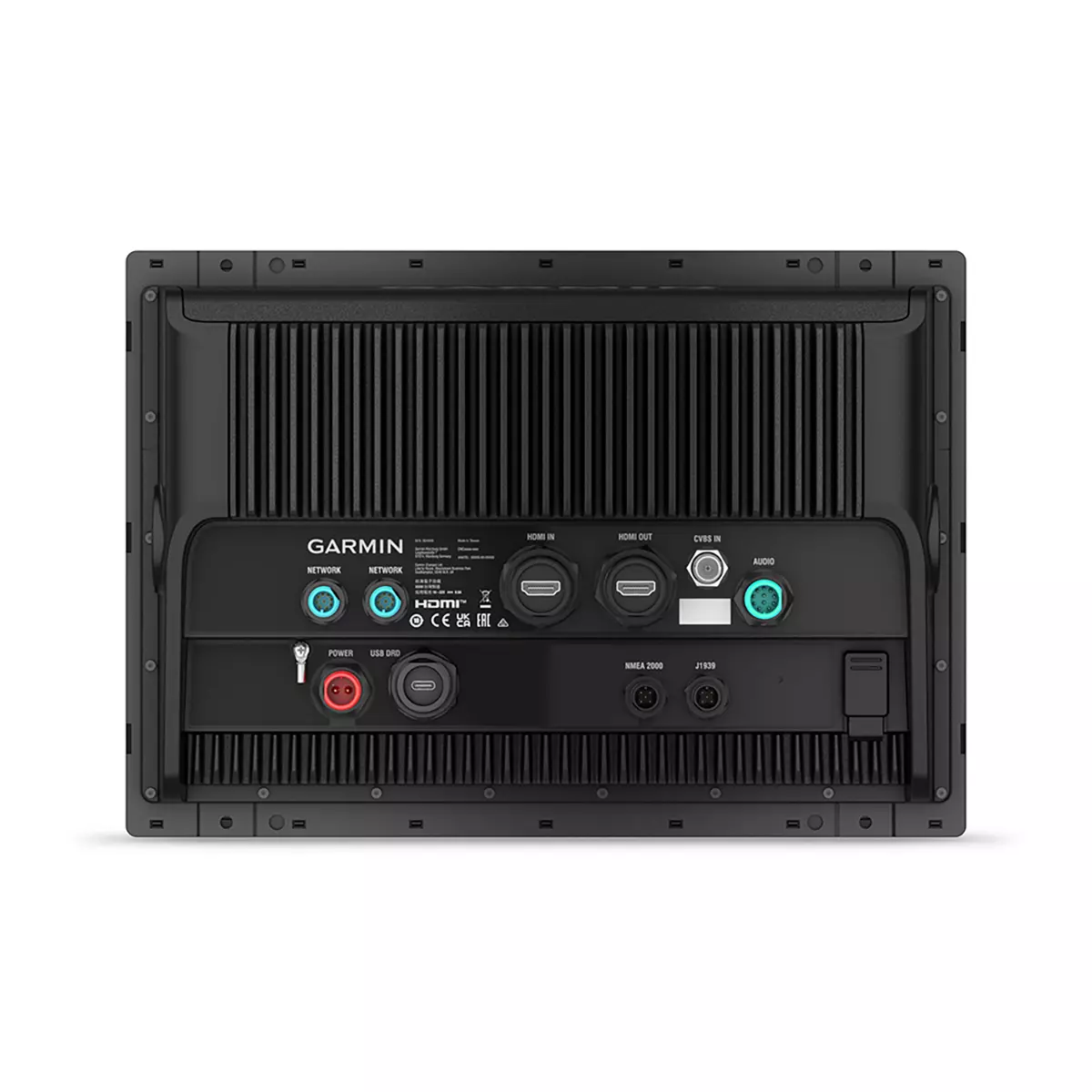

| Video ports | HDMI in (HDCP), HDMI out, BNC composite in |
| Waterproof rating | IPX7 |
| Weight | 9.1 lbs (4.13 kg) |
What’s Included
- Garmin GPSMAP 9013 Premium Chartplotter
- Power Cable and NMEA 2000® T-connector
- NMEA 2000 Backbone/Drop Cable (2 meters)
- Bail Mount Kit with Knobs and Flush Mount Kit
- Protective Suncover and Trim Piece Snap Covers
- Comprehensive Documentation Pack
Frequently Asked Questions About Garmin GPSMAP 9013 Multifunction Display
Why would a skipper choose Garmin GPSMAP 9013 Multifunction Display?
Garmin GPSMAP 9013 Multifunction Display is designed for skippers who want chart navigation and sailing data in one helm display. It combines its 13.2-inch format with a 10 Hz GPS/GNSS receiver, making it useful for offshore or blue-water passages.
What helps this chartplotter stay usable during active sailing?
This chartplotter uses a 13.2-inch screen and IPS display technology to keep charts and data readable through normal helm use. Its interface is meant to keep common tasks straightforward when the operator needs quick access to charts and data.
What types of electronics links does this chartplotter provide?
This chartplotter supports NMEA 2000 and Wi-Fi. That helps the unit exchange navigation, instrument, and sensor data across the boat. It is intended to work as part of a broader onboard electronics setup rather than in isolation.
Where does this chartplotter make the most sense on board?
This chartplotter is aimed at owners who want a capable helm display matched to real onboard navigation and monitoring needs. It suits installations where visibility, integration, and quick access to data matter more than unnecessary complexity.
