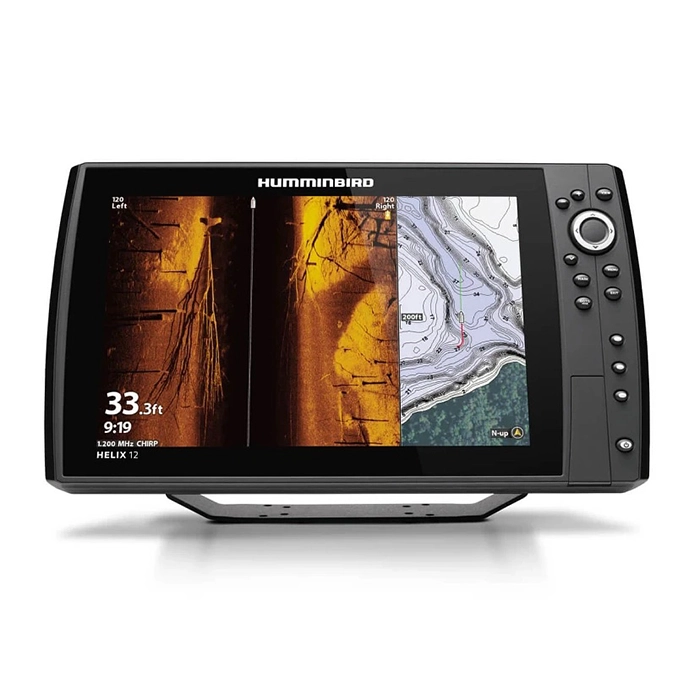

Humminbird HELIX 12 MSI Plus Fishfinder GPS Combo
$1,529.00
Humminbird HELIX 12 MSI Plus Fishfinder GPS Combo features a 12.1-inch display, MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar. It is built for anglers who want wide-screen detail, real-time mapping, and integration with connected boat systems.
Overview Humminbird HELIX 12 MSI Plus Fishfinder GPS Combo
Humminbird HELIX 12 MSI Plus Fishfinder GPS Combo is a large-format G4N unit built around a 12.1-inch WXGA display and Humminbird's MEGA imaging platform. The source data highlights MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP, AutoChart Live, and network compatibility with the One-Boat Network ecosystem.
This model is aimed at serious fishing setups that benefit from a larger screen, fast internal GPS, and deeper system integration. It suits users who want to view detailed imaging, charts, and connected accessories together while maintaining a clean helm workflow on larger boats.
Key Features
- MEGA Side Imaging+: Provides extended side-looking detail for identifying structure and fish-holding areas with greater clarity than standard imaging.
- MEGA Down Imaging+: Delivers high-detail returns directly below the boat for more confident reading of cover, contour changes, and fish position.
- Dual Spectrum CHIRP sonar: Adds traditional sonar performance for target separation and bottom tracking.
- 12.1-inch WXGA display: Offers generous room for split-screen sonar and chart combinations on the helm.
- One-Boat Network integration: Supports connected operation with compatible Humminbird, Minn Kota, and Cannon components.
Applications
- Larger fishing boats that need more screen area for chart, sonar, and system views together.
- Anglers scanning expansive structure such as points, flats, channels, and offshore breaks.
- Installations using connected trolling motor or accessory ecosystems.
- Users who want high-detail imaging and real-time contour creation in one platform.
Specifications
| Display size | 12.1 inches |
| Display resolution | 1280H x 800V |
| Display type | WXGA color TFT |
| Sonar technology | MEGA SI+, MEGA DI+, Dual Spectrum CHIRP |
| Real-time mapping | AutoChart Live |
| GPS update rate | 10 Hz internal GPS |
| Networking | Ethernet, Bluetooth, NMEA 2000 |
| Compatibility | One-Boat Network (Minn Kota / Cannon) |
| Operating voltage | 10.8 V to 20 V DC |
| Waterproof rating | IPX7 |
| Warranty | 1-year limited manufacturer warranty |
What’s Included
- Humminbird HELIX 12 MSI Plus GPS G4N unit
- Transom mount MEGA SI+ / DI+ transducer
- 6 ft power cable
- Gimbal mounting bracket and knobs
- Protective screen cover
- Installation hardware and documentation pack
Frequently Asked Questions About Humminbird HELIX 12 MSI Plus Fishfinder GPS Combo
Who is Humminbird HELIX 12 MSI Plus Fishfinder GPS Combo most suitable for?
Humminbird HELIX 12 MSI Plus Fishfinder GPS Combo is designed for anglers who want wide-screen detail. It combines 12.1 inches display with MEGA SI+, MEGA DI+, Dual Spectrum CHIRP to support navigation, fishfinding, and everyday helm decisions.
Which features are most useful in day-to-day use?
This system is described with 12.1 inches display with 1280H x 800V resolution; MEGA SI+, MEGA DI+, Dual Spectrum CHIRP; AutoChart Live. Those details make it easier to read navigation data and interpret underwater information during normal use.
How well does this fishfinder fit into a connected helm?
This fishfinder includes Ethernet, Bluetooth, NMEA 2000; 10 Hz internal GPS, which supports data sharing, position updates, or system expansion when those functions are listed for the model. That can be useful for owners who want charting, sonar, and connected onboard information working together.
What makes this fishfinder easy to operate underway?
This unit is aimed at anglers who want wide-screen detail, so its stated feature set matches practical day-to-day navigation and fishfinding needs. The listed WXGA color TFT; IPX7 supports easier viewing and more confident operation in changing marine conditions.
