Name: Mercury 5hp Sail Power Outboard 5MLHA
Brand: Mercury
SKU: NM811731549
Price: 1032.00 USD
Availability: InStock

Description

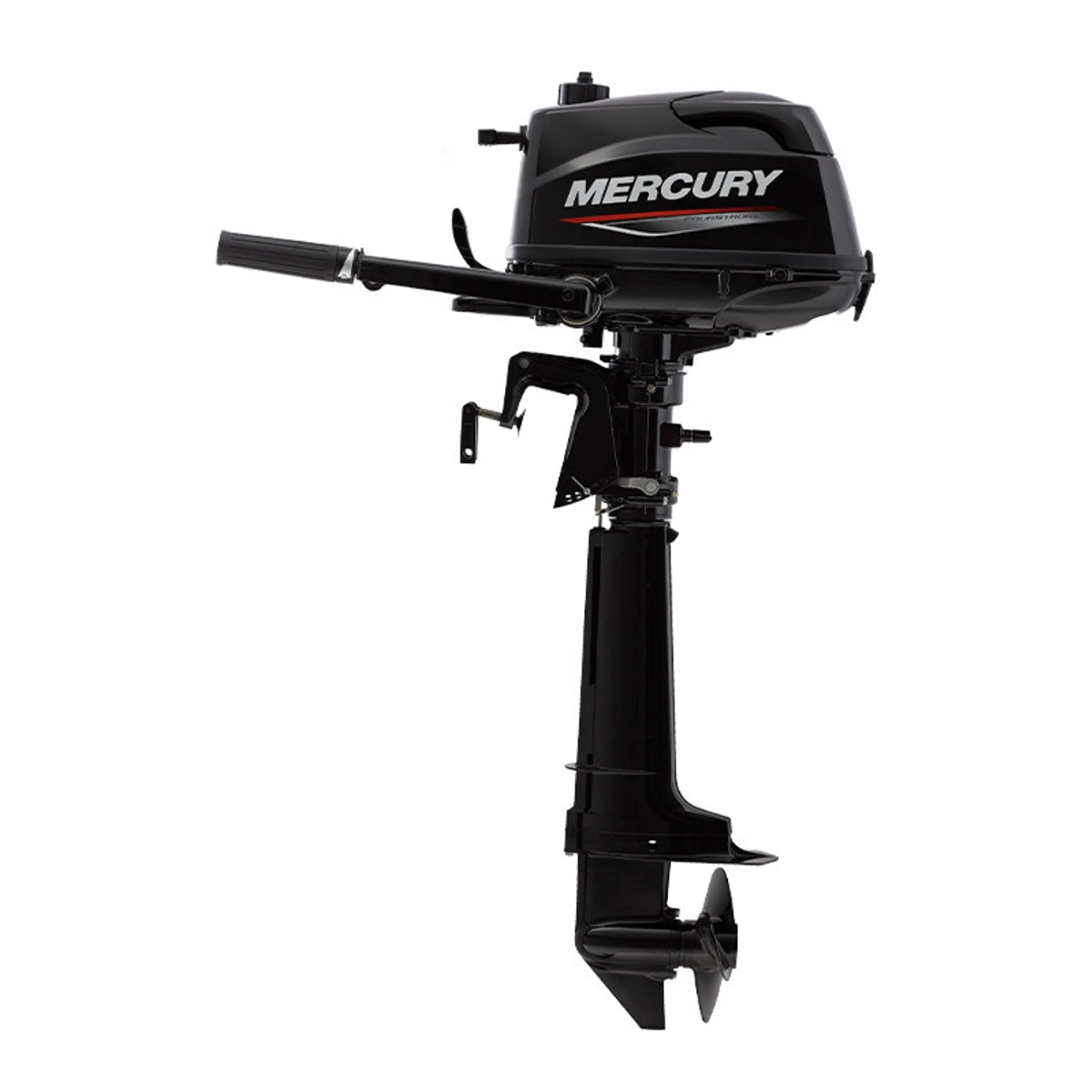

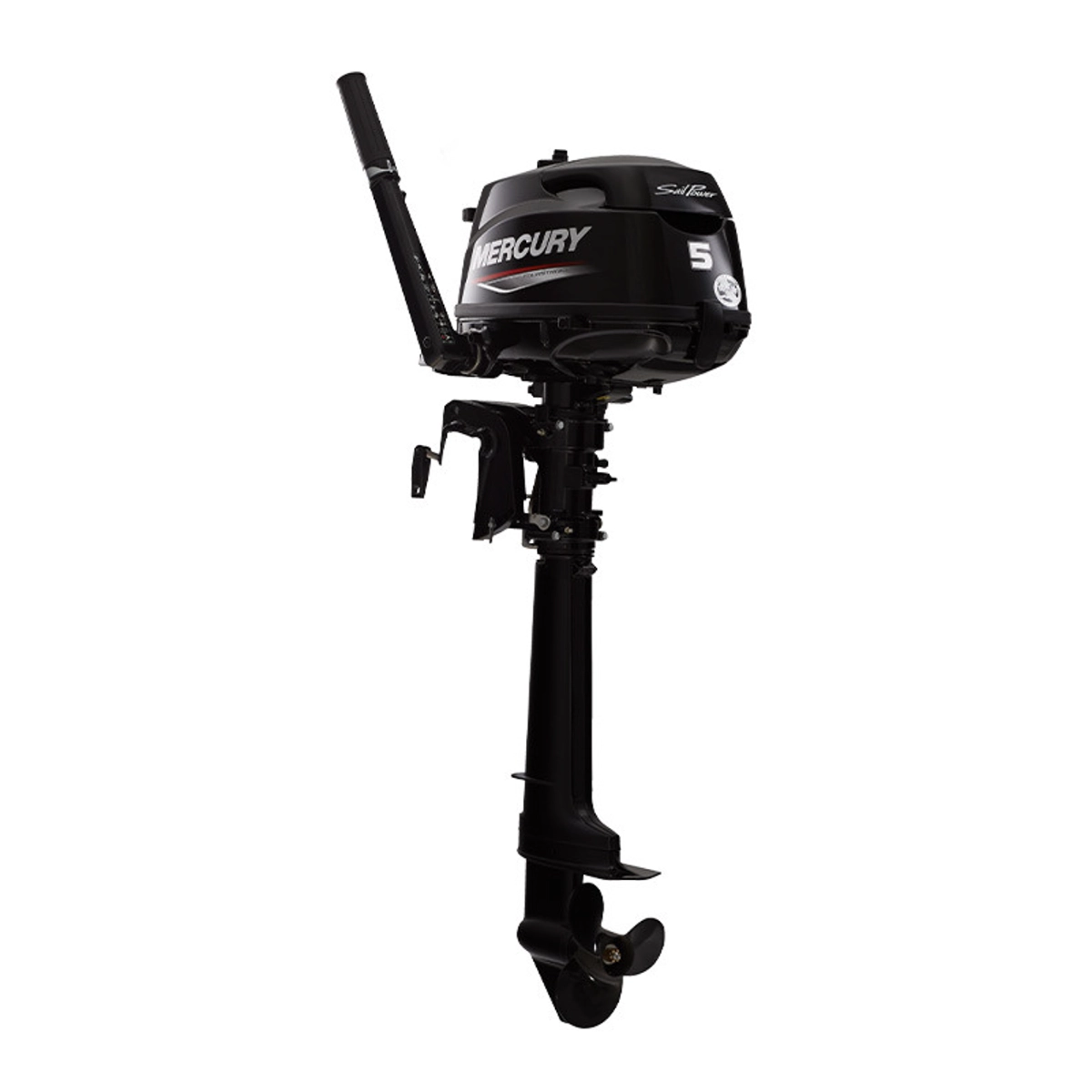

Overview Mercury 5hp Sail Power Outboard 5MLHA

The Mercury 5hp Sail Power Outboard 5MLHA is purpose-built for sailors who need reliable auxiliary power with precise low-speed control. Designed to move heavier sailboats efficiently, this Sail Power model combines a 20-inch long shaft, high-thrust propeller, and integrated alternator—making it ideal for docking, harbor maneuvering, and calm-water motoring.

Compact, portable, and easy to operate, the 5MLHA is also well suited for aluminum tiller boats, inflatables, and utility craft that benefit from extra thrust at low speeds.

Features and Performance

Powered by a 123cc single-cylinder four-stroke engine, the 5MLHA delivers smooth, predictable power across a 4,500–5,500 RPM range. The high-thrust 3-blade aluminum propeller (6.0” pitch) is optimized to push heavier loads at slower speeds, improving control and responsiveness.

An onboard 4-amp / 50-watt alternator provides charging capability for onboard electronics, a valuable feature for sailboats. The carbureted fuel system ensures reliable operation, while manual starting and tiller throttle control keep the design simple and easy to maintain. An internal 0.3-gallon fuel tank maintains a clean, compact setup.

Why You Should Buy it

If you need a dependable auxiliary engine tailored for sailing, the Mercury 5MLHA Sail Power is the right tool for the job. It delivers controlled thrust, charging capability, and long-shaft compatibility—backed by the proven engineering of Mercury Marine. Ideal for sailboats and heavier small craft, this outboard offers confidence, efficiency, and everyday convenience on the water.

Specifications

Specification	Details
Engine Type	Mercury 5MLHA Sail Power Inline 1 Four Stroke
Horsepower	5 hp
Cylinders	1 Cylinder
Displacement	123 cc
Fuel System	Carbureted
Induction System	2-valve pushrod (OHV)
Shaft Length	20” (Long)
Throttle Control	Tiller
Starting System	Manual
Full Throttle RPM Range	4,500 – 5,500 rpm
Alternator Output	4 amp / 50 watt
Weight	59 lbs
Propeller	High Thrust 3-Blade Aluminum (6.0” Pitch)
Fuel Tank	Internal (0.3 gallons)
Warranty	Mercury Marine 3-Year Warranty

What’s Included

Mercury 5MLHA Sail Power Outboard Motor
High-thrust 3-blade aluminum propeller (6.0” pitch)
Internal fuel tank (0.3 gallons)
Integrated carry handle
Service tool kit & parts
Stop switch lanyard
Owner’s manual

FAQ

Frequently Asked Questions About Mercury 5hp Sail Power Outboard 5MLHA

What is the Mercury 5hp Sail Power Outboard 5MLHA designed for?

The Mercury 5hp Sail Power Outboard 5MLHA is built for sailors who need reliable auxiliary power with precise low-speed control. The row highlights 5 hp, Mercury 5MLHA Sail Power Inline 1 Four Stroke, and a 20” (Long) shaft for a clearly defined operating setup.

How does this outboard support trolling or auxiliary duty?

This outboard is configured with 5 hp, and Carbureted. The listed high thrust 3-blade aluminum (6.0” pitch) and the Command Thrust or ProKicker emphasis point to stronger low-speed control for trolling, kicker duty, or pushing heavier loads when the product copy states those uses.

What onboard control details stand out on this model?

This model is listed with a 20” (Long) shaft, and Manual starting. Those details matter because alternator output is listed at 4 amp / 50 watt, helping buyers judge transom fit, helm style, and everyday operating convenience.

Where does this outboard make the most sense on the water?

This setup makes the most sense for sailors who need reliable auxiliary power with precise low-speed control. The row backs that up with the 20” (Long) shaft, and high thrust 3-blade aluminum (6.0” pitch), all of which support thrust-focused rather than speed-focused operation.
