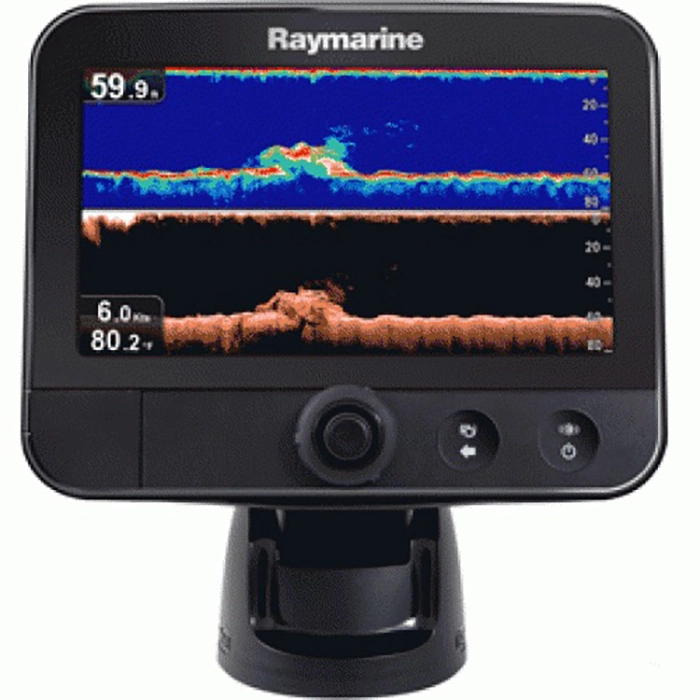

Raymarine Dragonfly7 GPS Fishfinder
$369.00
Raymarine Dragonfly7 GPS Fishfinder is a 7-inch sonar and GPS combo with ClearPulse CHIRP, DownVision, a built-in 50-channel GPS, and a dual-beam transom transducer for inland and coastal fishing.
Overview Raymarine Dragonfly7 GPS Fishfinder
Raymarine Dragonfly7 GPS Fishfinder combines sonar and GPS navigation in a 7-inch display built for anglers who need clear underwater detail and practical chart guidance from the same unit.
The system uses ClearPulse CHIRP with a true 2-channel transducer to show DownVision and conventional sonar at the same time, while the built-in GPS and supplied chart coverage support both inland and coastal fishing trips.
Key Features
- ClearPulse CHIRP sonar: produces more detailed views of fish and bottom structure than traditional fixed-frequency sonar.
- Dual-channel DownVision and conventional sonar: lets anglers compare structure and fish targets side by side.
- 7-inch 1600 nit display: stays readable in bright daylight at the helm.
- 50-channel built-in GPS: supports fast position updates and route tracking for repeatable navigation.
- Dual-beam transom transducer with temperature sensor: adds both fish targeting and detailed structure imaging in one sensor.
- US Coastal Gold and Inland Lakes charts: provide useful coverage for freshwater and nearshore use.
Applications
- Freshwater fishing where anglers need clear bottom and structure imaging for lakes and rivers.
- Coastal fishing runs that benefit from GPS charting and sonar in one compact system.
- Smaller boats that need a complete out-of-box fishfinding package with transducer and charts included.
Specifications
| Display | 7-inch ultra-bright 1600 nit display |
| Sonar Technology | ClearPulse CHIRP with DownVision and conventional sonar |
| DownVision Depth | Up to 250 ft |
| Conventional Sonar Depth | Up to 600 ft |
| GPS | Built-in 50-channel GPS |
| Waypoint Capacity | Up to 3,000 waypoints, 150 routes, 15 tracks, and 10,000 trackpoints |
| Included Charts | US Coastal Gold and Inland Lakes charts |
What’s Included
- Raymarine Dragonfly 7-inch Sonar/GPS display
- Tilt/swivel mounting bracket
- True dual-beam transom mount transducer assembly with mounting bracket and sealing cap
- Navionics Gold chart for US Coastal and Inland Lakes
- User guide
Frequently Asked Questions About Raymarine Dragonfly7 GPS Fishfinder
How is Raymarine Dragonfly7 GPS Fishfinder intended to be used on the water?
Raymarine Dragonfly7 GPS Fishfinder is designed for anglers who need clear underwater detail and practical chart guidance from the same unit. It combines 7-inch ultra-bright 1600 nit display with ClearPulse CHIRP with DownVision and conventional sonar to support navigation, fishfinding, and everyday helm decisions.
How does this display support charting and sonar use?
This sonar unit is described with 7-inch ultra-bright 1600 nit display; ClearPulse CHIRP with DownVision and conventional sonar; US Coastal Gold and Inland Lakes charts. Those details make it easier to read navigation data and interpret underwater information during normal use.
What integration or networking support is mentioned for this fishfinder?
This system includes Built-in 50-channel GPS, which supports data sharing, position updates, or system expansion when those functions are listed for the model. That can be useful for owners who want charting, sonar, and connected onboard information working together.
How does this unit support day-to-day visibility and control?
This fishfinder is aimed at anglers who need clear underwater detail and practical chart guidance from the same unit, so its stated feature set matches practical day-to-day navigation and fishfinding needs. The screen size and feature focus should suit operators who want charting and sonar information presented in a single helm interface.
