SI-TEX CVS-1410 Fishfinder
$945.00

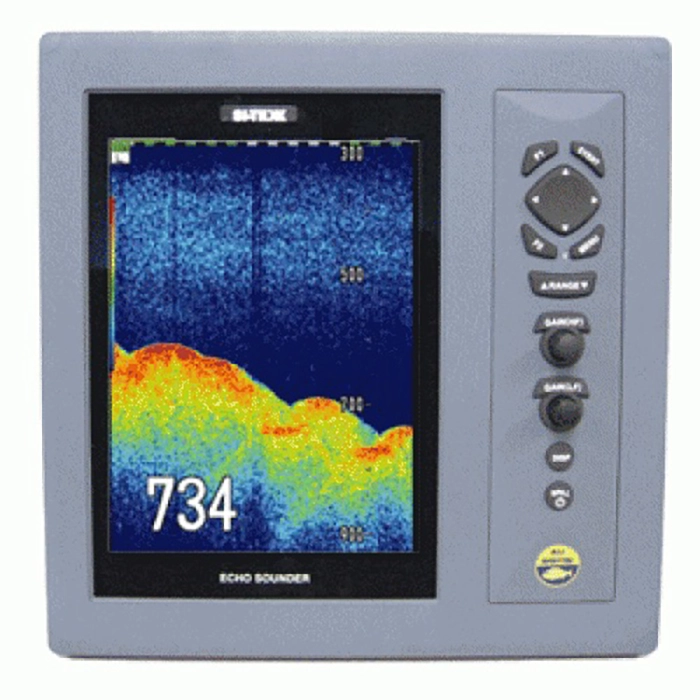

SI-TEX CVS-1410 Fishfinder is a 1 kW dual-frequency fishfinder with a 10.4-inch sunlight-viewable color display and KDF digital filtering. It is designed for clearer target separation, strong bottom tracking, and deeper-water fishfinding performance.
Overview SI-TEX CVS-1410 Fishfinder
SI-TEX CVS-1410 Fishfinder is a 1 kW dual-frequency 50/200 kHz fishfinder built for anglers who need a large display and stronger sounding performance. Its 10.4-inch color TFT LCD is sunlight viewable and designed to keep bottom detail and target information readable in bright conditions.
The KDF digital filtering system helps optimize gain, suppress clutter, and improve the signal-to-noise ratio for more useful readings in both shallow and deeper water. With eight depth ranges, high-speed pulse transmission, multiple display modes, built-in alarms, and IPX5 protection, it is suited to demanding fishing use.
Key Features
- 1 kW dual-frequency 50/200 kHz operation supports stronger sounding performance across varied depths.
- KDF digital filtering improves clutter suppression and target clarity, especially when conditions are less than ideal.
- 10.4-inch sunlight-viewable color TFT LCD gives more room to read bottom detail and fish marks.
- Eight selectable ranges from 10 to 6000 feet help adapt the unit to shallow and offshore depth work.
- High-speed pulse transmission at 5000 times per minute improves shallow-water detection response.
- Multiple display modes, alarms, white line function, and IPX5 waterproof construction support regular marine use.
Applications
- Offshore and deeper-water fishing where higher power and long-range depth capability are important.
- Bottom tracking and fish target work near structure or close to the seabed.
- Helm stations that benefit from a larger dedicated sonar display.
Specifications
| Display | 10.4-inch color TFT LCD, sunlight viewable |
| Power output | 1 kW |
| Frequency | 50/200 kHz dual frequency |
| Depth ranges | 8 ranges from 10 to 6000 feet |
| Digital filtering | KDF (Koden Digital Filtering) |
| Pulse rate | 5000 transmissions per minute |
| Waterproof rating | IPX5 |
| Supply voltage | 10.8 to 31.2 VDC |
| Weight | 16.5 lbs |
| Transducer | Not included |
What’s Included
Transducer is not included, and the remaining package contents are not detailed in the source data.
Frequently Asked Questions About SI-TEX CVS-1410 Fishfinder
Who is SI-TEX CVS-1410 Fishfinder most suited to?
SI-TEX CVS-1410 Fishfinder is a 1 kW dual-frequency fishfinder with a 10.4-inch sunlight-viewable color display and KDF digital filtering. It is aimed at anglers who need a large display and stronger sounding performance where dependable sonar presentation and bottom tracking are important.
How does this unit help with reading fish and bottom detail?
This unit centers on dual-frequency 50/200 kHz operation for balancing shallow detail and deeper coverage. The result is a focused sonar display for bottom detail, fish marks, and underwater structure rather than a screen built around unrelated multifunction features.
What helps this unit stay practical during routine use?
For everyday helm use, this unit emphasizes Waterproof rating IPX5 and Display 10.4-inch color TFT LCD, sunlight viewable, which helps with operation, visibility, and routine sonar adjustments in working conditions. That keeps the screen focused on sonar tasks without adding an overly complex interface.
Is this a good choice for a dedicated sonar setup?
The listed Transducer Not included means the sonar source is already defined in the product data, which clarifies the included package. It also shows what transducer or sensor type is supplied with the display.
