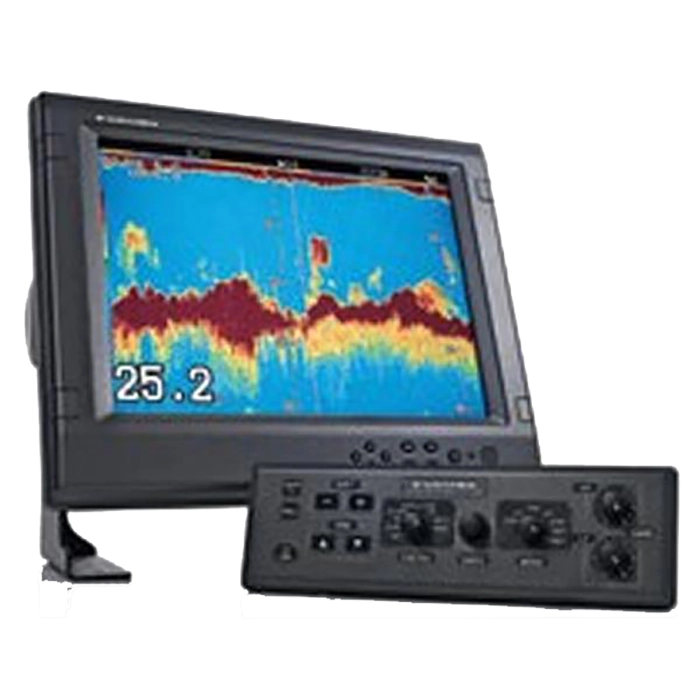

Furuno FCV1200BB Black Box Sounder
$4,590.00
Furuno FCV1200BB Black Box Sounder is a dedicated black box sonar processor with selectable 1kW, 2kW, or 3kW output and Furuno Free Synthesizer frequency control. It suits wheelhouse installations that want a high-power sounder connected to an external marine monitor.
Overview Furuno FCV1200BB Black Box Sounder
Furuno FCV1200BB Black Box Sounder is a professional black box sonar designed for installations that use a separate marine monitor and want the sounder processor mounted out of sight. It supports Selectable 1kW, 2kW, or 3kW and 15/28/38/50/88/107/200 kHz via FFS so the operator can tailor sonar performance to different depths and target conditions.
This model fits commercial and serious offshore installations that prefer a black box sonar core with separate display. In the source data, its core strengths are Furuno Free Synthesizer, Bottom Hardness, A-Scope, Frequency Mix, and deep-water range scales, which make it a strong option when the vessel needs a serious dedicated sounder rather than an all-in-one display.
Key Features
- Black box architecture: Lets builders pair the sonar core with a separate monitor suited to the wheelhouse layout.
- Selectable high-power output: Supports 1kW to 3kW transducer systems for demanding offshore or commercial use.
- Wide Free Synthesizer frequency range: Gives the operator more control when tuning the sounder for species, depth, and bottom conditions.
- Deep range capability: Supports very large range scales for deep-water applications.
- Professional sonar modes: Adds Bottom Hardness, A-Scope, and Frequency Mix for more detailed interpretation.
Applications
- Commercial fishing boats and serious offshore vessels that want a dedicated black box sonar processor.
- Wheelhouse installations where an external marine monitor is preferred over an integrated display.
- Deep-water sounder work that benefits from higher power and wider frequency control.
Specifications
| Sonar type | Dual-frequency black box sounder |
| Output power | Selectable 1kW, 2kW, or 3kW |
| Frequencies | FFS: 15, 28, 38, 50, 88, 107, and 200 kHz |
| Display output | RGB for VGA, SVGA, and XGA marine monitors |
| Range scales | Customizable to 6,000 ft, max scale 12,000 ft |
| Echo colors | 8 or 16 user-selectable colors |
| Advanced modes | Bottom Hardness, A-Scope, Frequency Mix |
| Connectivity | NMEA 0183 in/out and TLL output |
What’s Included
- Furuno FCV1200BB Black Box Processor Unit
- Dedicated Control Keyboard (Choice of Landscape or Portrait)
- Power Cable Assembly
- Interconnection Cable (5 Meters)
- Standard Installation Hardware and Spare Parts Kit
- Comprehensive Installation and Operation Documentation
Frequently Asked Questions About Furuno FCV1200BB Black Box Sounder
What does Furuno FCV1200BB Black Box Sounder add to a vessel’s fishfinding setup?
Furuno FCV1200BB Black Box Sounder is a dedicated black box sonar processor with selectable 1kW, 2kW, or 3kW output and Furuno Free Synthesizer frequency control. It is described as dedicated sonar or fishfinding hardware that delivers its data through an existing monitor or multifunction display setup.
Which performance details stand out on this unit?
The listed product details include selectable 1kW, 2kW, or 3kW output and Furuno Free Synthesizer frequency control. Those details matter when the operator needs sonar performance matched more closely to target depth, seabed conditions, or fishing style.
How is this sounder module intended to be used with other onboard equipment?
The supplied information mentions NMEA 0183, showing that this unit is meant to send sonar functions into a compatible display network instead of relying on a separate standalone screen at the helm.
Who is this sounder or fishfinder best suited to?
It is well suited to offshore fishing use where better underwater detail, stronger system control, or a more organized helm layout can make searching, running, and monitoring easier through the day.
