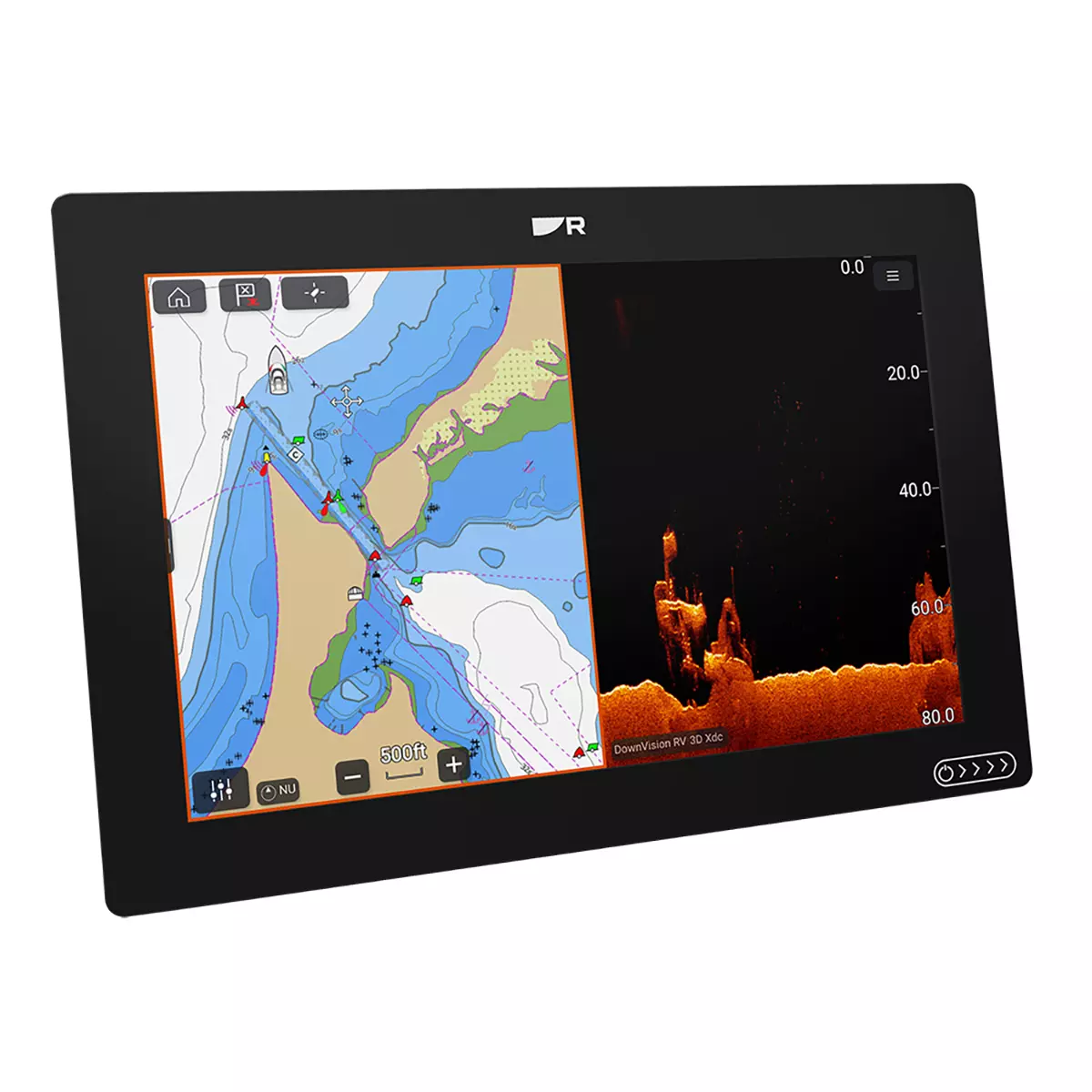

Raymarine Axiom 2 RV 12 Multifunction Display
$2,144.00
Raymarine Axiom 2 RV 12 Multifunction Display is a multifunction display designed for helms that need charting, radar, video, and network integration. Key features include 12.1 inches Diagonal IPS, 1280 x 800 WXGA, and 1800 nits / 1800 cd/m².
Overview Raymarine Axiom 2 RV 12 Multifunction Display
The Raymarine Axiom 2 RV 12 Multifunction Display is the latest generation of the award-winning Axiom evolution, engineered to deliver a faster, more intuitive, and more responsive navigation experience for the most demanding mariners. This 12.1-inch multifunction display (MFD) is powered by a high-performance 6-core processor, ensuring lightning-fast chart rendering, instantaneous startups, and seamless multitasking across sonar, radar, and video feeds.
At the core of its visual experience is the rugged HydroTough IPS touchscreen, providing an astounding 1,800 nits of brightness for perfect visibility in direct sunlight, protected by an oleophobic coating that repels water and fingerprints. Whether you are a professional angler utilizing the built-in RealVision 3D sonar capabilities or a coastal cruiser managing a complex NMEA 2000 network, the Raymarine Axiom 2 RV 12 Multifunction Display serves as the marine-ready command center for your vessel, combining Raymarine’s signature durability with high-performance processing depth.
Key Features
- Powerful 6-Core Processor: Provides a new standard of speed.
- Integrated RealVision 3D Sonar: This unit features built-in RealVision 3D, SideVision, DownVision, and High CHIRP sonar channels.
- 1,800 Nit HydroTough Display: The 12.1-inch WXGA IPS display is designed for all-weather marine environments.

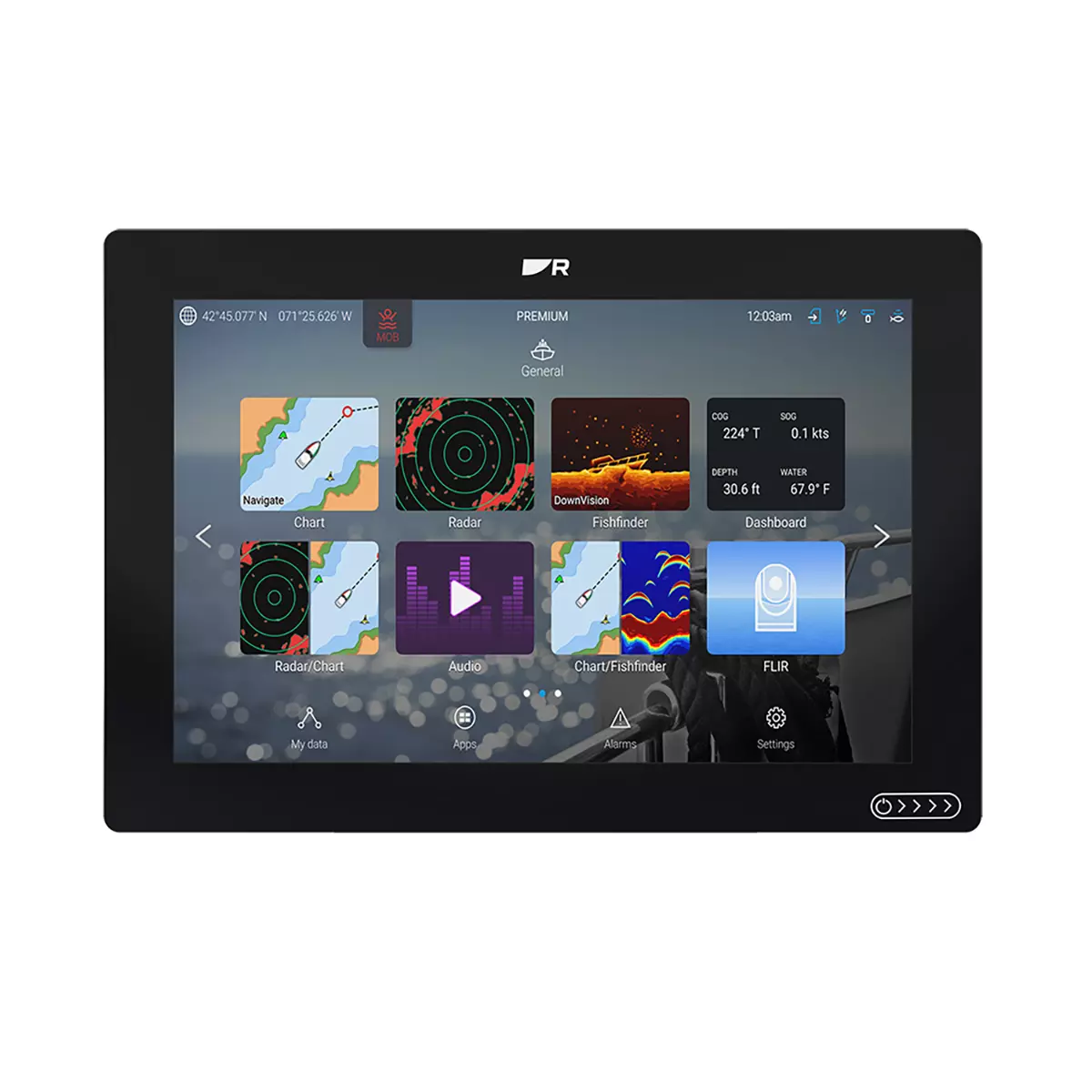

- LightHouse OS with App Integration: Powered by the intuitive LightHouse operating system, the unit provides access to over 30 LightHouse apps, including engine monitoring, weather overlays, and entertainment, all accessible through a user-friendly interface.
- High-Speed RayNet Networking: Supports a total vessel management hub with Gigabit Ethernet support.
Applications
The Raymarine Axiom 2 RV 12 Multifunction Display is the practical choice for offshore sportfishing yachts, high-end sailing vessels, and modern motor yachts where total system integration is mandatory. In a realistic scenario, an offshore angler can utilize the 12.1-inch widescreen to run a four-pane split view: a high-definition LightHouse chart on one pane, RealVision 3D sonar on another, and live engine data or FLIR thermal imaging on the remaining quadrants.
Because of the 6-core processing power, switching between ini views is instantaneous, allowing the captain to maintain total situational awareness while pursuing elusive game fish. Choosing to invest in the Raymarine Axiom 2 RV 12 Multifunction Display is a strategic move for any boat owner who values the balance of elite processing speed and industrial marine durability.
Specifications
| Display Size | 12.1 inches Diagonal IPS |
| Resolution | 1280 x 800 WXGA |
| Brightness | 1800 nits / 1800 cd/m² |
| Processor | 6-Core Marine Processor |
| Sonar Integration | Built-in RealVision 3D, Side, Down, High CHIRP |
| GPS Receiver | 10 Hz Internal GNSS (GPS/GLONASS/BeiDou) |
| Internal Storage | 64 GByte Solid State |
| Networking | RayNet (Gigabit), NMEA 2000, WiFi, Bluetooth |
| Waterproof Rating | IPX6 / IPX7 Standards |
| Product Warranty | 3-Year Manufacturer Warranty |
What’s Included
- 1x Raymarine Axiom 2 RV 12 Multifunction Display
- 1x LightHouse North America Chart (Pre-loaded/MicroSD)
- 1x Trunnion Mount Kit and Suncover
- 1x Power/NMEA 2000 Cable (1.5m)
- 1x Installation Hardware and Documentation Pack
- Note: Transducer is NOT included in this bundle.
Frequently Asked Questions About Raymarine Axiom 2 RV 12 Multifunction Display
Who is Raymarine Axiom 2 RV 12 Multifunction Display aimed at on the water?
Raymarine Axiom 2 RV 12 Multifunction Display is designed to bring key navigation and onboard data together on a single helm screen. With its 12.1-inch screen and fast chart and page handling, it suits coastal cruising and offshore or blue-water passages.
What kind of screen experience does this sailing multifunction display provide?
This sailing multifunction display uses a 12.1-inch screen and IPS display technology to keep charts and data readable in bright cockpit conditions. It also offers touchscreen control, so the operator can choose the control method that best fits the conditions.
How does this sailing multifunction display fit into a connected marine electronics system?
This sailing multifunction display supports NMEA 2000, Ethernet, Wi-Fi, and Bluetooth, plus microSD storage and sonar support. MicroSD support is also helpful for chart data, updates, and onboard file handling.
Is this sailing multifunction display more suitable as a primary or networked helm display?
This sailing multifunction display is aimed at owners who want a capable helm display matched to real onboard navigation and monitoring needs. It suits installations where visibility, integration, and quick access to data matter more than unnecessary complexity.
