Phasor K3 7.0 kW Marine Generator 120/240V

Overview Phasor K3 7.0 kW Marine Generator 120/240V

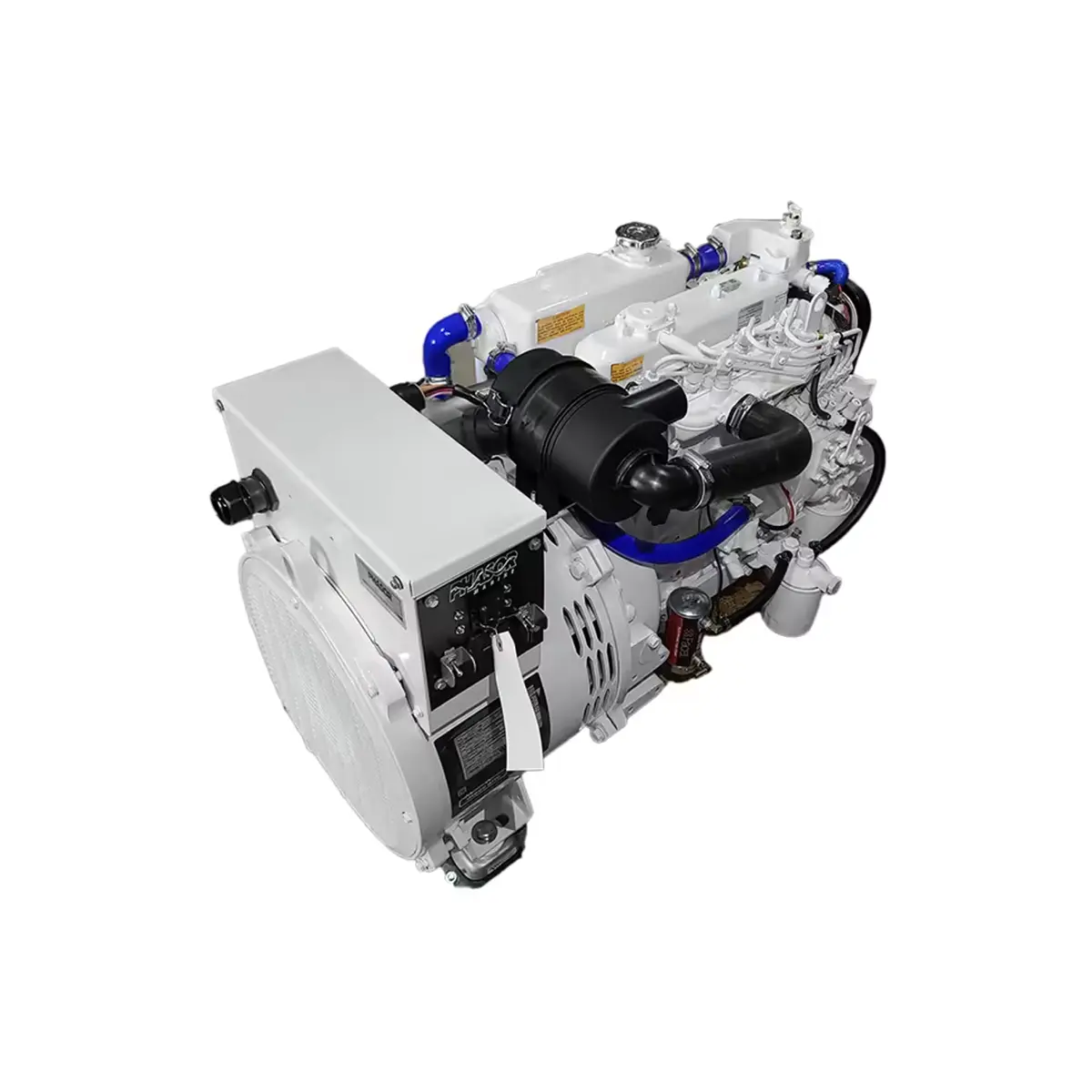

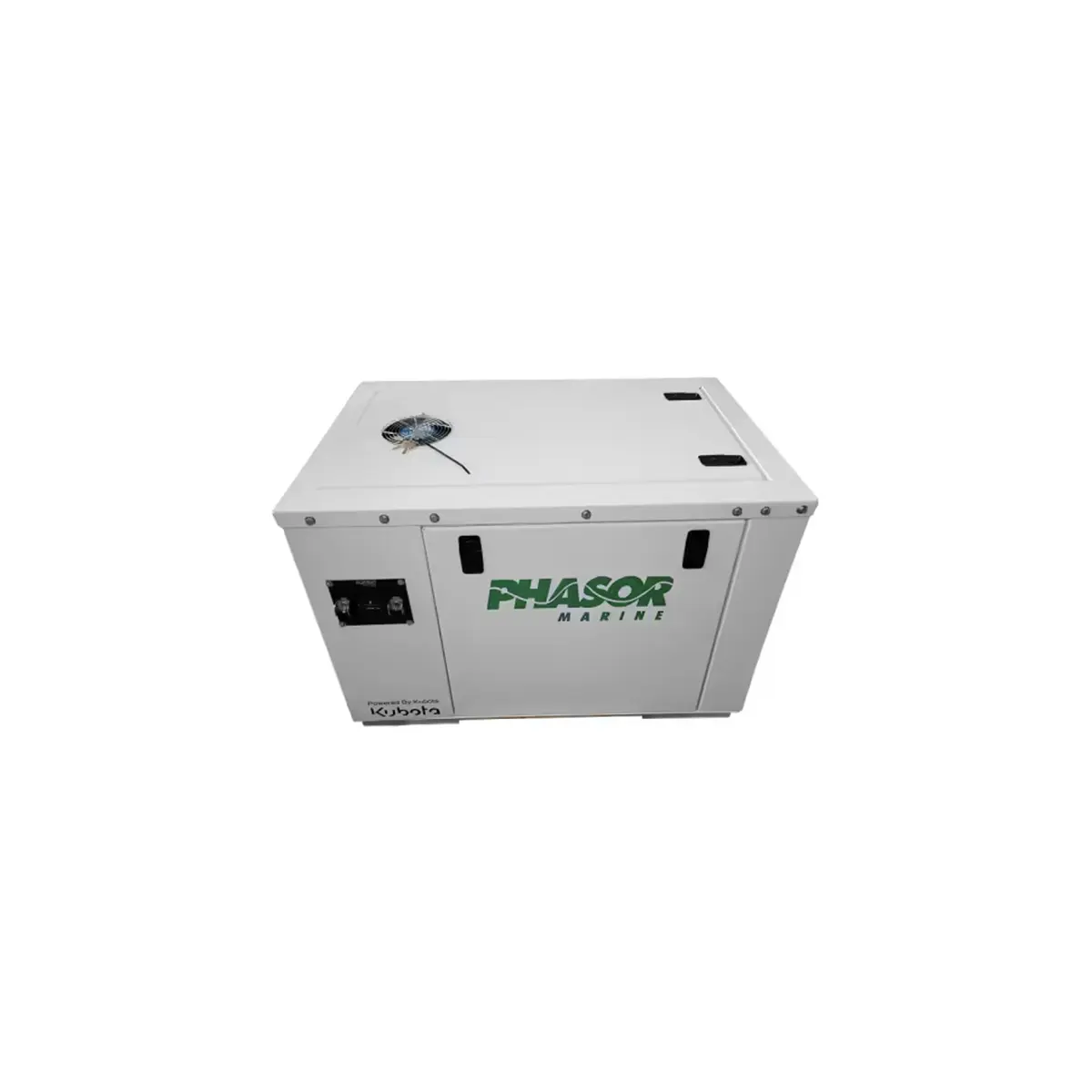

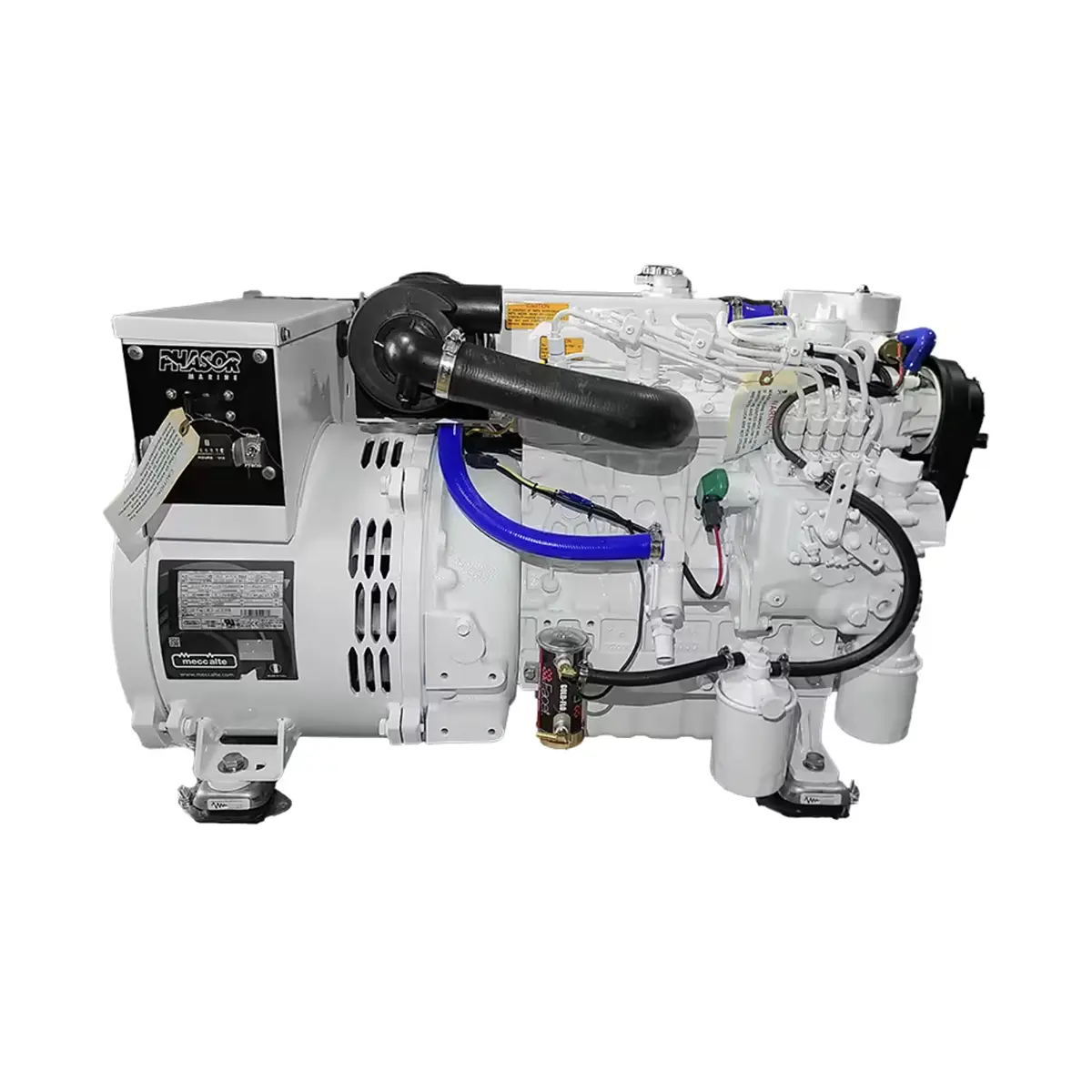

The Phasor K3 7.0 kW Marine Generator 120/240V is a standard series diesel marine generator built with a Kubota D1005-E4BG engine and a single bearing direct coupled generator. It delivers 7.0 kW at 60 Hz and 120/240V output, while also offering a 5.5 kW rating at 50 Hz for buyers who need clearly defined electrical specifications.

This model combines low 1800 RPM operation, a Linz electric end, and ± 1% solid-state voltage regulation in a marine-focused generator package. It also includes a safety shutdown system for high coolant temperature or low lube oil pressure, along with a fresh water double pass heat exchanger and gear driven raw water pump.

Key Features of Phasor K3 7.0 kW Marine Generator 120/240V

• 7.0 kW output at 60 Hz with 120/240V electrical output and 58/29 amps.
• 5.5 kW rating at 50 Hz for buyers comparing dual-frequency product data.
• Kubota D1005-E4BG diesel engine with 3 cylinders and 61 cubic inches of displacement.
• Single bearing direct coupled generator design for this K3 standard series configuration.
• ± 1% solid-state voltage regulation for tightly controlled output.
• Low 1800 RPM operating speed.
• Safety shutdown system for high coolant temperature or low lube oil pressure.
• Single series circuit control system with no printed circuit boards and tinned wiring.
• Fresh water double pass heat exchanger with removable integral cupro-nickel heat exchanger core and zinc anode.
• Marine-focused hardware including a water cooled exhaust manifold, stainless steel exhaust elbow cast, gear driven raw water pump, self bleed fuel system, and secondary 5 micron fuel filter.

Applications

This generator is suited to buyers looking for a standard series diesel marine generator with verified 7.0 kW output at 60 Hz and 120/240V power. It is also a practical fit for installations where low 1800 RPM operation, solid-state voltage regulation, and clearly listed cooling and fuel system features are important buying considerations.

Why Choose This Marine Generator

The K3 7.0 kW model offers a clear specification profile for buyers who want to compare generator options based on confirmed product data rather than broad claims. It combines Kubota diesel power, a Linz electric end, direct coupled design, and low-speed 1800 RPM operation in a standard series format with listed dimensions, line sizes, and output figures.

Phasor also includes a detailed set of marine-specific standard features such as USCG approved fuel lines, electric fuel transfer pump, forged brass oil drain valve with safety lock, molded blue silicone water hoses with stainless steel AWAB clamps, and a single-phase circuit breaker. A 5-year limited warranty is also listed for this model.
