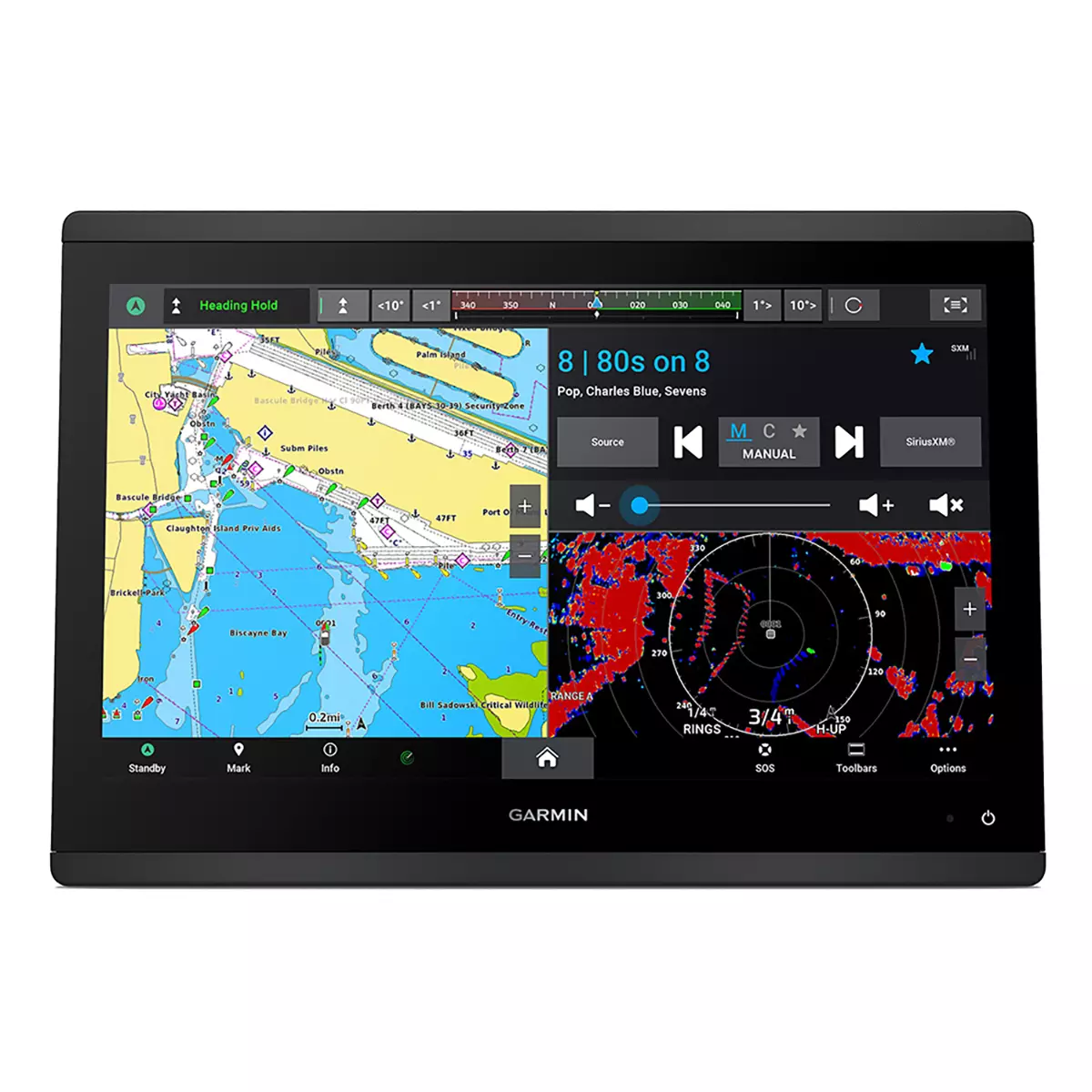

Garmin GPSMAP 1643 Chartplotter
$3,054.00
Garmin GPSMAP 1643 Chartplotter is a 16-inch chartplotter built for fast navigation and clean helm integration, combining 16-inch High-Resolution Touchscreen (Sunlight Readable), a high-speed processor, preloaded Garmin Navionics+™ (GN+).
Overview Garmin GPSMAP 1643 Chartplotter
Garmin GPSMAP 1643 Chartplotter is a chartplotter built for mariners who need fast chart handling, clear screen visibility, and reliable system integration at the helm. It combines 16-inch, High-Resolution Touchscreen (Sunlight Readable), Advanced High-Speed CPU, together with Preloaded Garmin Navionics+™ (GN+).
The Garmin GPSMAP 1643 is the advanced choice for boaters outfitting mid-to-large sized cruisers, sportfishing vessels, or professional sailing yachts where maximum screen real estate is non-negotiable. Because the processing power is highly optimized, you can zoom and pan through your route with zero stutter, providing better confidence during high-traffic maneuvers.
Key Features
- Display and visibility: 16-inch, High-Resolution Touchscreen (Sunlight Readable). This supports clear chart viewing and better readability at the helm.
- Processing platform: Advanced High-Speed CPU. It helps keep menu response, chart redraws, and split-screen operation smooth.
- Networking and integration: NMEA 2000, NMEA 0183, Garmin Marine Network. Compatible networking helps the unit share charts, radar, sensors, cameras, and other onboard data where supported.
- Chart ecosystem: Preloaded Garmin Navionics+™ (GN+). This supports route planning and chart management using the chart platform available for the model.
- System expansion: J1939 Connectivity (Yamaha Compatible). This is useful when the display is part of a broader helm installation with engine or digital-switching integration.
- Wireless connectivity: Wi-Fi, ANT, and Bluetooth. Wireless links help with device pairing, data sharing, and chart or software workflows where supported.
Applications
The Garmin GPSMAP 1643 is the advanced choice for boaters outfitting mid-to-large sized cruisers, sportfishing vessels, or professional sailing yachts where maximum screen real estate is non-negotiable. Because the processing power is highly optimized, you can zoom and pan through your route with zero stutter, providing better confidence during high-traffic maneuvers.
Its slimline design and reduced footprint also make it an ideal candidate for retrofitting into dash configurations that previously could only accommodate smaller units.
Specifications
| Display Size | 16.0 inches Diagonal IPS |
| Display Type | High-Resolution Touchscreen (Sunlight Readable) |
| Processor | Advanced High-Speed CPU |
| Mapping | Preloaded Garmin Navionics+™ (GN+) |
| Sonar Support | LiveScope™ and Panoptix™ Compatible |
| Engine Support | J1939 Connectivity (Yamaha Compatible) |
| Networking | NMEA 2000, NMEA 0183, Garmin Marine Network |
| Wireless | Wi-Fi, ANT, and Bluetooth |
| Waterproof Rating | Marine-Grade Professional Standard |
| Unit Weight | 9.7 lbs (4.4 kg) |
What’s Included
- 1x Garmin GPSMAP 1643 Chartplotter
- 1x microSD™ Card (Preinstalled)
- 1x Power Cable
- 1x NMEA 2000 T-connector and NMEA 2000 Drop Cable
- 1x Flush Mount Kit with Gasket and Protective Cover
- 1x Trim Piece Snap Covers
- 1x Comprehensive Documentation Pack
Frequently Asked Questions About Garmin GPSMAP 1643 Chartplotter
Who is the Garmin GPSMAP 1643 Chartplotter intended for on board?
Garmin GPSMAP 1643 Chartplotter is designed as a helm navigation display for mariners who need clear chart viewing and reliable onboard integration. Its 16-inch display and preloaded Garmin Navionics+ mapping support route planning and day-to-day navigation, while the stated processing platform helps keep helm use responsive.
What is the screen experience like in daily use?
The 16-inch display gives this chartplotter a clear working area for charts and menu control at the helm. Its touchscreen layout keeps route changes more direct, while the processor is intended to keep chart browsing and panning responsive during routine navigation.
Can this display work as part of a wider helm system?
This chartplotter supports Garmin Marine Network, NMEA 2000, and NMEA 0183, camera input support, and radar connectivity where stated, which helps it exchange navigation data and serve as part of a broader helm installation. That is useful when charting needs to sit alongside vessel data, shared maps, or connected marine sensors on the same system.
Where does this unit make the most sense on board?
This chartplotter is most relevant for cruisers and sportfishing boats who need a dependable navigation screen at the helm. Its preloaded Garmin Navionics+ mapping also helps reduce setup time for boats that want charting ready from the start.
