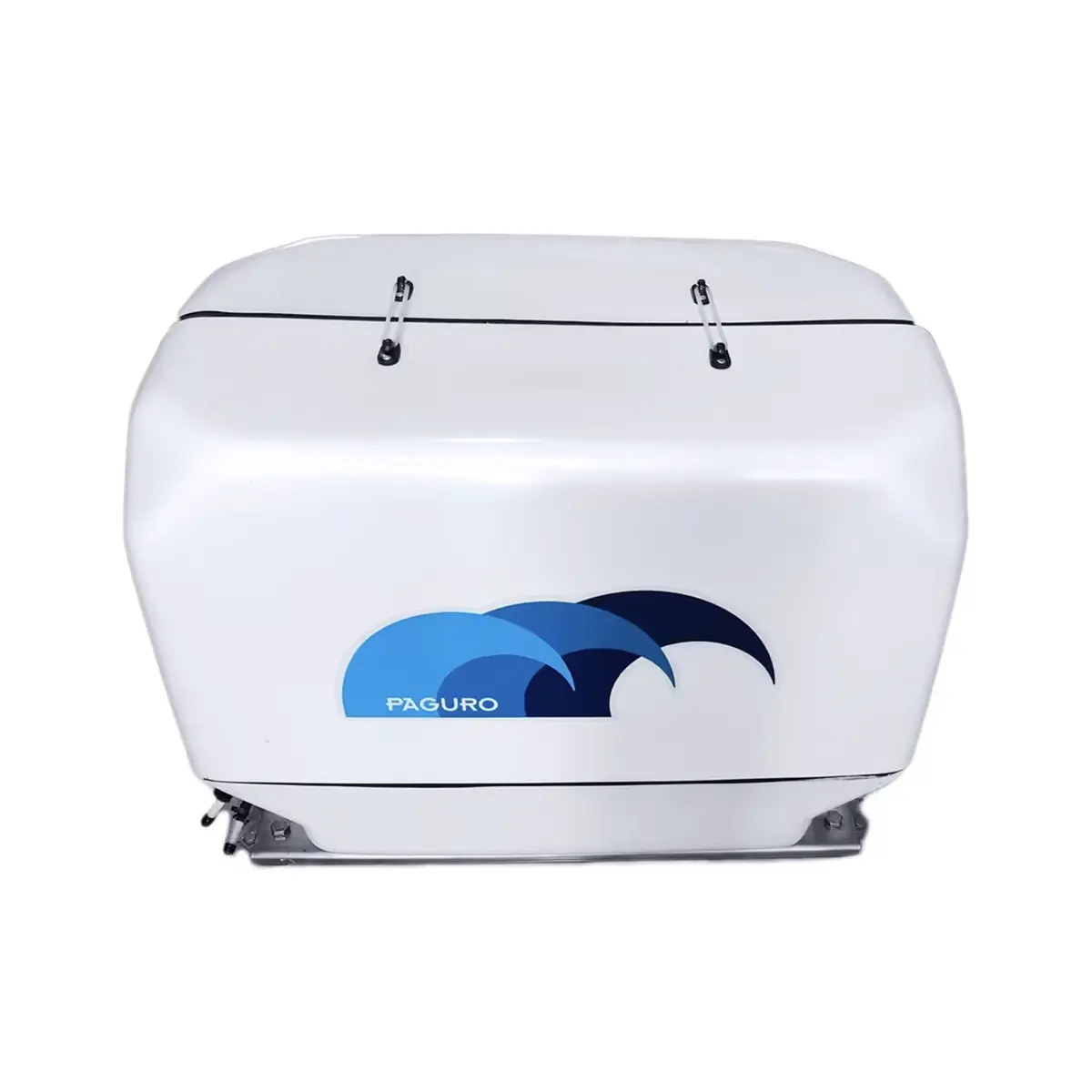

VTE Paguro 9000 8.5 kW Marine Generator
$9,300.00
The VTE Paguro 9000 8.5 kW Marine Generator is a compact 60 Hz unit with single-phase output, a Lombardini Marine LDW 702 engine, water-cooled design, sound shield, and remote digital panel control. It suits buyers who need higher onboard power in a compact marine generator format.
Overview VTE Paguro 9000 8.5 kW Marine Generator

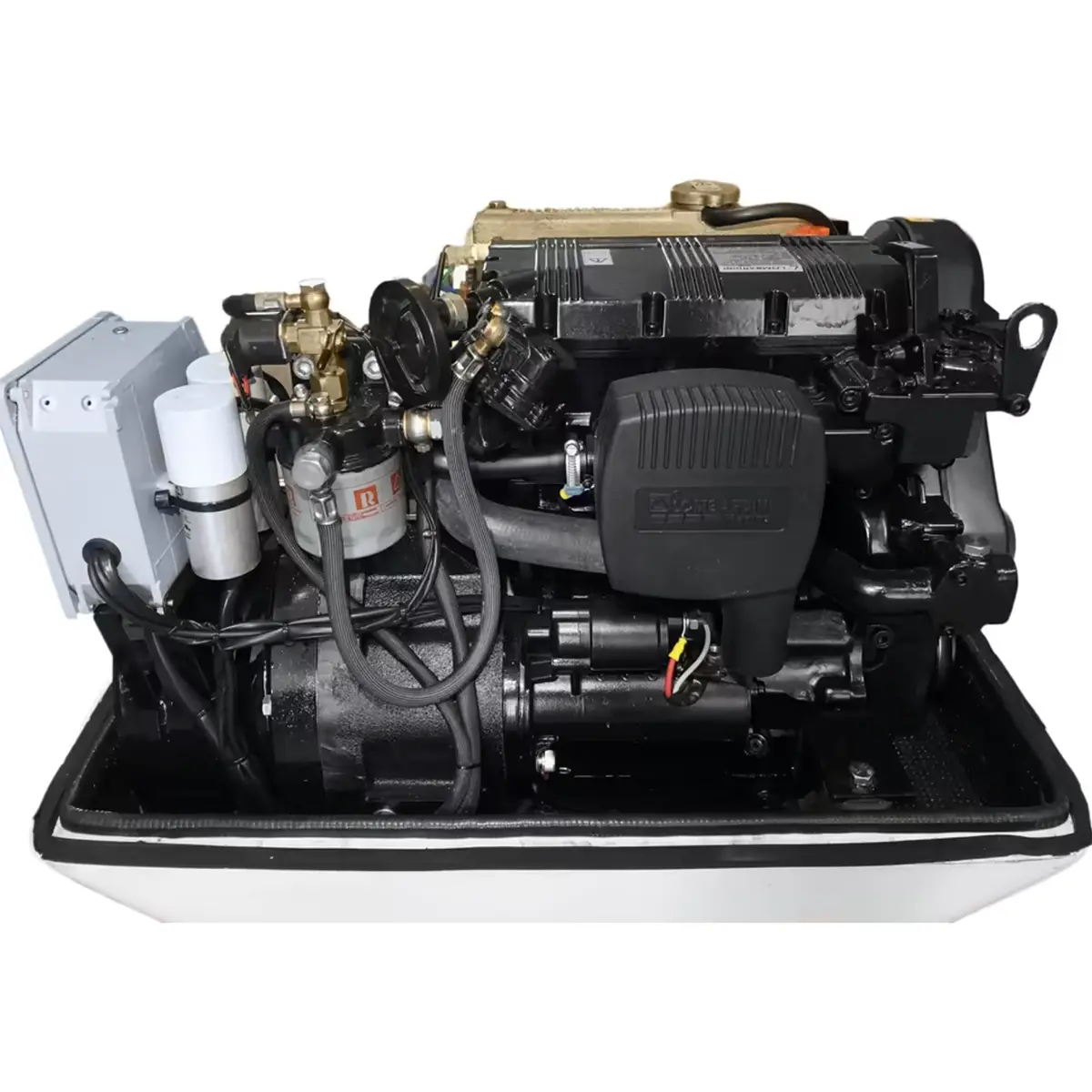

The VTE Paguro 9000 8.5 kW Marine Generator is a 60 Hz marine generator built for buyers who need higher output in a compact, enclosed package. This model uses a Lombardini Marine LDW 702 2-cylinder engine and combines water-cooled engine and alternator systems with a soundproof capsule, remote digital panel control, and a 15 meter harness. Its specification set is aimed at yachts and motor boats where onboard power, compact dimensions, and controlled noise levels all matter.
Key Features of VTE Paguro 9000 8.5 kW Marine Generator
- 8.5 kW continuous electrical power at 60 Hz for clearly stated onboard generation capacity.
- Single-phase configuration for buyers seeking this phase setup.
- Lombardini Marine LDW 702 2-cylinder engine with 3600 rpm operation at 60 Hz.
- Water-cooled engine and alternator design to support quieter running.

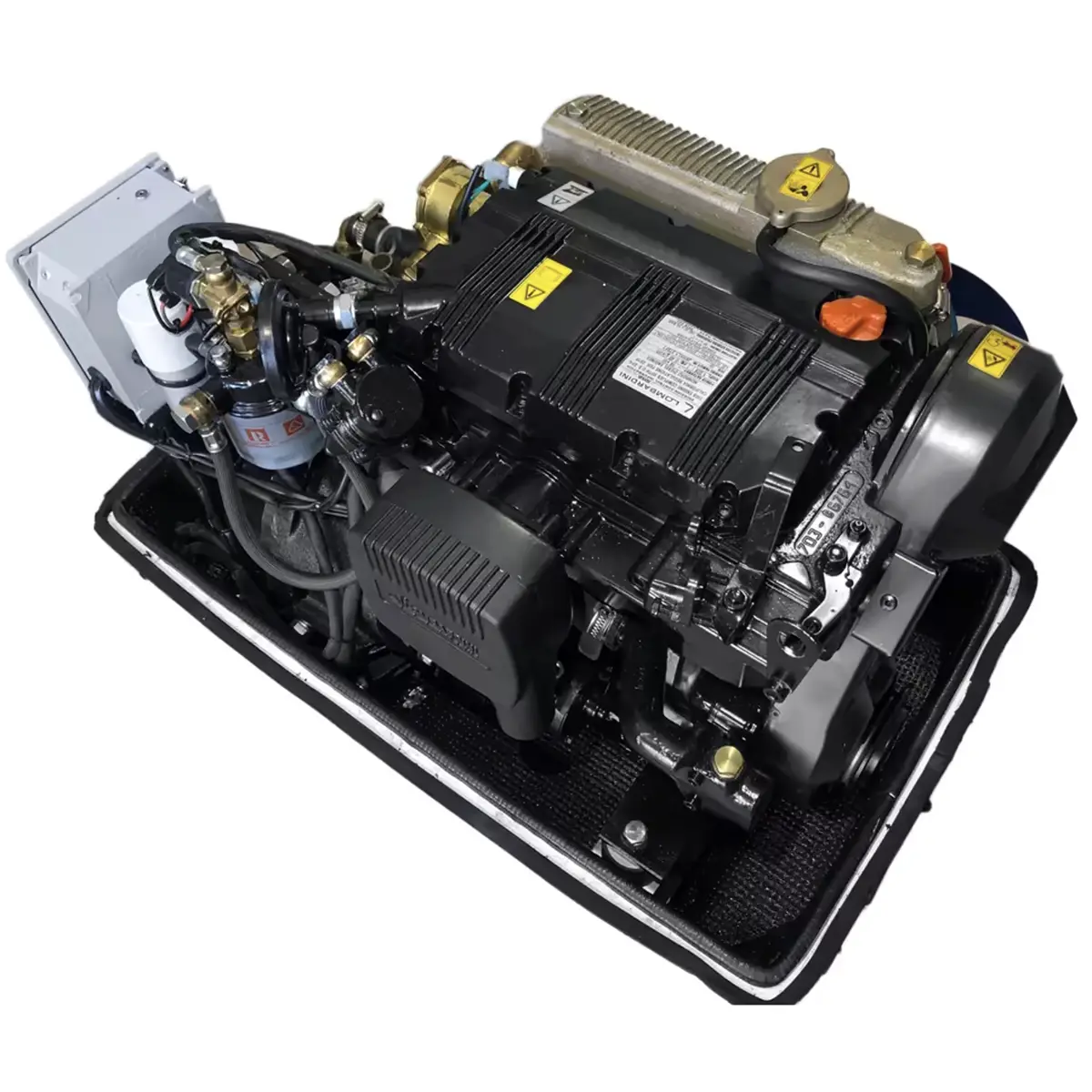

- Soundproof capsule built with multilayer reinforced glass fiber and sound-absorbing materials.
- Alternator heat exchanger in Stainless Steel AISI 316 L for parts in contact with raw water.
- Remote digital panel included for practical operation and monitoring.
- 15 meter (49 ft) harness supplied for remote control installation.
- Dual anti-vibration mounting arrangement described to help reduce vibration transfer.
- Overheat and low oil protection with automatic shutdown and indication.
Applications
This generator is suited to yachts and motor boats that require a compact marine generator with 60 Hz output and a clearly defined 8.5 kW rating. It is a practical option for installations where reduced noise, enclosed construction, and remote operating access are important buying considerations.
Why Choose This Marine Generator
The Paguro 9000 gives buyers a straightforward combination of higher output, compact marine dimensions, and included operating hardware. Based on the provided data, it comes with a sound shield, remote digital panel control, and a 15 meter harness, helping define the supplied package more clearly. With a listed 52 dB(A) noise level, water-cooled construction, Stainless Steel AISI 316 L raw-water-contact components, and a stated 2-year warranty, this model offers a strong specification profile for buyers comparing compact marine generator options.
Product Specifications
| Feature | Details |
|---|---|
| Brand | VTE |
| Model | Paguro 9000 |
| Product Type | Marine Generator |
| Continuous Electrical Power | 8.5 kW (60 Hz) |
| Continuous Electrical Power | 10 kVA (60 Hz) |
| Frequency | 60 Hz |
| Number of Phases | 1 |
| Alternator Manufacturer | V.T.E. - Volpi Tecno Energia, Italia |
| Alternator Type | Synchronous Without Brushes |
| Battery Charge | 12 V - 8 A |
| Peak Current | 102/204 A |
| Alternator Cooling | Water, exchanger in Stainless Steel AISI 316 L |
| Engine Manufacturer | Lombardini Marine, Italia |
| Engine Model | LDW 702 |
| Cylinders | 2 |
| Rotation Speed | 3600 rpm |
| Fuel Consumption | 0.35 lt./kW/h |
| Cooling System | Freshwater with heat exchanger |
| Starting System | Electric 12 V |
| Remote Control | Yes |
| Cooling Pump | Self Priming |
| Dimensions | 28 x 18 x 24 in |
| Weight | 374 lb |
| Noise Level | 52 dB(A) |
| Warranty | 2 years |
What's Included
- VTE Paguro 9000 8.5 kW marine generator
- Sound shield
- Remote digital panel control
- 15 meters (49 ft) harness
Frequently Asked Questions About VTE Paguro 9000 8.5 kW Marine Generator
How much power does the Paguro 9000 provide at 60 Hz?
The stated continuous electrical output is 8.5 kW at 60 Hz. The specifications also list 10 kVA at 60 Hz for this model.
What engine is installed in this marine generator?
This model uses a Lombardini Marine LDW 702 engine. It is a 2-cylinder engine with a listed operating speed of 3600 rpm at 60 Hz.
What is included with the VTE Paguro 9000?
The provided package includes the generator, a sound shield, a remote digital panel control, and a 15 meter (49 ft) harness. These included items help define the supplied control and enclosure components.
What safety and warranty details are confirmed for this unit?
The product data states that Paguro generators are equipped with overheat and low oil protection systems featuring automatic shutdown and indication. The listed VTE warranty period for this generator is 2 years from the date of purchase.
Related products
Phasor K3-14.0 kW Marine Generator 120/240V
$10,026.00

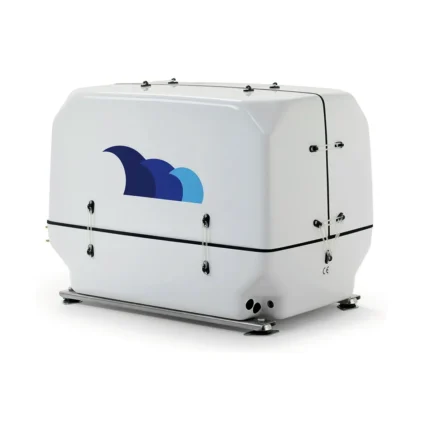

VTE Paguro 14000 14 kW Marine Generator
