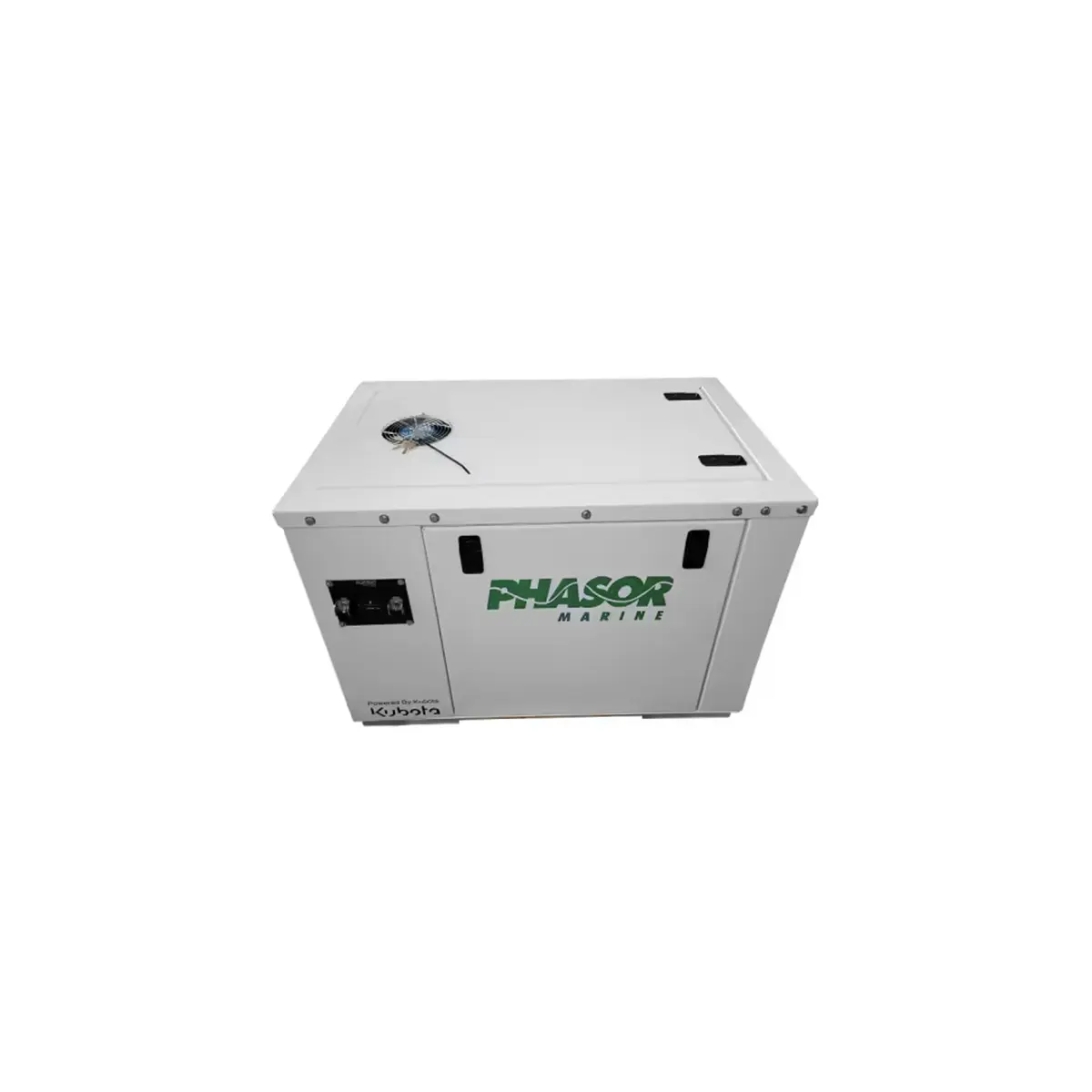

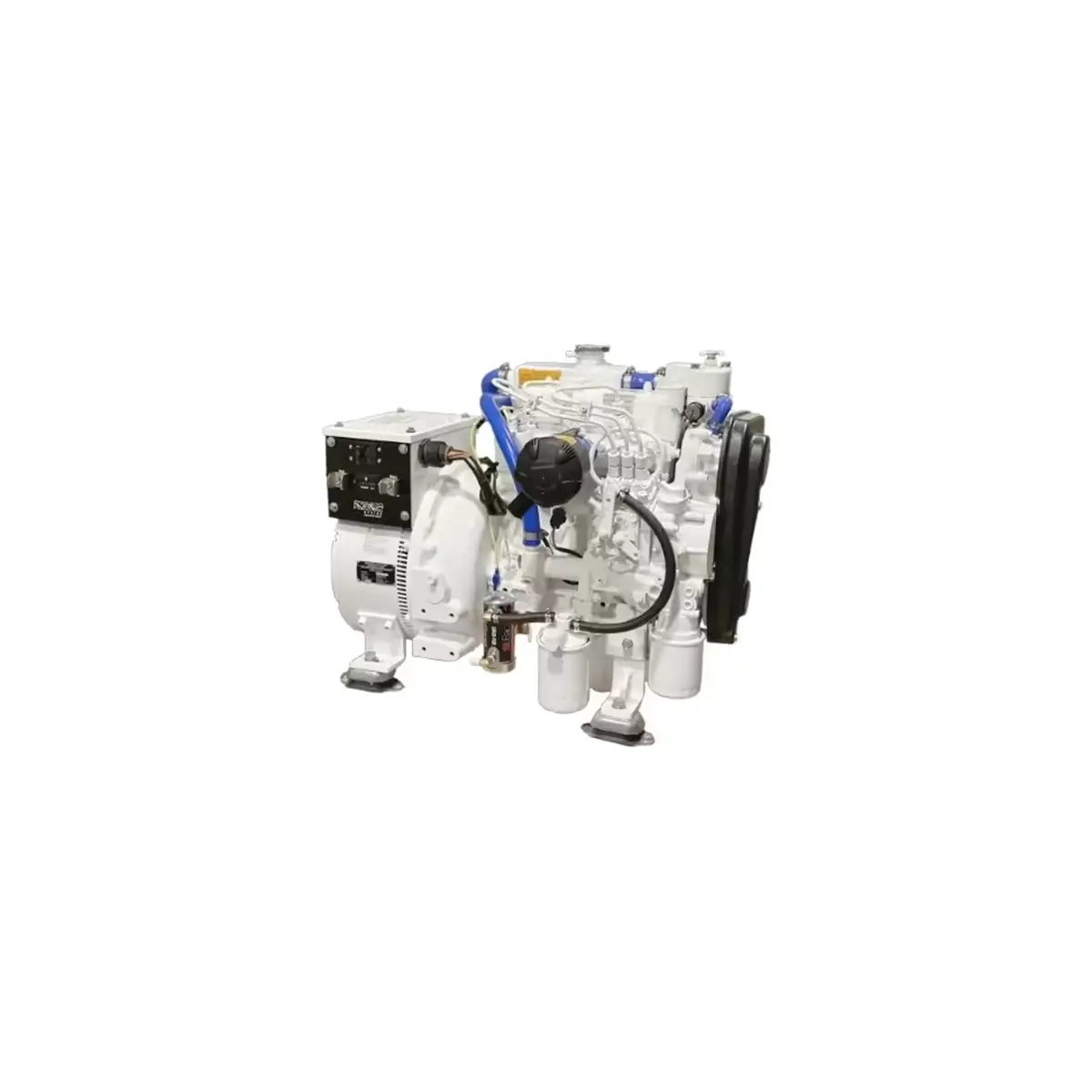

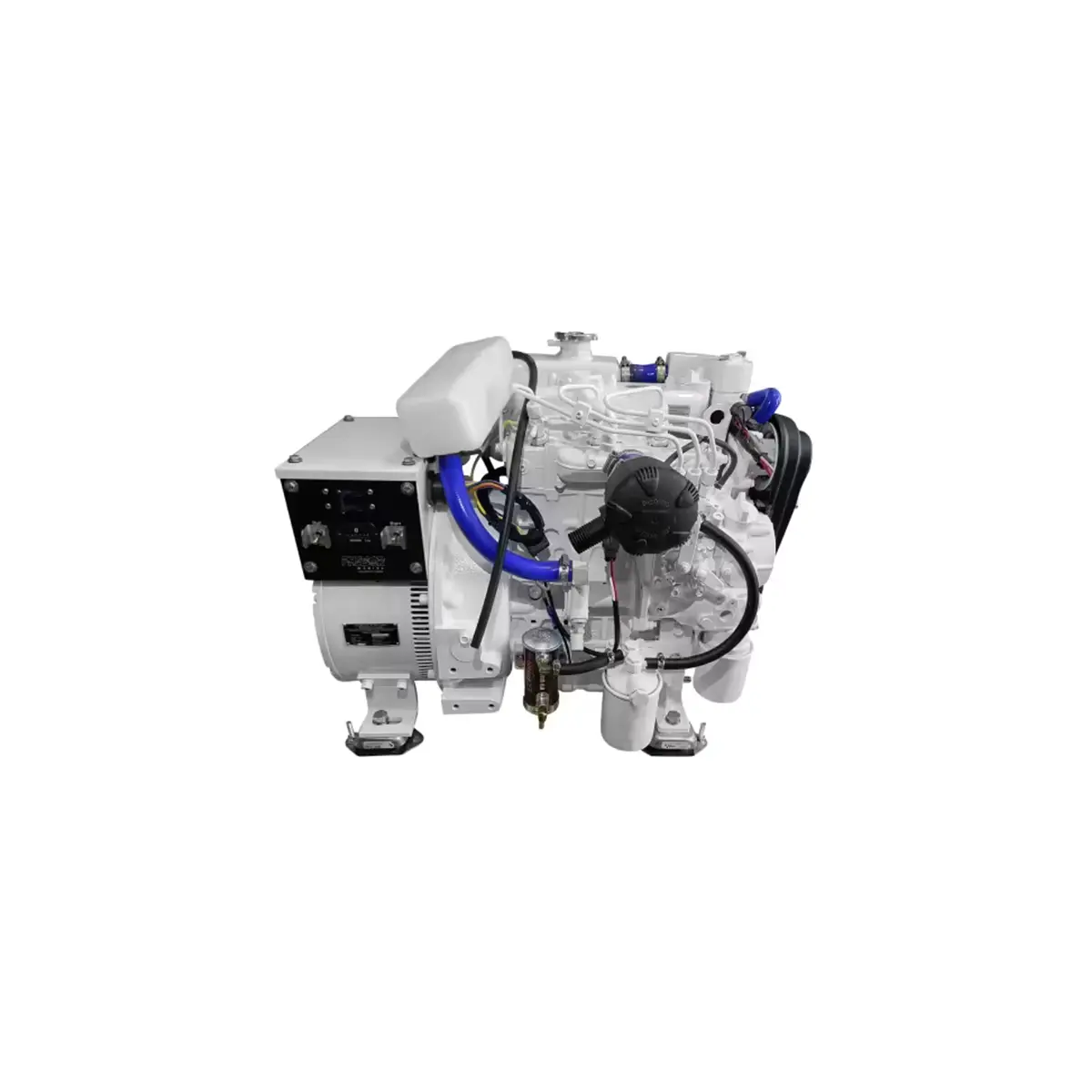

Phasor K3-8.0KW 8 kW Marine Generator 120/240V
$7,188.00
Phasor K3-8.0KW 8 kW Marine Generator 120/240V is a compact diesel unit with a Kubota D1005-E4BG engine, low 1800 RPM operation, ±1% solid-state voltage regulation, and a listed spare parts kit. It is built for buyers who want clear marine generator specifications and practical service-related components.
Overview Phasor K3-8.0KW 8 kW Marine Generator 120/240V
Phasor K3-8.0KW 8 kW Marine Generator 120/240V is a compact series diesel marine generator built with a Kubota D1005-E4BG three-cylinder engine and low 1800 RPM operating speed. This model is listed with 8.0 kW output at 60 Hz, 120/240V output, and 66/33 amp output, giving buyers a clear specification set for product comparison. It also features ±1% solid-state voltage regulation, a safety shutdown system for high coolant temperature or low lube oil pressure, and a spare parts kit that adds practical service value from the start.
Key Features of Phasor K3-8.0KW 8 kW Marine Generator 120/240V
- Kubota D1005-E4BG diesel engine with three-cylinder design.
- 8.0 kW rated output at 60 Hz.
- 120/240V output with listed 66/33 amp specification.
- Low 1800 RPM operating speed.
- ±1% solid-state voltage regulation for clearly stated output control.
- Safety shutdown system for high coolant temperature or low lube oil pressure.
- Single bearing direct coupled generator design.
- Single series circuit control system with no printed circuit boards and tinned wiring.
- Fresh water double pass heat exchanger with removable integral cupro-nickel heat exchanger core.
- Water cooled exhaust manifold, stainless steel exhaust elbow cast, and gear driven raw water pump.
- Spin-on lube and fuel filters, secondary 5 micron fuel filter, and self bleed fuel system.
- Electric fuel transfer pump, forged brass oil drain valve with safety lock, and belt guard.
Applications
This generator is suited to buyers looking for a compact marine diesel generator with a stated 8 kW output, 60 Hz rating, and 120/240V configuration. It is also relevant for replacement or upgrade projects where engine model, output figures, operating speed, and service parts support are important buying points.
Why Choose This Marine Generator
This model gives buyers a strong specification-based option without relying on broad claims. The key details are clearly defined, including the Kubota engine model, 8 kW output, voltage, operating speed, voltage regulation, fuel consumption figures, and line sizes. The included spare parts kit adds practical ownership value, and the 5 year limited warranty is a confirmed benefit for customers comparing marine generator options in this output range.
Product Specifications
| Feature | Details |
|---|---|
| Brand | Phasor |
| Model | K3-8.0KW |
| Series | Compact Series |
| Product Type | Marine Diesel Generator |
| Engine Model | Kubota D1005-E4BG |
| Number of Cylinders | 3 |
| Cubic Inch Displacement | 61 |
| Power Rating | 8.0 kW |
| Frequency | 60 Hz |
| Fuel Consumption | Full Load 0.74 gal/hr; Half Load 0.32 gal/hr |
| Electric End | Coliseum |
| Bore x Stroke | 2.99 x 2.90 |
| Weight | 386 lbs. |
| Output Voltage | 120/240V |
| Output Amps | 66/33 |
| Output Watts | 8,000 |
| Operating Speed | 1800 RPM |
| Voltage Regulation | ± 1% Solid-State Voltage Regulation |
| Exhaust Dia. | 2.0" |
| Raw Water Dia. | 3/4" |
| Fuel Line Dia. | 5/16" |
| Return Line Dia. | 3/16" |
| Warranty | 5 Year Limited Warranty |
What's Included
- 1 x Phasor K3-8.0KW Marine Diesel Generator
- 1 x Duffle Bag with Phasor Marine Logo
- 2 x Kubota Oil Filters
- 2 x Kubota Fuel Filters
- 1 x Temp Switch 1/2 Plug
- 1 x Oil Pressure Switch w/Plug
- 1 x Kubota Thermostat Gasket
- 1 x Kubota Thermostat Assy
- 1 x Phasor Heat Exchanger O-Ring
- 1 x 1/4 NPT 5/16 x 1 Zinc
- 1 x Impeller 302M for Oberdorfer Pump
- 1 x Oberdorfer Pump O-Ring
- 1 x Kubota V-Belt
- 2 x LP1 HE Neo Washer
Frequently Asked Questions About Phasor K3-8.0KW 8 kW Marine Generator 120/240V
What are the output specifications for this generator?
This model is listed with 8.0 kW output at 60 Hz. The provided specifications also state 120/240V output, 66/33 amps, and 8,000 watts.
Which engine is used in the Phasor K3-8.0KW?
This generator uses a Kubota D1005-E4BG diesel engine. The supplied data also confirms a three-cylinder layout and 61 cubic inch displacement.
Does this model include voltage regulation and protective shutdown features?
Yes. The listed standard features include ±1% solid-state voltage regulation and a safety shutdown system for high coolant temperature or low lube oil pressure. These are explicitly stated in the provided product data.
What spare parts are included with the product?
The listed spare parts kit includes Kubota oil filters, Kubota fuel filters, a temp switch, oil pressure switch, thermostat gasket, thermostat assembly, heat exchanger O-ring, zinc, impeller, pump O-ring, Kubota V-belt, and LP1 HE Neo washers. A duffle bag with Phasor Marine logo is also included.
