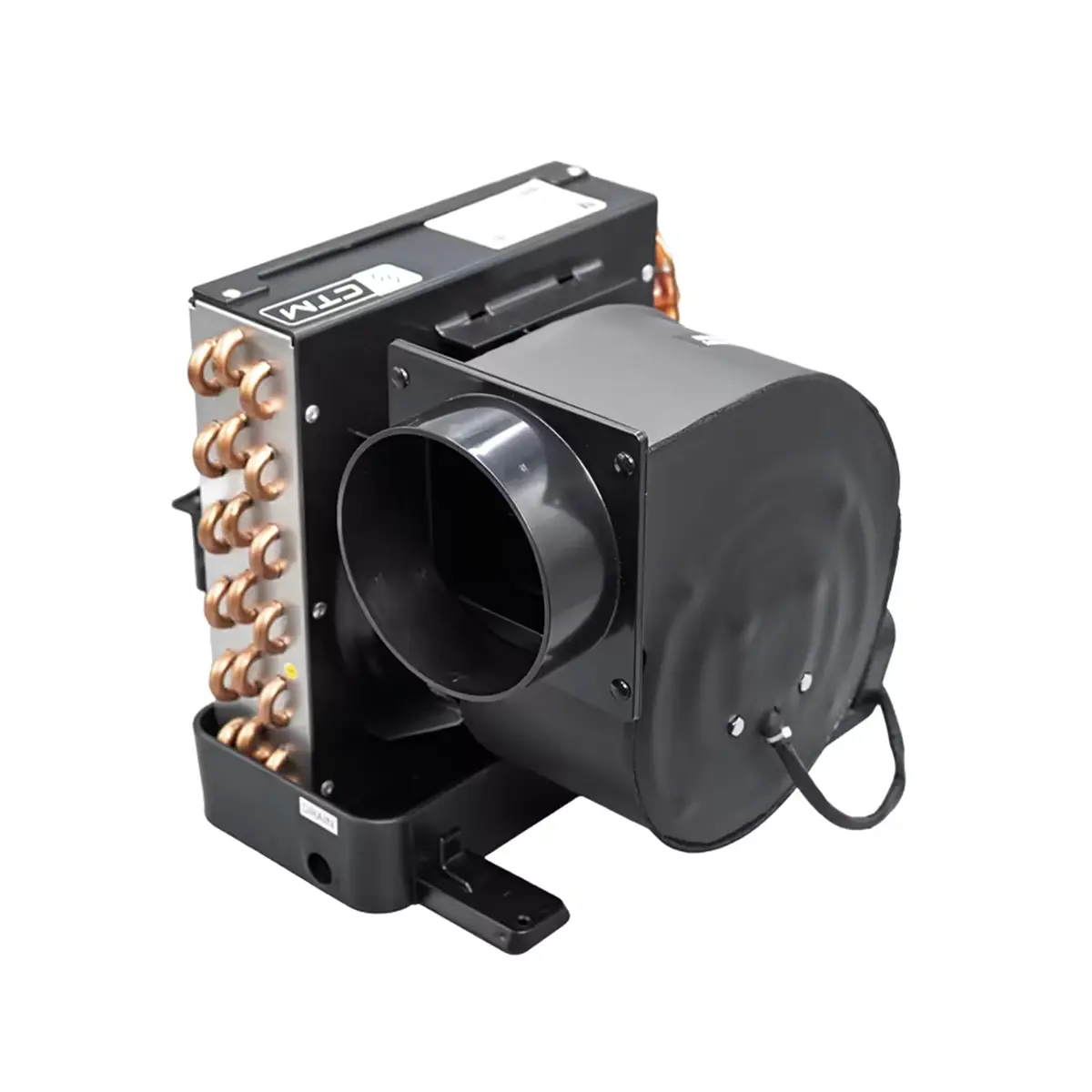

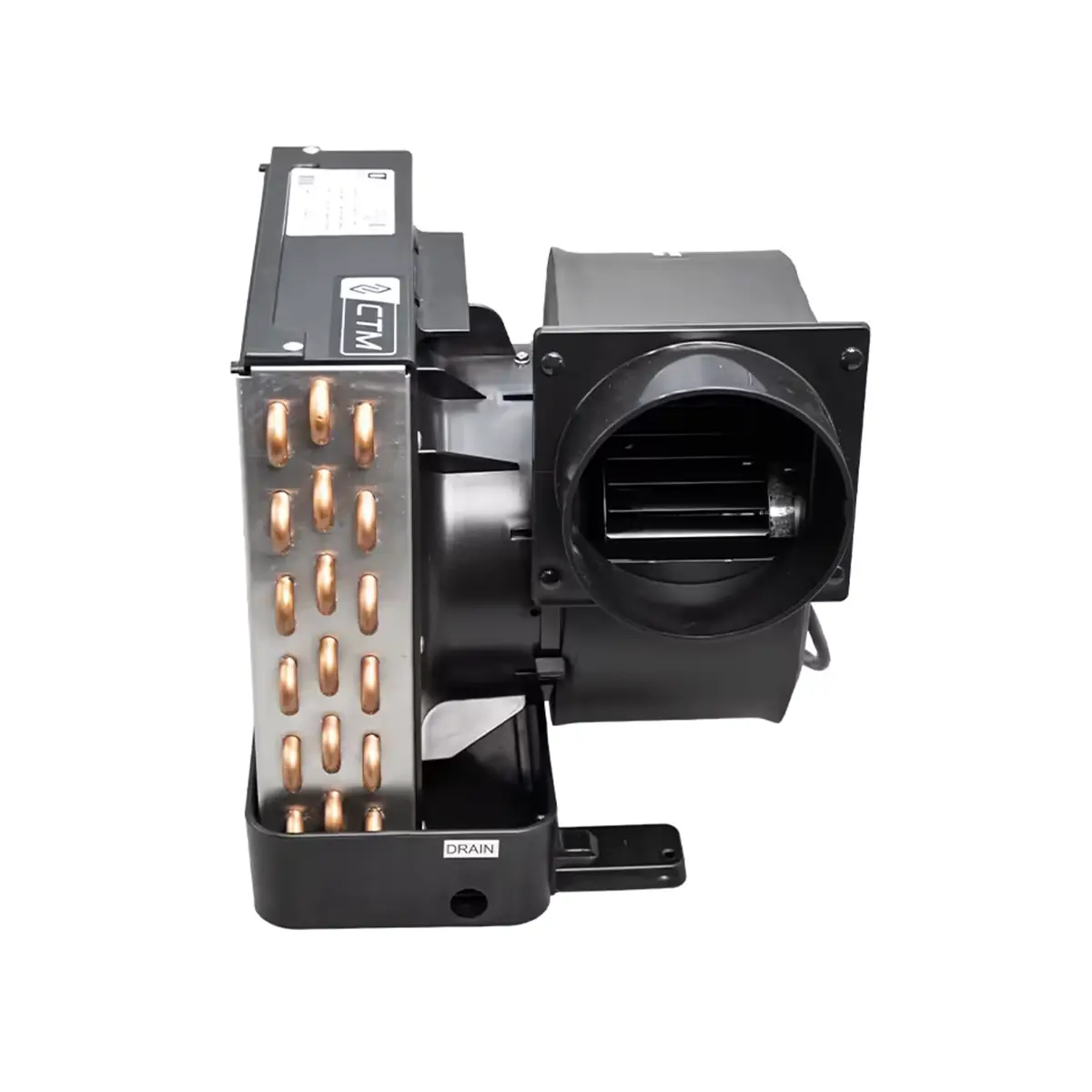

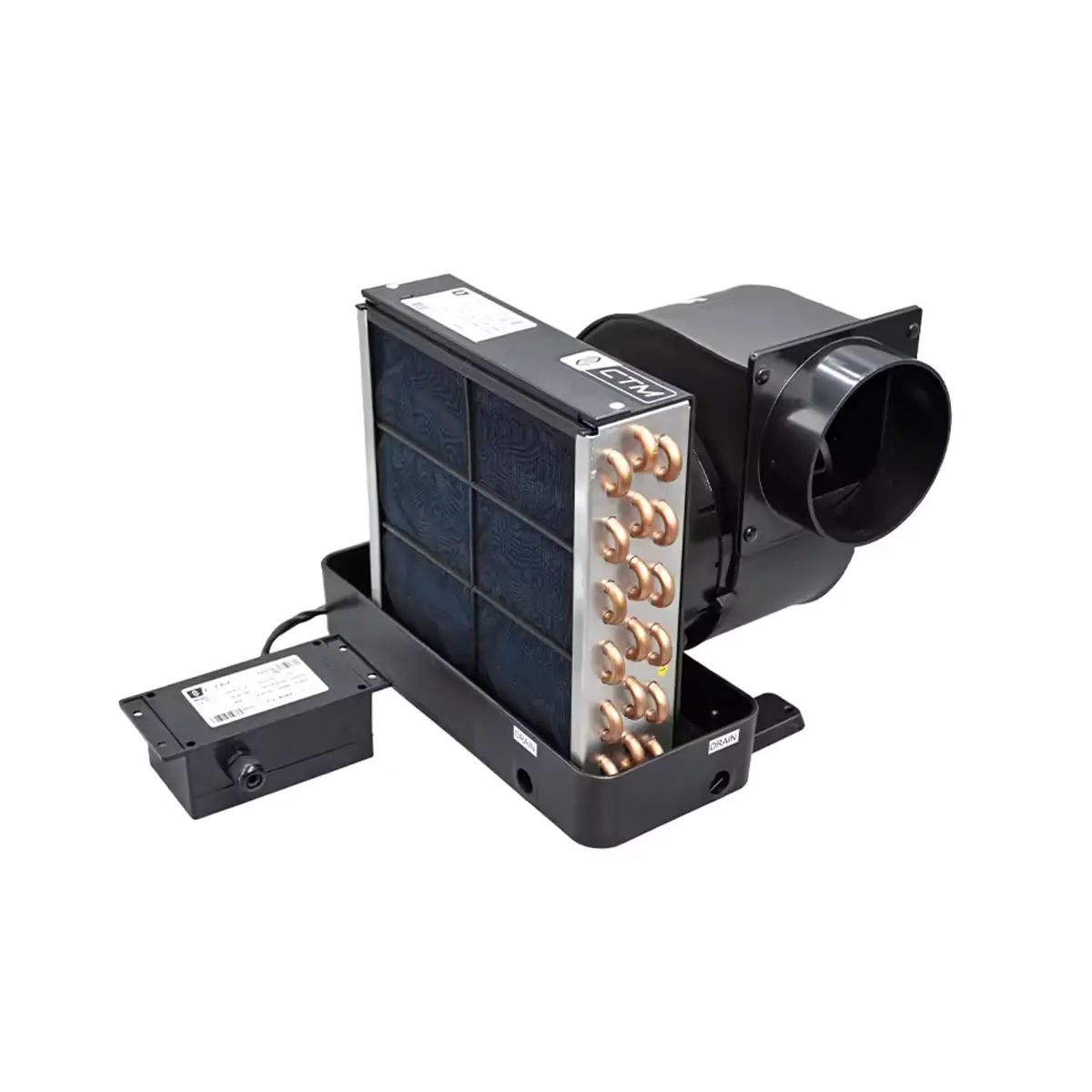

CTM EV-16 16000 BTU Marine Air Conditioner 115V
$830.00
The CTM EV-16 16000 BTU Marine Air Conditioner 115V is a marine split A/C evaporator unit designed for 100-120V, 50/60Hz operation. It uses R410A refrigerant and features 453 CFM airflow, stainless steel hardware, and a 2-year warranty for marine replacement or new installation projects.
Overview CTM EV-16 16000 BTU Marine Air Conditioner 115V
CTM EV-16 16000 BTU Marine Air Conditioner 115V is a marine split A/C evaporator unit built for applications that require 16,000 BTU capacity with 100-120V, 50/60Hz electrical compatibility. This model is specified as an evaporator / air handler unit and uses R410A refrigerant, with 453 CFM blower airflow and a 1400 RPM blower speed.
Its marine-focused construction includes stainless steel bolts and a stainless steel structural pan, giving buyers a clearly defined option for onboard air conditioning projects. The product data also states that the EV-16 is suitable for new installs and can serve as a drop-in replacement for major marine A/C brands including Dometic, Marine Air, and Cruisair.
Key Features of CTM EV-16 16000 BTU Marine Air Conditioner 115V
- 16,000 BTU evaporator capacity for marine split A/C systems.
- 100-120V, single-phase, 50/60Hz compatibility for this specific model variant.
- R410A refrigerant specification for matching system requirements.
- 453 CFM blower airflow and 1400 RPM blower speed.
- Stainless steel bolts and stainless steel structural pan for corrosion-resistant marine construction.
- Suitable for new installations or replacement use where the published specifications align.
- Presented as a drop-in replacement for Dometic, Marine Air, and Cruisair systems.
- Backed by a 2-year warranty based on the provided product data.
Applications
This unit is intended for marine split air conditioning systems that require a 16,000 BTU evaporator / air handler. It can be used in new marine HVAC installations or replacement projects where buyers need to match 115V-class operation, R410A refrigerant, a 1/2 inch suction connection, and a 6 inch blower duct size.
Why Choose This Marine Air Conditioner
The CTM EV-16 gives buyers a clearly specified 16,000 BTU marine evaporator option with confirmed operating details including voltage range, frequency, refrigerant type, airflow, blower speed, fuse rating, and connection sizes. That makes it easier to compare against existing system requirements without relying on vague catalog information.
This model also adds practical value for retrofit work because it is described as a drop-in replacement for several major marine A/C brands. With stainless steel structural components and a stated 2-year warranty, it is a straightforward choice for compatible 115V marine split A/C applications.
Product Specifications
| Feature | Details |
|---|---|
| Brand | CTM |
| Model | EV-16 |
| Capacity | 16,000 BTU |
| Voltage | 100-120 V |
| Frequency | 50-60 Hz |
| Phase | 1 |
| Refrigerant Type | R410A |
| Blower Airflow | 453 CFM |
| Blower Speed | 1400 RPM |
| Input Rotor Amps | 1.6 A |
| Locked Rotor Amps | 2.0 A |
| Max Fuse | 4 A |
| Discharge Connection Size | 1/4 in (6.35 mm) |
| Suction Connection Size | 1/2 in (12.7 mm) |
| Blower Duct Size | 6 in |
| Net Weight | 24.25 lbs / 11 kg |
| Construction Details | Stainless steel bolts and stainless steel structural pan |
| Warranty | 2-Year |
What's Included
- CTM EV-16 16,000 BTU evaporator marine split A/C unit
Frequently Asked Questions About CTM EV-16 16000 BTU Marine Air Conditioner 115V
Is the CTM EV-16 a self-contained marine air conditioner?
No. The product data describes it as an evaporator and marine split A/C unit, which means it is part of a split-system setup. It is identified specifically as an evaporator / air handler rather than a complete self-contained unit.
What electrical requirements does the CTM EV-16 use?
This model is rated for 100-120 V, single-phase power and supports both 50 Hz and 60 Hz operation. The specifications also list input rotor amps at 1.6 A, locked rotor amps at 2.0 A, and a maximum fuse rating of 4 A.
Can the EV-16 replace an evaporator from another marine A/C brand?
The product description states that it works as a drop-in replacement for major marine A/C brands including Dometic, Marine Air, and Cruisair. Buyers should still confirm that the voltage range, refrigerant type, and connection sizes match their existing system before purchase.
What refrigerant and connection sizes are specified for this unit?
The CTM EV-16 is specified for R410A refrigerant. The discharge connection size is 1/4 inch (6.35 mm), and the suction connection size is 1/2 inch (12.7 mm).
