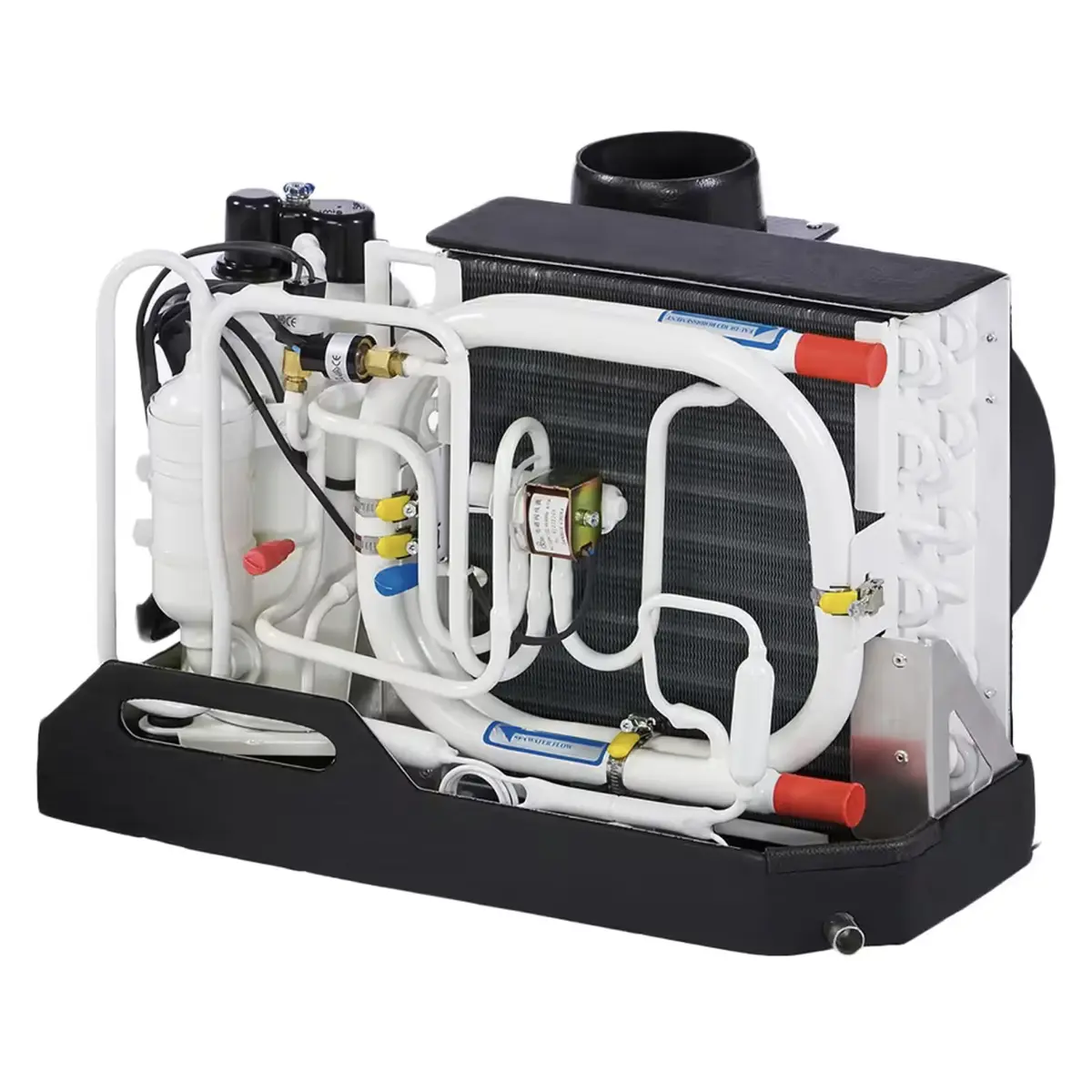

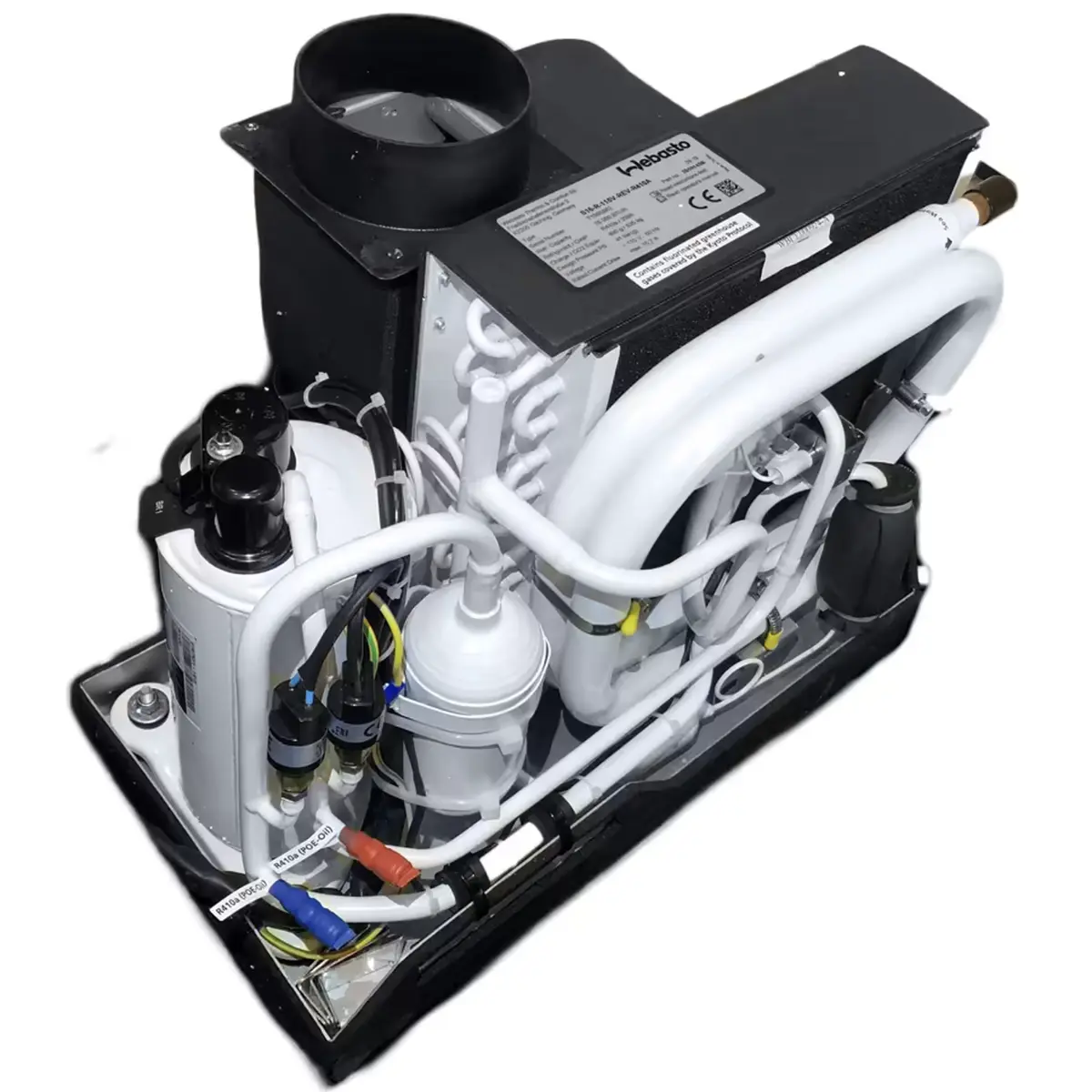

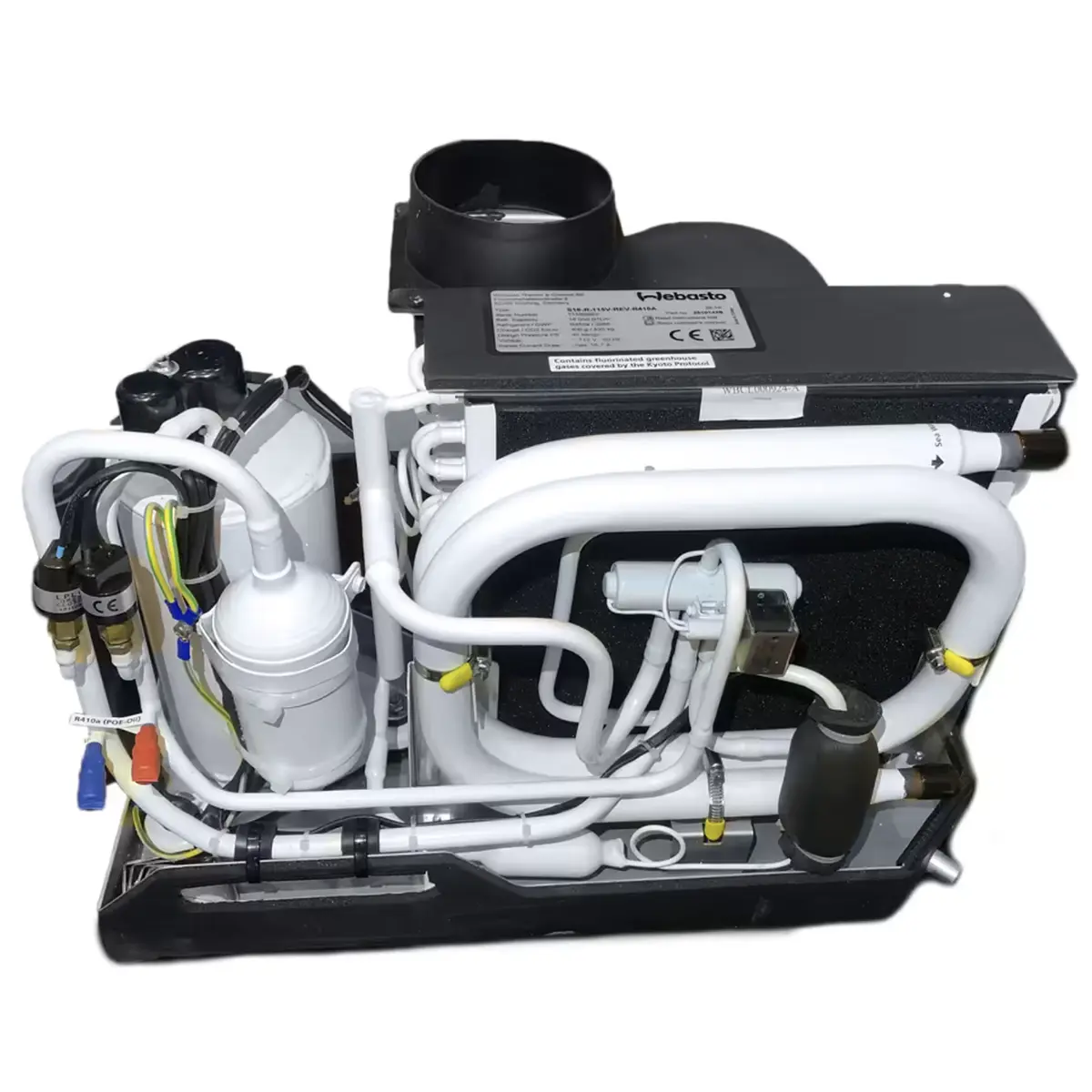

Webasto S16 BlueCool 16000 BTU Marine AC 115V
$1,619.00
Webasto S16 BlueCool 16000 BTU Marine AC 115V is a self-contained marine air conditioner with reverse cycle heating, MyTouch digital control, and a 270° rotatable blower. Built for compact onboard installation, it features corrosion-protected construction, USB diagnosis capability, and 60 Hz compatibility.
Overview Webasto S16 BlueCool 16000 BTU Marine AC 115V
Webasto S16 BlueCool 16000 BTU Marine AC 115V is a self-contained marine air conditioner built for quiet, powerful, and efficient onboard climate control. This 115V model includes reverse cycle heating, a MyTouch digital display, and a high-velocity 270° rotatable blower, giving buyers a compact unit with clearly defined control and airflow components. It is also updated for full 60 Hz compatibility, making it suitable for worldwide usage based on the provided product data.
The unit is epoxy-painted and fitted with a stainless steel drain pan for durable corrosion protection in marine environments. It is mounted on an extra-deep, thermally insulated stainless steel tray and uses updated electronics with USB diagnosis support. With its compact self-contained layout and included remote mount electrical box, this model is designed to keep installation planning straightforward while maintaining easy access to key system components.
Key Features of Webasto S16 BlueCool 16000 BTU Marine AC 115V
- 16,000 BTU/h cooling capacity with reverse cycle heating integrated.
- 115V / 60Hz operation for marine electrical systems using this power standard.
- MyTouch digital control with bezel is included.
- High-velocity 270° rotatable blower supports flexible air delivery.
- Epoxy-painted construction and stainless steel drain pan support corrosion protection.
- Mounted on an extra-deep, thermally insulated stainless steel tray.
- New electronics with USB diagnosis support BlueCool Expert Tool connection.
- Multi-point injection evaporator is designed for higher unit efficiency.
- Soft start devices are available as an option.
- Compact self-contained layout keeps major components on one tray.
Applications
This model is suitable for marine installations that require a 115V self-contained air conditioner with 16,000 BTU cooling and reverse cycle heating. It is described as suitable for boats with up to three cabins, making it a practical choice for cabin-specific climate control layouts. Its compact footprint, included display, and defined seawater flow requirement also make it easier to evaluate for replacement or upgrade projects.
Why Choose This Marine Air Conditioner
The BlueCool S16 gives buyers a clearly specified self-contained marine A/C option with included MyTouch control, reverse cycle heating, and corrosion-protected construction. Its 270° blower, USB diagnosis capability, and one-tray component layout help simplify installation and servicing decisions. With a 2-year warranty and verified technical data, it offers strong product clarity for marine HVAC upgrades where capacity, control, and service access matter.
Product Specifications
| Feature | Details |
|---|---|
| Brand | Webasto |
| Model | S16 BlueCool S Series |
| Part Number | 2510143B |
| Replaces Part Number | 2510143A |
| System Type | Self-Contained |
| Cooling Capacity | 16,000 BTU/h |
| Cooling Capacity (kW) | 4.7 |
| Heating | Reverse cycle integrated |
| Voltage | 115V |
| Frequency | 60Hz |
| Current Draw Running | 8.0 - 15.7A |
| Start Max Peak Current | 89A |
| Air Flow (Free Blowing) | 650 m3/h (382 cfm) |
| Sea Water Connection | 19 mm / 3/4 in |
| Minimum Sea Water Flow at 60 Hz | 14 l/min |
| Refrigerant Quantity | 550 g |
| Blower Connection | 125 mm / 5 in |
| Unit Dimensions | 540 x 350 x 380 mm (21.3 x 13.8 x 15.0 in) |
| Electronic Box Dimensions | 310 x 214 x 83 mm (12.2 x 8.4 x 3.3 in) |
| Weight Core Unit | 28 kg / 62 lb |
| Weight Electronic Box | 2 kg |
| Warranty | 2-Year Warranty |
What's Included
- Webasto S16 BlueCool S Series 16000 BTU Marine Air Conditioner - 115V
- 5" ducting collar
- High-velocity 270° rotatable blower
- Remote mount electrical box
- MyTouch digital control with bezel
- Air filter
- R410A refrigerant
Frequently Asked Questions About Webasto S16 BlueCool 16000 BTU Marine AC 115V
Does this unit include both cooling and heating?
Yes. The technical data lists 16,000 BTU/h cooling capacity and confirms that heating via reverse cycle is integrated. That means this unit provides both cooling and heating in one self-contained system.
What control display is included with this model?
This unit includes the BlueCool MyTouch digital control with bezel. The product data describes it as a full-color, high-resolution 2.4-inch interactive touch screen with multiple customization options and protected access to system configuration parameters.
Is this model suitable for boats with multiple cabins?
Yes. The product data states that Webasto S16 BlueCool S Series self-contained air conditioners are suitable for boats with up to three cabins. It also explains that each cabin has its own self-contained unit providing cool air to that cabin.
What should I check before ordering this marine air conditioner?
Check the 115V / 60Hz power requirement, the 3/4-inch sea water connection, and the minimum sea water flow of 14 l/min. You should also confirm the 5-inch blower connection, unit dimensions of 21.3 x 13.8 x 15.0 inches, and electronic box dimensions of 12.2 x 8.4 x 3.3 inches.
