Webasto FCF Classic 12000 BTU Marine Air Conditioner 115V
$1,098.00
The Webasto FCF Classic 12000 BTU Marine Air Conditioner 115V is a self-contained unit with cooling, reverse cycle heating, digital control, and a 360° rotatable blower. It is a practical choice for retrofit projects, including replacement of Dometic ECD10k 115V setups.
Overview Webasto FCF Classic 12000 BTU Marine Air Conditioner 115V

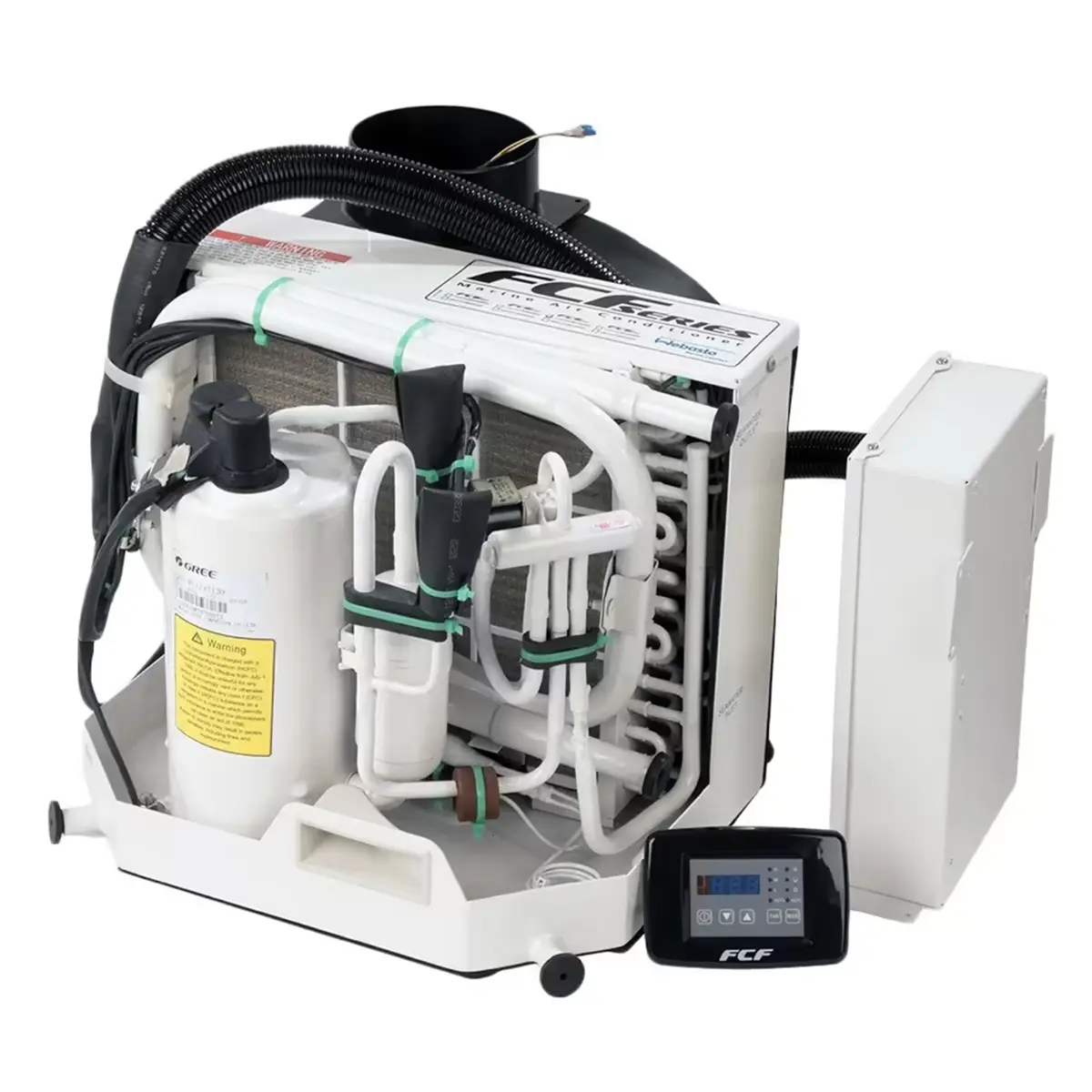

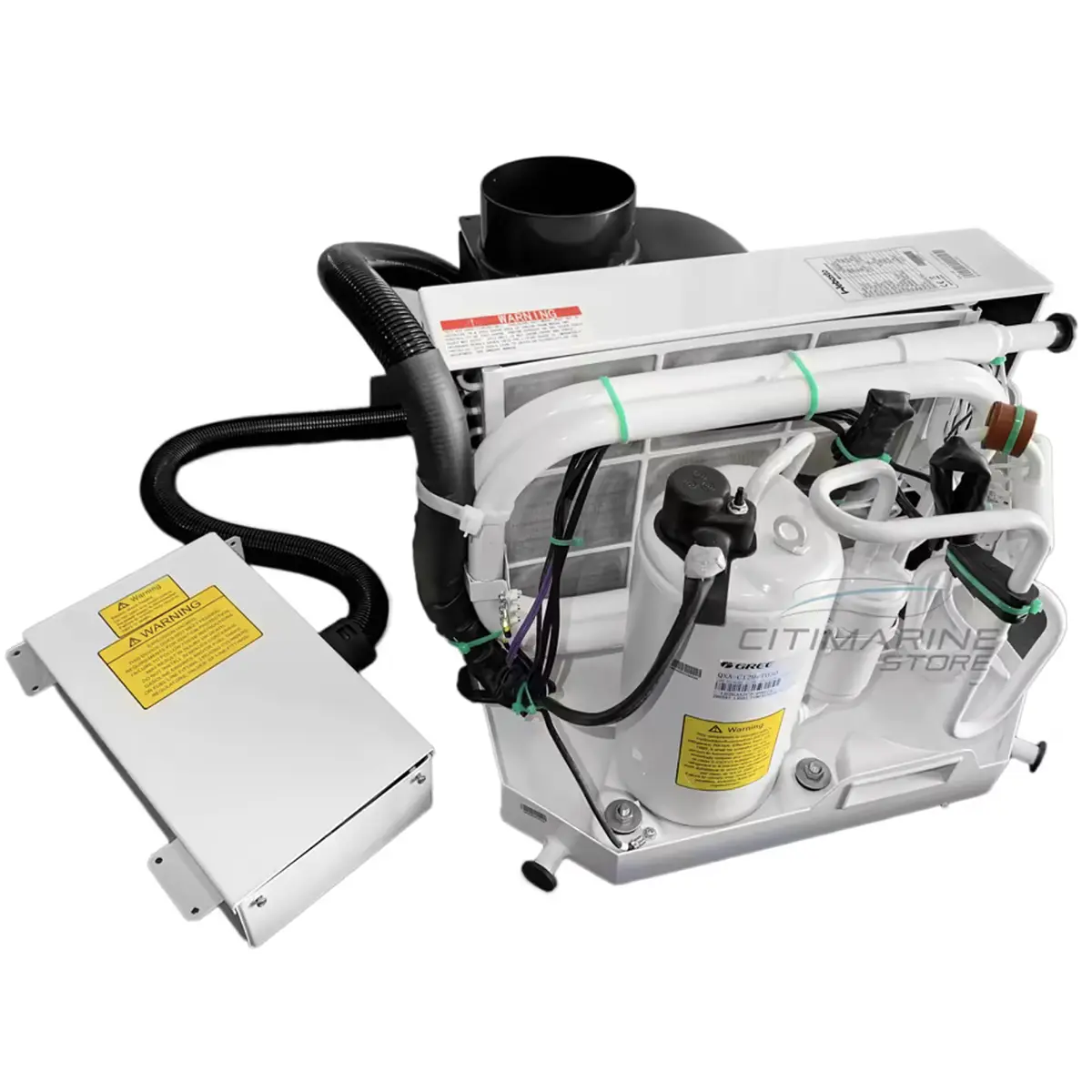

Webasto FCF Classic 12000 BTU Marine Air Conditioner 115V is a self-contained marine climate control unit designed to provide cabin cooling with reverse cycle heating. This 115V model combines a compact assembly, ultra-silent compressor, and 3-speed high-velocity blower in a corrosion-resistant package with a stainless steel chassis, baked-on enamel finish, and gold-anodized evaporators. It also includes a digital control panel, remote control, and replaceable air filter, making it a clear option for buyers planning a new installation or a retrofit.
Key Features of Webasto FCF Classic 12000 BTU Marine Air Conditioner 115V
- 12,000 BTU cooling capacity for marine cabin climate control.
- Reverse cycle heating adds off-season or cooler-weather functionality.
- 115V / 60 Hz configuration for matching onboard electrical requirements.
- Ultra-silent, balanced compressor helps reduce vibration and operating noise.

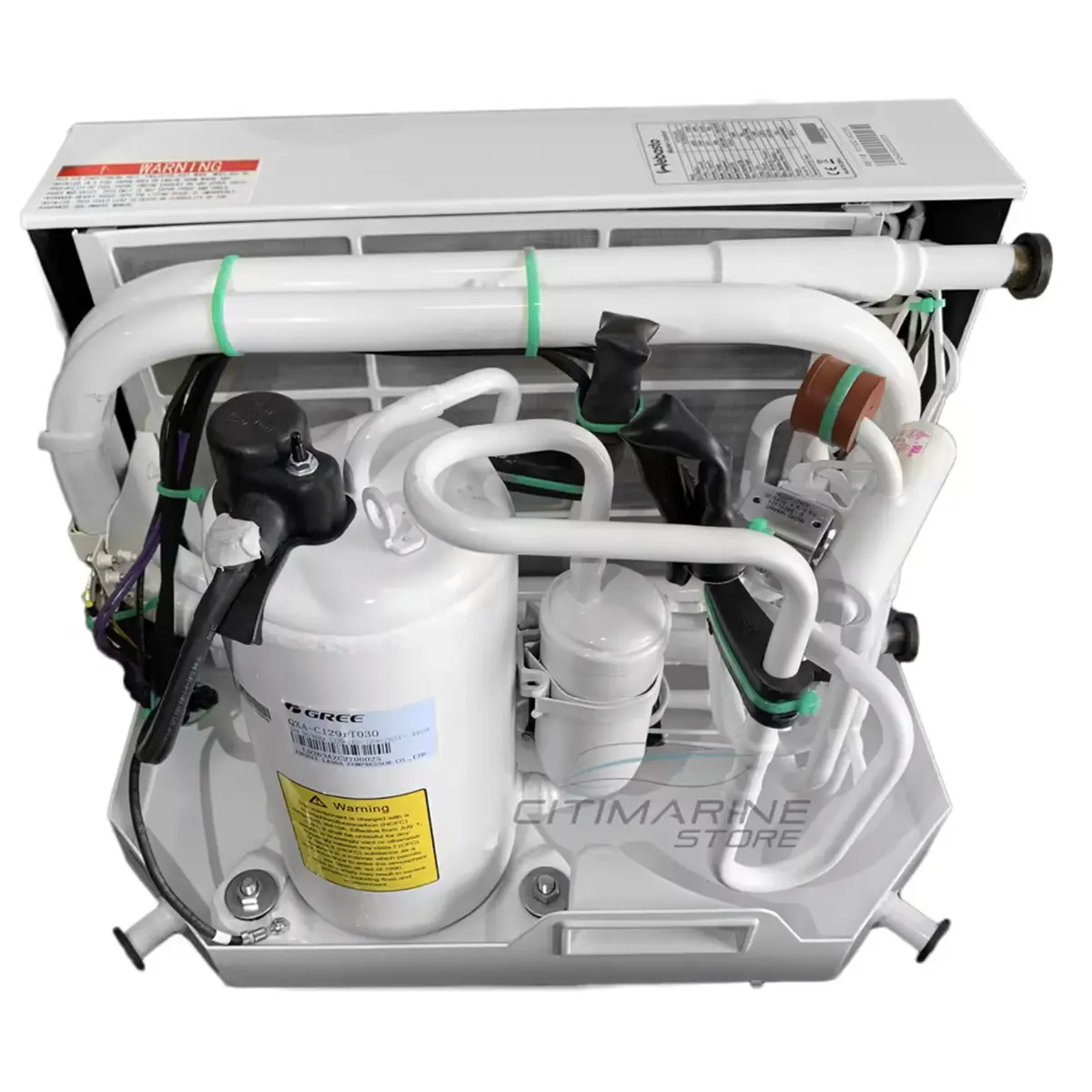

- 3-speed, 360° rotatable blower supports flexible airflow direction.
- Replaceable air filter helps maintain cleaner air circulation.
- One-piece stainless steel chassis and stainless condensation tray support corrosion resistance.
- Gold-anodized evaporators and baked-on enamel finish add protection in marine environments.
- Digital control with bezel and remote control are included.
- Listed as a good replacement option for Dometic ECD10k 115V systems.
Applications
This model is suited to marine cabin cooling and heating applications where a self-contained 115V air conditioner is required. It is also relevant for retrofit work, especially when replacing a Dometic ECD10k 115V unit. Buyers should note the installation differences provided for duct sizing, seawater hose connection, and controller replacement when planning a swap.
Why Choose This Marine Air Conditioner
This Webasto FCF Classic variant gives buyers a clearly defined combination of 12,000 BTU capacity, 115V power, reverse cycle heating, and included digital controls. The package also stands out for its corrosion-resistant construction details and practical retrofit value, including compatibility notes for replacing Dometic ECD10k 115V units. For shoppers comparing exact model specifications rather than generic marine HVAC listings, the included components, published dimensions, airflow data, and 2-year warranty make this a straightforward product to evaluate.
Product Specifications
| Feature | Details |
|---|---|
| Part Number | FCF0012000GS |
| Cooling Capacity | 12,000 BTU/h |
| Voltage | 115V |
| Frequency | 60 Hz |
| Rated Current | 8.5 A |
| Refrigerant | R410A |
| Minimum Supply Air | 50 in² (323 cm²) |
| Minimum Return Air | 100 in² (645 cm²) |
| Blower Output | 410 cfm (696 m³/h) |
| Ducting Collar | 5 in (127 mm) |
| Seawater Inlet / Outlet | 3/4 in (19 mm) |
| Drain Pan Outlet | 5/8 in (15.9 mm) |
| Dimensions | 15" L x 13" H x 17.2" D |
| Weight | 68 lbs / 31 kg |
| Warranty | 2-Year Warranty |
What's Included
- Webasto FCF Classic 12,000 BTU marine air conditioner unit
- 5" ducting collar
- High-velocity 360° rotatable blower
- Remote mount electrical box
- Digital control with bezel
- Air filter
- Remote control
- R410A refrigerant
- 5/8" to 3/4" adapter
Frequently Asked Questions About Webasto FCF Classic 12000 BTU Marine Air Conditioner 115V
Does this unit provide both cooling and heating?
Yes. This model is described as providing cooling along with reverse cycle heating. That makes it suitable for buyers who want one unit for both warm and cooler operating conditions.
Can this replace a Dometic ECD10k 115V unit?
It is presented as a good replacement option for the Dometic ECD10k 115V. However, it is not a direct controller swap, and the installation notes mention differences in duct sizing and condenser hose connections that should be accounted for during installation.
What is included with the Webasto FCF0012000GS?
The package includes the unit, 5-inch ducting collar, 360° rotatable blower, remote mount electrical box, digital control with bezel, air filter, remote control, R410A refrigerant, and a 5/8-inch to 3/4-inch adapter. These included parts are especially relevant for retrofit planning.
What ducting and seawater connections does this model use?
This unit uses a 5-inch ducting collar and a 3/4-inch seawater inlet and outlet. For replacement of a Dometic ECD10k setup using 5/8-inch water lines, the provided 5/8-inch to 3/4-inch adapter and a short length of 3/4-inch hose are required for connection.
