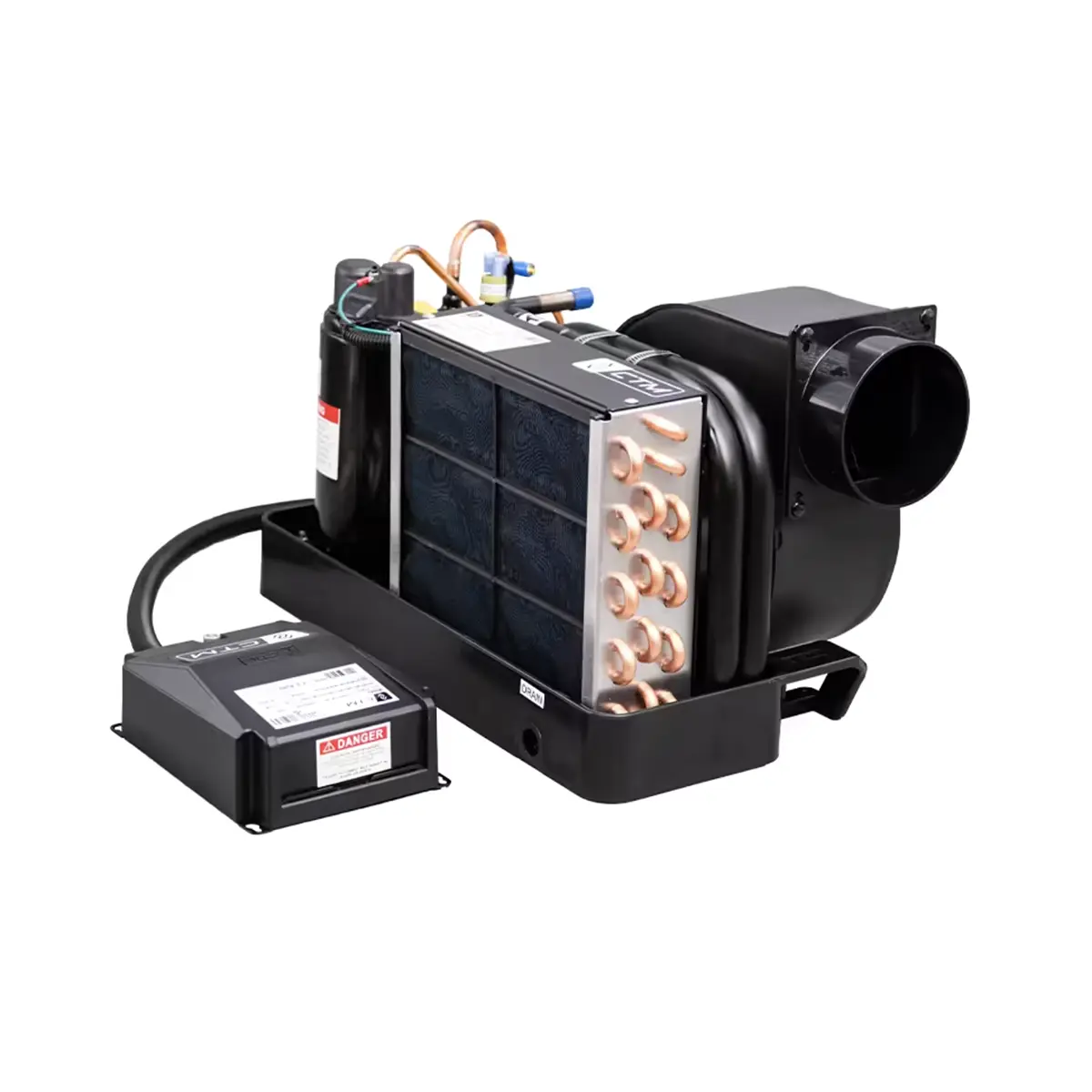

CTM CT-10 10000 BTU Marine Air Conditioner 115V
$1,421.00

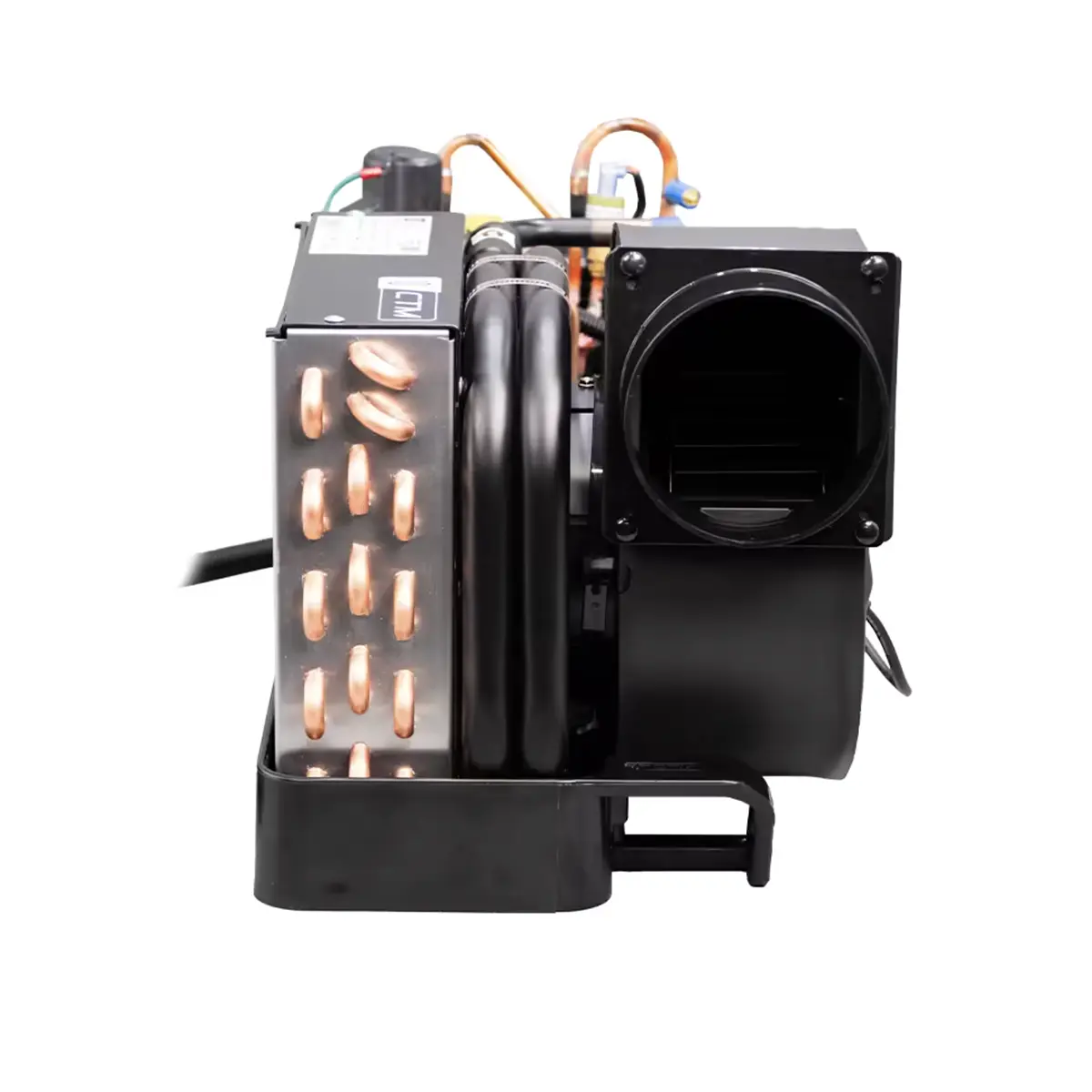

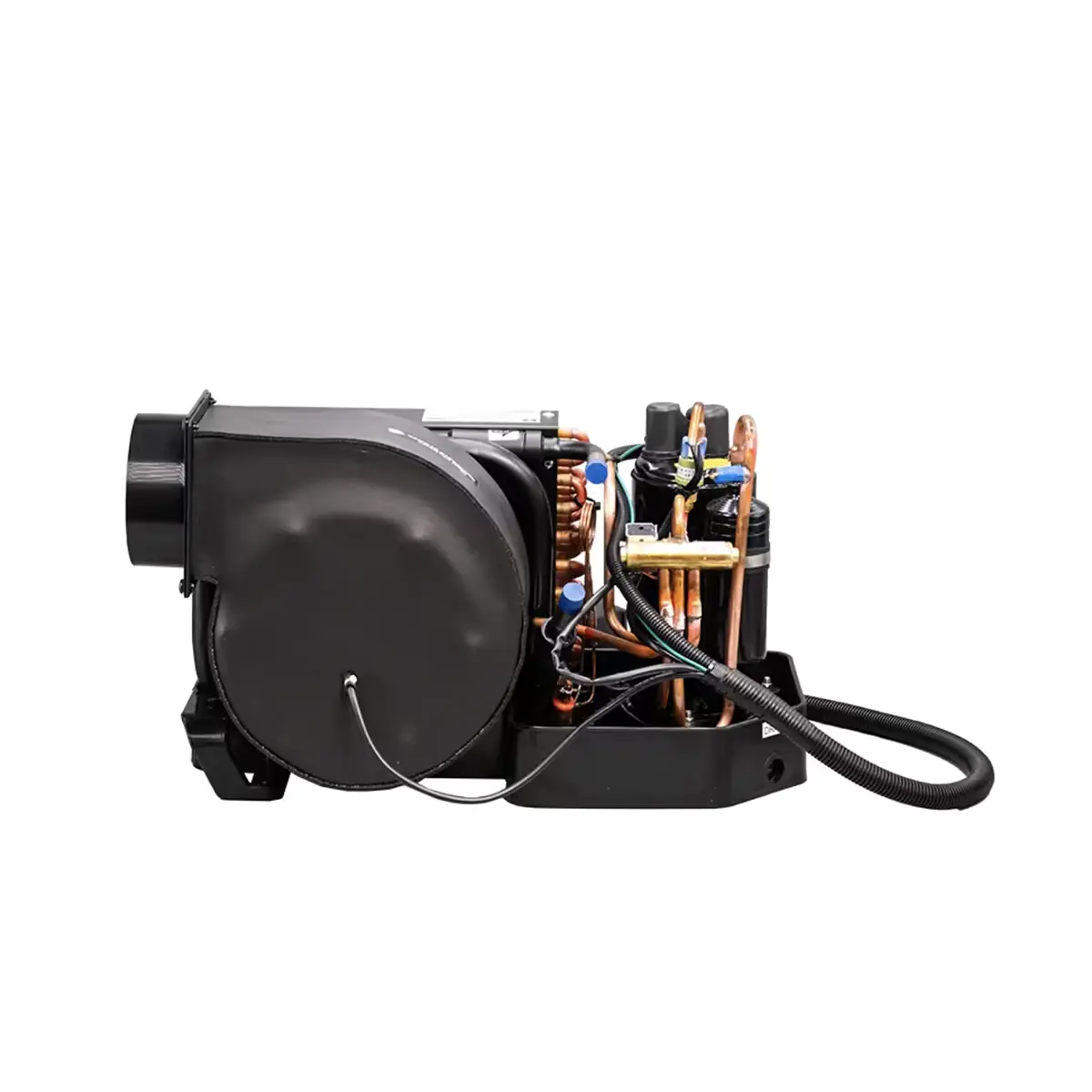

CTM CT-10 10000 BTU Marine Air Conditioner 115V is a self-contained marine AC and heat pump built for 50/60Hz operation. It features titanium circulating coils, a high-velocity turbo blower, corrosion-resistant construction, and compatibility with several major marine A/C control platforms.
Overview CTM CT-10 10000 BTU Marine Air Conditioner 115V
CTM CT-10 10000 BTU Marine Air Conditioner 115V is a self-contained marine air conditioner and heat pump designed for 100-120V, 50/60Hz operation. This 10,000 BTU model is built for buyers who need more cooling capacity than smaller 6,000 BTU units while still keeping a compact marine-focused format with corrosion-resistant materials such as titanium circulating coils, stainless steel bolts, and a stainless steel structural pan with an ABS tray.
The CT-10 is also positioned as a drop-in replacement for major marine A/C brands including Dometic, Webasto, Cruisair, Marine Air, and Mermaid Air. The provided information further states compatibility with Dometic, Cruisair, Marine Air, and Micro Air controls, thermostats, and cables, which may help simplify replacement projects where compatible onboard control components are already installed.
Key Features of CTM CT-10 10000 BTU Marine Air Conditioner 115V
- 10,000 BTU capacity for marine cooling applications that require more output than smaller-capacity units.
- 100-120V, 50-60Hz operation for boats using 115V-class onboard electrical systems.
- Self-contained marine air conditioner and heat pump configuration stated in the product data.
- High-velocity rotatable turbo blower supports air distribution, with rotation listed as less than 250 degrees.
- 350 CFM blower airflow and 1200 RPM blower speed provide model-specific performance details for comparison.
- Titanium circulating coils are specified for corrosion-resistant seawater cooling performance.
- Stainless steel bolts and structural pan help support long-term resistance to rust in marine environments.
- ABS tray adds a durable, corrosion-resistant base component.
- Compatible with several major marine A/C control, thermostat, and cable platforms named in the product data.
- Backed by a 2-year warranty.
Applications
This model is suited to buyers looking for a 10,000 BTU marine A/C unit for a new installation or replacement project on a 115V electrical setup. It can be a practical choice when a higher-capacity unit is needed compared with smaller models, while still maintaining a self-contained format and compatibility with several established control platforms.
Because the product data identifies it as both an air conditioner and heat pump, this unit may also appeal to owners who want one onboard system that can support both cooling and heating functions. Its stated compatibility with existing controls and cables may also be useful in retrofit situations.
Why Choose This Marine Air Conditioner
The CTM CT-10 gives buyers a clearly defined 10,000 BTU, 115V option in the CTM marine A/C range, making it easier to distinguish from lower-capacity variants. Its buying value comes from the combination of higher confirmed capacity, self-contained heat pump design, corrosion-resistant construction materials, and compatibility with several widely used marine A/C control systems. For buyers comparing exact specifications, this model also provides clear performance details including 24 A starting amps, 42 A locked rotor amps, 350 CFM airflow, and a 2-year warranty.
Product Specifications
| Feature | Details |
|---|---|
| Brand | CTM |
| Model | CT-10 |
| Cooling Capacity | 10,000 BTU |
| Voltage | 100-120 V |
| Frequency | 50-60 Hz |
| Refrigerant Type | R410A |
| Current Consumption Cool / Heat | 6.5 A / 9.1 A |
| Starting Amps | 24 A |
| Locked Rotor Amps | 42 A |
| Fuse Max. / Min. | 25 A / 16 A |
| Blower Airflow | 350 CFM |
| Blower Speed | 1200 RPM |
| High-Velocity Blower | Yes |
| Minimum Supply Duct Size | 5 in / 127 mm |
| Seawater Inlet Connection | 5/8 in / 16 mm |
| Suggested Water Flow | 250 GPH |
| Net Weight | 50 lbs / 23 kg |
| Warranty | 2-Year |
What's Included
- CTM CT-10 10,000 BTU marine air conditioner unit
Frequently Asked Questions About CTM CT-10 10000 BTU Marine Air Conditioner 115V
Does the CTM CT-10 provide both cooling and heating?
Yes. The product data describes the CT-10 as a self-contained marine air conditioner and heat pump. It also lists separate current consumption figures for cooling and heat, which supports that this model is designed for both operating modes.
What electrical range does this unit require?
This model operates on 100-120 V and 50-60 Hz power. The listed starting amps is 24 A, locked rotor amps is 42 A, and fuse max./min. is 25 A / 16 A. Those figures are useful for checking suitability with the boat’s electrical system.
Can the CT-10 replace other marine A/C brands?
The product information states that it works as a drop-in replacement for major marine A/C brands including Dometic, Webasto, Cruisair, Marine Air, and Mermaid Air. It is also stated to be compatible with Dometic, Cruisair, Marine Air, and Micro Air controls, thermostats, and cables. Physical fitment should still be verified because installation dimensions are not provided here.
What airflow and duct size are specified for this model?
The CT-10 has a listed blower airflow of 350 CFM and a blower speed of 1200 RPM. The minimum supply duct size is 5 inches / 127 mm. These details help identify the airflow profile of this exact 10,000 BTU variant.
