Webasto FCF Platinum 10000 BTU Marine Air Conditioner 115V
$1,098.00
Webasto FCF Platinum 10000 BTU Marine Air Conditioner 115V is a compact marine climate control unit with reverse cycle heating, digital control, and R410A refrigerant. Designed with a long, slim footprint for replacement work, it includes a rotatable blower, electrical box, air filter, and a 2-year warranty.
Overview Webasto FCF Platinum 10000 BTU Marine Air Conditioner 115V
Webasto FCF Platinum 10000 BTU Marine Air Conditioner 115V is a 115V, 60Hz marine climate control unit built with reverse cycle heating, digital control, and a long, slim footprint aimed at easier replacement of existing units. This Platinum-series model is presented as the latest development in Webasto’s marine A/C range, with an improved design and a higher BTU/h rating across a variety of ambient scenarios. It includes the digital display, controller, and cable as standard, giving buyers a clearly defined package for installation planning.
The unit uses R410A refrigerant and features a marine-grade stainless steel frame, a proprietary balanced compressor, and a high-velocity 360° rotatable blower. Its compact dimensions, included electrical box, and replacement notes for Dometic DTU10 115V systems make it a practical option for retrofit-focused projects. Webasto also includes a 2-year warranty with this model.
Key Features of Webasto FCF Platinum 10000 BTU Marine Air Conditioner 115V
- 10,000 BTU/h cooling capacity with 10,000 BTU/h heating capacity.
- 115V / 60Hz electrical specification with 7.2A rated current.
- Reverse cycle heating adds year-round climate control flexibility.

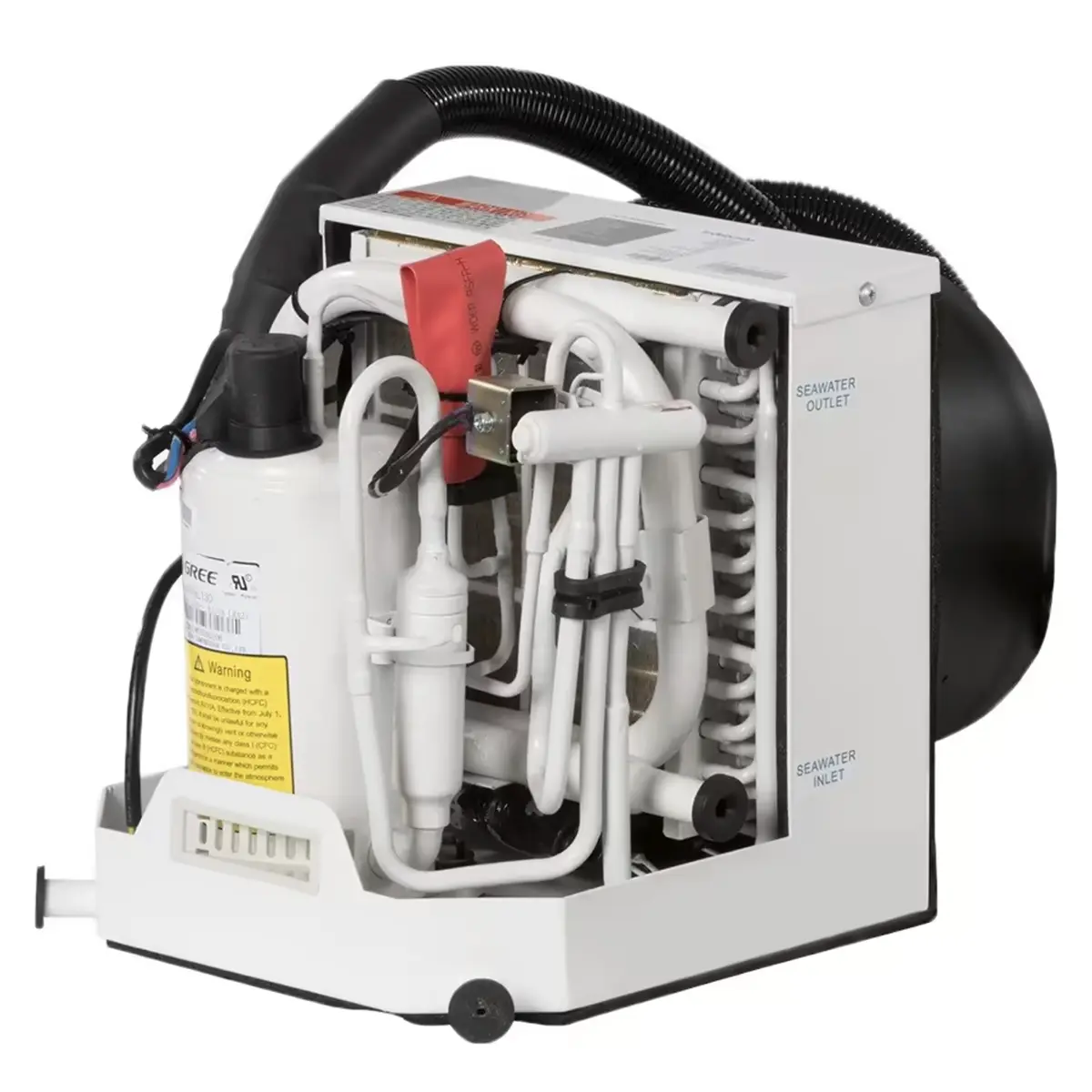

- Digital display, controller, and cable are included as standard.
- Long and slim footprint supports easier replacement of existing units.
- Marine-grade stainless steel frame is designed for durability in marine use.
- Proprietary compressor is described as well balanced and quieter than previous designs.

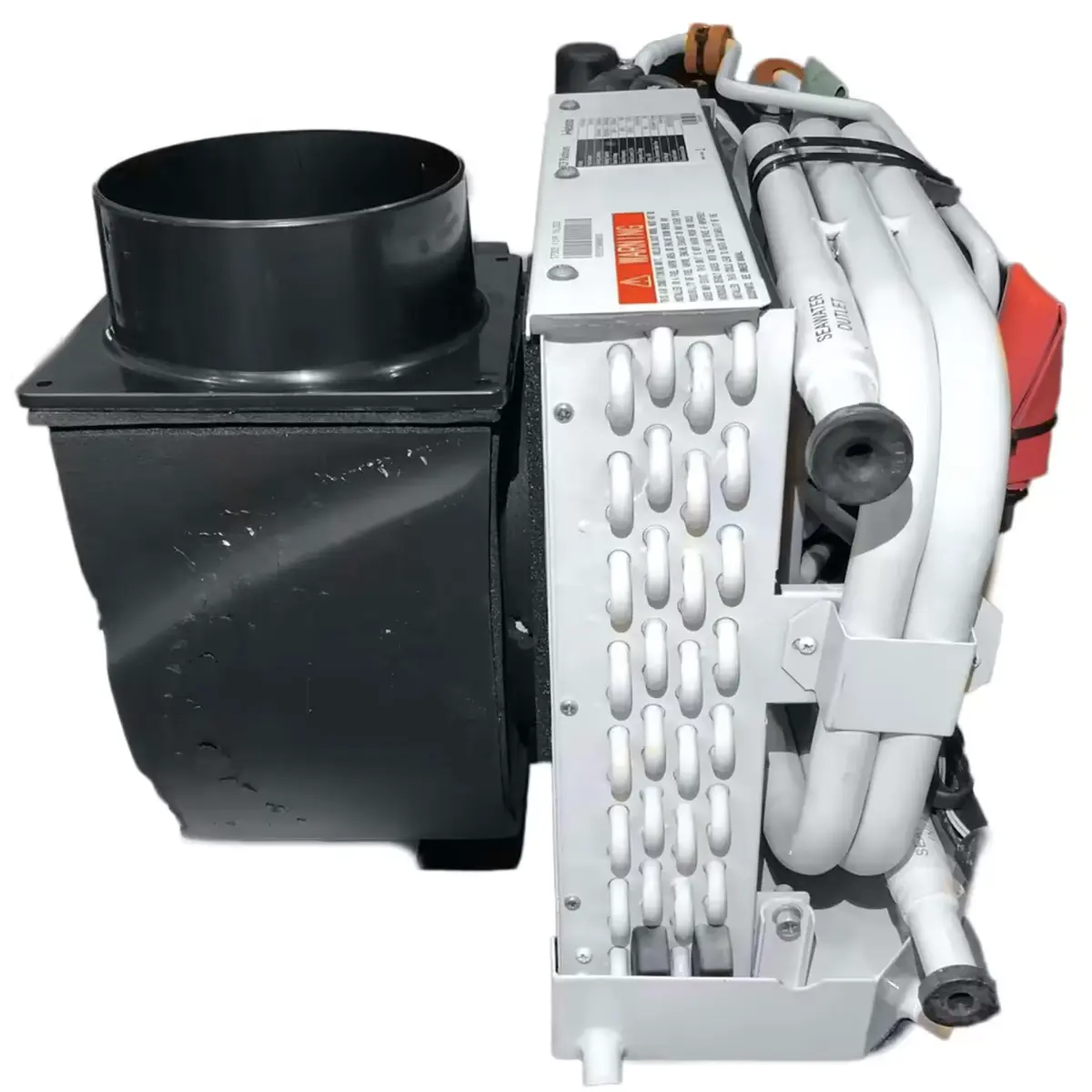

- High-velocity 360° rotatable blower helps direct airflow where needed.
- Uses R410A refrigerant with a 1 lb refrigerant charge.
- Good replacement option for Dometic DTU10 – 115V installations.
Applications
This model is suited to boats needing a 115V marine air conditioner with 10,000 BTU cooling and reverse cycle heating. It is especially relevant for replacement work where a long, slim footprint and included digital control components help simplify retrofit planning. Buyers replacing a Dometic DTU10 should review the ducting, water connection, and controller differences before installation.
Why Choose This Marine Air Conditioner
The FCF Platinum 10000 gives buyers a clearly specified 115V option with both cooling and heating capacity, standard digital controls, and a compact replacement-oriented layout. Its marine-grade stainless steel frame, defined water flow requirement, and documented replacement notes for Dometic DTU10 systems make it easier to assess for marine HVAC upgrades. The included core components and 2-year warranty add practical buying clarity.
Product Specifications
| Feature | Details |
|---|---|
| Brand | Webasto |
| Model | FCF Platinum 10000 |
| Part Number | 5011396A |
| Cooling Capacity | 10,000 BTU/h |
| Heating Capacity | 10,000 BTU/h |
| Voltage | 115V |
| Frequency | 60Hz |
| Rated Current | 7.2A |
| Compressor LRA | 34A |
| Refrigerant | R410A |
| Refrigerant Charge | 1 lb |
| Seawater Inlet | 3/4" - 5/8" adapter included |
| Minimum Condenser Water Flow | 1.59 gal/min |
| Blower Connection Size | 100 mm / 4 in |
| Dimensions | 380 x 408 x 310 mm (15 x 16 x 12.2 in) |
| Weight | 27 kg / 60 lb |
| Warranty | 2-Year Warranty |

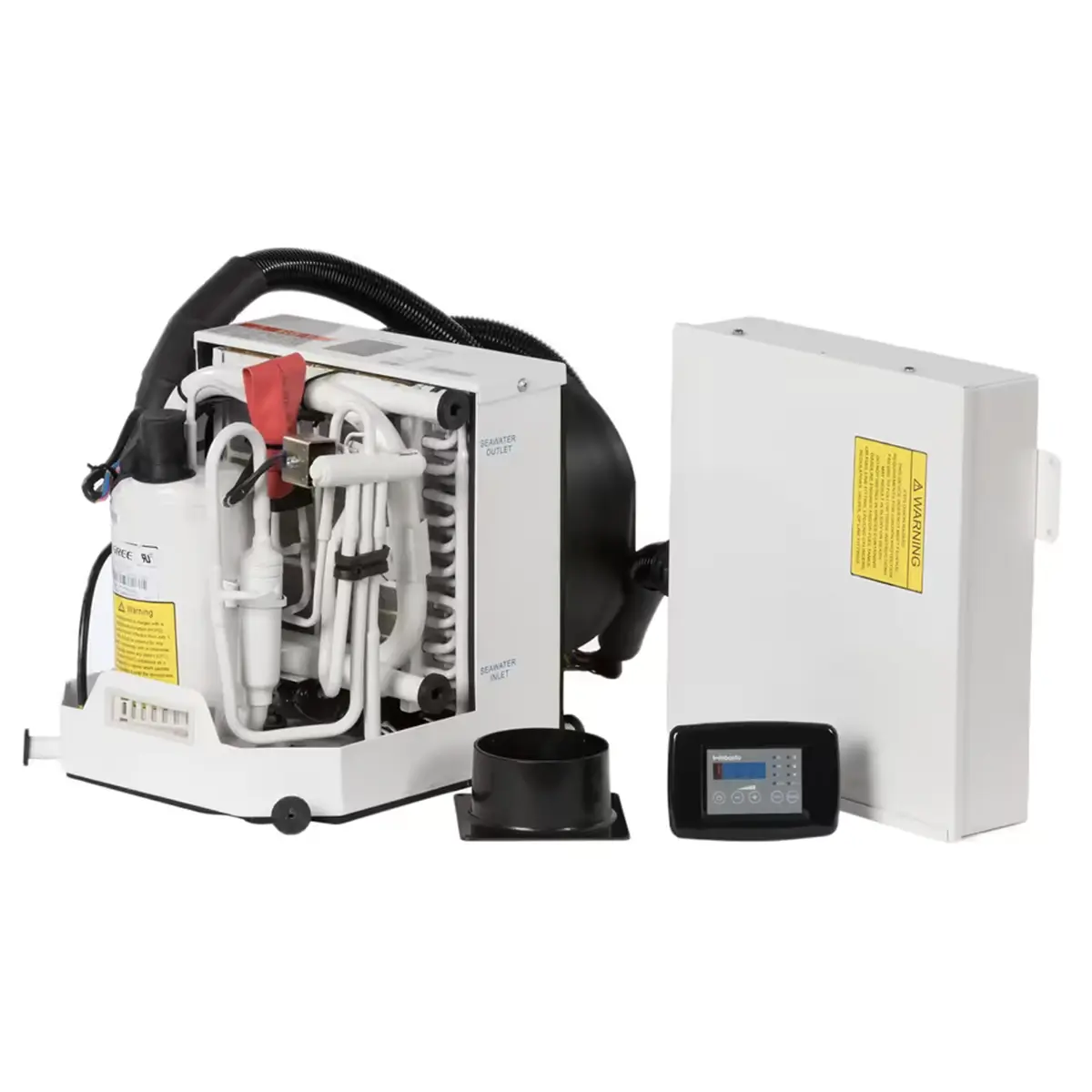

What's Included
- Webasto FCF Platinum 10000 BTU Marine Air Conditioner - 115V
- 4" ducting collar
- High-velocity 360° rotatable blower
- Remote mount electrical box
- Digital control with bezel
- Air filter
- R410A refrigerant
- 5/8" to 3/4" adapter
Frequently Asked Questions About Webasto FCF Platinum 10000 BTU Marine Air Conditioner 115V
Does this unit include both cooling and heating?
Yes. The technical data lists 10,000 BTU/h cooling capacity and 10,000 BTU/h heating capacity. It also specifically states that the unit uses reverse cycle heating.
Is a remote control included with this model?
No remote control is included as standard with this unit. The provided product data states that remote control is optional, while the digital control, controller, and cable come standard.
Can this replace a Dometic DTU10 115V system?
Yes, it is identified as a good replacement option for the Dometic DTU10 - 115V. The main installation differences noted are the ducting sizes, condenser water connection changes requiring the included adapter, and the fact that the controller and cable must be replaced with the included Webasto components.
What installation-related specifications should I check first?
Check the 115V / 60Hz power requirement, the 4-inch blower connection size, and the minimum condenser water flow of 1.59 gal/min. You should also confirm the unit dimensions of 15 x 16 x 12.2 inches and the 3/4" seawater inlet with included 5/8" adapter before ordering.
