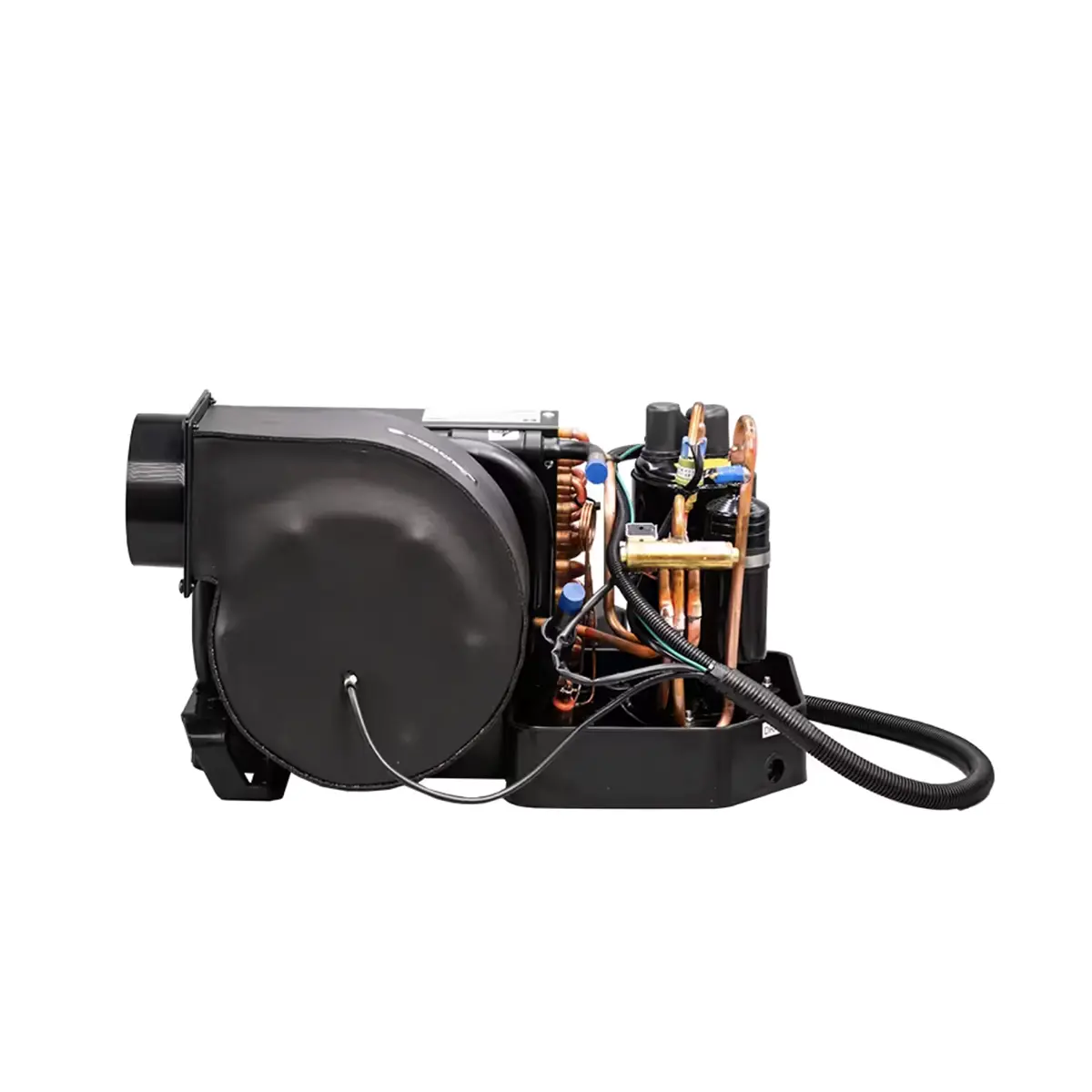

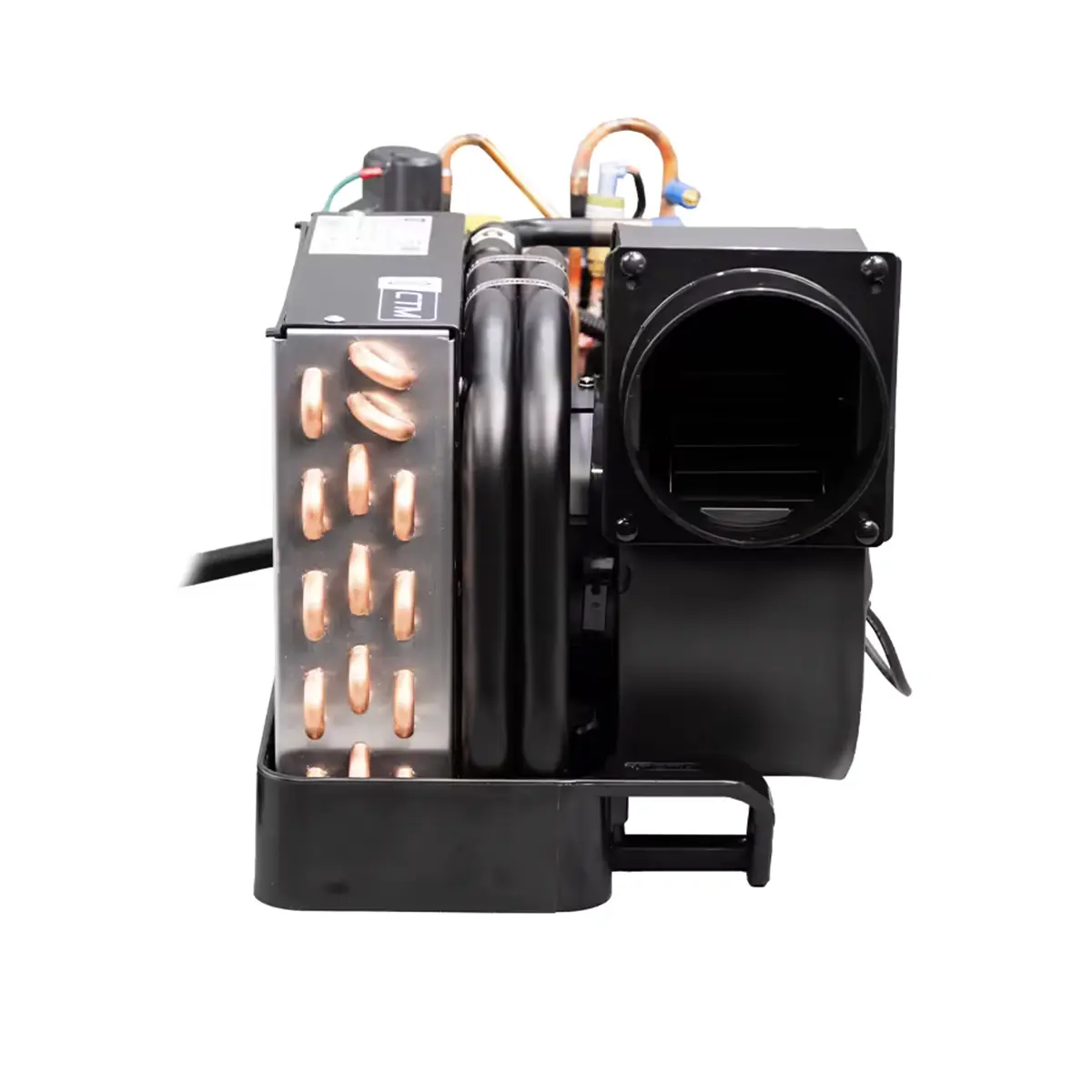

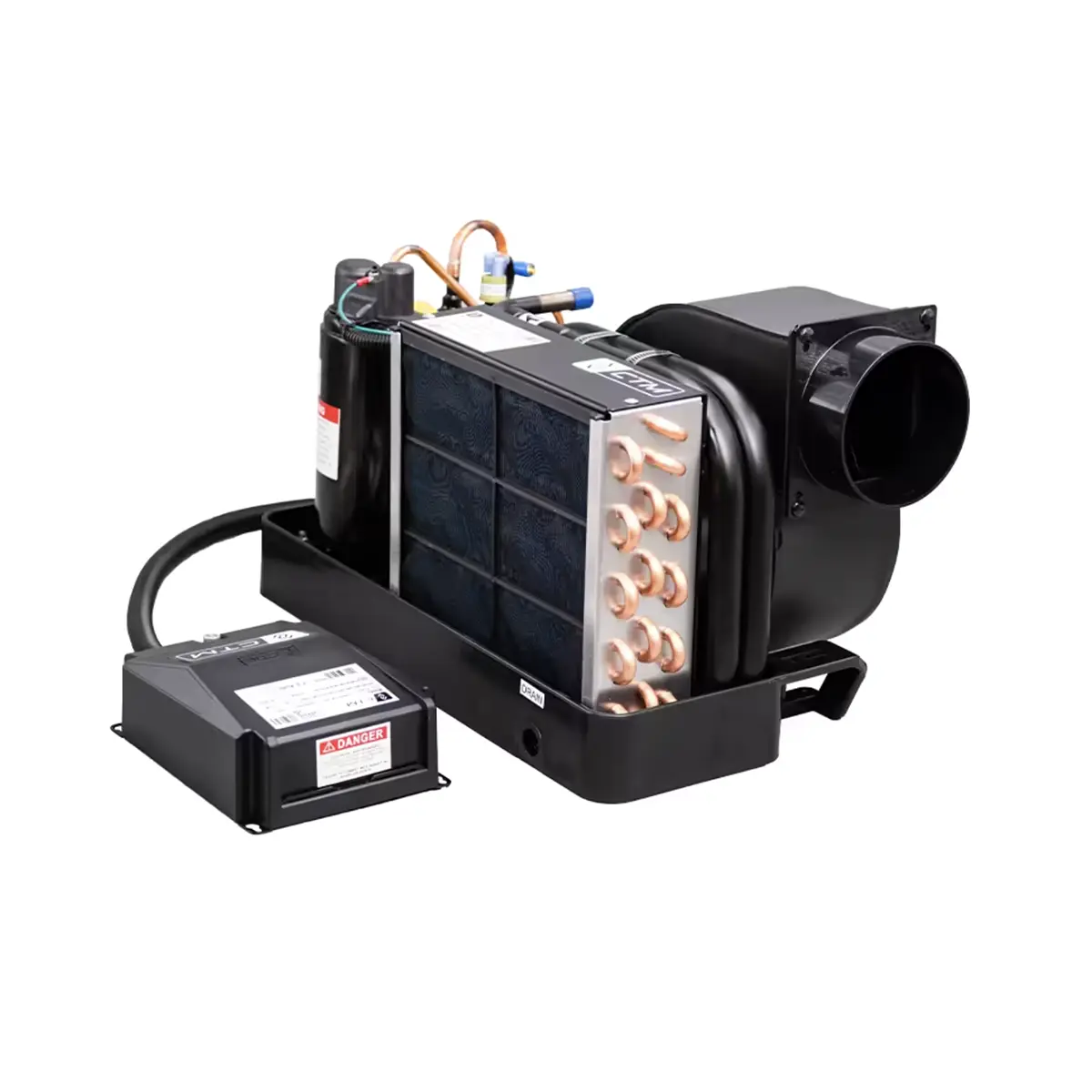

CTM CT-10H 10000 BTU Marine Air Conditioner 230V
$1,467.00
CTM CT-10H 10000 BTU Marine Air Conditioner 230V is a self-contained marine AC and heat pump built for 50/60Hz operation. It features titanium circulating coils, a high-velocity turbo blower, corrosion-resistant construction, and compatibility with several major marine A/C control platforms.
Overview CTM CT-10H 10000 BTU Marine Air Conditioner 230V
CTM CT-10H 10000 BTU Marine Air Conditioner 230V is a self-contained marine air conditioner and heat pump designed for 208-230V, 50/60Hz operation. This 10,000 BTU model is built for buyers who need higher-capacity marine climate control on a 230V electrical setup, while also keeping corrosion-resistant construction details such as titanium circulating coils, stainless steel bolts, and a stainless steel structural pan with an ABS tray.
The CT-10H is also presented as a drop-in replacement for major marine A/C brands including Dometic, Webasto, Cruisair, Marine Air, and Mermaid Air. The provided product information also states compatibility with Dometic, Cruisair, Marine Air, and Micro Air controls, thermostats, and cables, which may help simplify retrofit projects where compatible onboard control components are already in place.
Key Features of CTM CT-10H 10000 BTU Marine Air Conditioner 230V
- 10,000 BTU capacity for marine applications that need more output than smaller units.
- 208-230V, 50-60Hz operation for boats using higher-voltage onboard electrical systems.
- Self-contained marine air conditioner and heat pump configuration stated in the product data.
- High-velocity rotatable turbo blower supports onboard airflow, with rotation listed as less than 250 degrees.
- 347 CFM blower airflow and 1200 RPM blower speed provide clear model-specific performance details.
- Titanium circulating coils are specified for corrosion-resistant seawater cooling performance.
- Stainless steel bolts and structural pan help resist rust in demanding marine environments.
- ABS tray adds a durable, corrosion-resistant base component.
- Compatible with several major marine A/C control, thermostat, and cable platforms named in the product data.
- Backed by a 2-year warranty.
Applications
This model is suited to buyers looking for a 10,000 BTU marine A/C unit for a new installation or replacement project on a 230V electrical system. It can be a practical choice when a higher-capacity self-contained unit is needed and the installation benefits from compatibility with existing marine A/C controls and cables.
Because the product data identifies it as both an air conditioner and heat pump, this unit may also appeal to owners who want one onboard system that can support cooling and heating functions. Its higher-voltage specification makes it distinct from 115V versions in the same CTM range.
Why Choose This Marine Air Conditioner
The CTM CT-10H gives buyers a clearly defined 10,000 BTU, 230V option in the CTM lineup, making it easier to match capacity and electrical requirements correctly. Its buying value comes from the combination of confirmed heat pump functionality, self-contained design, corrosion-resistant materials, and compatibility with several widely used marine A/C control systems. For buyers comparing exact specifications, this model also provides clear figures including 3.3 A / 3.9 A input, 12 A starting amps, 22 A locked rotor amps, 347 CFM airflow, and a 2-year warranty.
Product Specifications
| Feature | Details |
|---|---|
| Brand | CTM |
| Model | CT-10H |
| Cooling Capacity | 10,000 BTU |
| Voltage | 208-230 V |
| Frequency | 50-60 Hz |
| Refrigerant Type | R410A |
| Input Cool / Heat | 3.3 A / 3.9 A |
| Starting Amps | 12 A |
| Locked Rotor Amps | 22 A |
| Fuse Max. / Min. | 15 A / 10 A |
| Blower Airflow | 347 CFM |
| Blower Speed | 1200 RPM |
| High Velocity Blower | Yes |
| Minimum Supply Duct Size | 5 in / 127 mm |
| Seawater Inlet Connection | 5/8 in / 16 mm |
| Suggested Water Flow | 250 GPH |
| Net Weight | 50 lbs / 23 kg |
| Warranty | 2-Year |
What's Included
- CTM CT-10H 10,000 BTU marine air conditioner unit
Frequently Asked Questions About CTM CT-10H 10000 BTU Marine Air Conditioner 230V
Does the CTM CT-10H provide both cooling and heating?
Yes. The product data describes the CT-10H as a self-contained marine air conditioner and heat pump. It also lists separate input values for cool and heat operation, which supports that this model is intended for both functions.
What electrical range does this unit require?
This model operates on 208-230 V and 50-60 Hz power. The listed starting amps is 12 A, locked rotor amps is 22 A, and fuse max./min. is 15 A / 10 A. These figures help buyers check compatibility with the boat’s onboard electrical system.
Can the CT-10H replace other marine A/C brands?
The product information states that it works as a drop-in replacement for major marine A/C brands including Dometic, Webasto, Cruisair, Marine Air, and Mermaid Air. It is also stated to be compatible with Dometic, Cruisair, Marine Air, and Micro Air controls, thermostats, and cables. Physical fitment should still be verified because installation dimensions are not provided here.
What airflow and duct size are specified for this model?
The CT-10H has a listed blower airflow of 347 CFM and a blower speed of 1200 RPM. The minimum supply duct size is 5 inches / 127 mm. These details help identify the airflow profile of this exact 10,000 BTU 230V variant.
