Webasto FCF Platinum 20000 BTU Marine Air Conditioner 230V
$1,641.00
Webasto FCF Platinum 20000 BTU Marine Air Conditioner 230V is a 20,000 BTU marine climate control unit with reverse cycle heating, digital control, and R410A refrigerant. Designed with a long, slim footprint for retrofit work, it includes a rotatable blower, electrical box, air filter, and a 2-year warranty.
Overview Webasto FCF Platinum 20000 BTU Marine Air Conditioner 230V
Webasto FCF Platinum 20000 BTU Marine Air Conditioner 230V is a 20,000 BTU marine climate control unit built for 230V, 50/60Hz operation with reverse cycle heating and standard digital control components. As part of Webasto’s latest FCF Platinum development, this model is described with an improved design and a higher BTU/h rating across a variety of ambient scenarios. The digital display and cable are included, helping buyers plan replacement or upgrade projects with clearer product detail.
This unit uses R410A refrigerant and features a long, slim footprint intended to make replacement of existing units easier. It also includes a marine-grade stainless steel frame, a proprietary well-balanced compressor, and a high-velocity 360° rotatable blower for practical airflow direction. The supplied installation notes also state that it is a good replacement option for certain Dometic units, with ducting, water connection, and controller differences that should be reviewed before installation.
Key Features of Webasto FCF Platinum 20000 BTU Marine Air Conditioner 230V
- 20,000 BTU/h cooling capacity with 20,000 BTU/h heating capacity.
- 230V operation with 50/60Hz compatibility.
- Rated current of 10.5 / 7.4A and compressor LRA of 44A.
- Reverse cycle heating supports both cooling and heating use.
- Digital display, controller, and cable come standard.
- Long and slim footprint is designed to simplify replacement of existing units.
- Marine-grade stainless steel frame supports durability in marine conditions.
- Proprietary compressor is described as well balanced and quieter than earlier designs.
- High-velocity 360° rotatable blower helps direct airflow where needed.
- Uses R410A refrigerant with a refrigerant charge of 1.87 lb.
Applications
This model is suited to boats that require a 230V marine air conditioner with 20,000 BTU cooling and reverse cycle heating. It is especially relevant for retrofit projects where a narrow-footprint unit and included control components help simplify planning. Buyers replacing an existing Dometic unit should review the noted ducting, condenser connection, and controller differences before installation.
Why Choose This Marine Air Conditioner
The FCF Platinum 20000 230V gives buyers a clearly specified marine A/C option with matched cooling and heating capacity, defined electrical requirements, and standard control hardware. Its replacement-focused layout, marine-grade stainless steel frame, and included installation components make it easier to assess for marine HVAC upgrades. The documented technical data and 2-year warranty add practical buying clarity without relying on unsupported claims.
Product Specifications
| Feature | Details |
|---|---|
| Brand | Webasto |
| Model | FCF Platinum 20000 |
| Part Number | 5011402A |
| Cooling Capacity | 20,000 BTU/h |
| Heating Capacity | 20,000 BTU/h |
| Voltage | 230V |
| Frequency | 50/60Hz |
| Rated Current | 10.5 / 7.4A |
| Compressor LRA | 44A |
| Refrigerant | R410A |
| Refrigerant Charge | 1.87 lb |
| Seawater Inlet | 3/4" - 5/8" adapter included |
| Minimum Condenser Water Flow | 5.02 gal/min |
| Blower Connection Size | 125 mm / 5 in |
| Dimensions | 529 x 595 x 386 mm (20.8 x 23.4 x 15 in) |
| Weight | 56.5 kg / 124 lb |
| Warranty | 2-Year Warranty |

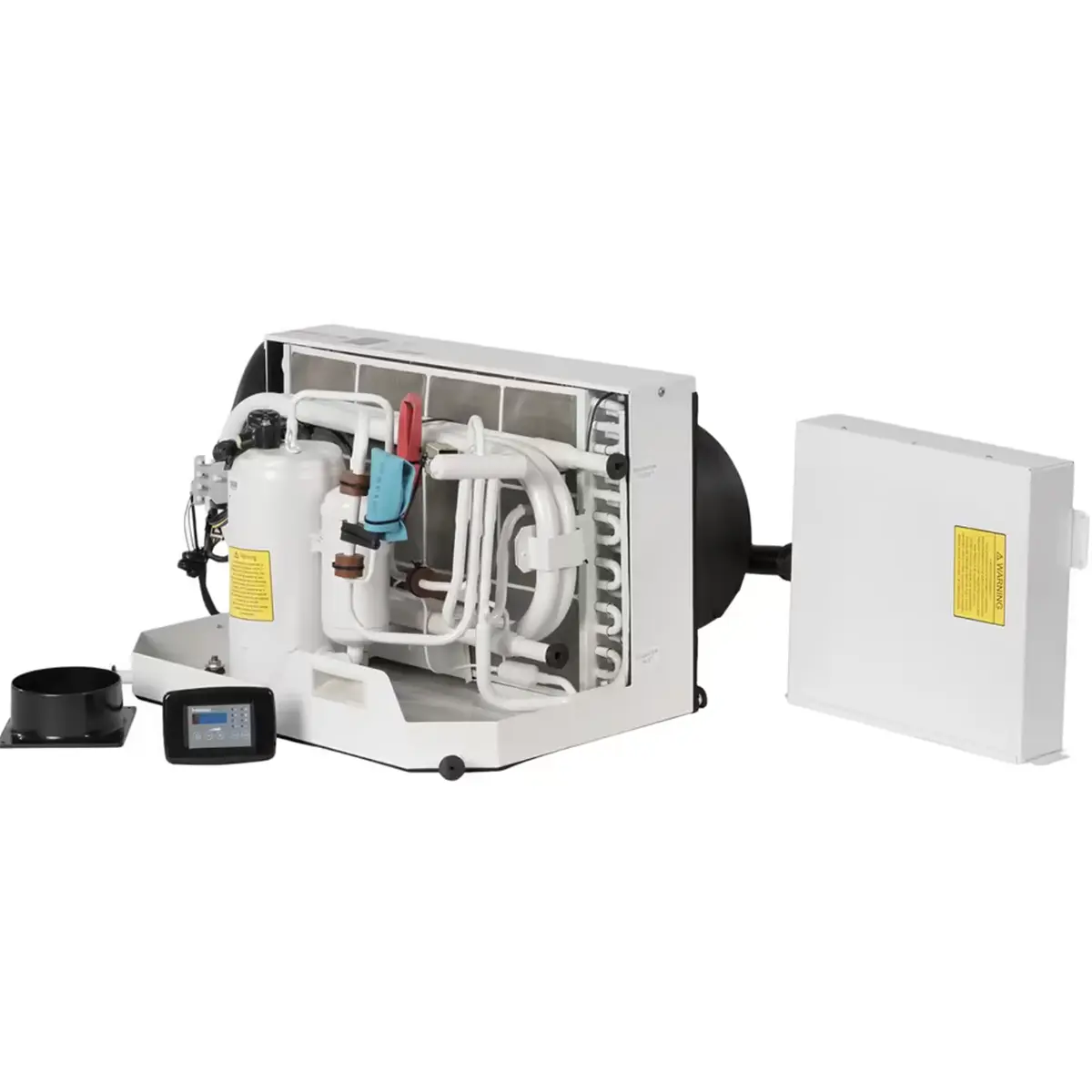

What's Included
- Webasto FCF Platinum 20000 BTU Marine Air Conditioner - 230V
- 5" ducting collar
- High-velocity 360° rotatable blower
- Remote mount electrical box
- Digital control with bezel
- Air filter
- R410A refrigerant
- 5/8" to 3/4" adapter
Frequently Asked Questions About Webasto FCF Platinum 20000 BTU Marine Air Conditioner 230V
Does this unit provide both cooling and heating?
Yes. The technical specifications list 20,000 BTU/h cooling capacity and 20,000 BTU/h heating capacity. The product details also confirm reverse cycle heating as a standard function.
Is a remote control included with this Webasto FCF Platinum unit?
No. The included items state that no remote control is supplied as standard. The remote is noted as optional, while the digital control with bezel is included.
What installation-related differences should be checked when replacing an existing Dometic unit?
The installation notes say the Webasto uses 4" and 5" ducting, while the Dometic setup uses 5" and 6" ducting. They also note a different condenser connection that uses the included 5/8" to 3/4" adapter, and confirm that the controller and cable must be replaced with the included Webasto components.
Which technical specifications matter most before ordering?
Check the 230V / 50/60Hz electrical requirement, rated current of 10.5 / 7.4A, and minimum condenser water flow of 5.02 gal/min. You should also verify the 5-inch blower connection size, dimensions of 20.8 x 23.4 x 15 inches, and unit weight of 124 lb for installation planning.
