CTM CT-16 16000 BTU Marine Air Conditioner 115V
$1,589.00

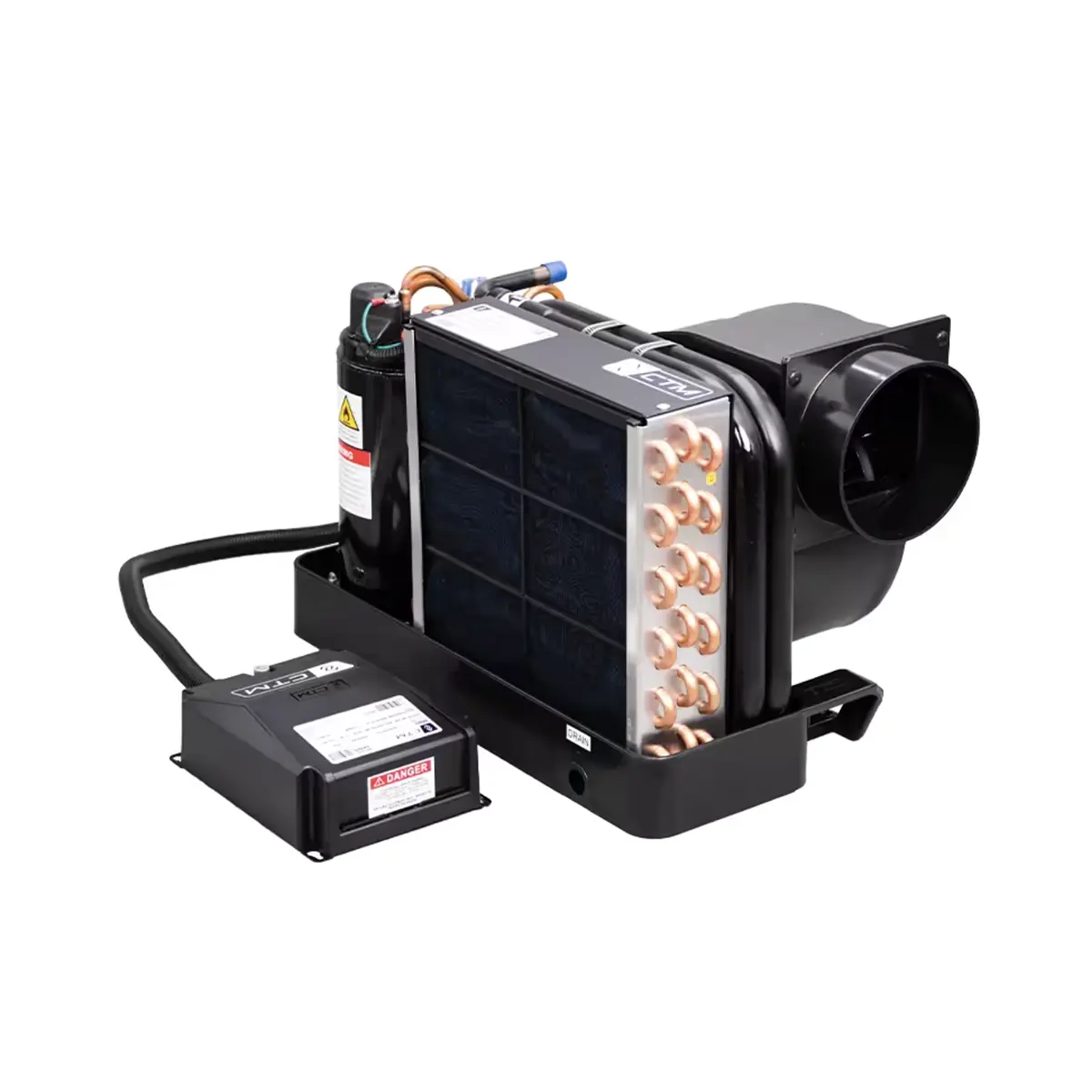

CTM CT-16 16000 BTU Marine Air Conditioner 115V is a self-contained marine AC unit with reverse cycle heating, titanium coils, and a high-velocity blower. Built for 100-120V power, it is designed for replacement or new installations and supports compatibility with several major marine A/C control platforms.
Overview CTM CT-16 16000 BTU Marine Air Conditioner 115V
CTM CT-16 16000 BTU Marine Air Conditioner 115V is a self-contained marine air conditioner built for 100-120V, 50/60Hz operation and equipped with reverse cycle heating. This 16,000 BTU model is designed for buyers who need higher-capacity onboard climate control while keeping a compact marine-focused format with titanium circulating coils, stainless steel bolts, and a stainless steel structural pan with an ABS tray.
The CT-16 is also presented as a strong retrofit option for self-contained 16k units from major marine A/C brands including Dometic, Cruisair, Marine Air, and Webasto. The provided information also states compatibility with Dometic, Cruisair, Marine Air, and Micro Air controls, thermostats, and cables, which may help simplify replacement projects where existing control components are already in place.
Key Features of CTM CT-16 16000 BTU Marine Air Conditioner 115V
- 16,000 BTU capacity for marine applications that need more output than smaller onboard units.
- 100-120V, 50-60Hz operation for boats using 115V-class electrical systems.
- Self-contained marine air conditioner design stated in the product data.
- Reverse cycle heating adds cooling and heating capability in one unit.
- High-velocity rotatable turbo blower supports airflow, with rotation listed as less than 250 degrees.
- 453 CFM blower airflow and 1400 RPM blower speed provide model-specific performance details.
- Titanium circulating coils are specified for long life in the marine environment.
- Stainless steel bolts and structural pan help support corrosion-resistant performance.
- Compatible with Dometic, Cruisair, Marine Air, and Micro Air controls, thermostats, and cables.
- Backed by a 2-year warranty.
Applications
This model is suited to buyers looking for a 16,000 BTU marine air conditioner for a new installation or a replacement project on a 115V electrical setup. It can be a practical choice when a higher-capacity self-contained unit is needed and compatibility with several existing marine A/C control systems is important.
Because the product data explicitly states reverse cycle heating, the CT-16 may also appeal to owners who want one onboard system that can support both cooling and heating. Its retrofit positioning also makes it relevant for replacing older 16k self-contained units from major brands.
Why Choose This Marine Air Conditioner
The CTM CT-16 gives buyers a clearly defined 16,000 BTU, 115V option in the CTM lineup, making it easy to separate from the smaller 6,000, 10,000, and 12,000 BTU variants. Its purchase value comes from the combination of confirmed self-contained design, reverse cycle heating, corrosion-resistant construction materials, and compatibility with several widely used marine A/C control platforms. For buyers comparing exact specifications, this model also provides clear figures including 29.25 A starting amps, 12 A starting amps with EasyStart, 60 A locked rotor amps, 453 CFM airflow, 500 GPH suggested water flow, and a 2-year warranty.
Product Specifications
| Feature | Details |
|---|---|
| Brand | CTM |
| Model | CT-16 |
| Cooling Capacity | 16,000 BTU |
| Voltage | 100-120 V |
| Frequency | 50-60 Hz |
| Refrigerant Type | R410A |
| Starting Amps | 29.25 A / 12 A (w/EasyStart) |
| Current Consumption Cool / Heat | 10.3 A / 13.5 A |
| Locked Rotor Amps | 60 A |
| Fuse Max. / Min. | 40 A / 25 A |
| Blower Airflow | 453 CFM |
| Blower Speed | 1400 RPM |
| High Velocity Blower | Yes |
| Minimum Supply Duct Size | 6 in / 152 mm |
| Seawater Inlet Connection | 5/8 in / 16 mm |
| Suggested Water Flow | 500 GPH |
| Net Weight | 59 lbs / 27 kg |
| Warranty | 2-Year |
What's Included
- CTM CT-16 16,000 BTU marine air conditioner unit
Frequently Asked Questions About CTM CT-16 16000 BTU Marine Air Conditioner 115V
Does the CTM CT-16 provide both cooling and heating?
Yes. The product data explicitly states reverse cycle heating, so this model is designed to provide both cooling and heating. It also lists separate current consumption figures for cool and heat operation.
Can the CT-16 replace other 16k self-contained marine AC units?
The provided information describes it as an excellent drop-in replacement for Dometic, Cruisair, Marine Air, and Webasto 16k self-contained units. It is also stated to be compatible with Dometic, Cruisair, Marine Air, and Micro Air controls, thermostats, and cables. Physical fitment should still be checked because installation dimensions are not provided here.
What are the starting amps figures for this model?
The product data lists starting amps as 29.25 A and 12 A with EasyStart. It also lists locked rotor amps at 60 A. These figures are useful when comparing startup demand across higher-capacity marine A/C units.
Is the Elite control panel included with the unit?
The provided information says that an Elite control panel is available. However, it does not explicitly state that the control panel is included with the product. Based on the data provided, the unit itself is the only clearly confirmed included item.
