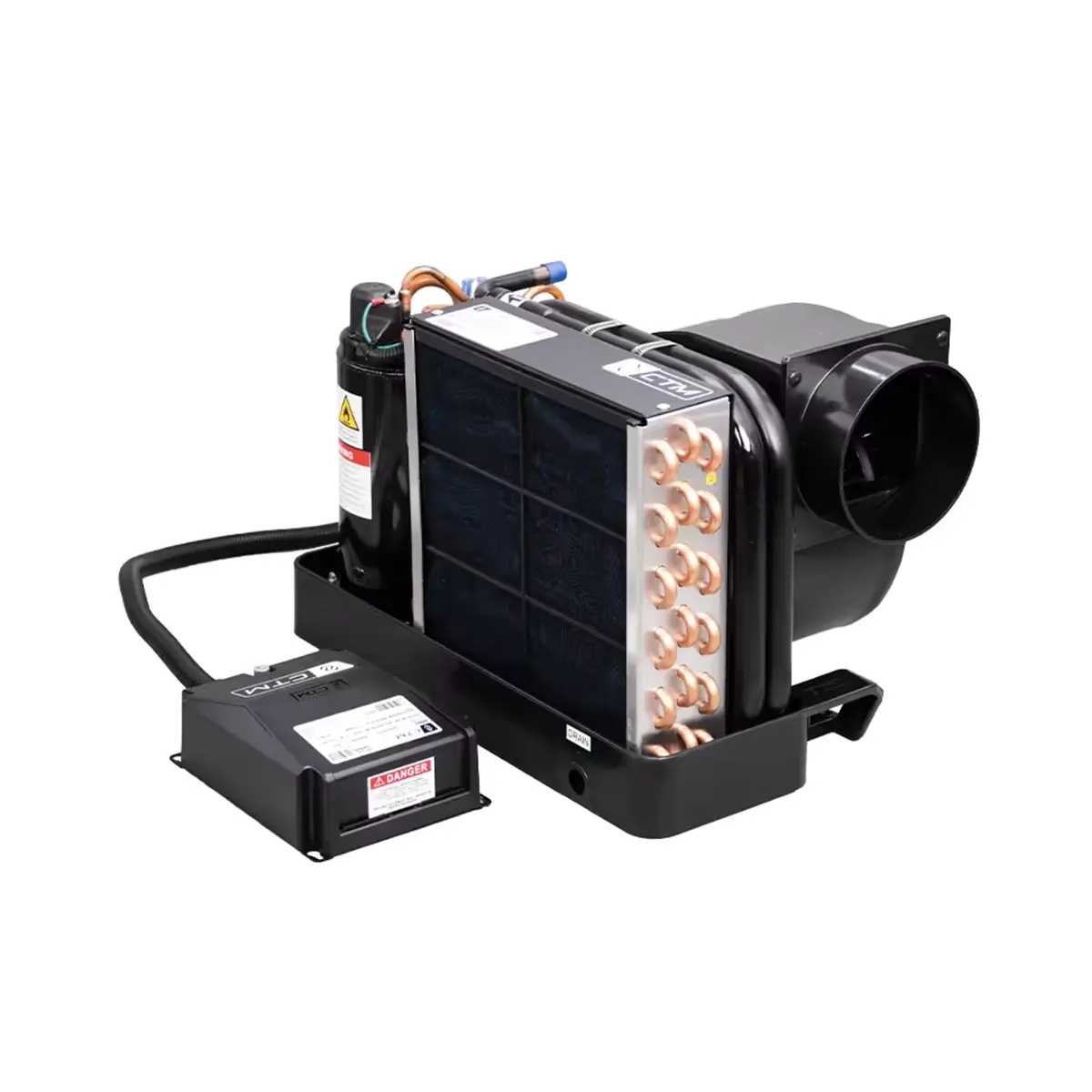

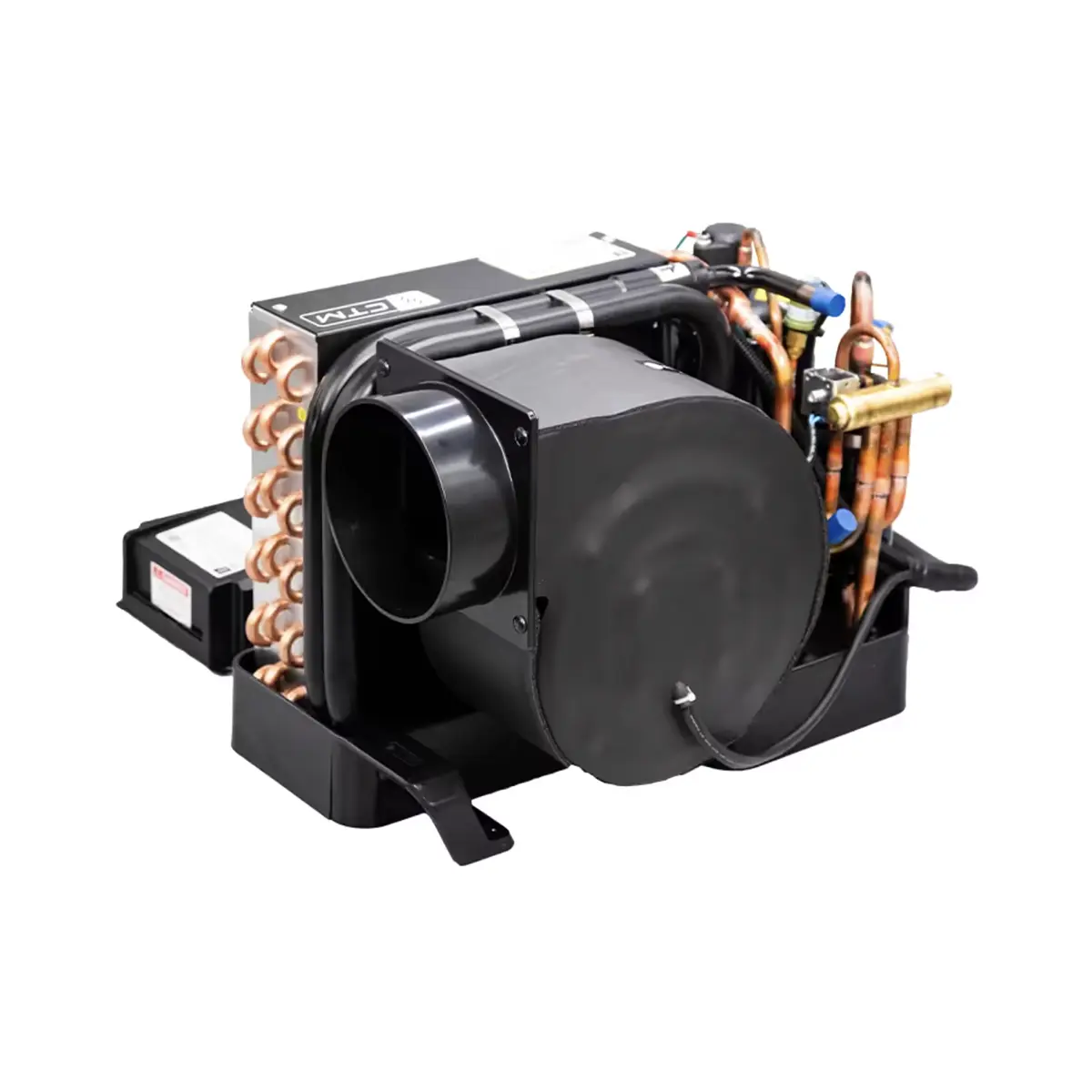

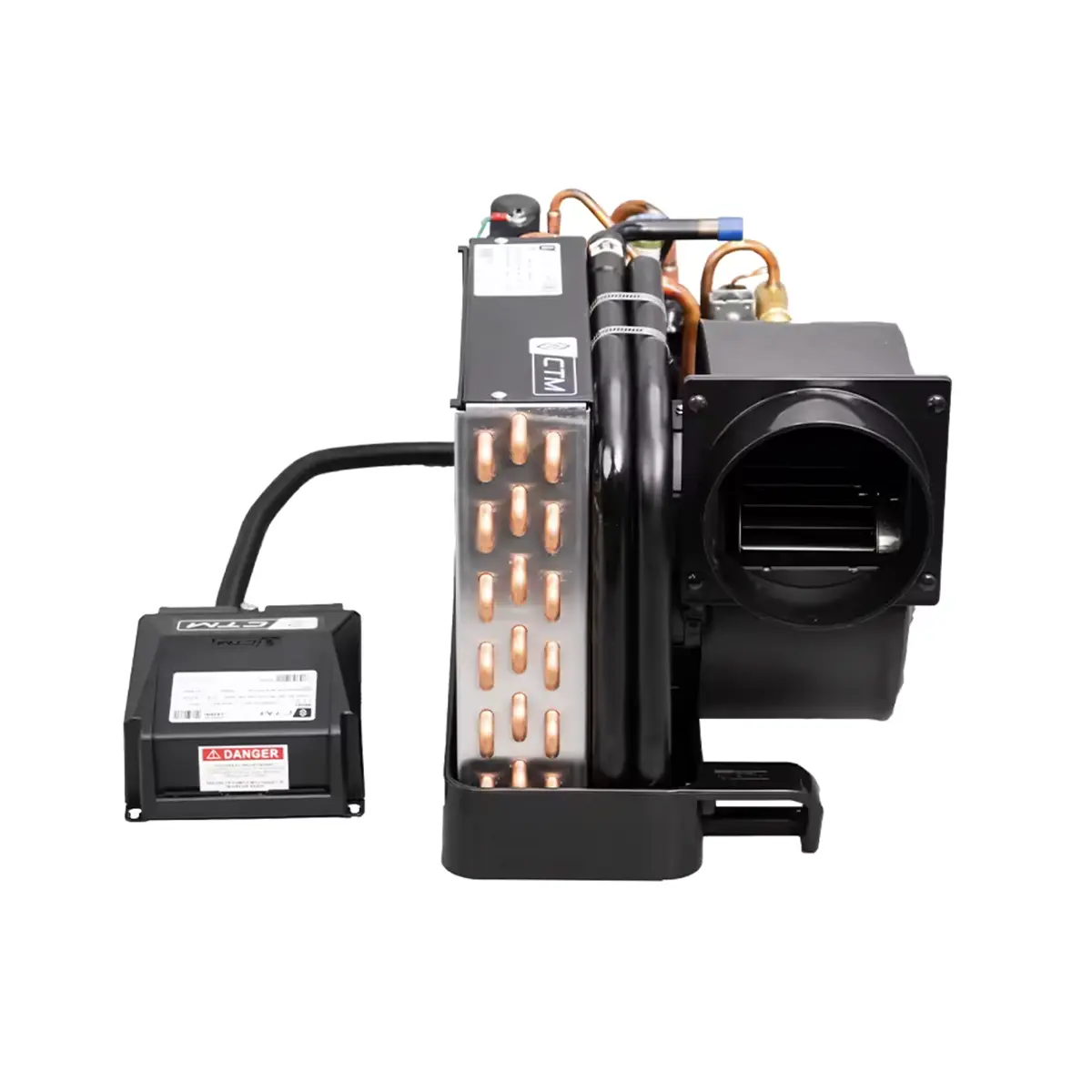

CTM CT-16H 16000 BTU Marine Air Conditioner 230V
$1,637.00
CTM CT-16H 16000 BTU Marine Air Conditioner 230V is a self-contained marine AC unit built for 50/60Hz operation. It features titanium circulating coils, a high-velocity turbo blower, corrosion-resistant construction, and compatibility with several major marine A/C control platforms.
Overview CTM CT-16H 16000 BTU Marine Air Conditioner 230V
CTM CT-16H 16000 BTU Marine Air Conditioner 230V is a self-contained marine air conditioner designed for 208-230V, 50/60Hz operation. This 16,000 BTU model is built for buyers who need higher-capacity onboard cooling on a 230V electrical setup while keeping a compact marine-focused construction with titanium circulating coils, stainless steel bolts, and a stainless steel structural pan with an ABS tray.
The CT-16H is also positioned as a drop-in replacement for major marine A/C brands including Dometic, Webasto, Cruisair, Marine Air, and Mermaid Air. The product information further states compatibility with Dometic, Cruisair, Marine Air, and Micro Air controls, thermostats, and cables, which can help simplify replacement planning when compatible onboard control components are already in place.
Key Features of CTM CT-16H 16000 BTU Marine Air Conditioner 230V
- 16,000 BTU capacity for marine cooling applications that need more output than smaller-capacity units.
- 208-230V, 50-60Hz operation for boats using higher-voltage onboard electrical systems.
- Self-contained marine air conditioner design stated in the provided product information.
- High-velocity rotatable turbo blower supports onboard airflow, with rotation listed as less than 250 degrees.
- 458 CFM blower airflow and 1420 RPM blower speed provide clear model-specific performance details.
- Titanium circulating coils are specified for corrosion-resistant performance in marine environments.
- Stainless steel bolts and structural pan help resist rust in demanding marine conditions.
- ABS tray adds a durable, corrosion-resistant base component.
- Compatible with several major marine A/C control, thermostat, and cable platforms listed in the product data.
- Backed by a 2-year warranty.
Applications
This model is suited to buyers looking for a 16,000 BTU marine air conditioner for a new installation or a replacement project on a 230V electrical system. It can be a practical choice when a higher-capacity self-contained unit is needed while still maintaining compatibility with several established marine A/C controls and cables.
Because the product information presents it as a drop-in replacement for major marine A/C brands, the CT-16H may also be useful in retrofit projects where retaining compatible controls, thermostats, and cables is important. Its higher airflow and larger duct requirement also make it clearly positioned above smaller-capacity variants in the range.
Why Choose This Marine Air Conditioner
The CTM CT-16H gives buyers a clearly defined 16,000 BTU, 230V option in the CTM range, making it easier to separate from the 115V version and lower-capacity models. Its buying value comes from the combination of confirmed self-contained design, corrosion-resistant construction materials, replacement compatibility across several established marine A/C brands, and stated compatibility with multiple control platforms. For buyers comparing exact specifications, this model also provides clear figures including 16 A starting amps, 34 A locked rotor amps, 458 CFM airflow, 500 GPH suggested water flow, 59 lbs net weight, and a 2-year warranty.
Product Specifications
| Feature | Details |
|---|---|
| Brand | CTM |
| Model | CT-16H |
| Cooling Capacity | 16,000 BTU |
| Voltage | 208-230 V |
| Frequency | 50-60 Hz |
| Refrigerant Type | R410A |
| Starting Amps | 16 A |
| Current Consumption Cool / Heat | 5.1 A / 6.6 A |
| Locked Rotor Amps | 34 A |
| Fuse Max. / Min. | 20 A / 12 A |
| Blower Airflow | 458 CFM |
| Blower Speed | 1420 RPM |
| High Velocity Blower | Yes |
| Minimum Supply Duct Size | 6 in / 152 mm |
| Seawater Inlet Connection | 5/8 in / 16 mm |
| Suggested Water Flow | 500 GPH |
| Net Weight | 59 lbs / 27 kg |
| Warranty | 2-Year |
What's Included
- CTM CT-16H 16,000 BTU marine air conditioner unit
Frequently Asked Questions About CTM CT-16H 16000 BTU Marine Air Conditioner 230V
What voltage does the CTM CT-16H require?
This model is listed for 208-230 V operation and 50-60 Hz frequency. It is the 230V version of the 16,000 BTU CTM unit, so buyers should match it with the boat’s available electrical system before ordering.
Can the CTM CT-16H replace other marine A/C brands?
The product information states that it works as a drop-in replacement for major marine A/C brands including Dometic, Webasto, Cruisair, Marine Air, and Mermaid Air. It is also stated to be compatible with Dometic, Cruisair, Marine Air, and Micro Air controls, thermostats, and cables. Physical fitment should still be verified because installation dimensions are not provided here.
What airflow and duct size are specified for this model?
The CT-16H has a listed blower airflow of 458 CFM and a blower speed of 1420 RPM. The minimum supply duct size is 6 inches / 152 mm. These details help buyers identify the airflow profile of this exact 16,000 BTU 230V variant.
Is a heating function explicitly specified for this unit?
The provided data lists current consumption for cool and heat modes as 5.1 A / 6.6 A. However, the product text does not explicitly describe this model as a heat pump or name a reverse cycle heating function. For that reason, the page keeps the wording limited to the verified product details provided.
