CTM CX-16 16000 BTU Marine Split A/C Condenser 115V
$1,637.00

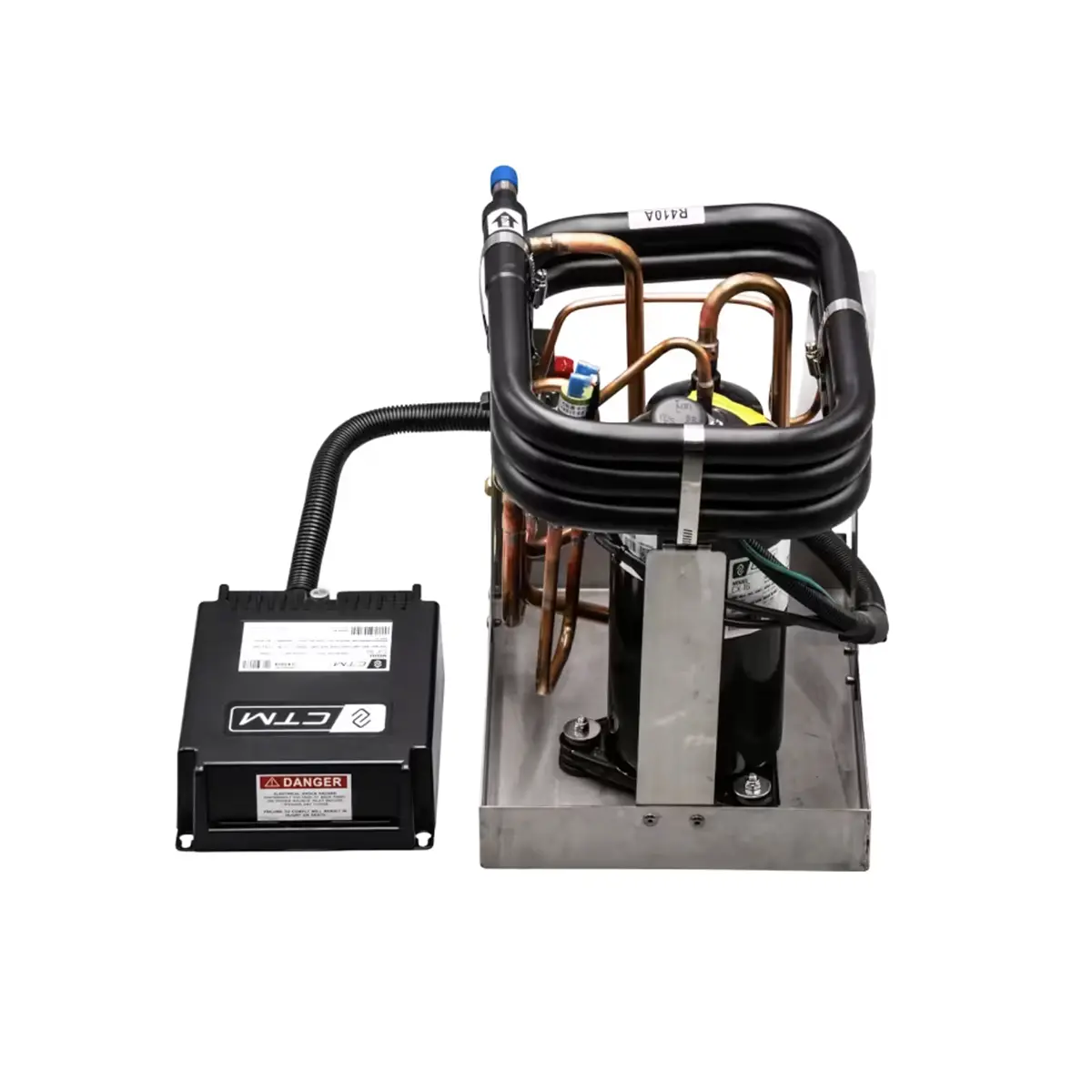

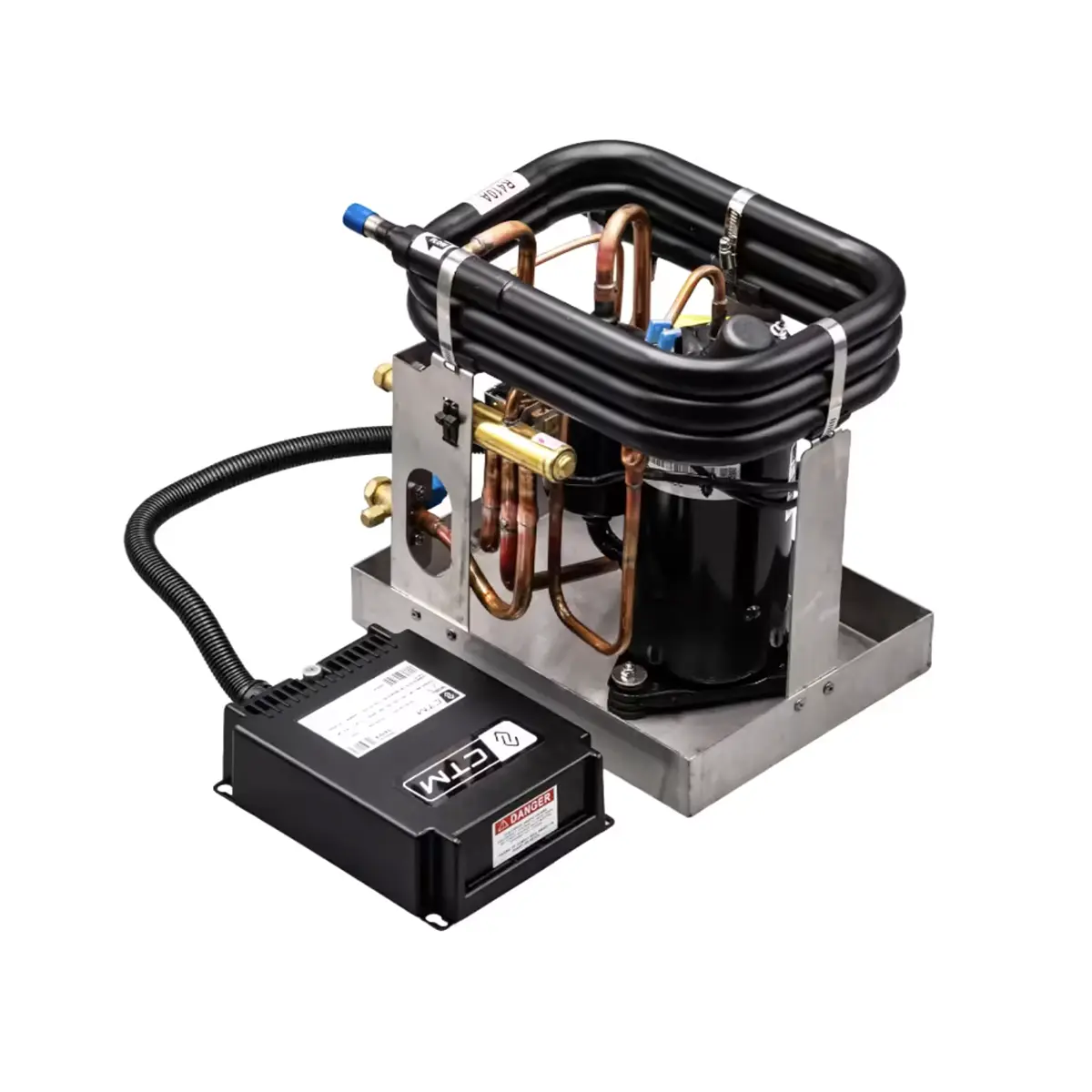

CTM CX-16 16000 BTU Marine Split A/C Condenser 115V is a marine split condensing unit built for 50/60Hz operation with R410A refrigerant. It features titanium circulating coils, stainless steel hardware, corrosion-resistant construction, and compatibility with several major marine A/C control platforms.
Overview CTM CX-16 16000 BTU Marine Split A/C Condenser 115V
CTM CX-16 16000 BTU Marine Split A/C Condenser 115V is a marine split condensing unit designed for 100-120V, 50/60Hz operation and R410A refrigerant. This 16,000 BTU model is built for buyers who need a higher-capacity split-system marine A/C condenser with corrosion-resistant construction, including titanium circulating coils, stainless steel bolts, and a stainless steel structural pan.
The CX-16 is also presented as a replacement option for major marine A/C brands including Dometic, Marine Air, and Cruisair. The product information further states compatibility with Dometic, Cruisair, Marine Air, and Micro Air controls, thermostats, and cables, which may help simplify retrofit planning where compatible control components are already onboard.
Key Features of CTM CX-16 16000 BTU Marine Split A/C Condenser 115V
- 16,000 BTU capacity for marine split A/C applications that require higher cooling output.
- 100-120V, 50-60Hz operation for boats using 115V-class electrical systems.
- Split-system condensing unit design stated in the product data.
- R410A refrigerant specified for this exact model.
- Titanium circulating coils are identified for long-lasting use in marine environments.
- Stainless steel bolts and structural pan help support corrosion-resistant condenser construction.
- Compatible with Dometic, Cruisair, Marine Air, and Micro Air controls, thermostats, and cables.
- 24 A starting amps and 60 A locked rotor amps provide clear startup data for this model.
- Connection sizes are listed at 1/4 in discharge and 1/2 in suction for installation reference.
- Backed by a 2-year warranty.
Applications
This model is suited to buyers looking for a 16,000 BTU marine split A/C condenser for a new installation or a replacement project on a 115V electrical system. It can be a practical option where a split-system configuration is required and the buyer wants compatibility with several established marine A/C control platforms.
Because the product information positions it as a drop-in replacement for several major brands, the CX-16 may also be useful in retrofit work where matching an existing split A/C setup is important. Its listed refrigerant, connection sizes, and higher suggested water flow also help buyers confirm whether it fits the intended system layout.
Why Choose This Marine Air Conditioner
The CTM CX-16 gives buyers a clearly defined 16,000 BTU split-system condenser option in the CTM lineup, separating it from lower-capacity CX-series models and from the self-contained CT-series units. Its buying value comes from the combination of confirmed split condenser design, R410A refrigerant, corrosion-resistant marine construction, and compatibility with several widely used marine A/C control systems. For buyers comparing exact specifications, this model also provides clear figures including 24 A starting amps, 60 A locked rotor amps, 500 GPH suggested water flow, 42 lbs net weight, and a 2-year warranty.
Product Specifications
| Feature | Details |
|---|---|
| Brand | CTM |
| Model | CX-16 |
| Product Type | Marine Split A/C Condenser |
| Cooling Capacity | 16,000 BTU |
| Voltage | 100-120 V |
| Frequency | 50-60 Hz |
| Refrigerant Type | R410A |
| Current Consumption Cool / Heat | 10.5 A / 13.5 A |
| Starting Amps | 24 A |
| Locked Rotor Amps | 60 A |
| Fuse Max. / Min. | 40 A / 25 A |
| Discharge Connection Size | 1/4 in / 6.35 mm |
| Suction Connection Size | 1/2 in / 12.7 mm |
| Seawater Inlet Connection | 5/8 in / 16 mm |
| Suggested Water Flow | 500 GPH |
| Net Weight | 42 lbs / 19 kg |
| Warranty | 2-Year |
What's Included
- CTM CX-16 16,000 BTU marine split A/C condenser unit
Frequently Asked Questions About CTM CX-16 16000 BTU Marine Split A/C Condenser 115V
Is the CTM CX-16 a self-contained unit or a split-system condenser?
The product data identifies the CX-16 as a marine split A/C unit and specifically describes it as a split marine condensing unit. It is not presented as a self-contained model. That makes it suitable for buyers looking for a split-system condenser configuration.
What refrigerant does the CTM CX-16 use?
This model uses R410A refrigerant. The product information explicitly lists R410A in both the title and the specification section. That helps distinguish this condenser clearly within the CX-series range.
Can the CX-16 replace other marine split A/C brands?
The product information states that it works as a drop-in replacement for major marine A/C brands including Dometic, Marine Air, and Cruisair. It is also stated to be compatible with Dometic, Cruisair, Marine Air, and Micro Air controls, thermostats, and cables. Exact installation fit should still be checked before purchase.
What connection and water flow specifications are listed for this unit?
The discharge connection size is listed as 1/4 inch / 6.35 mm, and the suction connection size is 1/2 inch / 12.7 mm. The suggested water flow is 500 GPH, and the seawater inlet connection is 5/8 inch / 16 mm. These details help buyers evaluate fit for the intended marine split A/C setup.
