Webasto S10 BlueCool S Series 10000 BTU Marine Air Conditioner 115V
$1,391.00
Webasto S10 BlueCool S Series 10000 BTU Marine Air Conditioner 115V is a self-contained unit with reverse cycle heating, MyTouch digital control, and a 270° rotatable blower. Built for compact marine installation, it features corrosion-protected construction, USB diagnosis support, and 60 Hz compatibility for worldwide usage.
Overview Webasto S10 BlueCool S Series 10000 BTU Marine Air Conditioner 115V
Webasto S10 BlueCool S Series 10000 BTU Marine Air Conditioner 115V is a self-contained marine air conditioning unit with reverse cycle heating, MyTouch digital control, and 60 Hz compatibility for worldwide usage. This compact S Series model is built for quiet, powerful, and efficient onboard climate control, with all major components arranged on one tray for a practical installation layout. The included display and remote mount electrical box give buyers a clearly defined control package from the start.
The unit features an epoxy-painted finish, a stainless steel drain pan, and a thermally insulated stainless steel tray for corrosion protection in marine environments. A 270° rotatable blower supports flexible air delivery, while the multi-point injection evaporator and updated electronics with USB diagnosis add service and system support benefits. Webasto also states that this S10 model is suitable for boats with up to three cabins.
Key Features of Webasto S10 BlueCool S Series 10000 BTU Marine Air Conditioner 115V
- 10,000 BTU/h cooling capacity with reverse cycle heating integrated.
- 115V / 60Hz operation with worldwide usage suitability stated in the product data.
- MyTouch digital control with bezel is included.

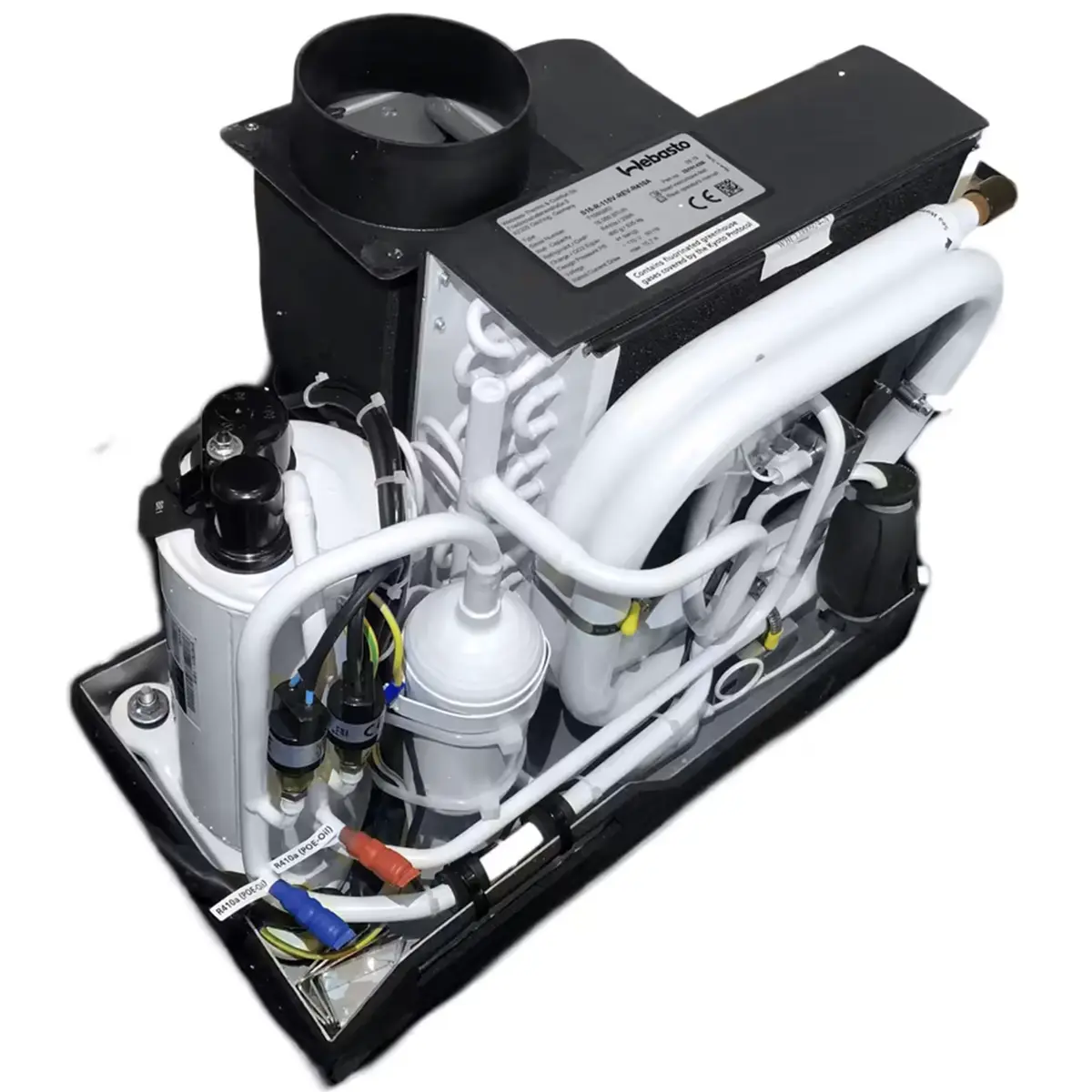

- High-velocity 270° rotatable blower supports flexible airflow direction.
- Epoxy-painted construction and stainless steel drain pan support corrosion protection.
- Mounted on an extra-deep, thermally insulated stainless steel tray.
- New electronics with USB diagnosis support BlueCool Expert Tool connection.
- Multi-point injection evaporator is designed for higher unit efficiency.
- Soft start devices are available as an option.
- Compact self-contained layout keeps components on one tray for installation efficiency.
Applications
This model is suitable for marine installations where a 115V self-contained unit with 10,000 BTU cooling and reverse cycle heating is required. It is specifically described as suitable for boats with up to three cabins, making it a practical option for cabin-specific cooling and heating layouts. The compact design and integrated control arrangement also support straightforward onboard installation planning.
Why Choose This Marine Air Conditioner
The BlueCool S10 stands out for buyers who want a clearly specified self-contained marine air conditioner with included MyTouch control, reverse cycle heating, and corrosion-protected construction. Its 270° blower, USB diagnosis capability, and compact one-tray layout make it easier to assess for installation and service access. With a 2-year warranty and defined technical data, it offers strong product clarity for marine HVAC upgrades or replacements.
Product Specifications
| Feature | Details |
|---|---|
| Brand | Webasto |
| Model | S10 BlueCool S Series |
| Part Number | 2510141B |
| System Type | Self-Contained |
| Cooling Capacity | 10,000 BTU/h |
| Cooling Capacity (kW) | 2.9 |
| Heating | Reverse cycle integrated |
| Voltage | 115V |
| Frequency | 60Hz |
| Current Draw Running | 5.6-7.9A |
| Start Max Peak Current | 55A |
| Air Flow (Free Blowing) | 350 m3/h (206 cfm) |
| Sea Water Connection | 19 mm / 3/4 in |
| Minimum Sea Water Flow at 60 Hz | 10 l/min |
| Blower Connection | 100 mm / 4 in |
| Unit Dimensions | 475 x 330 x 320 mm (18.7 x 13.0 x 12.6 in) |
| Electronic Box Dimensions | 310 x 214 x 83 mm (12.2 x 8.4 x 3.3 in) |
| Weight Core Unit | 20 kg |
| Weight Electronic Box | 2 kg |
| Warranty | 2-Year Warranty |
What's Included
- Webasto S10 BlueCool S Series 10000 BTU Marine Air Conditioner - 115V
- 4" ducting collar
- High-velocity 270° rotatable blower
- Remote mount electrical box
- MyTouch digital control with bezel
- Air filter
- R410A refrigerant
Frequently Asked Questions About Webasto S10 BlueCool S Series 10000 BTU Marine Air Conditioner 115V
Does this unit include both cooling and heating?
Yes. The technical data states 10,000 BTU/h cooling capacity and confirms that heating via reverse cycle is integrated. That gives this unit both cooling and heating functionality in one self-contained system.
What control display is included with this model?
This unit includes the BlueCool MyTouch display with bezel. The product data describes it as a full-color, high-resolution 2.4-inch touch screen with multiple customization options and protected access to system configuration parameters.
Is this unit suitable for multi-cabin boats?
Yes. The product description states that Webasto S10 BlueCool S Series self-contained air conditioners are suitable for boats with up to three cabins. It also explains that each cabin has its own self-contained unit providing cool air to that cabin.
What installation-related specifications should I check before ordering?
Check the 115V / 60Hz power requirement, the 3/4-inch sea water connection, and the minimum sea water flow of 10 l/min. You should also confirm the 4-inch blower connection, unit size of 18.7 x 13.0 x 12.6 inches, and electronic box dimensions of 12.2 x 8.4 x 3.3 inches.
