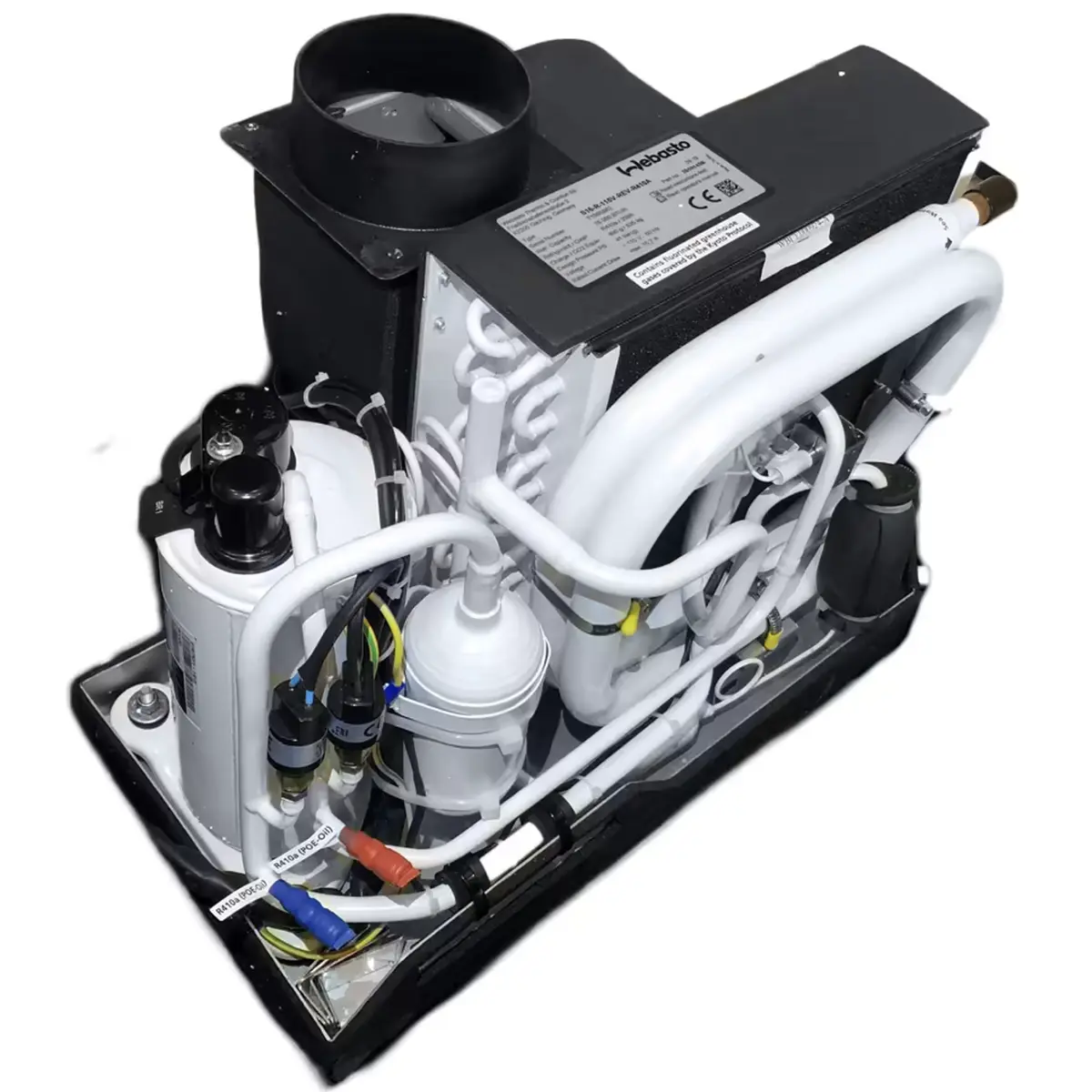

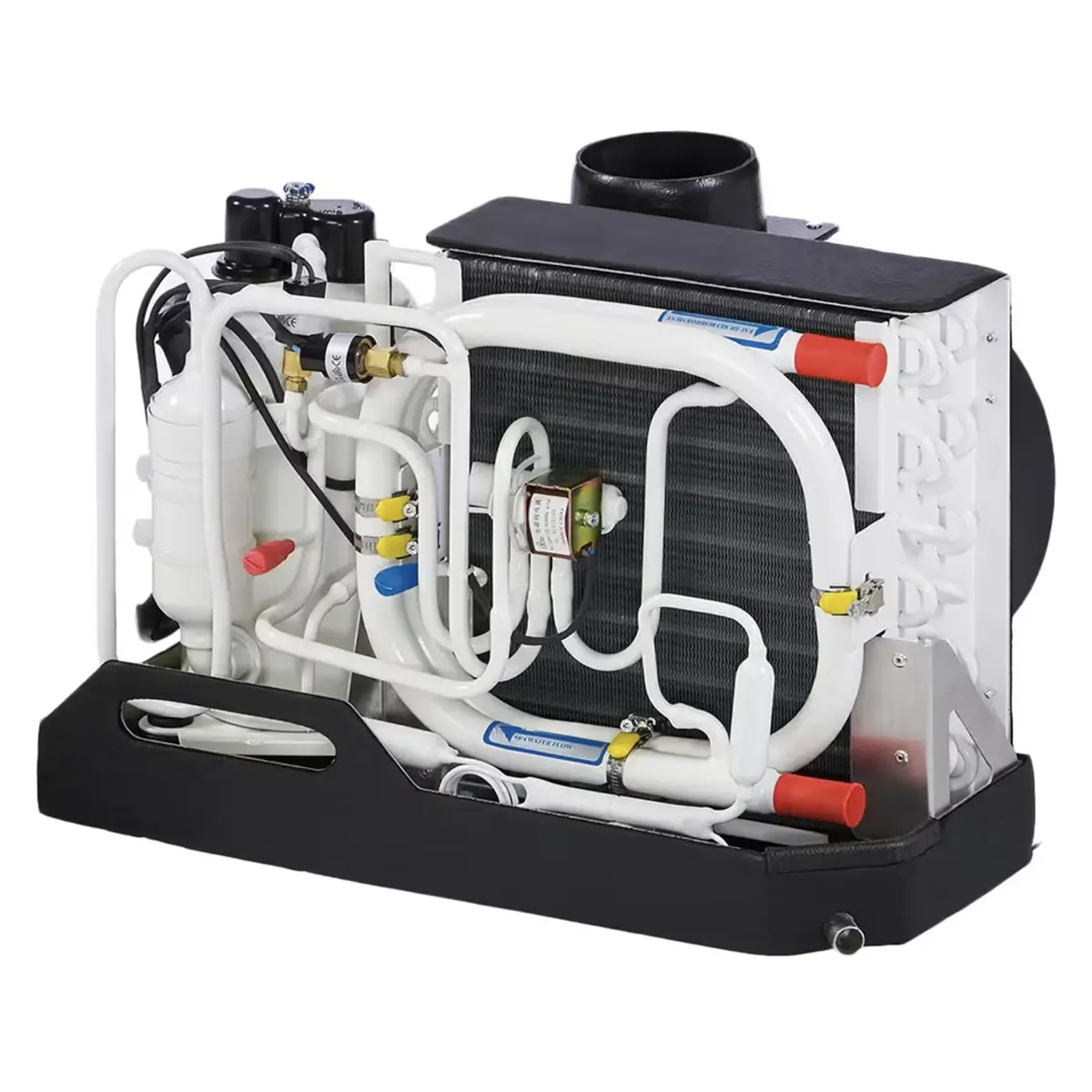

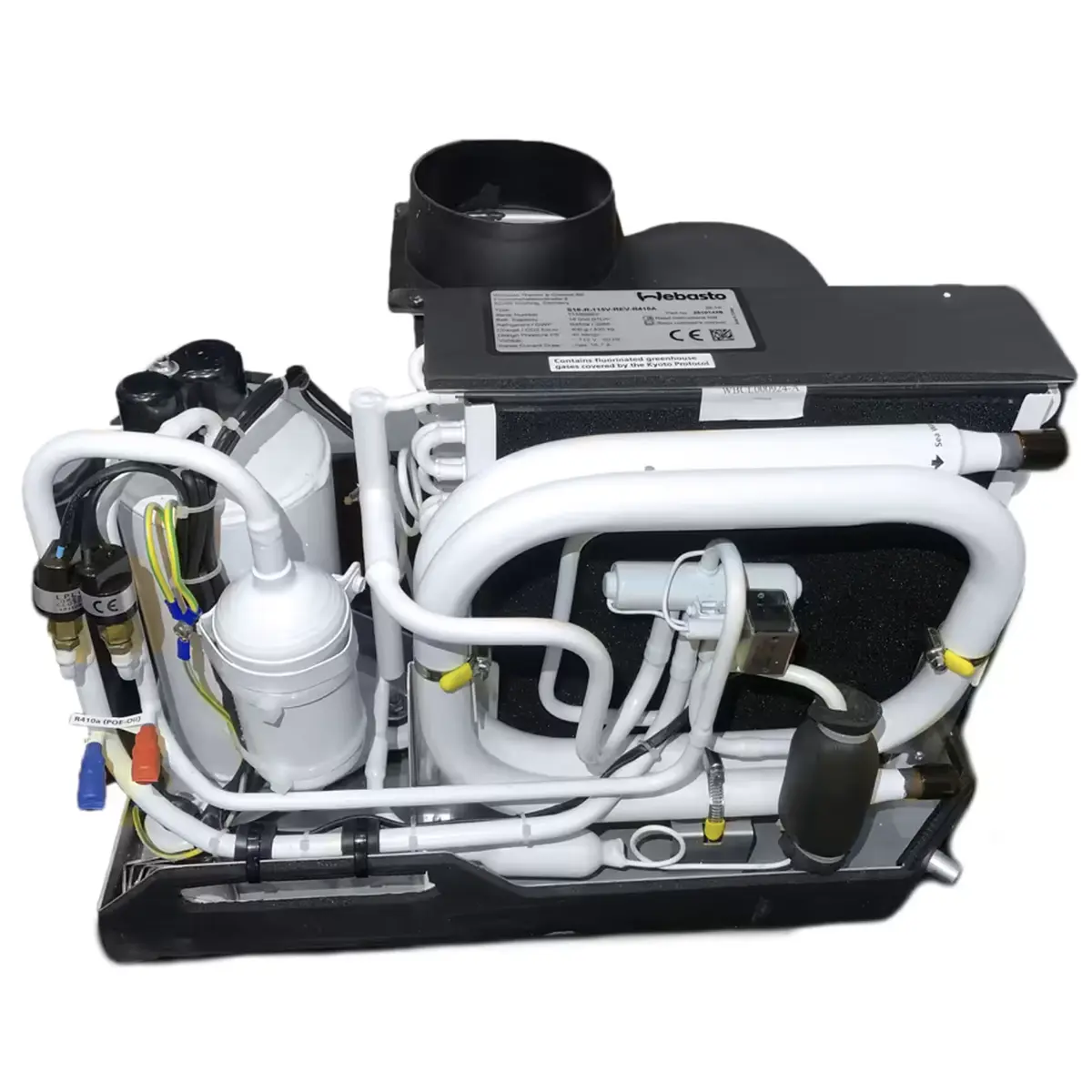

Webasto S6 BlueCool 6000 BTU Marine AC 115V
$1,254.00
Webasto S6 BlueCool 6000 BTU Marine AC 115V is a self-contained marine air conditioner with reverse cycle heating, MyTouch digital control, and a 270° rotatable blower. Built for compact onboard installation, it features corrosion-protected construction, USB diagnosis capability, and a practical one-tray layout.
Overview Webasto S6 BlueCool 6000 BTU Marine AC 115V
Webasto S6 BlueCool 6000 BTU Marine AC 115V is a self-contained marine air conditioner designed for compact onboard climate control with reverse cycle heating, MyTouch digital control, and a high-velocity 270° rotatable blower. This 6,000 BTU model is built for quiet and efficient operation while keeping major components arranged on one tray for a practical installation layout. The included display and remote mount electrical box give buyers a clearly defined control package from the start.
The unit is epoxy-painted and fitted with a stainless steel drain pan for durable corrosion protection in marine environments. It is mounted on an extra-deep, thermally insulated stainless steel tray and uses updated electronics with USB diagnosis support. Its smaller footprint, 4-inch blower connection, and defined seawater flow requirement make it a practical option for installations where space and system clarity matter.
Key Features of Webasto S6 BlueCool 6000 BTU Marine AC 115V
- 6,000 BTU/h cooling capacity with reverse cycle heating integrated.
- 115V / 60Hz operation for compatible marine electrical systems.
- MyTouch digital control with bezel is included.
- High-velocity 270° rotatable blower supports flexible air delivery.
- Epoxy-painted construction and stainless steel drain pan support corrosion protection.
- Mounted on an extra-deep, thermally insulated stainless steel tray.
- New electronics with USB diagnosis support BlueCool Expert Tool connection.
- Multi-point injection evaporator is designed for higher unit efficiency.
- Soft start devices are available as an option.
- Compact self-contained layout keeps major components on one tray.
Applications
This model is suitable for marine installations that require a 115V self-contained air conditioner with 6,000 BTU cooling and reverse cycle heating. It is described as suitable for boats with up to three cabins, making it a practical option for cabin-focused climate control layouts. Its compact footprint, included MyTouch control, and clearly stated installation specifications also make it easier to assess for replacement or upgrade projects.
Why Choose This Marine Air Conditioner
The BlueCool S6 gives buyers a clearly specified self-contained marine A/C option with included digital control, reverse cycle heating, and corrosion-protected construction. Its 270° blower, USB diagnosis capability, and one-tray component layout help simplify installation and servicing decisions. With a 2-year warranty and verified technical data, it offers strong product clarity for marine HVAC upgrades where compact size and straightforward installation matter.
Product Specifications
| Feature | Details |
|---|---|
| Brand | Webasto |
| Model | S6 BlueCool S Series |
| Part Number | 2510139B |
| Replaces Part Number | 2510139A |
| System Type | Self-Contained |
| Cooling Capacity | 6,000 BTU/h |
| Cooling Capacity (kW) | 1.8 |
| Heating | Reverse cycle integrated |
| Voltage | 115V |
| Frequency | 60Hz |
| Current Draw Running | 3.6-5.5A |
| Start Max Peak Current | 39A |
| Air Flow (Free Blowing) | 275 m3/h (162 cfm) |
| Sea Water Connection | 19 mm / 3/4 in |
| Minimum Sea Water Flow at 60 Hz | 6 l/min |
| Refrigerant Quantity | 450 g |
| Blower Connection | 100 mm / 4 in |
| Unit Dimensions | 400 x 320 x 305 mm (15.7 x 12.6 x 12.0 in) |
| Electronic Box Dimensions | 310 x 214 x 83 mm (12.2 x 8.4 x 3.3 in) |
| Weight Core Unit | 18 kg |
| Weight Electronic Box | 2 kg |
| Warranty | 2-Year Warranty |
What's Included
- Webasto S6 BlueCool S Series 6000 BTU Marine Air Conditioner - 115V
- 4" ducting collar
- High-velocity 270° rotatable blower
- Remote mount electrical box
- MyTouch digital control with bezel
- Air filter
- R410A refrigerant
Frequently Asked Questions About Webasto S6 BlueCool 6000 BTU Marine AC 115V
Does this unit include both cooling and heating?
Yes. The technical data lists 6,000 BTU/h cooling capacity and confirms that heating via reverse cycle is integrated. That means this unit provides both cooling and heating in one self-contained system.
What control display is included with this model?
This unit includes the BlueCool MyTouch digital control with bezel. The product data describes it as a full-color, high-resolution 2.4-inch interactive touch screen with multiple customization options and protected access to system configuration parameters.
What makes this S6 model practical for tighter installations?
The product data describes the unit as extremely compact and shows a core unit size of 400 x 320 x 305 mm. It also uses a 4-inch blower connection and keeps all components on one tray, which helps keep the layout straightforward.
What should I check before ordering this marine air conditioner?
Check the 115V / 60Hz power requirement, the 3/4-inch sea water connection, and the minimum sea water flow of 6 l/min. You should also confirm the 4-inch blower connection, unit dimensions of 15.7 x 12.6 x 12.0 inches, and electronic box dimensions of 12.2 x 8.4 x 3.3 inches.
