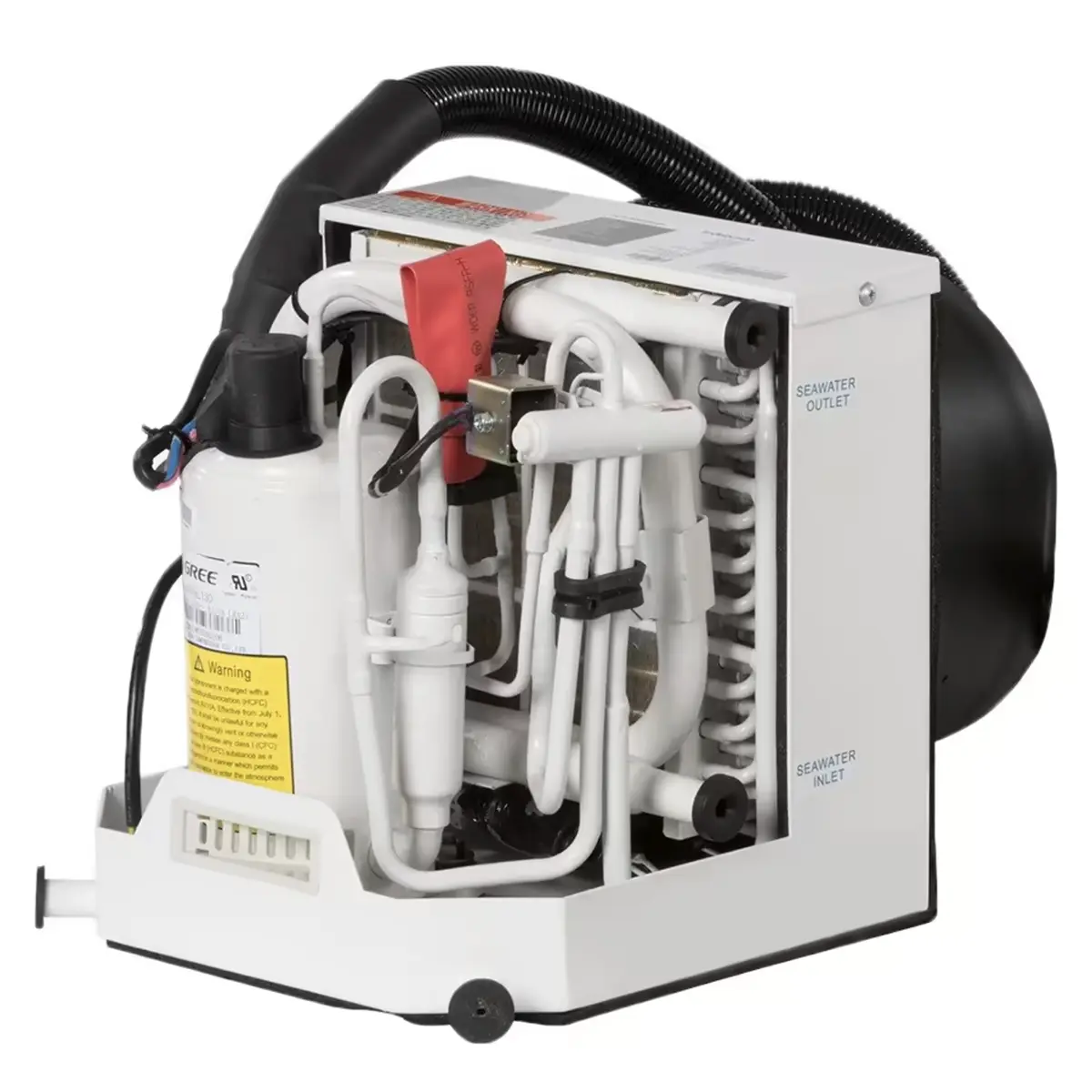

Webasto FCF Platinum 6000 BTU Marine Air Conditioner 230V
$953.00
Webasto FCF Platinum 6000 BTU Marine Air Conditioner 230V is a compact marine climate control unit with reverse cycle heating, digital control, and R410A refrigerant. Designed for replacement-focused installations, it includes a rotatable blower, electrical box, air filter, and key control components for retrofit planning.
Overview Webasto FCF Platinum 6000 BTU Marine Air Conditioner 230V
Webasto FCF Platinum 6000 BTU Marine Air Conditioner 230V is a 6,000 BTU marine climate control unit built for 230V, 50/60Hz operation with reverse cycle heating and standard digital control components. This FCF Platinum model is presented as part of Webasto’s latest marine A/C development, with an updated design and a higher BTU/h rating across a variety of ambient scenarios. The digital display, controller, and cable are included, giving buyers a clearly defined package for replacement or upgrade planning.
The unit uses R410A refrigerant and features a long, slim footprint intended to support easier replacement of existing units. It also includes a marine-grade stainless steel frame, a proprietary balanced compressor, and a high-velocity 360° rotatable blower for flexible airflow direction. For owners replacing a Dometic DTU6 230V system, this model is specifically identified as a good replacement option, with installation differences clearly noted.
Key Features of Webasto FCF Platinum 6000 BTU Marine Air Conditioner 230V
- 6,000 BTU/h cooling capacity with 6,000 BTU/h heating capacity.
- 230V operation with 50/60Hz compatibility.
- Rated current of 2.9 / 2.4A and compressor LRA of 14A.
- Reverse cycle heating supports both cooling and heating use.
- Digital display, controller, and cable come standard.
- Long and slim footprint is designed to simplify replacement of existing units.
- Marine-grade stainless steel frame supports durability in marine conditions.
- Proprietary compressor is described as well balanced and quieter than earlier designs.
- High-velocity 360° rotatable blower helps direct airflow where needed.
- Good replacement option for Dometic DTU6 – 230V installations.
Applications
This model is suited to boats that require a 230V marine air conditioner with 6,000 BTU cooling and reverse cycle heating. It is especially relevant for retrofit projects where a narrow-footprint unit and included control components help simplify planning. Buyers replacing a Dometic DTU6 230V system should review the ducting, condenser connection, and controller differences before installation.
Why Choose This Marine Air Conditioner
The FCF Platinum 6000 230V gives buyers a clearly specified marine A/C option with matched cooling and heating capacity, defined electrical requirements, and standard control hardware. Its replacement-focused layout, marine-grade stainless steel frame, and documented Dometic DTU6 replacement notes make it easier to assess for retrofit work. The included key components and 2-year warranty add practical buying clarity without relying on unsupported claims.
Product Specifications
| Feature | Details |
|---|---|
| Brand | Webasto |
| Model | FCF Platinum 6000 |
| Part Number | 5011395A |
| Cooling Capacity | 6,000 BTU/h |
| Heating Capacity | 6,000 BTU/h |
| Voltage | 230V |
| Frequency | 50/60Hz |
| Rated Current | 2.9 / 2.4A |
| Compressor LRA | 14A |
| Refrigerant | R410A |
| Refrigerant Charge | 0.77 lb |
| Seawater Inlet | 3/4" - 5/8" adapter included |
| Minimum Condenser Water Flow | 1.06 gal/min |

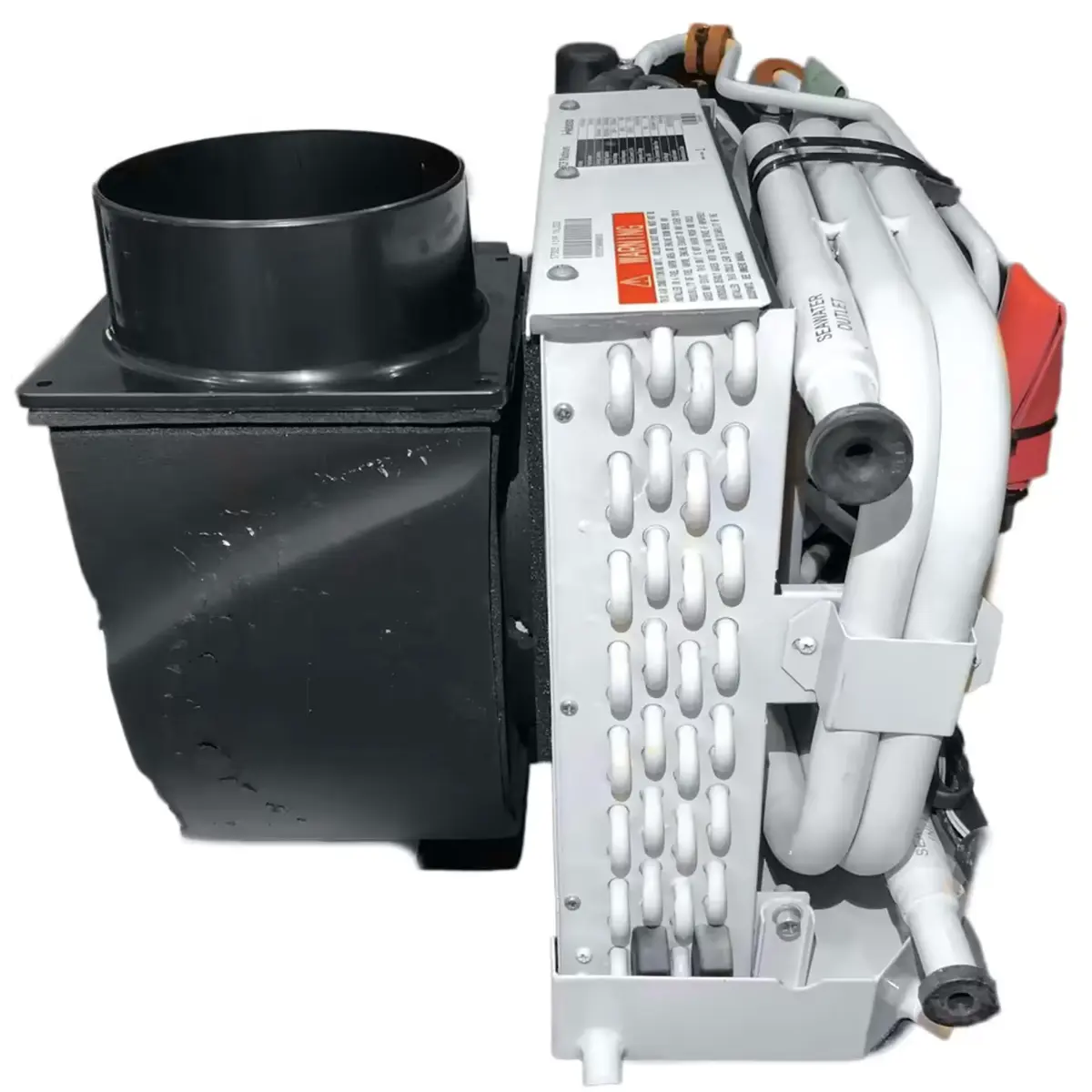

| Blower Connection Size | 100 mm / 4 in |
| Dimensions | 285 x 408 x 295 mm (11.2 x 16 x 11.6 in) |
| Weight | 25.5 kg / 56 lb |
| Warranty | 2-Year Warranty |

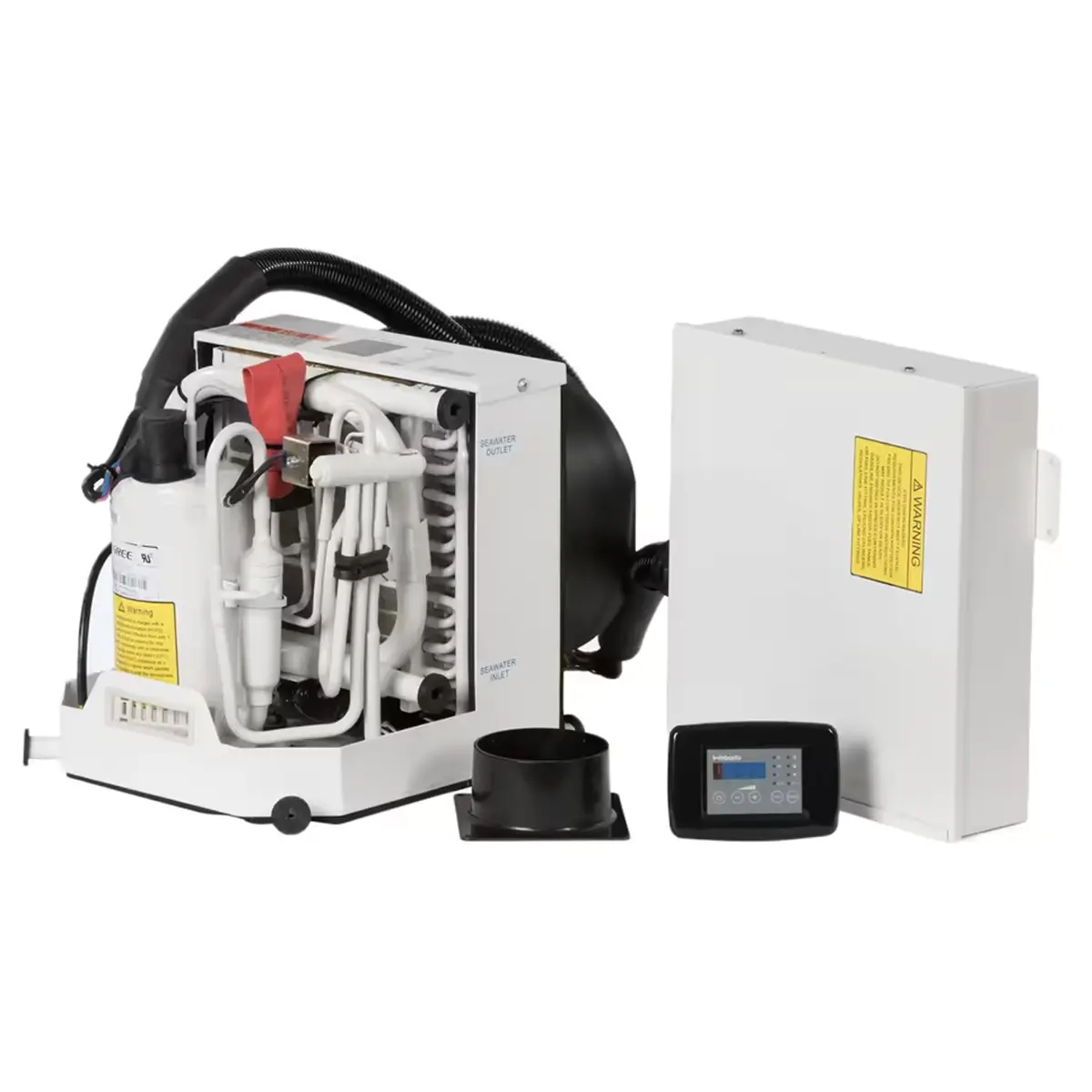

What's Included
- Webasto FCF Platinum 6000 BTU Marine Air Conditioner - 230V
- 4" ducting collar
- High-velocity 360° rotatable blower
- Remote mount electrical box
- Digital control with bezel
- Air filter
- R410A refrigerant
- 5/8" to 3/4" adapter
Frequently Asked Questions About Webasto FCF Platinum 6000 BTU Marine Air Conditioner 230V
Is this the 230V version of the Webasto FCF Platinum 6000?
Yes. This model is listed as the 230V version and supports 50/60Hz operation. The technical data also lists a rated current of 2.9 / 2.4A, which should be checked against your boat’s electrical system before installation.
Does this unit provide both cooling and heating?
Yes. The technical specifications list 6,000 BTU/h cooling capacity and 6,000 BTU/h heating capacity. The product details also confirm reverse cycle heating as a standard feature.
What is included with this Webasto FCF Platinum 6000 unit?
The package includes a 4" ducting collar, high-velocity 360° rotatable blower, remote mount electrical box, digital control with bezel, air filter, R410A refrigerant, and a 5/8" to 3/4" adapter. The product data states that remote control is optional and not included as standard.
What should I review before replacing a Dometic DTU6 230V system?
The installation notes mention that the Webasto uses 4" and 5" ducting, while the Dometic uses 5" and 6" ducting. They also note a different condenser connection requiring the included adapter, and confirm that the controller and cable must be replaced with the included Webasto components.
