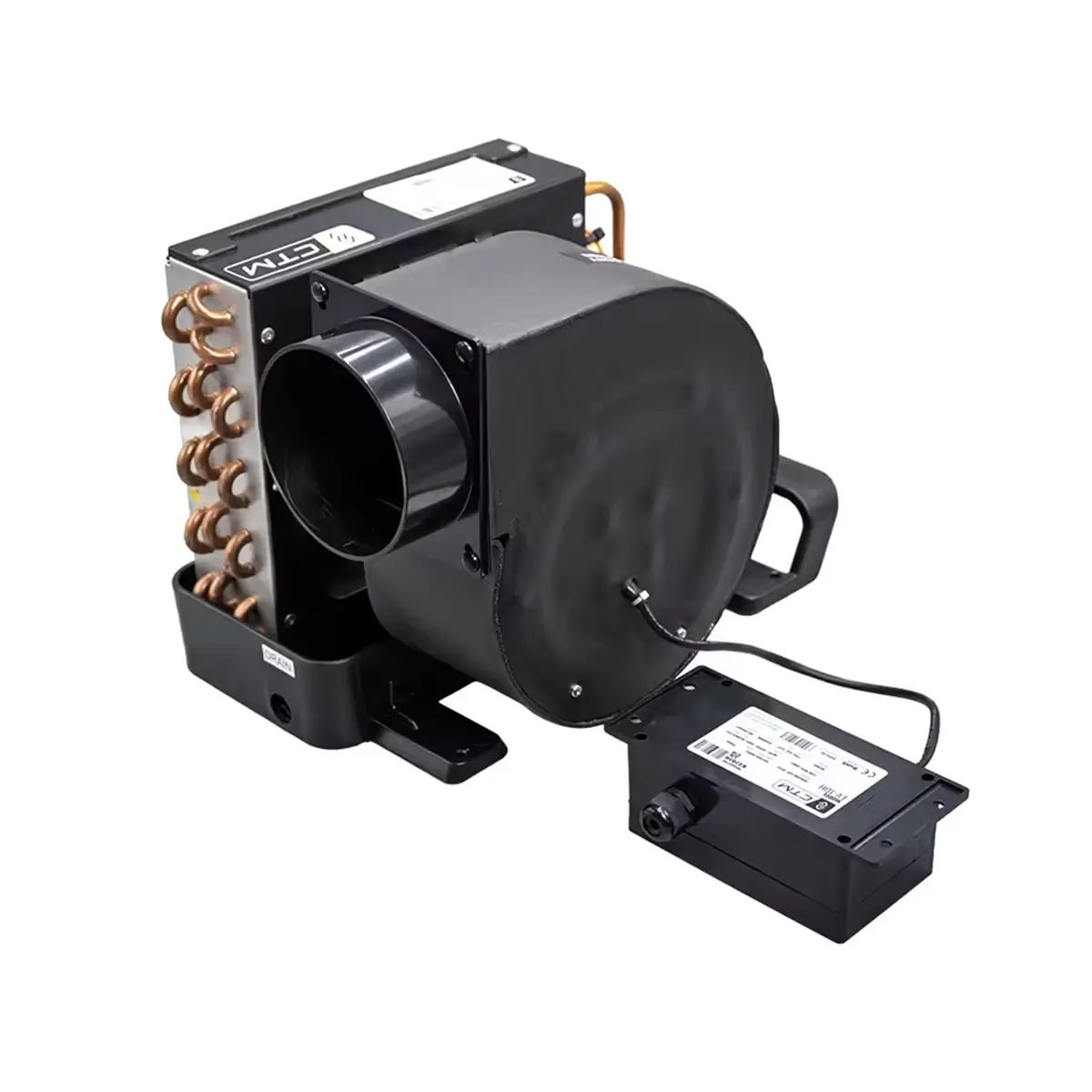

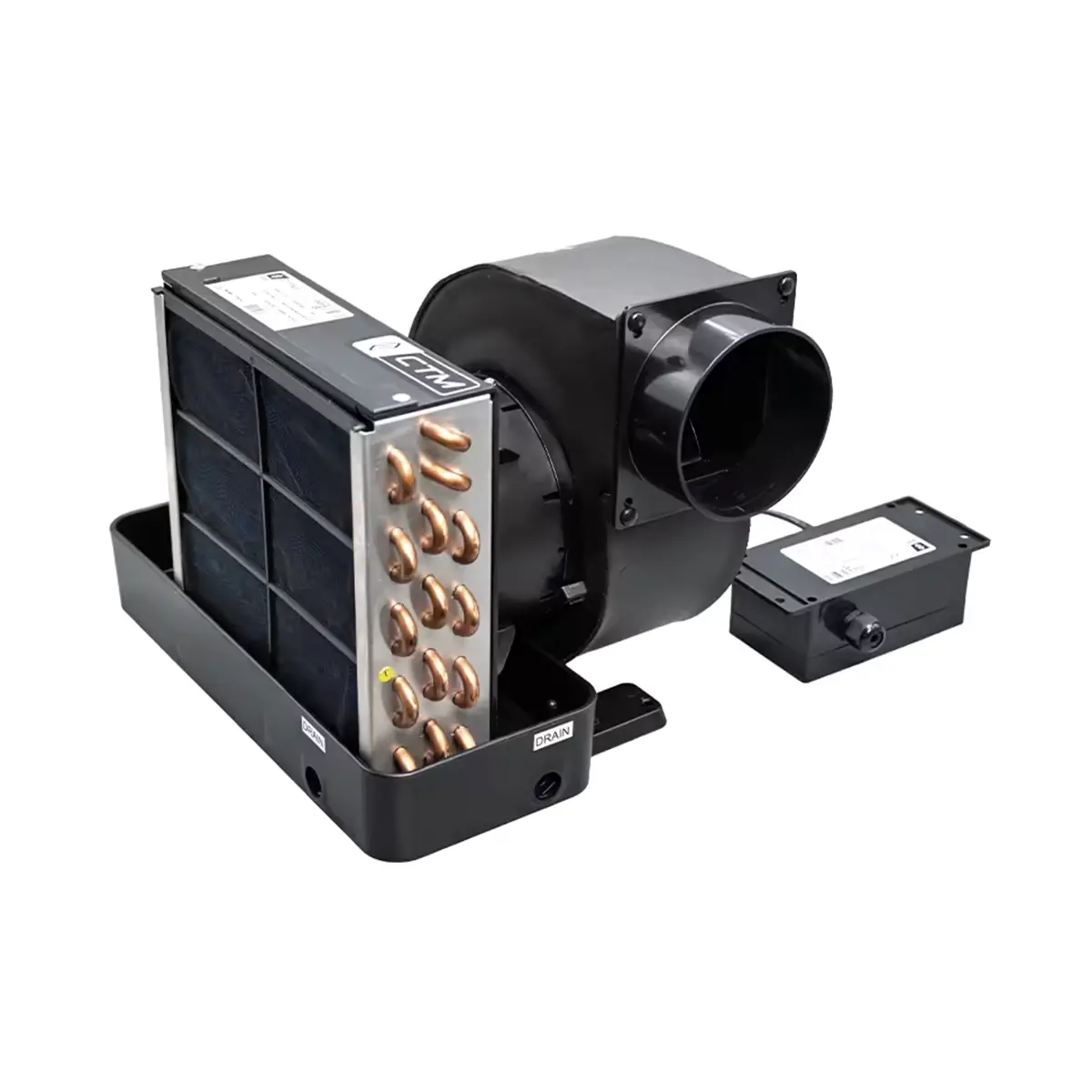

CTM EV-10 10000 BTU Marine Split A/C Evaporator 115V
$590.00
CTM EV-10 10000 BTU Marine Split A/C Evaporator 115V is a marine split evaporator unit built for 50/60Hz operation with R410A refrigerant. It features stainless steel hardware, corrosion-resistant construction, and a compact air handler format suitable for new installs or replacement projects.
Overview CTM EV-10 10000 BTU Marine Split A/C Evaporator 115V
CTM EV-10 10000 BTU Marine Split A/C Evaporator 115V is a marine split evaporator unit designed for 100-120V, 50/60Hz operation and R410A refrigerant systems. This 10,000 BTU model is built for buyers who need a compact marine air handler with corrosion-resistant construction, including stainless steel bolts and a stainless steel structural pan.
The EV-10 is also presented as a replacement option for major marine A/C brands including Dometic, Marine Air, and Cruisair. That makes it relevant for retrofit projects as well as new split-system installations where the buyer needs a clearly specified evaporator unit.
Key Features of CTM EV-10 10000 BTU Marine Split A/C Evaporator 115V
- 10,000 BTU capacity for marine split A/C evaporator applications.
- 100-120V, 50-60Hz operation for boats using 115V-class electrical systems.
- Marine split evaporator / air handler format stated in the product data.
- R410A refrigerant is specified for this exact model.

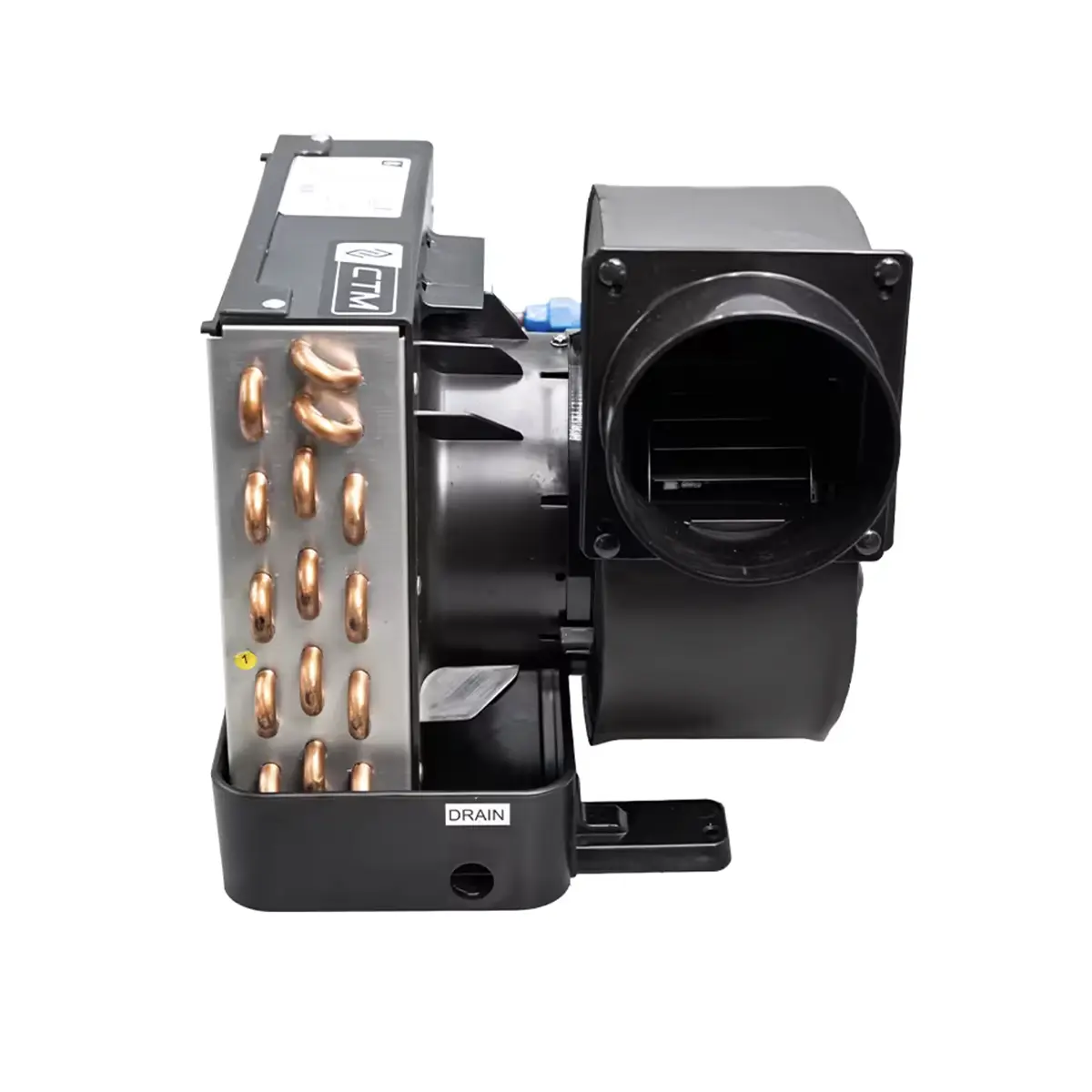

- Stainless steel bolts and structural pan help support corrosion-resistant performance in marine environments.
- 350 CFM blower airflow and 1200 RPM blower speed provide clear model-specific air delivery details.
- 5-inch blower duct size is listed for installation reference.
- Discharge and suction connection sizes are provided to help confirm system fit.
- 19.84 lbs net weight supports a compact product profile within the split-system range.
- Backed by a 2-year warranty.
Applications
This model is suited to buyers looking for a 10,000 BTU marine split A/C evaporator for a new installation or a replacement project on a 115V electrical system. It can be a practical option where a split-system configuration is required and the buyer needs a compact air handler with clearly stated blower and connection specifications.
Because the product information presents it as a replacement option for several major marine A/C brands, the EV-10 may also be useful in retrofit work where matching an existing split A/C layout is important. Its blower airflow, duct size, and refrigerant specification also help buyers assess system compatibility more carefully.
Why Choose This Marine Air Conditioner
The CTM EV-10 gives buyers a clearly defined 10,000 BTU split-system evaporator option in the CTM lineup, separating it from condenser units and self-contained marine A/C models. Its buying value comes from the combination of confirmed evaporator-unit design, R410A compatibility, corrosion-resistant stainless steel construction points, and replacement relevance for several established marine A/C brands. For buyers comparing exact specifications, this model also provides clear figures including 350 CFM blower airflow, 1200 RPM blower speed, 5-inch duct size, 19.84 lbs net weight, and a 2-year warranty.
Product Specifications
| Feature | Details |
|---|---|
| Brand | CTM |
| Model | EV-10 |
| Product Type | Marine Split A/C Evaporator |
| Cooling Capacity | 10,000 BTU |
| Voltage | 100-120 V |
| Frequency | 50-60 Hz |
| Phase | 1 |
| Refrigerant Type | R410A |
| Blower Airflow | 350 CFM |
| Blower Speed | 1200 RPM |
| Input Rotor Amps | 1.5 A |
| Locked Rotor Amps | 1.8 A |
| Fuse Max. | 3 A |
| Discharge Connection Size | 1/4 in / 6.35 mm |
| Suction Connection Size | 3/8 in / 9.52 mm |
| Blower Duct Size | 5 in |
| Net Weight | 19.84 lbs / 9 kg |
| Warranty | 2-Year |
What's Included
- CTM EV-10 10,000 BTU marine split A/C evaporator unit
Frequently Asked Questions About CTM EV-10 10000 BTU Marine Split A/C Evaporator 115V
Is the CTM EV-10 a condenser or an evaporator unit?
The product data identifies the EV-10 as a marine evaporator unit. It is presented as part of a split A/C system, so it should be understood as the evaporator or air handler side rather than a condensing unit.
What voltage does the CTM EV-10 require?
This model is listed for 100-120 V operation and 50-60 Hz frequency. It is the 115V-class version of this 10,000 BTU evaporator, so buyers should match it with the intended onboard electrical setup.
Can the EV-10 replace other marine split A/C brands?
The product information states that it works as a replacement for major marine A/C brands including Dometic, Marine Air, and Cruisair. Exact installation fit should still be checked before purchase because physical fitment details beyond the listed specifications are not provided here.
What airflow and connection specifications are listed for this unit?
The EV-10 has a listed blower airflow of 350 CFM and blower speed of 1200 RPM. The discharge connection size is 1/4 inch / 6.35 mm, the suction connection size is 3/8 inch / 9.52 mm, and the blower duct size is 5 inches. These details help buyers evaluate fit for the intended marine split A/C setup.
