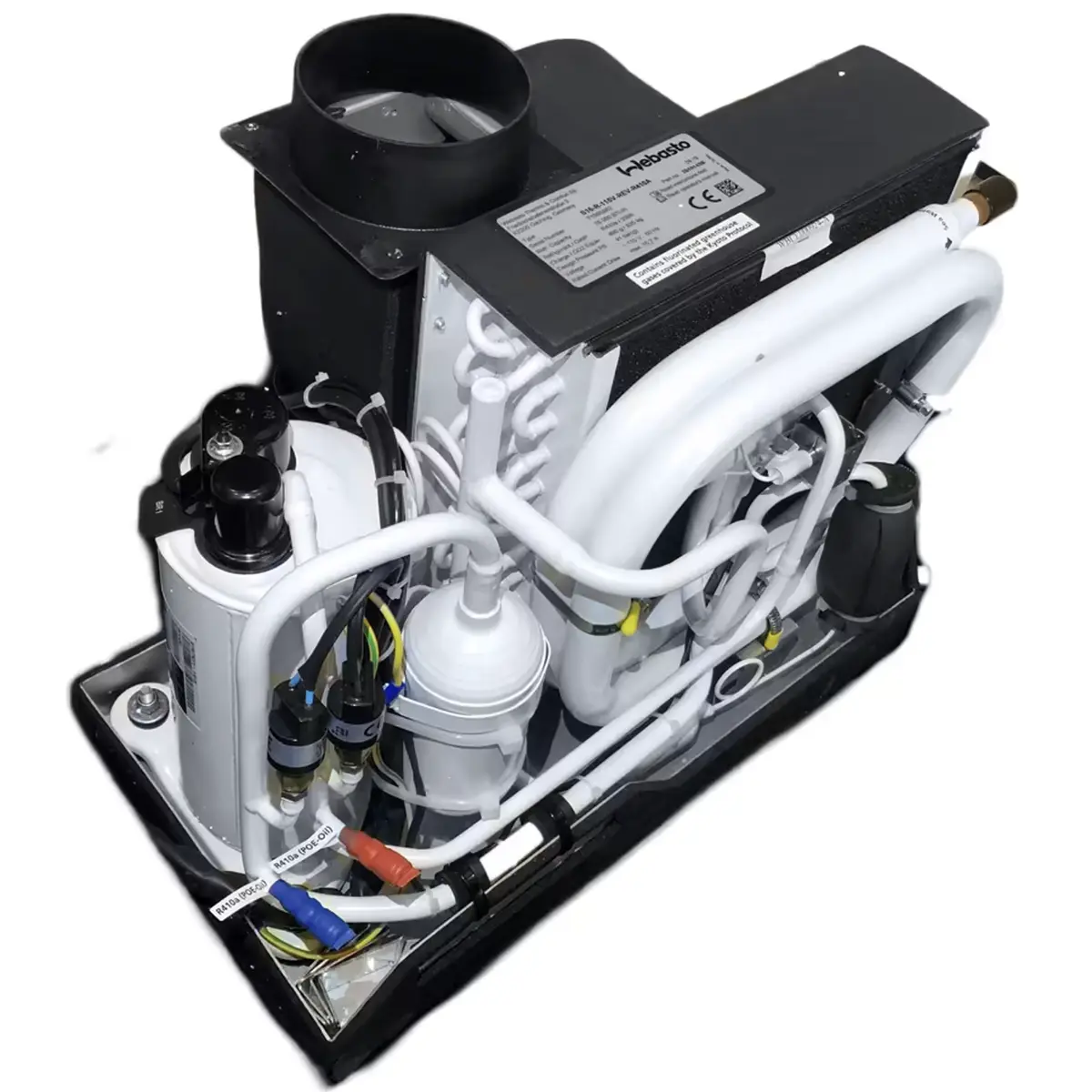

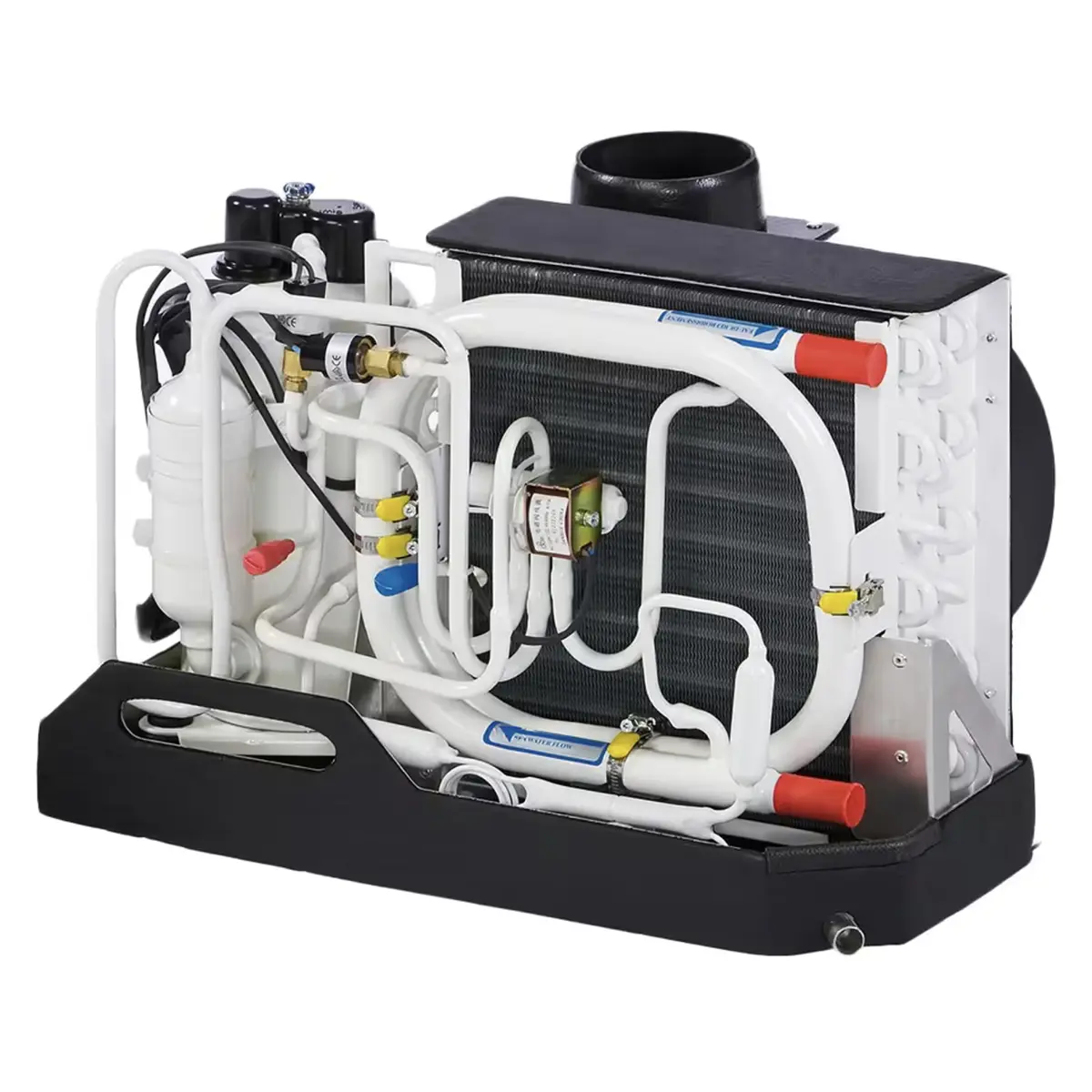

Webasto S13 BlueCool 13000 BTU Marine AC 230V
$1,510.00
Webasto S13 BlueCool 13000 BTU Marine AC 230V is a self-contained marine air conditioner with reverse cycle heating, MyTouch digital control, and a 270° rotatable blower. Built for compact onboard installation, it features corrosion-protected construction, USB diagnosis capability, and 50/60 Hz compatibility for worldwide use.
Overview Webasto S13 BlueCool 13000 BTU Marine AC 230V
Webasto S13 BlueCool 13000 BTU Marine AC 230V is a self-contained marine air conditioner designed for quiet, powerful, and efficient onboard climate control. This 230V model includes reverse cycle heating, a MyTouch digital display, and a high-velocity 270° rotatable blower, giving buyers a compact system with clearly defined control and airflow components. It is also updated for 50/60 Hz compatibility, making it suitable for worldwide usage based on the provided product data.
The unit is epoxy-painted and fitted with a stainless steel drain pan for corrosion protection in marine environments. It is mounted on an extra-deep, thermally insulated stainless steel tray and uses updated electronics with USB diagnosis support. With its compact self-contained layout and included electrical box, this model is set up for straightforward installation planning in marine applications.
Key Features of Webasto S13 BlueCool 13000 BTU Marine AC 230V
- 13,000 BTU/h cooling capacity with reverse cycle heating integrated.
- 230V operation with 50/60 Hz compatibility for worldwide usage.
- MyTouch digital control with bezel is included.
- High-velocity 270° rotatable blower supports flexible air delivery.
- Epoxy-painted construction and stainless steel drain pan support corrosion protection.
- Mounted on an extra-deep, thermally insulated stainless steel tray.
- New electronics with USB diagnosis support BlueCool Expert Tool connection.
- Multi-point injection evaporator is designed for higher unit efficiency.
- Recommended seawater pump is WB350.
- Soft start devices are available as an option.
Applications
This model is suitable for marine installations that require a 230V self-contained air conditioner with 13,000 BTU cooling and reverse cycle heating. Its compact layout, included MyTouch control, and defined seawater flow requirements make it practical for buyers planning a marine HVAC installation or replacement. The 50/60 Hz compatibility also supports use in applications where broader power compatibility matters.
Why Choose This Marine Air Conditioner
The BlueCool S13 gives buyers a clearly specified self-contained marine A/C option with included digital control, reverse cycle heating, and corrosion-protected construction. Its 270° blower, USB diagnosis capability, and compact one-tray layout help make installation and service evaluation more straightforward. With a 2-year warranty and verified technical data, it offers solid product clarity for marine climate control upgrades.
Product Specifications
| Feature | Details |
|---|---|
| Brand | Webasto |
| Model | S13 BlueCool S Series |
| Part Number | WBCL120003E |
| Replaces Part Number | WBCL120003D |
| System Type | Self-Contained |
| Cooling Capacity | 13,000 BTU/h |
| Cooling Capacity (kW) | 3.8 |
| Heating | Reverse cycle integrated |
| Voltage | 230V |
| Frequency | 50/60Hz |
| Current Draw Running (50 Hz) | 3.6 - 6.3A |
| Start Max Peak Current (50 Hz) | 37A |
| Air Flow (Free Blowing) | 500 m3/h (294 cfm) |
| Sea Water Connection | 19 mm / 3/4 in |
| Minimum Sea Water Flow at 50 Hz | 12 l/min |
| Minimum Sea Water Flow at 60 Hz | 14 l/min |
| Recommended Seawater Pump | WB350 |
| Blower Connection | 125 mm / 5 in |
| Unit Dimensions | 500 x 350 x 320 mm (19.7 x 13.8 x 12.6 in) |
| Weight Core Unit | 27 kg / 60 lb |
| Warranty | 2-Year Warranty |
What's Included
- Webasto S13 BlueCool S Series 13000 BTU Marine Air Conditioner - 230V
- 5" ducting collar
- High-velocity 270° rotatable blower
- Remote mount electrical box
- MyTouch digital control with bezel
- Air filter
- R410A refrigerant
Frequently Asked Questions About Webasto S13 BlueCool 13000 BTU Marine AC 230V
Does this unit include both cooling and heating?
Yes. The technical data lists 13,000 BTU/h cooling capacity and confirms that heating via reverse cycle is integrated. That means this unit provides both cooling and heating in one self-contained system.
What control display is included with this model?
This unit includes the BlueCool MyTouch digital control with bezel. The product data describes it as a full-color, high-resolution 2.4-inch interactive touch screen with multiple customization options and protected access to system configuration parameters.
Is this model suitable for worldwide usage?
Yes. The product data states that the unit is fully 50/60 Hz compatible and suitable for worldwide usage. That makes it more flexible for installations requiring 230V operation across different frequency standards.
What should I check before ordering this marine air conditioner?
Check the 230V power requirement, the 3/4-inch sea water connection, and the minimum sea water flow of 12 l/min at 50 Hz or 14 l/min at 60 Hz. You should also confirm the 5-inch blower connection, unit dimensions of 19.7 x 13.8 x 12.6 inches, and the recommended WB350 seawater pump.
